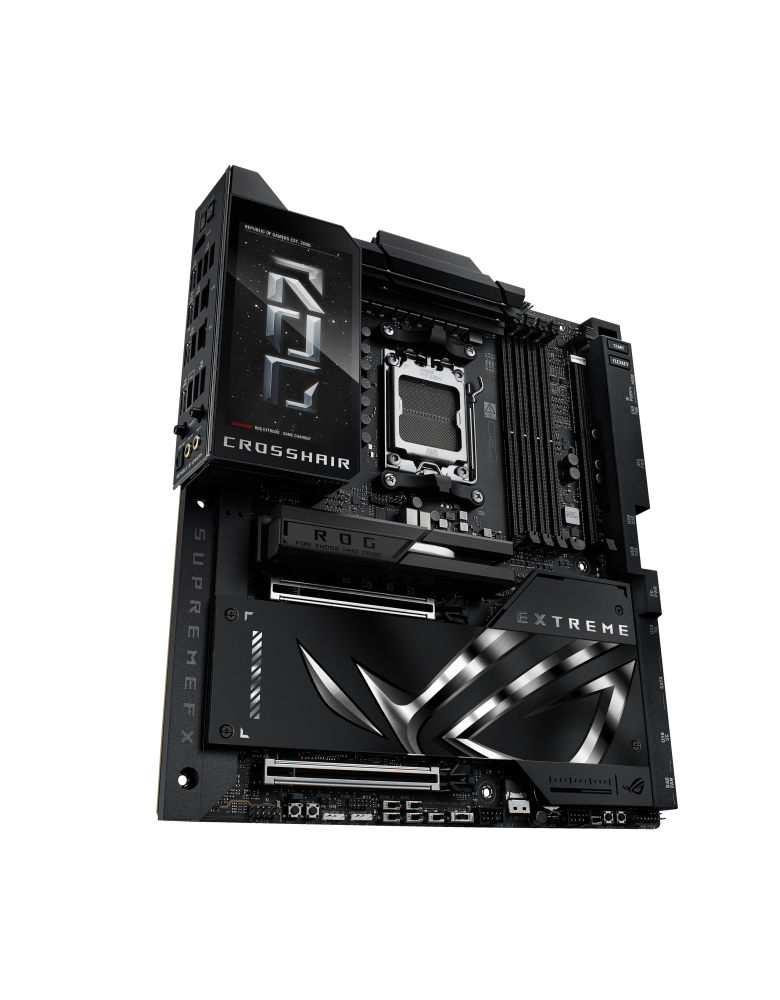

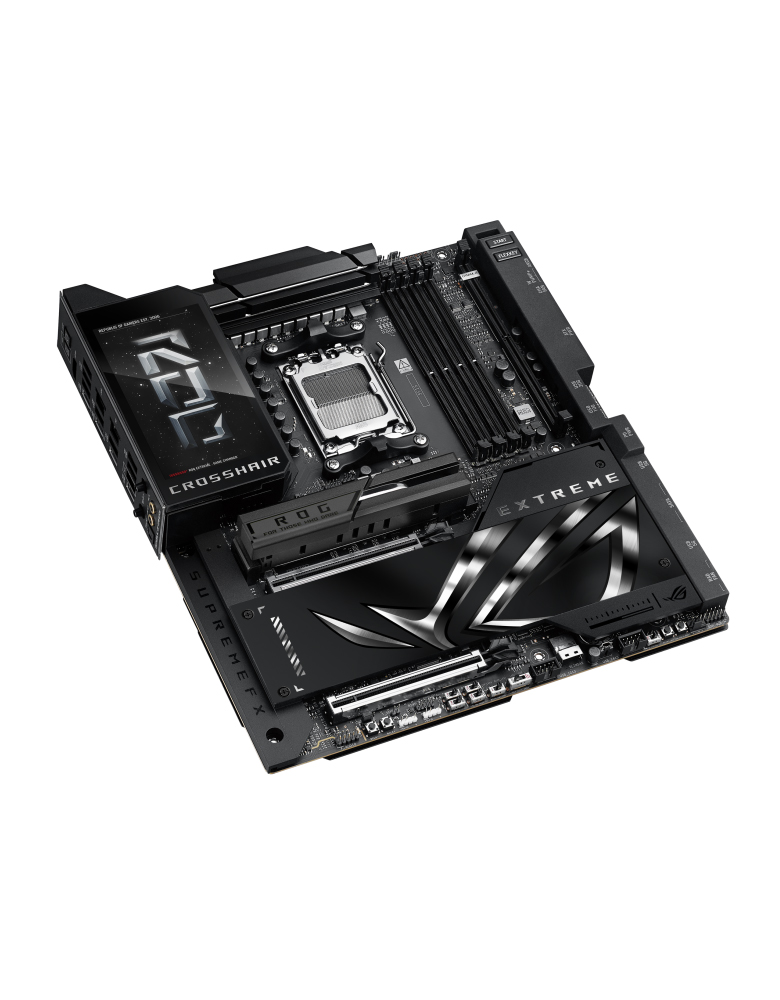

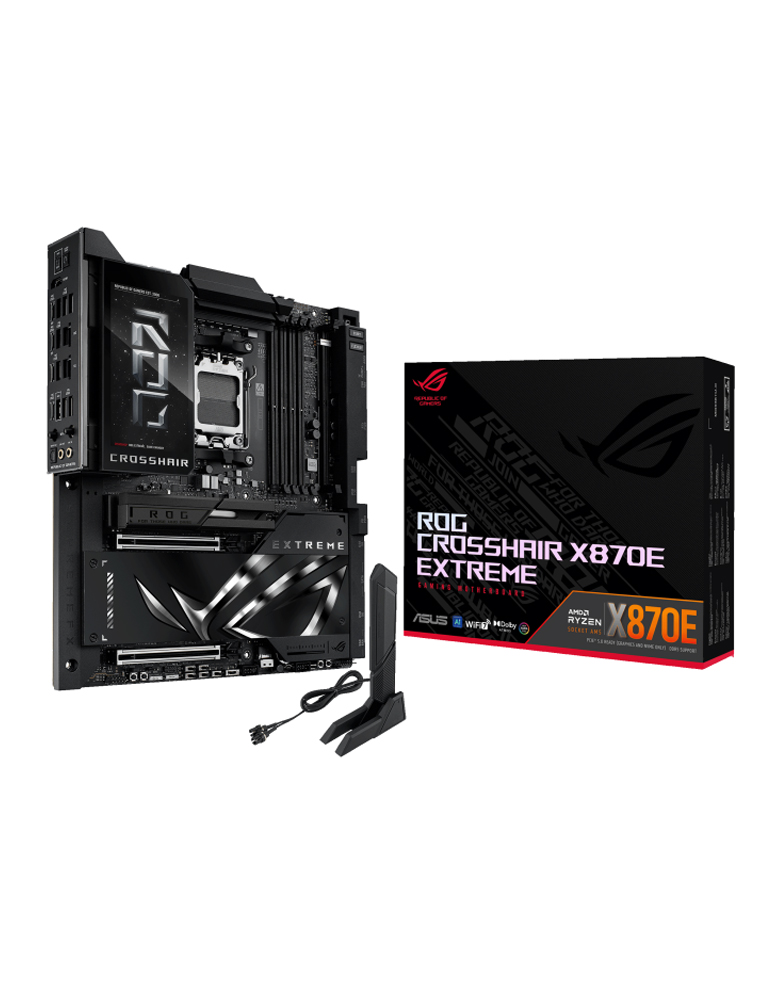

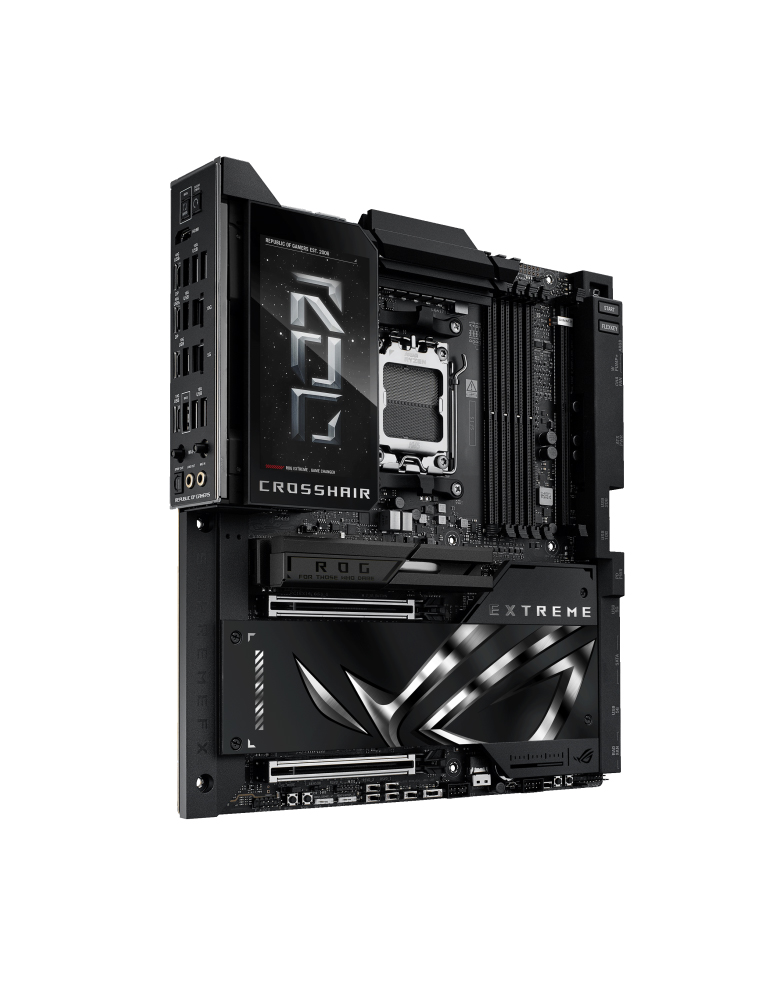

ASUS ROG Crosshair X870E Extreme EATX Motherboard AM5 | WIFI 7 | USB4 | GEN 5 | 5″ LCD Screen

The ROG Crosshair X870E Extreme features a full-color 5-inch LCD screen that can show exclusive ROG animations, system information and even personalized services* through Armoury Crate, empowering gamers to define their unique style on a vibrant display.

BIOS Q-DASHBOARD
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and >straightforward way.

ai OVERCLOCKING
Tuning is now faster and smarter than ever before.

AI COOLING II
Balance the thermals and acoustics of any build with a single click.

Specification:

• CPU:

  • AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
  • Refer to ASUS support for the CPU support list.

• Chipset:

  • AMD X870E

• Memory:

  • 4 x DIMM slots, max. 256GB, DDR5
  • Supports up to:
    • 8200+MT/s (OC) with Ryzen™ 9000 Series Processors
    • 9000+MT/s (OC) with Ryzen™ 8000 Series Processors
    • 8000+MT/s (OC) with Ryzen™ 7000 Series Processors
  • ECC and Non-ECC, Un-buffered DIMM
  • Dual Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
  • NitroPath DRAM Technology
  • Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics:

  • 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1)
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs (Supports max. 4K@60Hz as specified in DisplayPort 1.4a)
  • Graphics specifications may vary between CPU types; refer to AMD CPU specifications.
  • VGA resolution support depends on processors’ or graphic cards’ resolution.

• Expansion Slots:

  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
    • 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes)
    • When both PCIEX16(G5)_1 and PCIEX16(G5)_2 are used, they will run x8.
    • When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4.
    • When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled.
  • AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors:
    • 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
  • AMD Ryzen™ 8500 & 8300 Series Desktop Processors:
    • 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)
  • Please check the PCIe bifurcation table on the ASUS support site for compatibility.

• Storage:

  • Supports up to 5 x M.2 slots, 1 x SlimSAS connector, and 4 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
    • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors:
    • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • M.2_2 slot (Key M) (Not supported)
    • M.2_3 slot (Key M) (Not supported)
  • AMD X870E Chipset:
    • DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable (purchased separately).
  • 4 x SATA 6Gb/s ports
  • Note: When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4, M.2_2 will be disabled.
  • AMD RAIDXpert2 Technology:
    • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
    • Ryzen™ 8000 Series Processors: RAID 0/1
    • Ryzen™ 7000 Series Processors: RAID 0/1/10

• Ethernet:

  • 1 x Realtek 5Gb Ethernet
  • 1 x Marvell® AQtion 10Gb Ethernet
  • ASUS LANGuard

• Wireless & Bluetooth:

  • Wi-Fi 7 (802.11be) 2×2
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
  • Bluetooth® v5.4
  • Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 requires 24H2 or later for full functions.

• USB:

  • Rear USB (Total 12 ports):
    • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
    • 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®)
  • Front USB (Total 10 ports):
    • 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)
    • 1 x USB 10Gbps connector (supports USB Type-C®)
    • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
    • USB Type-C® power delivery output: max. 5V/3A (or 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A with 8-pin PCIe power connector)

• Audio:

  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
  • Impedance sense for front and and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
  • Audio Features: SupremeFX Shielding Technology, ESS® ES9219 QUAD DAC, LED-illuminated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors.
  • A chassis with an HD audio module in the front panel is required for 7.1 Surround Sound.

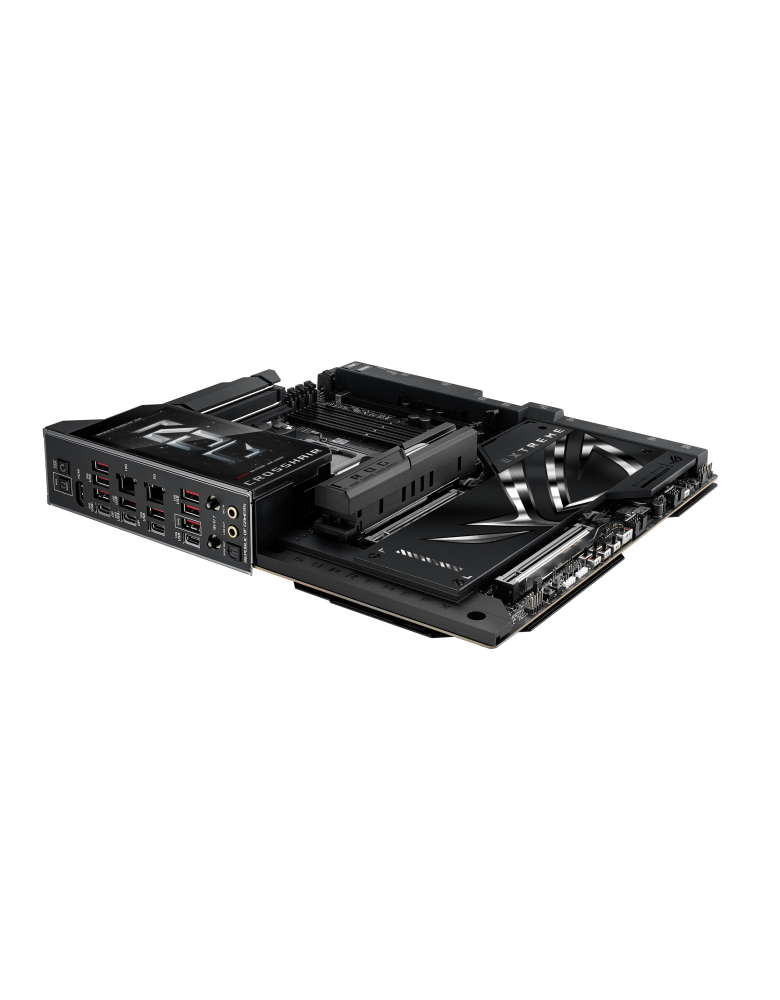

• Back Panel I/O Ports:

  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®)
  • 1 x HDMI™ port
  • 1 x Wi-Fi Module
  • 1 x Realtek 5Gb Ethernet port
  • 1 x Marvell® AQtion 10Gb Ethernet port
  • 2 x LED-illuminated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button

• Internal I/O Connectors:

  • Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, 2 x 4-pin Radiator Fan headers, 2 x W_PUMP+ headers, 1 x VRM Heatsink Fan header.
  • Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, 1 x 8-pin PCIe Power connector.
  • Storage related: 3 x M.2 slots (Key M), 1 x DIMM.2 slot supports 2 x M.2 slots (Key M), 1 x SlimSAS connector, 4 x SATA 6Gb/s ports.
  • USB: 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports.
  • Miscellaneous: 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers, 2 x Addressable Gen 2 header, 1 x Alteration PCIe mode switch, 2 x BCLK button, 1 x BIOS Switch, 1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x LN2 Mode jumper, 12 x ProbeIt Measurement Points, 1 x ReTry button, 2 x RSVD switches, 1 x RSVD header, 1 x Safe Boot button, 1 x Slow Mode switch, 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header, 1 x Pause switch.

• Special Features:

  • Extreme OC Kit: FlexKey button, LN2 Mode, ProbeIt, ReTry button, Safe boot button, Start button, Slow Mode.
  • Extreme Engine Digi+: 10K Black Metallic Capacitors, MicroFine Alloy Choke.
  • ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Slot, Q-DIMM.2.
  • ASUS Thermal Solution: Fan bracket, M.2 heatsink backplate, M.2 heatsink, Metal backplate, VRM heatsink design, 3D VC M.2 Heatsink.
  • ASUS EZ DIY: Backplate, BIOS FlashBack™ button, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM.
  • Aura Sync: Addressable Gen 2 headers.
  • Dual BIOS
  • Full Color 5″ LCD Display
  • Front Panel USB 20Gbps with Quick Charge 4+ Support: Up to 60W fast charging and USB Wattage Watcher (requires 8-pin PCIe power connector for 60W), compatible with PD3.0 and PPS.

• Software Features:

  • ROG Exclusive Software: ROG CPU-Z, Dolby Atmos, Internet Security (1-year full version).
  • ASUS Exclusive Software: Armoury Crate (AIDA64 Extreme (1 year full version), Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), GameFirst, HWiNFO, Power Saving, LCD Display), ASUS AI Advisor, ASUS DriverHub, Turbo Vcore, ASUS GlideX, USB Wattage Watcher, WinRAR (40 Days Free Trial), Adobe Creative Cloud (Free Trial).
  • UEFI BIOS: AI Overclocking Guide, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey), FlexKey.

• BIOS:

  • 2 x 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability:

  • WOL by PME

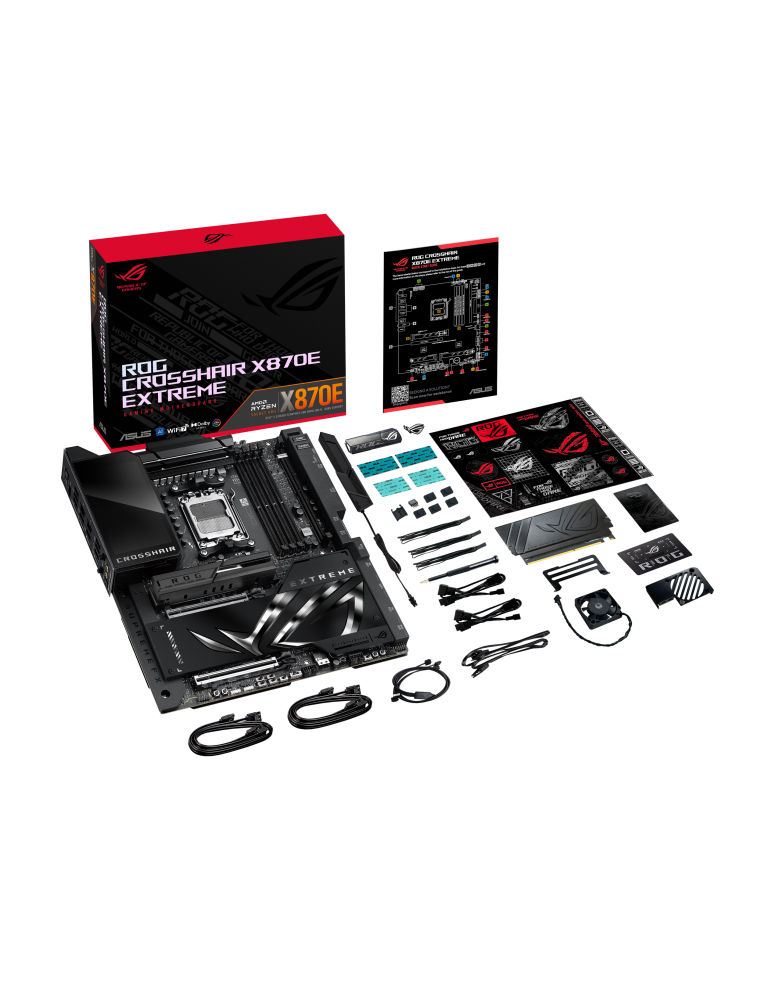

• Accessories:

  • Cables: 1 x 1-to-3 ARGB splitter cable, 1 x 1-to-2 ARGB splitter cable, 2 x 1-to-4 fan splitter cable, 2 x ROG weave SATA 6G cable packages, 1 x 3-in-1 Thermistor cables pack.
  • ROG Q-DIMM.2 with Heatsink: 1 x ROG DIMM.2 with heatsink, 1 x M.2 pad package for ROG Q-DIMM.2, 2 x Thermal pad for ROG Q-DIMM.2.
  • Additional Cooling Kit: 2 x Thermal pad for M.2 22110, 1 x DDR5 Fan holder, 1 x ROG Fan Kit.
  • Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, 1 x ROG logo plate sticker, 1 x ROG screwdriver, 1 x ROG stickers, 1 x ROG VIP card, 1 x M.2 Q-Slide package, 5 x M.2 backplate rubber packages, 1 x ROG Bottle Opener.
  • Installation Media: 1 x USB drive with utilities and drivers.
  • Documentation: 1 x Quick start guide.

• Operating System:

  • Windows® 11

• Form Factor:

  • E-ATX Form Factor
  • 12 inch x 10.9 inch (30.5 cm x 27.7 cm)
