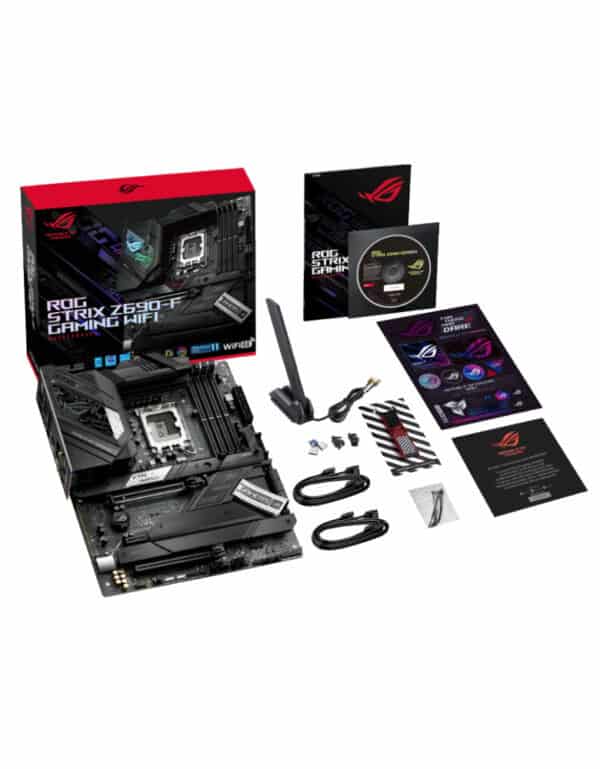

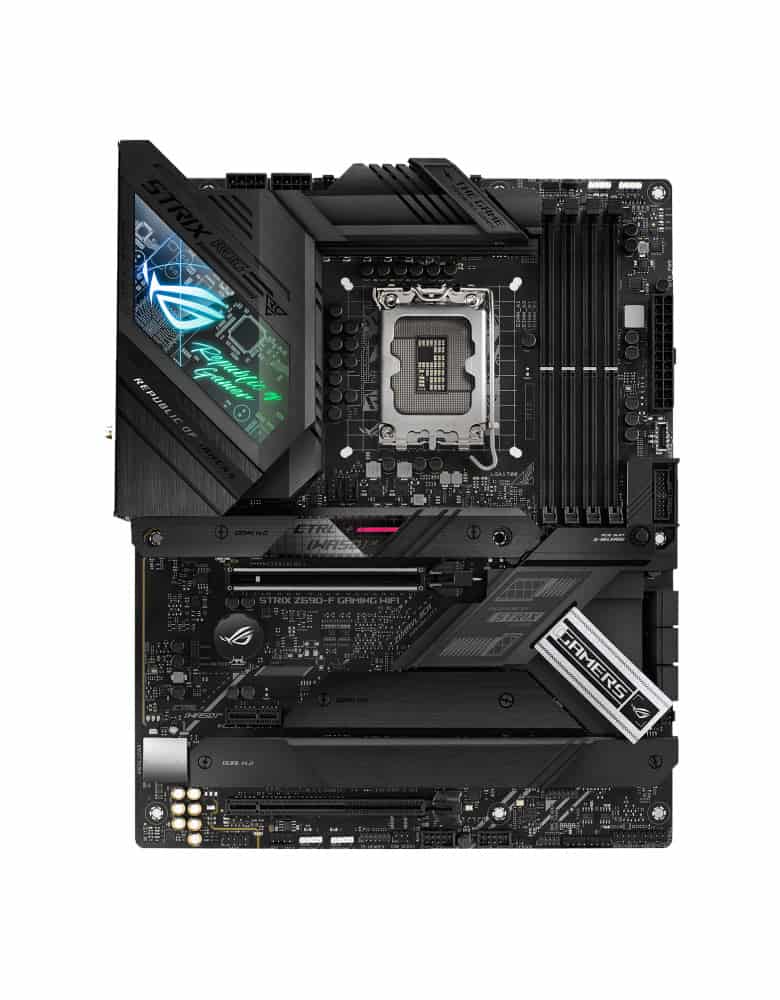

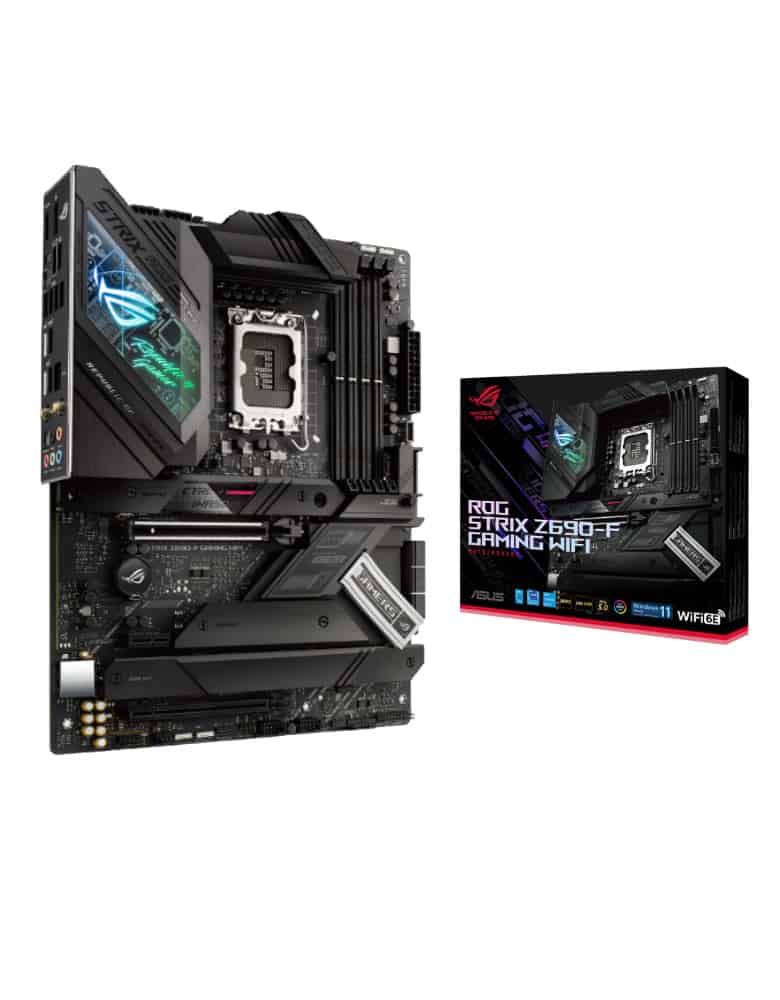

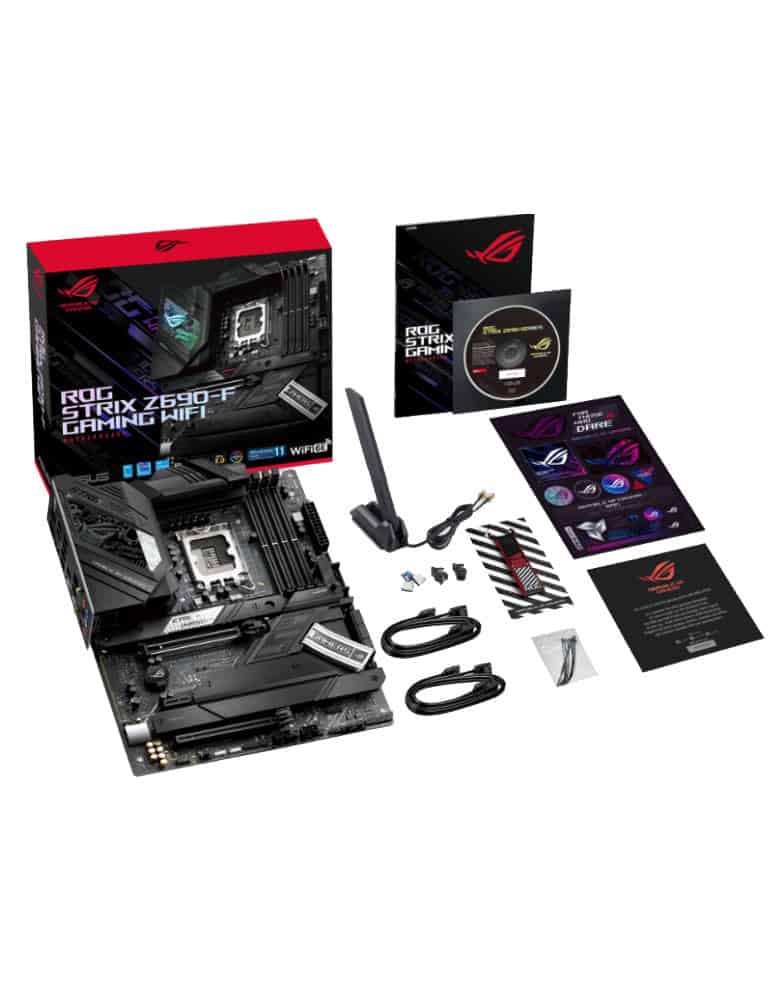

Asus ROG Strix Z690-F Gaming Wifi Motherboard

SKU : 4123456680573

Warranty Guidelines

Warranty is a 7-day replacement for factory defect, subject to certain guidelines and brands.

₱19,995.00

Or 3 months interest-free payments of ₱6,665.00 with bdobpi

In stock

Add to Wishlist
Add to Wishlist
Product Description

Intel Z690 LGA 1700 ATX motherboard with PCIe  5.0, 16+1 power stages, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, four M.2 slots with heatsinks, PCIe 4.0 NVMe SSD support, M.2 backplate, PCIe  Slot Q-Release, USB 3.2 Gen 2×2 Type-C , SATA and Aura Sync RGB lighting

  • Ready for 12th Gen Intel  Core™, Pentium  Gold and Celeron  processors
  • Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
  • High-performance Networking: On-board Intel  WiFi 6E (802.11ax) and Intel  2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI  2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 Type-C
  • Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design:  PCIe  Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
  • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS  Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86



Core Specifications
Edition ROG STRIX Z690-F GAMING WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 – 4800
  • DDR5 – 5000(OC)
  • DDR5 – 5200(OC)
  • DDR5 – 5400(OC)
  • DDR5 – 5600(OC)
  • DDR5 – 5800(OC)
  • DDR5 – 6000(OC)
  • DDR5 – 6200(OC)
  • DDR5 – 6400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 5.0 x16
SATA Support N/A
RAID Support via SATA
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Aura Addressable Gen2 Header
  • 1 x Aura RGB Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 6 x SATA III – 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
