Asus ZenWIFI XD6 AX5400 2-Pack Dual-Band Mesh WiFi 6 Router
Warranty is a 7-day replacement for factory defect, subject to certain guidelines and brands.

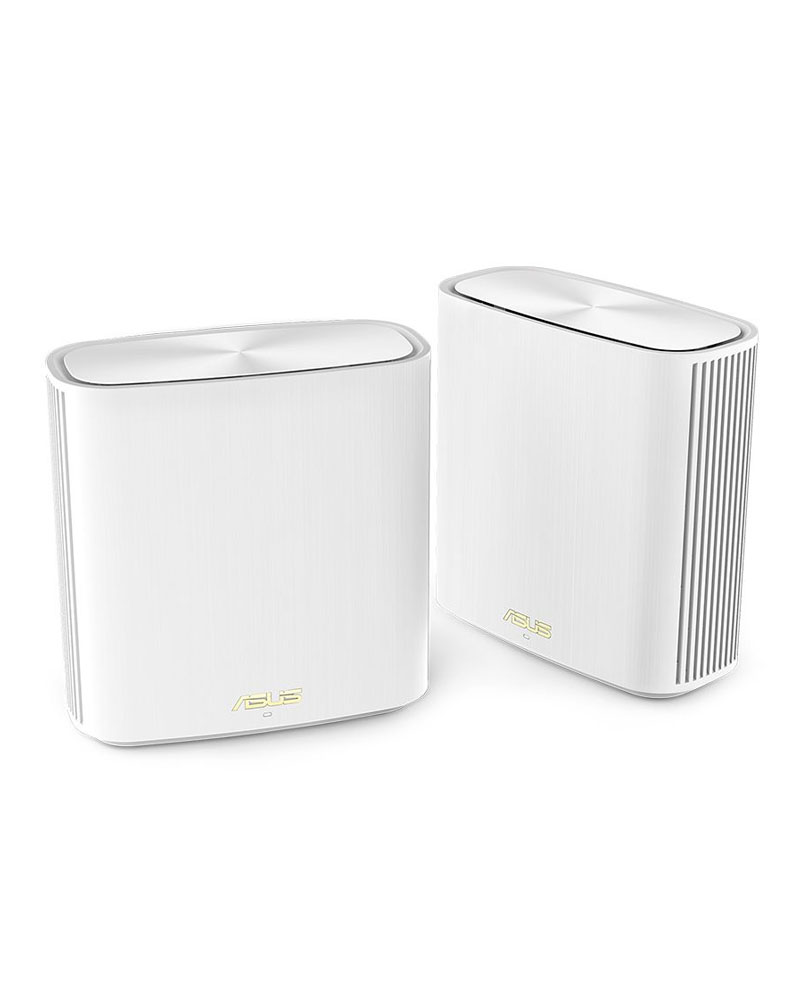

The ZenWiFi XD6 system consists of a pair of ASUS AX5400 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
Smart & Flexible Backhaul Configuration
ASUS ZenWiFi XD6 gives you alternative backhaul options: Ethernet and WiFi. The router intelligently chooses the most reliable method for you based on connection quality. If you prefer, you can also manually choose the type of backhaul connection.
ZenWiFi XD6 puts your WiFi into top gear! With a total bandwidth of up to 5400 Mbps, it’s up to 2.2X faster* than WiFi 5 routers**.
*The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
* Compatible WiFi 6 device required.
** The data compares speed of 4×4 11ax on 5GHz 160MHz bandwidth with 1024QAM modulation to speed of 4×4 11ac on 5GHz 80MHz with 256QAM modulation.
*** The number of speed is calculated with data rate of 2.4 GHz band and of 5 GHz band, which are respectively 574 and 4804 Mbps. And the DFS channels may not be supported in some countries due to local regulations.
Make the Internet a Safer Place for Everyone
AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that’s happening on your network via the mobile app.
More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via ZenWiFi XD6 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi XD6 , you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
|Product Segment||AX5400 ultimate AX performance : 574+4804 Mbps|
|Data Rate||802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4808 Mbps
|Antenna||internal antenna x 6|
|Transmit/Receive||2.4 GHz 2 x 2
5 GHz 4 x 4
|Processor||1.5 GHz tri-core processor|
|Memory||256 MB Flash
512 MB RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
1024-QAM high data rate
20/40/80/160 MHz bandwidth
|Operating Frequency||2.4 G Hz / 5 GHz|

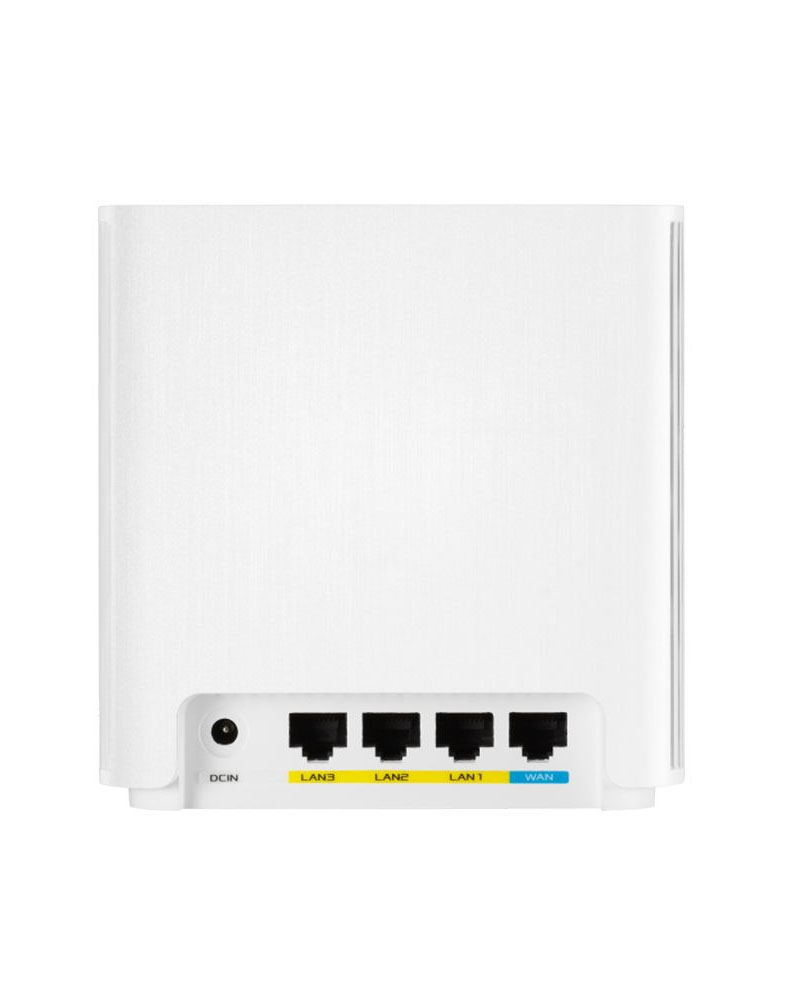

|Ports||RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3|
|Button||WPS Button, Reset Button|
|LED Indicator||Power x 1|
|Power Supply||AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current
|Package Content||ZenWiFi XD6
Quick start guide
|AiMesh||AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
|Router App||ASUS Router APP : Yes|
|Game||Game Boost/acceleration : No
WTFast : No
|Alexa||Support Alexa skill : Yes|
|IFTTT||Support IFTTT : No|
|AiProtection||AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes
|Parental Control||Parental Control : Yes
Parental Control Customized Internet schedule : Yes
|Traffic Control||Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Website history : Yes
|Wireless||IPv6 : Yes
MU-MIMO : Yes
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 9
Guest Network Connection time limit : Yes
Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : No
Universal beamforming : Yes
Explicit beamforming : Yes
|WAN||Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : No
Android tethering : No
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
DMZ : Yes
DDNS : Yes
Let’s Encrypt : Yes
DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No
HDD hibernation : No
Safely Remove disk : No
AiCloud : No
Download master : No
AiDisk : No
Media Server : No
Time Machine : No
Samba Server : No
FTP Server : No
Shared Folder privileges : No
Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
