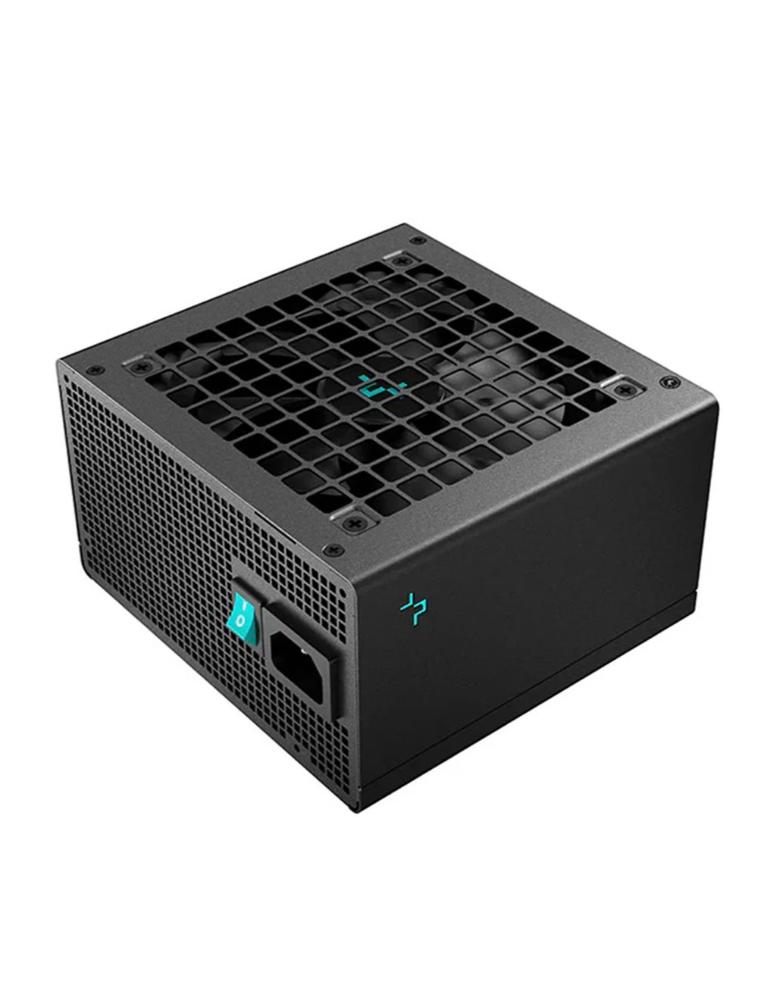

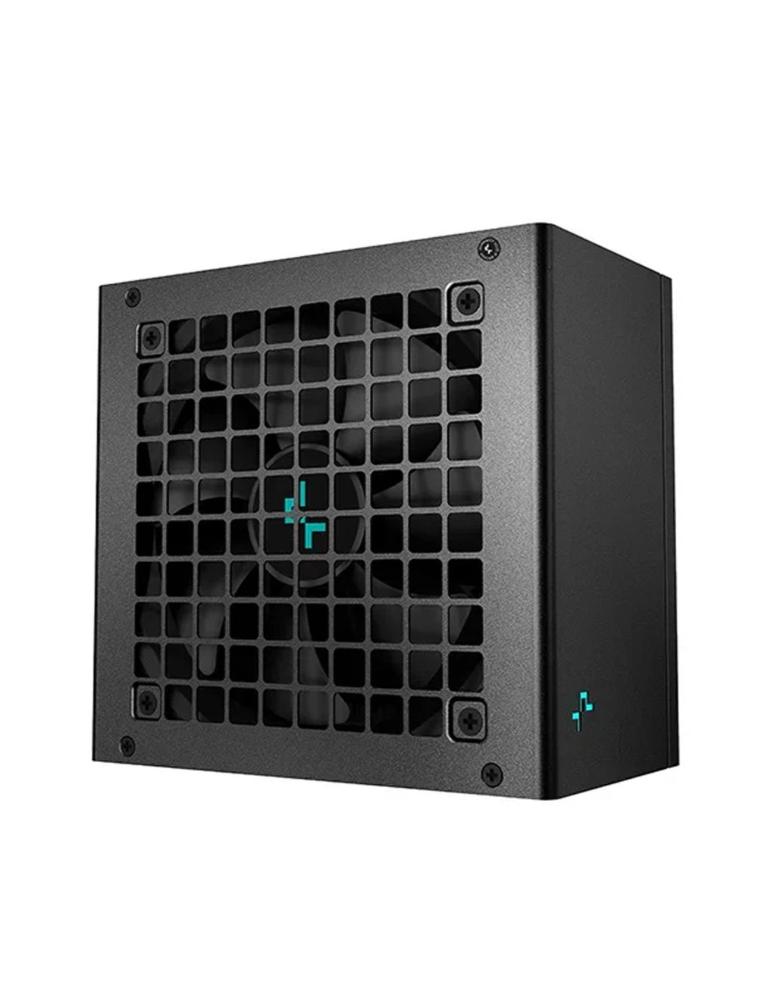

DeepCool 750W, 850W 80 Plus Gold Fully Modular Power Supply

The DeepCool DQ750M-V3L and DQ850M-V3L is a fully modular power supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance + DC/DC architecture, and uses all Japanese capacitors. The power output is stable and efficient, making it an excellent choice for AAA games.

Specification

Type:  ATX12V V2.4
Product Dimensions:  150×140×86mm (W x L x H)
80 PLUS Certifications:  Gold
Fan Size:  120mm
Fan Bearing:  FDB (Fluid Dynamic Bearing)
Topology:  Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors:  Full Japan Electrolytic Capacitors
Power Good Signal:  100-500ms
Hold Up Time:  ≥16ms(80% Load)                                                                                                                                                                                                                                                                            Efficiency:  ≥90% Under Typical Load(50% Loading)
Protection:  SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature:  0 – 40 °C
Regulatory:  CB/CCC/CE/FCC/UKCA/BIS/EAC/CAN ICES-003(B)/NMB-003(B)
Erp Regulation:  ErP 2014
MTBF:  100,000 Hours
