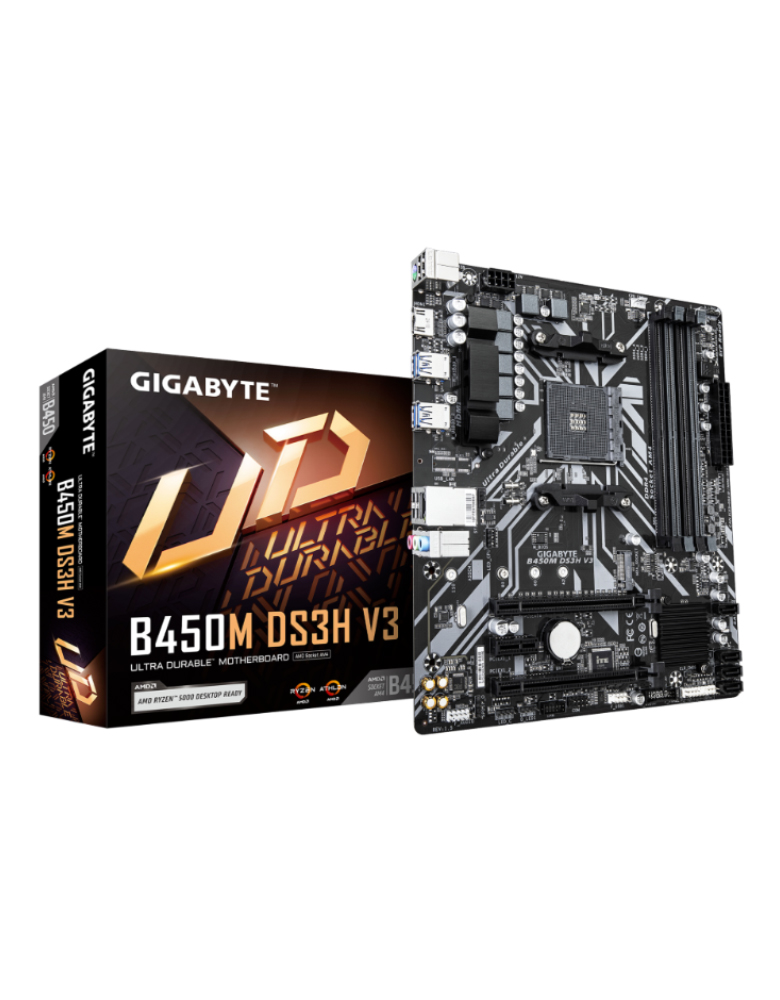

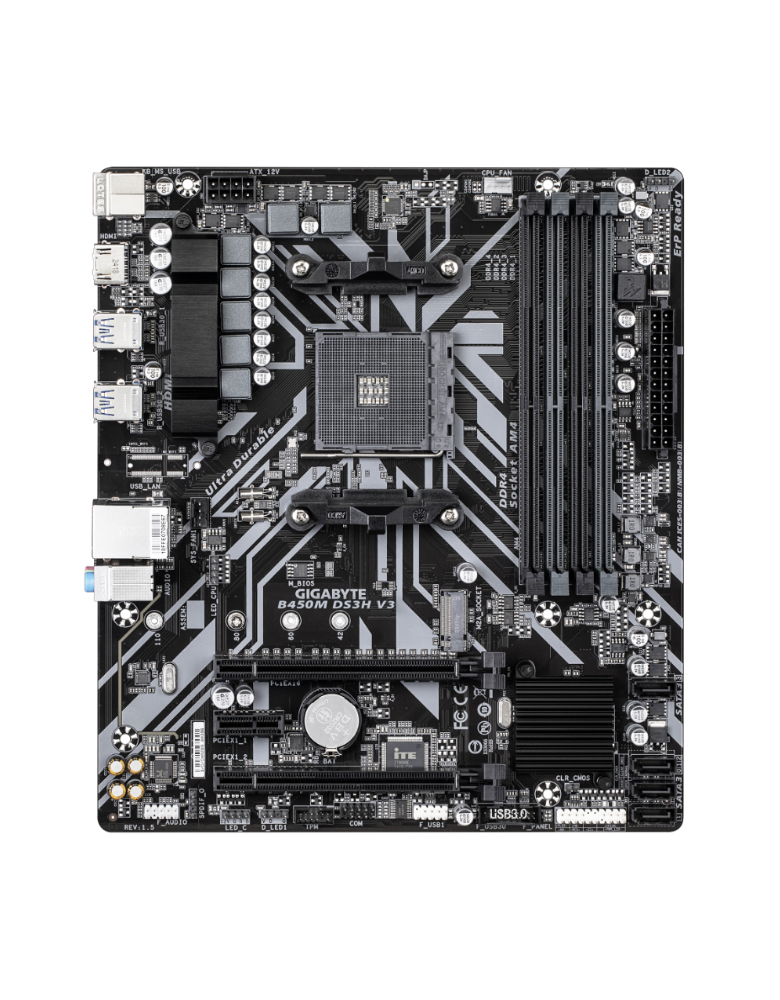

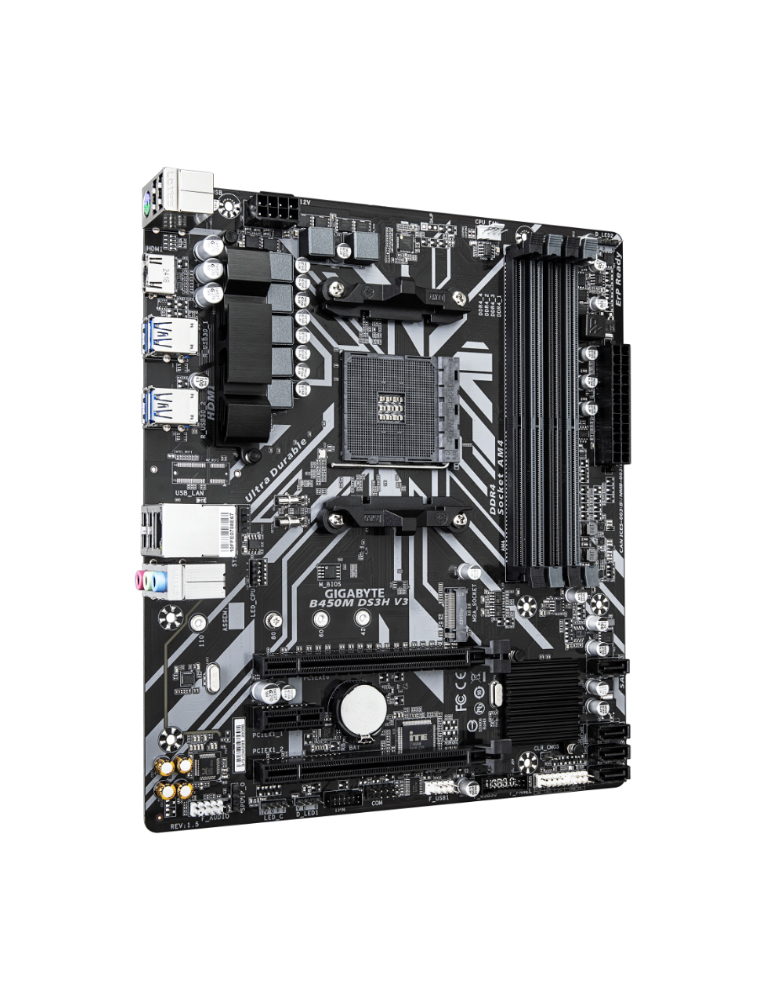

Gigabyte B450M DS3H V3 AM4 Rev 1.5 Socket

AMD B450 Ultra Durable Motherboard with Realtek® GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, CEC 2019 ready

Features:

• Supports AMD Ryzen™ 5000 series/ Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/
• Athlon™ with Radeon™ Vega Graphics Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• High Quality Audio Capacitors and Audio Noise Guard Design
• RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
• Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• CEC 2019 Ready, Save Power with a Simple Click

Specification:

• CPU :
  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ AMD Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™/ 1st Generation AMD Ryzen™/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
• Chipset:
  • AMD B450
• Memory:
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for DDR4 2933/2667/2400/2133 MT/s memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics:
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz(Note)
    * Support for HDMI 2.1 version and HDCP 2.2.(Note)
    Maximum shared memory of 16 GB
• Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 1 x RGB LED strip header
  • 2 x addressable LED strip headers
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.1 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper

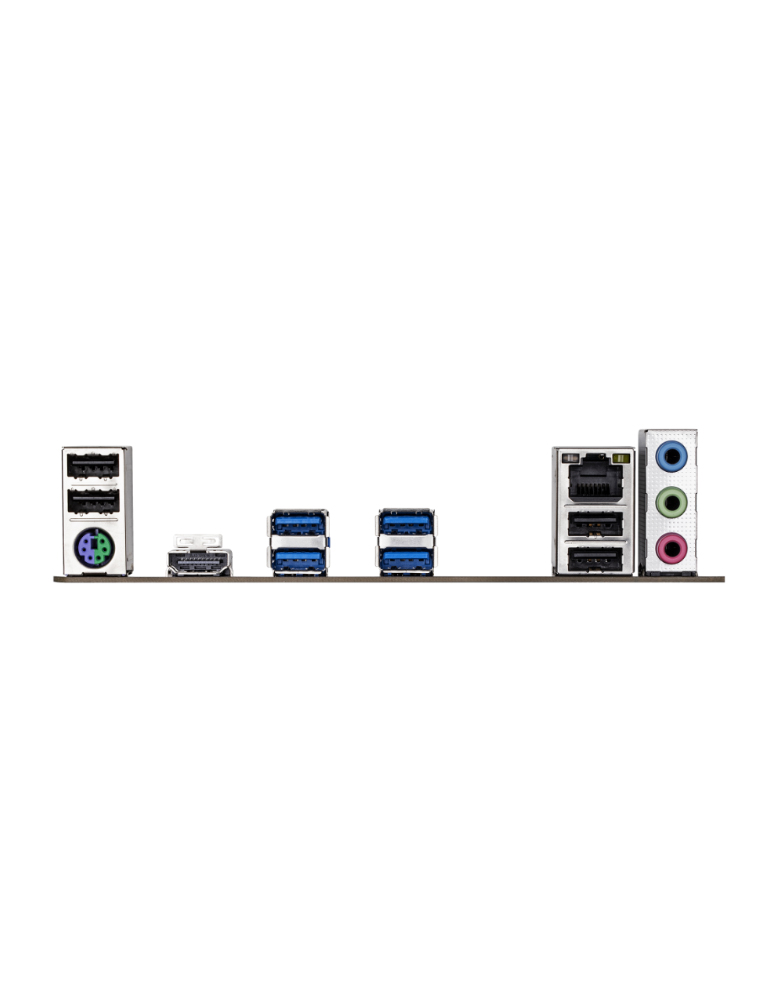

• Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x HDMI port
  • 4 x USB 3.1 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• Form Factor:
  • Micro ATX Form Factor; 24.4cm x 21.5cm
