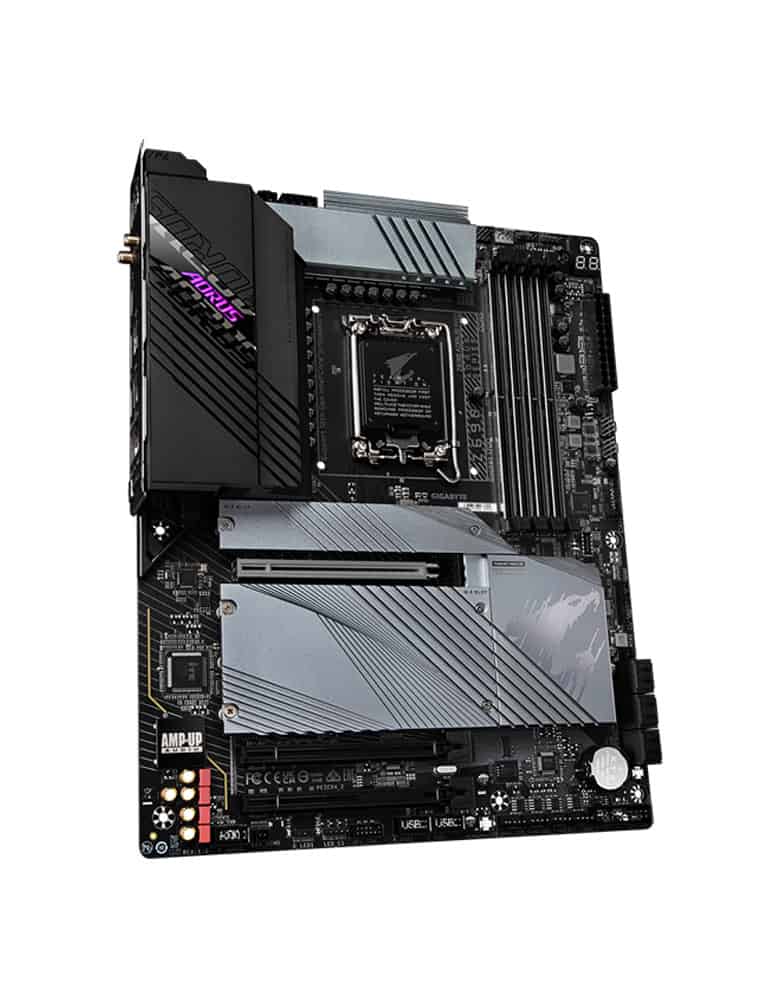

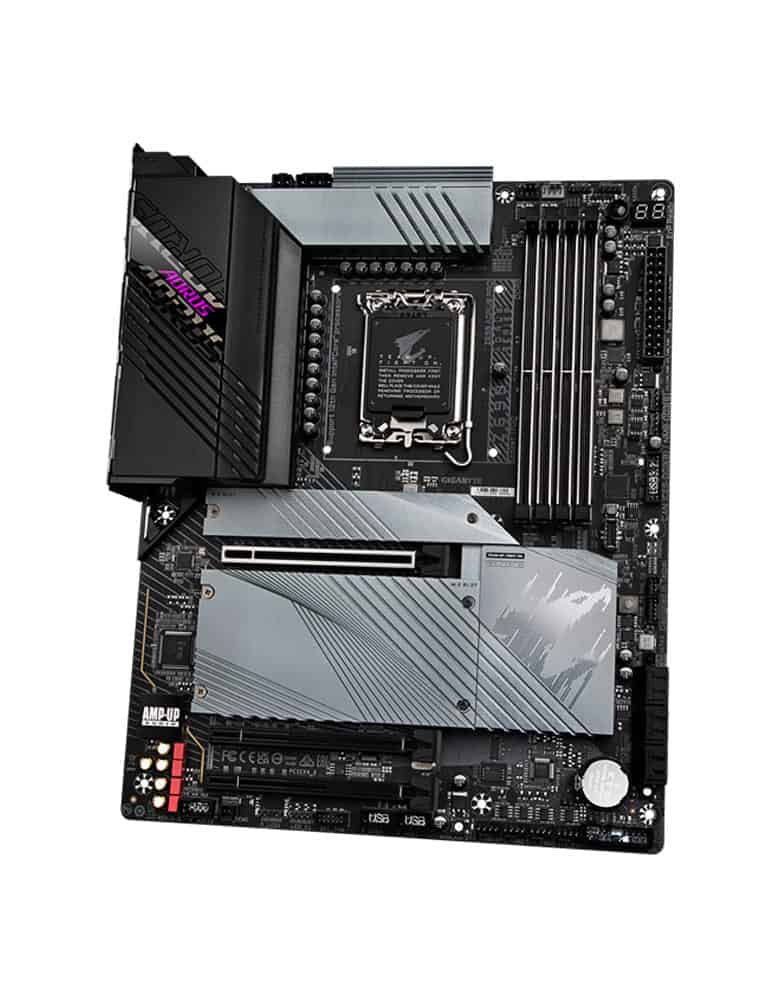

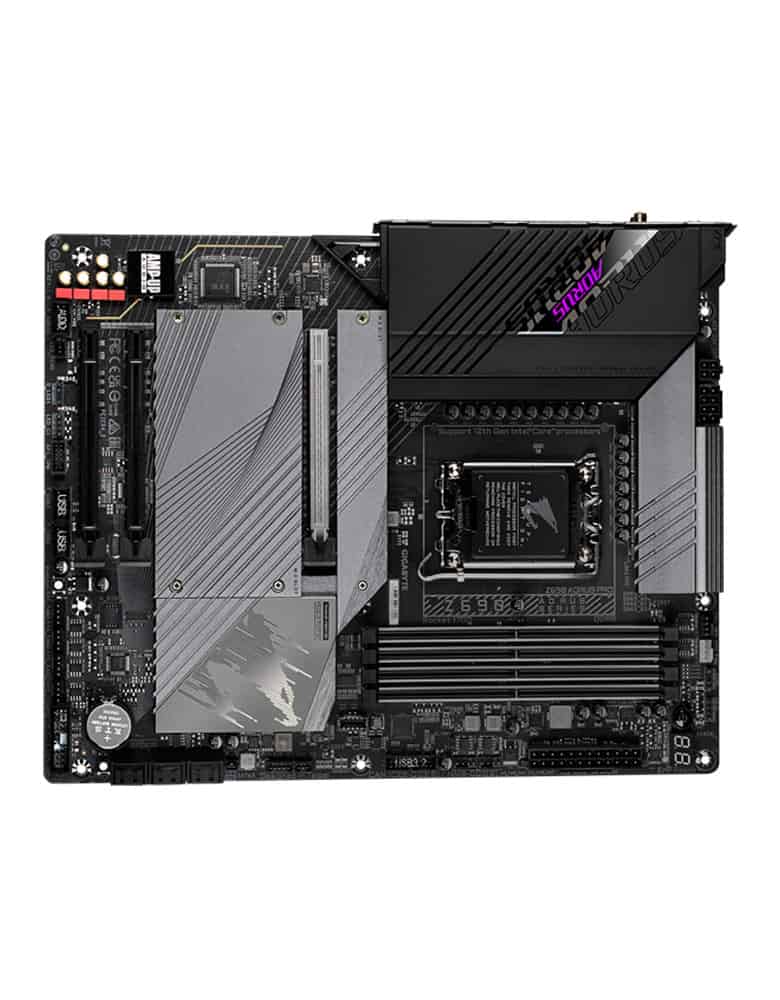

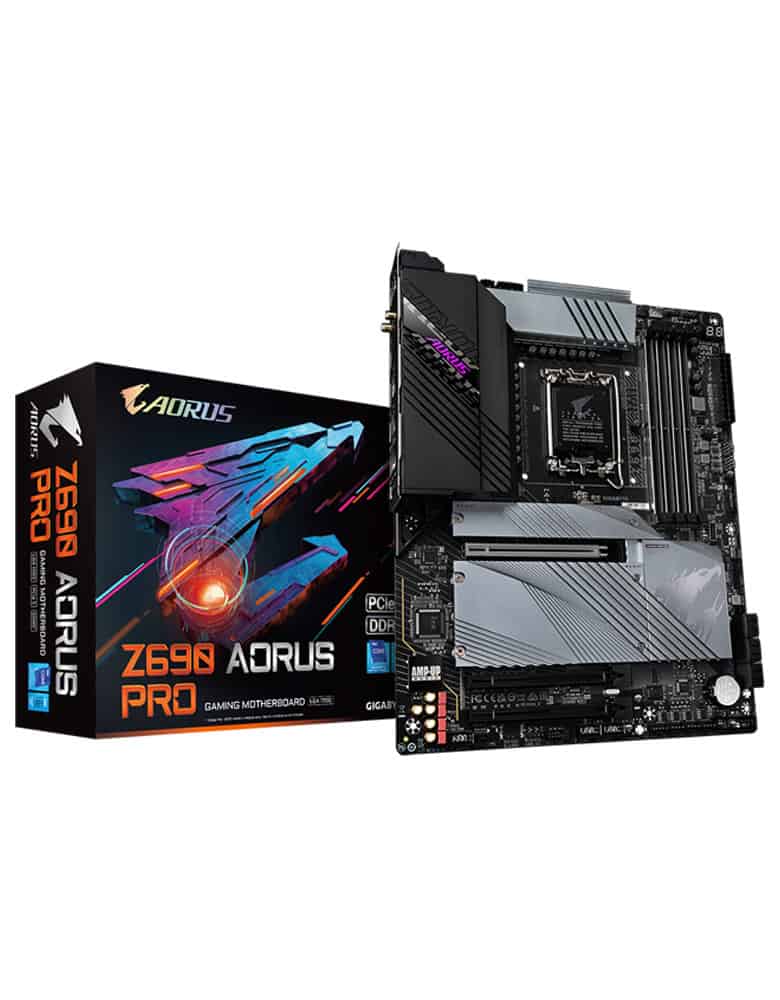

Gigabyte Z690 AORUS PRO Gaming Motherboard AORUS
Warranty Guidelines
Warranty is a 7-day replacement for factory defect, subject to certain guidelines and brands.
₱18,895.00

Product Description
-
CPU
- LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.
-
Chipset
- Intel® Z690 Express Chipset
-
Memory
- Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
-
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3 -
(Graphics specifications may vary depending on CPU support.)
-
Audio
- Realtek® ALC4080 CODEC
- High Definition Audio
- 2-channel analog output
- Support for S/PDIF Out
7.1-channel digital signals
* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
-
LAN
- Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
Wireless Communication moduleWIFI Module
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
-
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 5.0 standard.) - 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
-
Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
-
Storage InterfaceCPU:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
- 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
- 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. -
USBChipset:
- 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
-
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 4 x M.2 Socket 3 connectors
- 6 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x power button
- 1 x reset button
- 1 x Q-Flash Plus button
- 2 x temperature sensor headers
- 1 x reset jumper
- 1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
-
Back Panel Connectors
- 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
- 4 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (2T2R)
- 1 x DisplayPort
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
-
I/O Controller
- iTE® I/O Controller Chip
-
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. - Noise detection
-
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer - Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
-
Bundled Software
- Norton® Internet Security (OEM version)
- cFosSpeed
-
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
-
Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
Reviews
Reviews
Only logged in customers who have purchased this product may leave a review.
A receipt is required for all returns and exchanges.
Returned product(s) must be in the original packaging including manuals, cabling, and accessories all in good condition.
We do not accept items of:
Any product(s) returned more than 7 days from the date of purchase.
Any product(s) not in its original condition.
Any product(s) that is damaged or has/have incomplete parts.
Any product(s) that were sold as part of a bundle, unless the bundle is returned complete.
Any product(s) failure in performance caused by or resulting from acts of God, fire, flood, accident.
Please do not send us product(s) that do not meet the return criteria listed above, as we do not issue a warranty for non-qualifying items and we cannot return the items to you.
Upon satisfactory return of the product(s) to Itech.ph, replacement product(s) will be shipped to the Customer if Game One PH is satisfied that the product(s) returned by the Customer is defective after suitable test and inspections. If the replacement product(s) is not available, a refund of product price will be made to the Customer.
HOW DO I AVAIL WARRANTY?
You can file for request return or warranty claim:
1. Submit a report via our email – [email protected]
— Subject: Order Number and Item
— Attach photos or videos and description of the complaint
Please take note: Customer returns the product(s) at his/her own expense.
LIST OF AUTHORIZED SERVICE CENTER | HOTLINE:
Acer – https://bit.ly/AcerServiceCenter
Asus – https://bit.ly/AsusServiceCenter
Lenovo Legion – Hotline: 1800-8180614 | Whatsapp: +603-2058-5358
MSI Laptop – Hotline: 02 8470 3552
Seagate – 2nd Floor of PC Gilmore Commercial Center Building in Gilmore Avenue, New Manila, Quezon City
PlayStation – https://bit.ly/PlayStationServiceCenter
Latest Products
-
Asus ROG Strix B550-F Gaming Wifi II Gaming Motherboard
₱11,995.00 Add to cart -

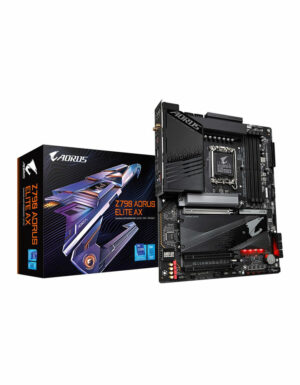

Aorus Z790 Elite AX Gaming Motherboard
₱18,995.00 Read more -

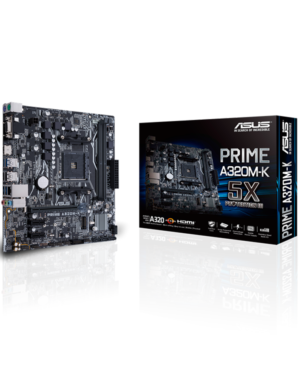

Asus Prime A320M-K (90MB0TV0-M0UAY0)
