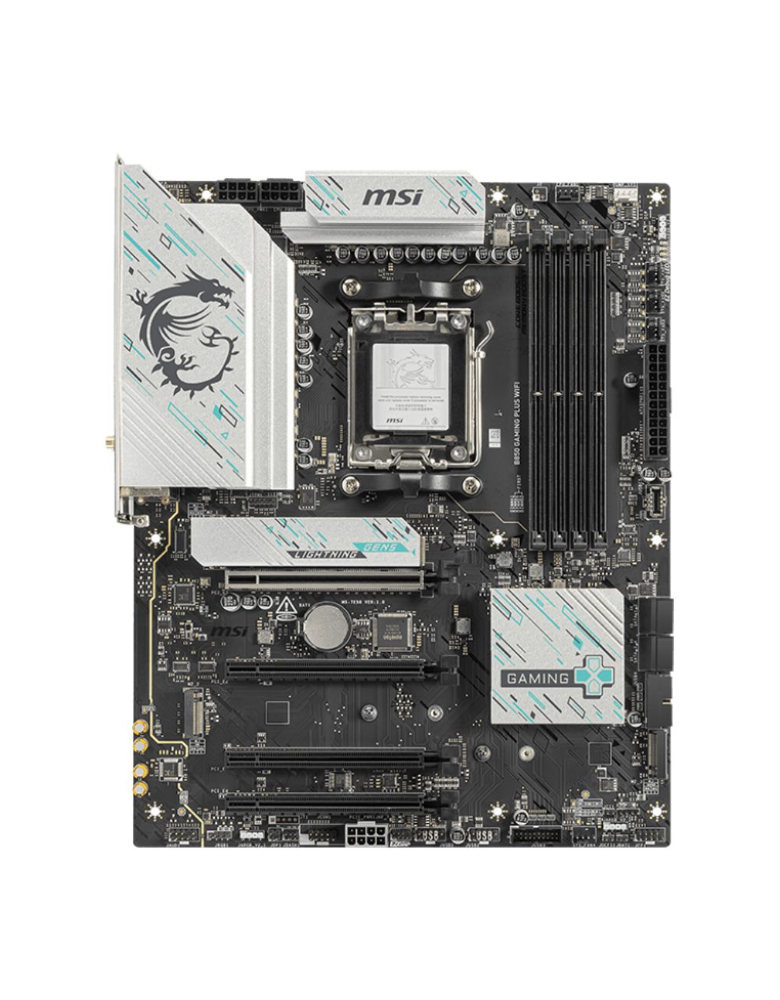

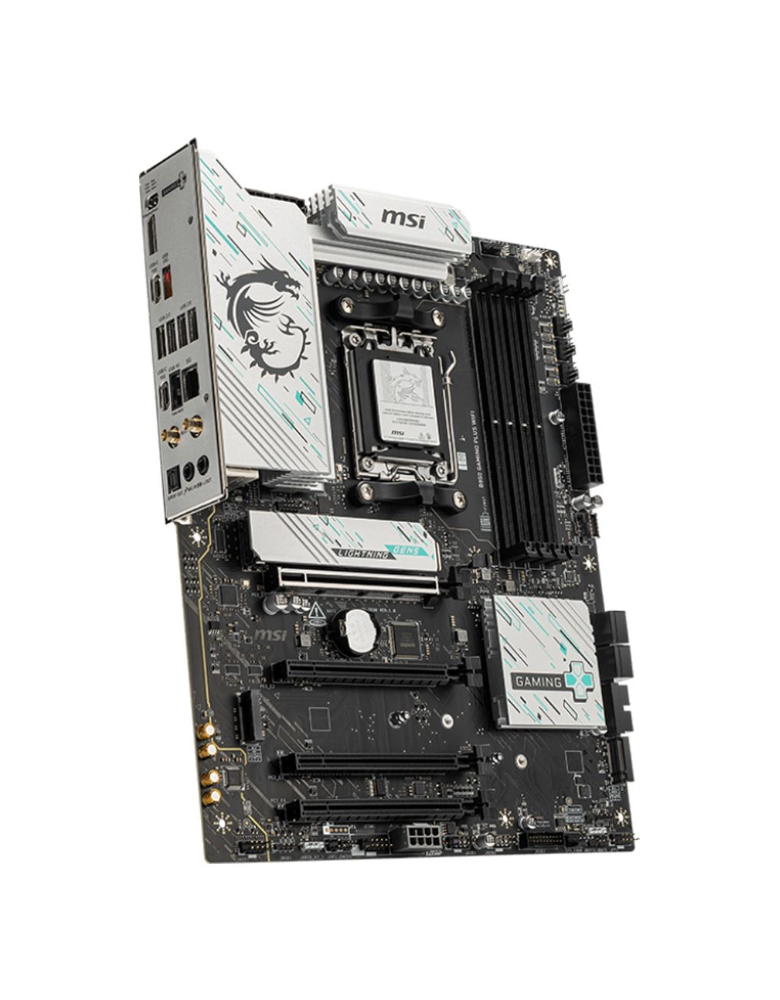

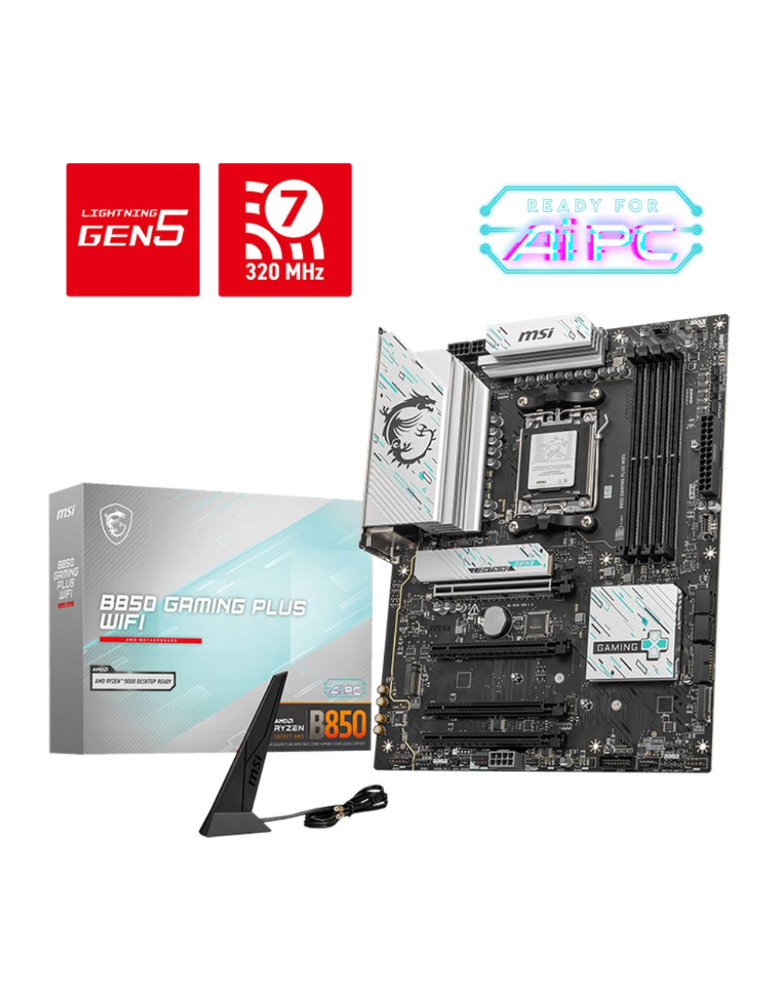

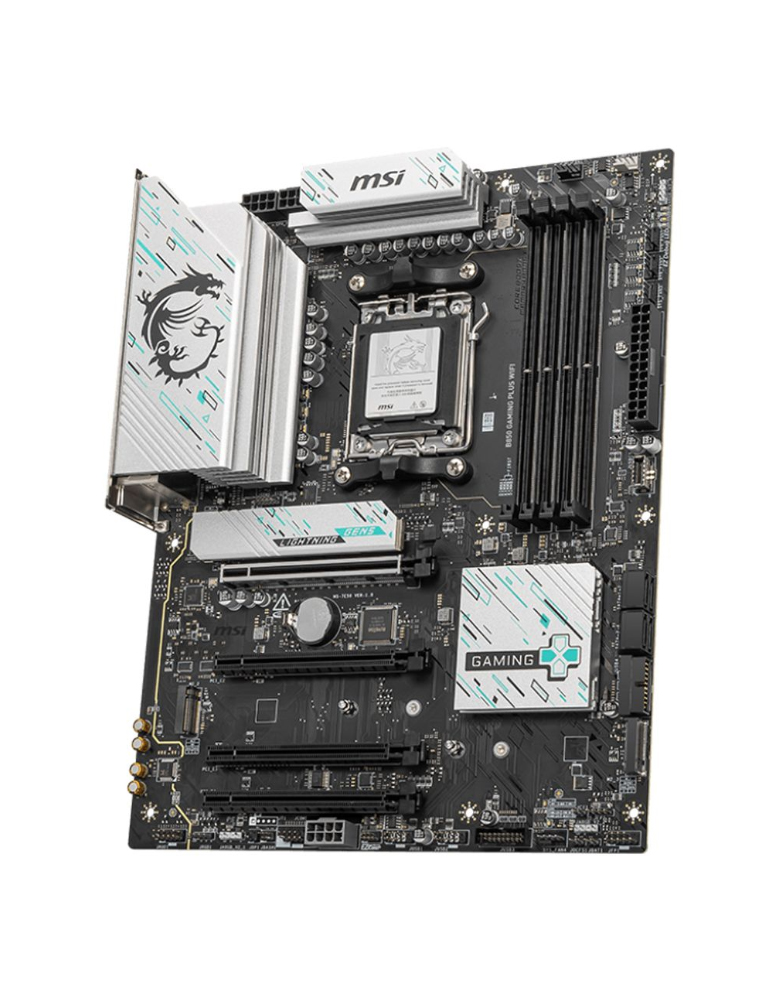

MSI B850 Gaming Plus WIFI ATX AMD Motherboard WIFI 7

The B850 GAMING PLUS WIFI is a gaming oriented ATX motherboard that is contructed with a 12 Duet Rail Power System and the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Zen 5, Zen 4, AM5}
• Ultra Power: 12 Duet Rail Power System with P-PAK, 6-layer with 2oz thickened copper PCB, Server Grade PCB material
• 4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 8200+ MT/s OC)
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
• Lightning Gen5 & Gen4 M.2 slots
• High-speed Connectivity: Realtek 5G LAN, Full-speed Wi-Fi 7 solution, Bluetooth 5.4
• 8-Channel (7.1) HD Audio with Audio Boost
• EZ DIY: EZ PCIe Clip II, EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna

Features

• ULTRA POWER – SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE – The B850 GAMING PLUS WIFI employs a 12 Duet Rail Power System (P-PAK) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
• FROZR GUARD – Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
• DDR5 MEMORY, PCIe 5.0 x16 SLOT – 4 x DDR5 DIMM SMT slots enable excellent memory overclocking speeds (1DPC 1R, 8200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards
• TRIPLE M.2 CONNECTORS – Storage options include 1 x M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II to prevent thermal throttling, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps slot

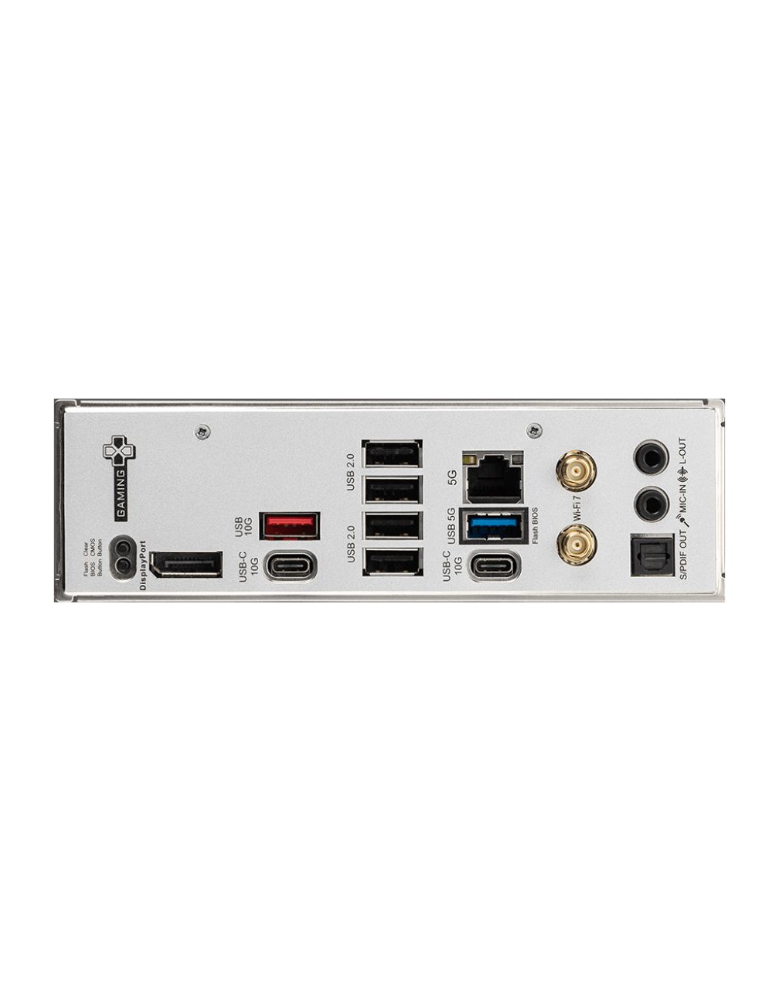

• CONNECTIVITY – Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB 10Gbps Type-C and 7.1 HD Audio with Audio Boost
