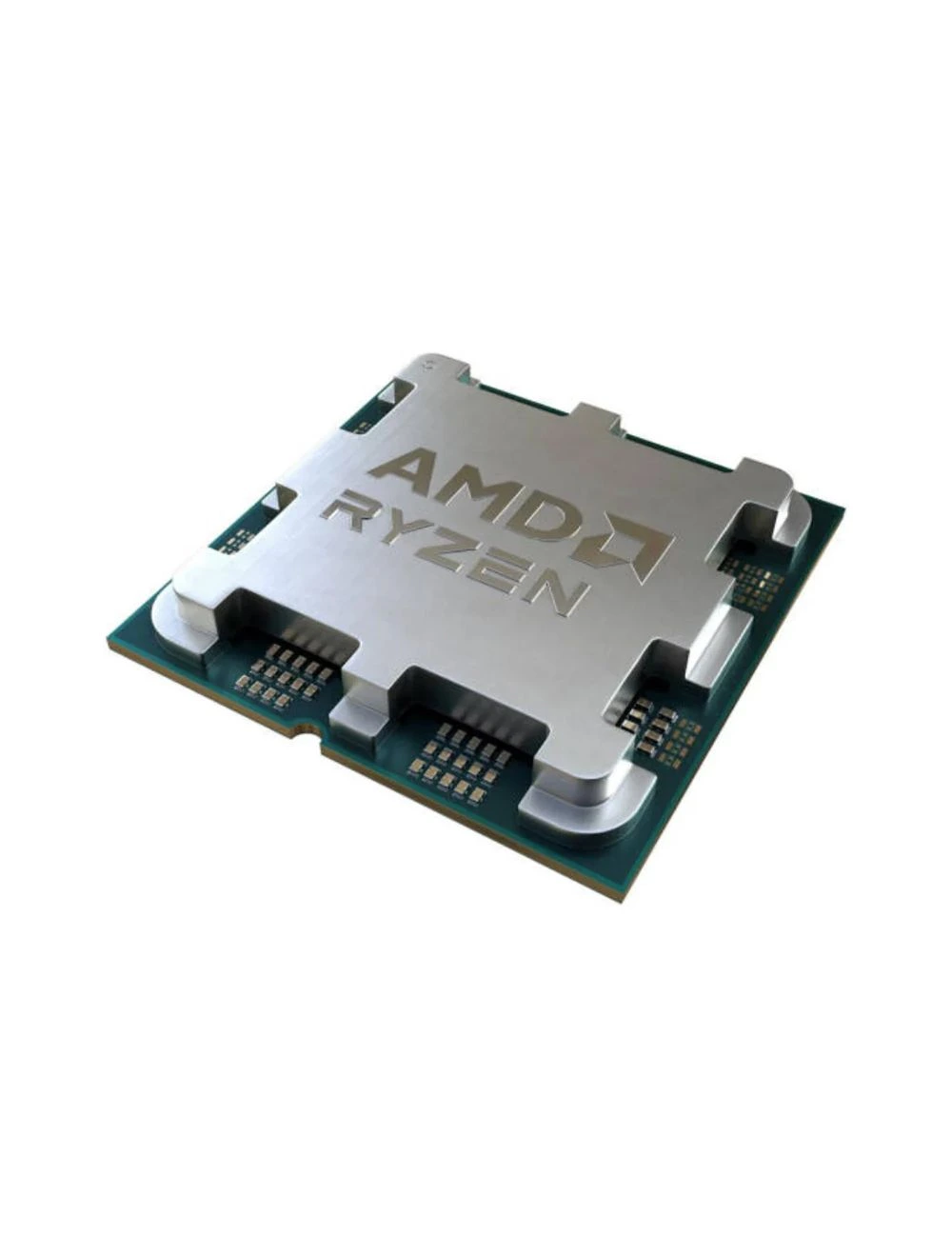

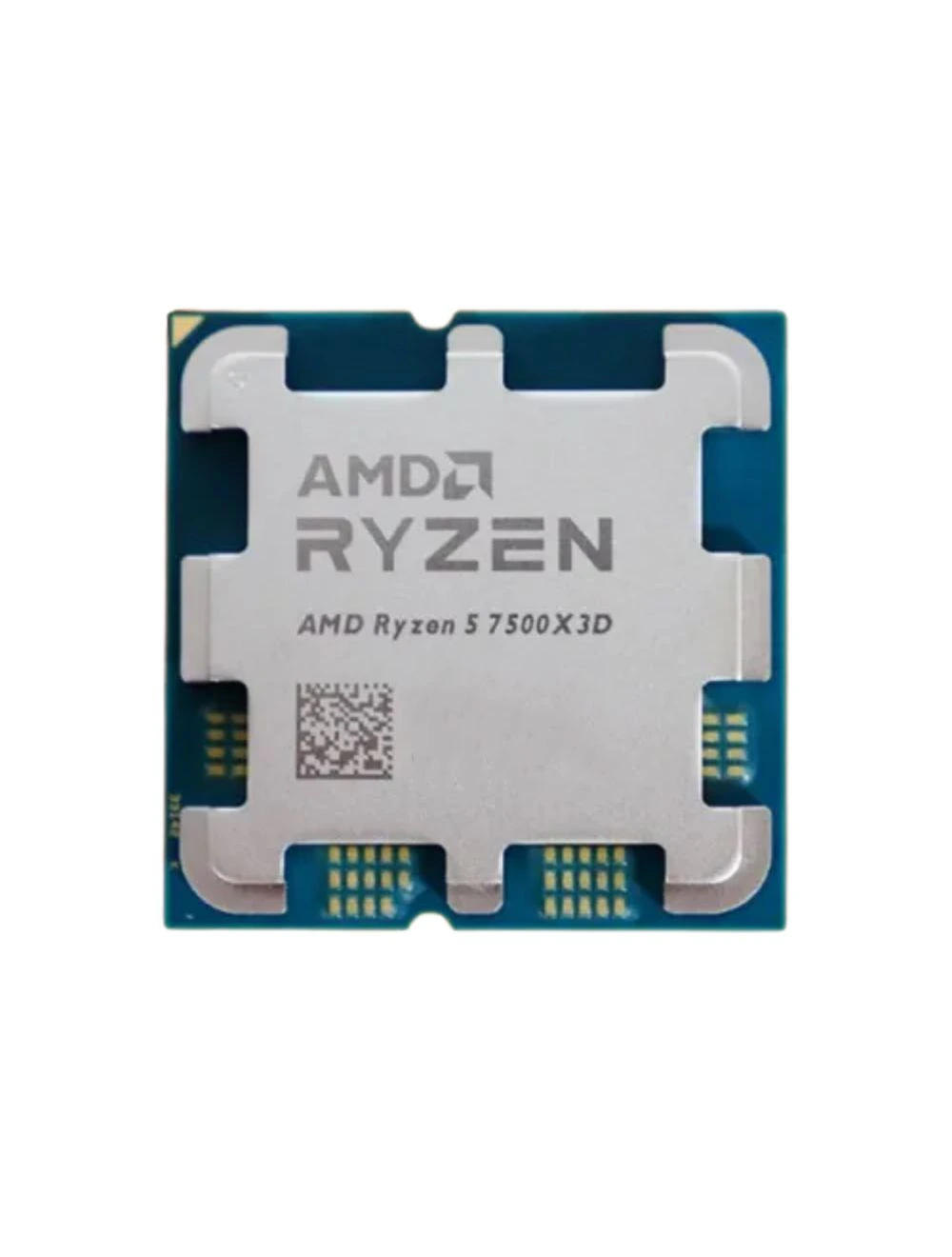

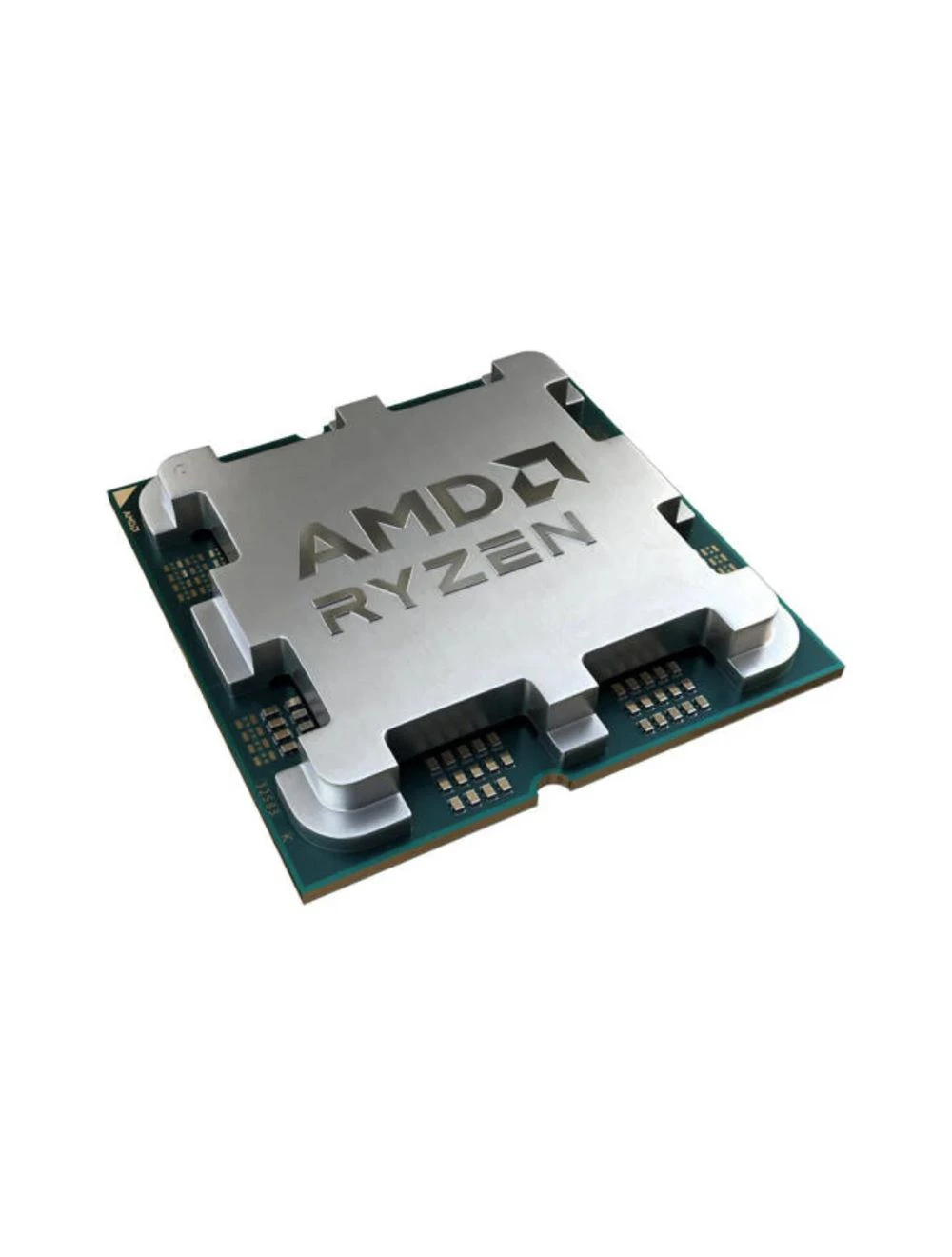

AMD Ryzen 5 7500X3D 6-Core, 12-Thread AM5 Desktop Processor (Tray) – No CPU Cooler

Features

• 6 Cores and 12 Threads built on efficient Zen 4 architecture.
• Massive 96MB L3 Cache with AMD 3D V-Cache™ technology for superior gaming performance.
• Highly efficient 65W TDP design.
• Supports next-gen PCIe® 5.0 connectivity and DDR5 memory.
• Integrated AMD Radeon™ Graphics (2 Cores).
• Compatible with AM5 motherboards (X670/E, B650/E, A620, X870/E).
• Max Boost Clock up to 4.5 GHz.

Specification

General Specification
Model Name:  AMD Ryzen™ 5 7500X3D
Family / Series:  Ryzen 7000 Series (Enthusiast Desktop)
Architecture:  Zen 4 (TSMC 5nm FinFET)
Socket:  AM5
Cores / Threads:  6 Cores / 12 Threads
Clock Speeds:  Base: 4.0 GHz | Max Boost: Up to 4.5 GHz

Cache & Memory:
L3 Cache:  96 MB (3D V-Cache™ Technology)
Total Cache (L1+L2+L3):  ~102 MB (384KB L1 + 6MB L2 + 96MB L3)
System Memory:  DDR5 (Up to 128 GB)
Memory Channels:  2 (Dual Channel)
ECC Support:  Yes (Requires Motherboard Support)

Connectivity & Graphics
PCI Express Version:  PCIe® 5.0
Native PCIe Lanes:  28 Total / 24 Usable
Integrated Graphics:  AMD Radeon™ Graphics (2 Cores @ 2200 MHz)
USB Connectivity:  4x USB 3.2 Gen 2 (10Gbps), 1x USB 2.0

Power & Thermal
Default TDP:  65W
Max Operating Temp (Tjmax):  89°C
Recommended Cooler:  Liquid cooler recommended for optimal performance
Supported Technologies:  AMD EXPO™, Precision Boost 2, Curve Optimizer
