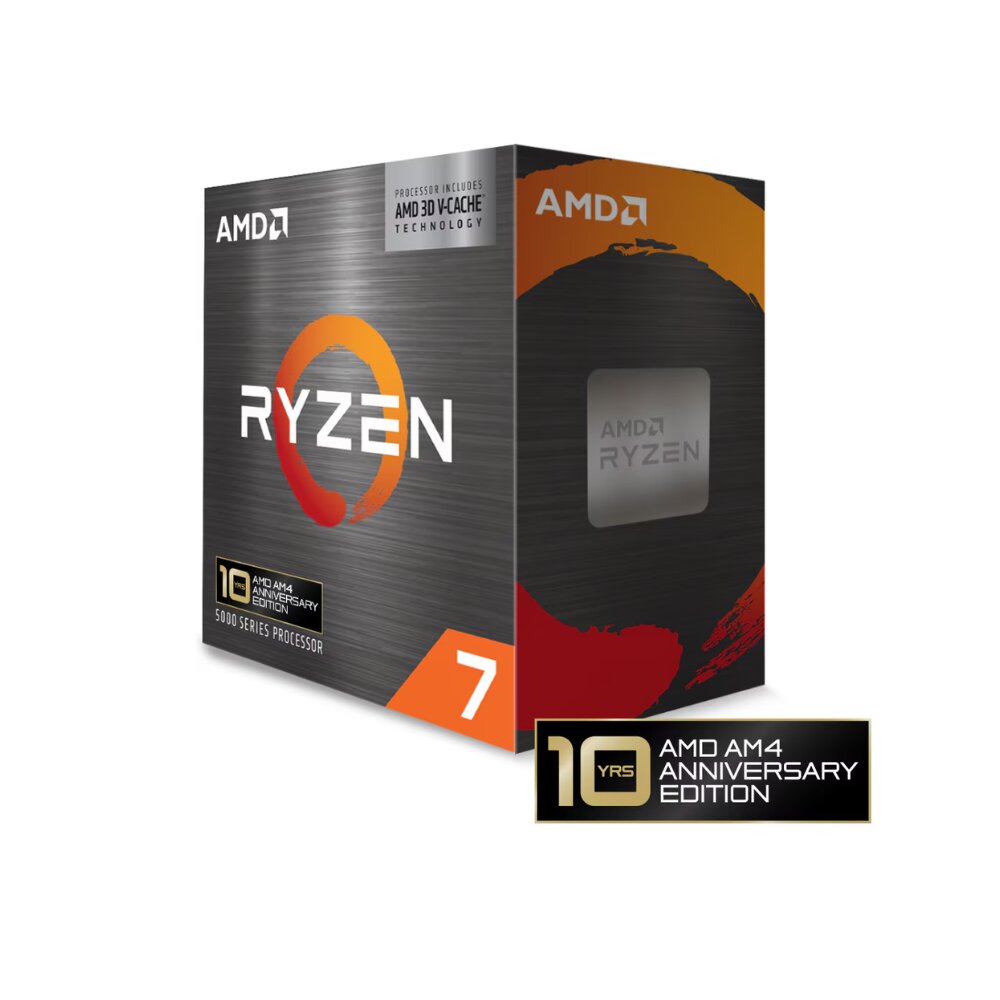

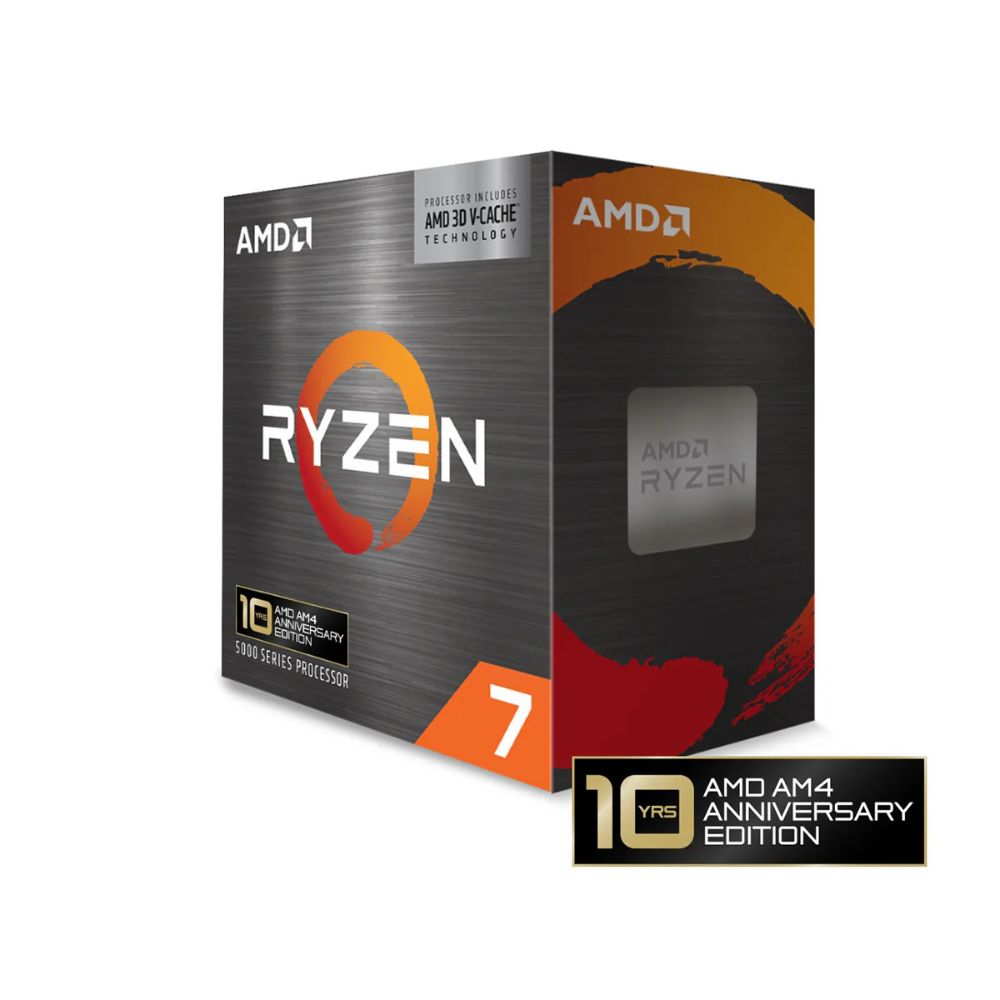

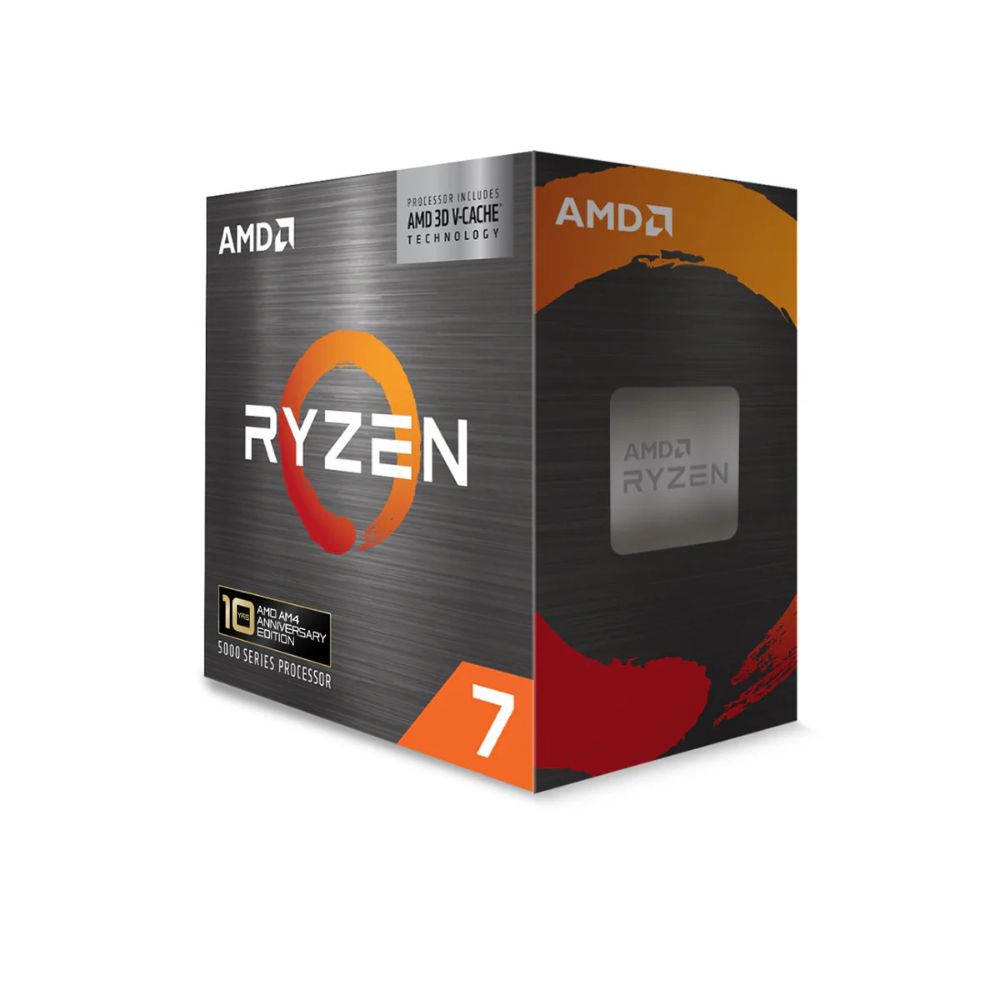

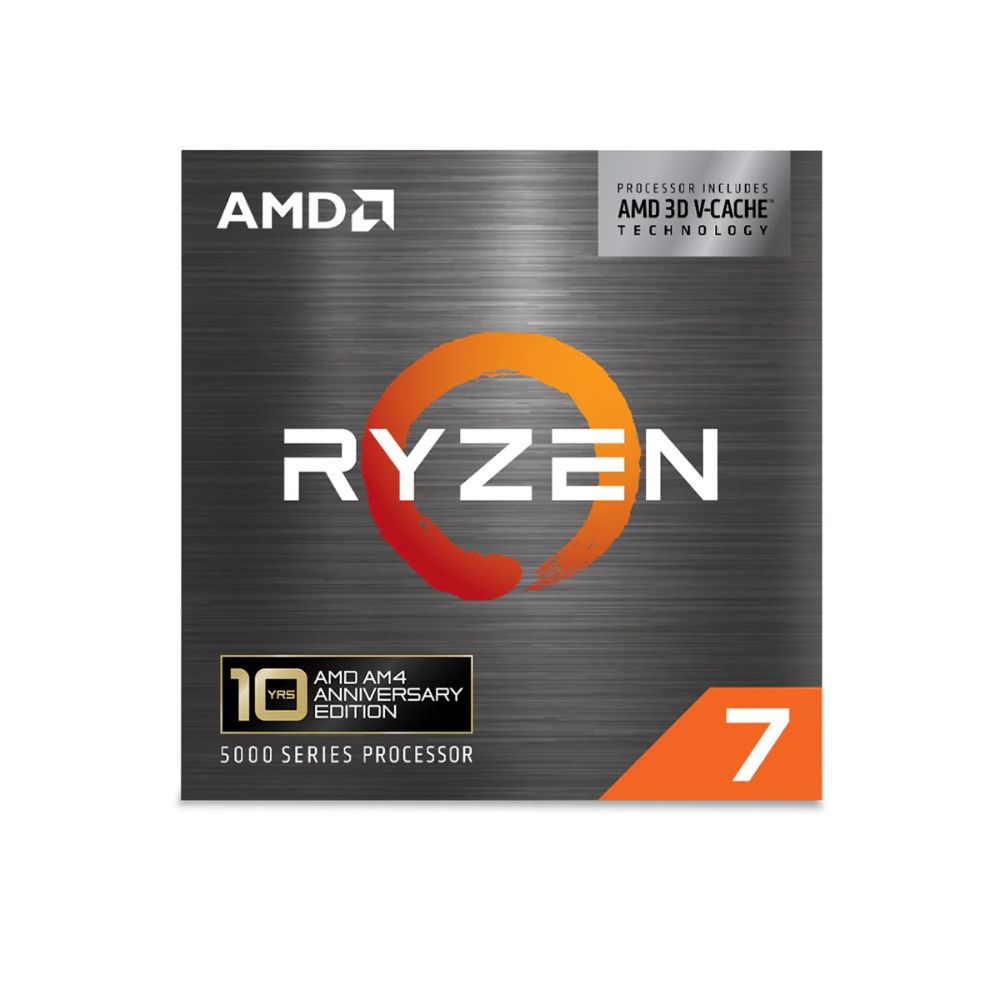

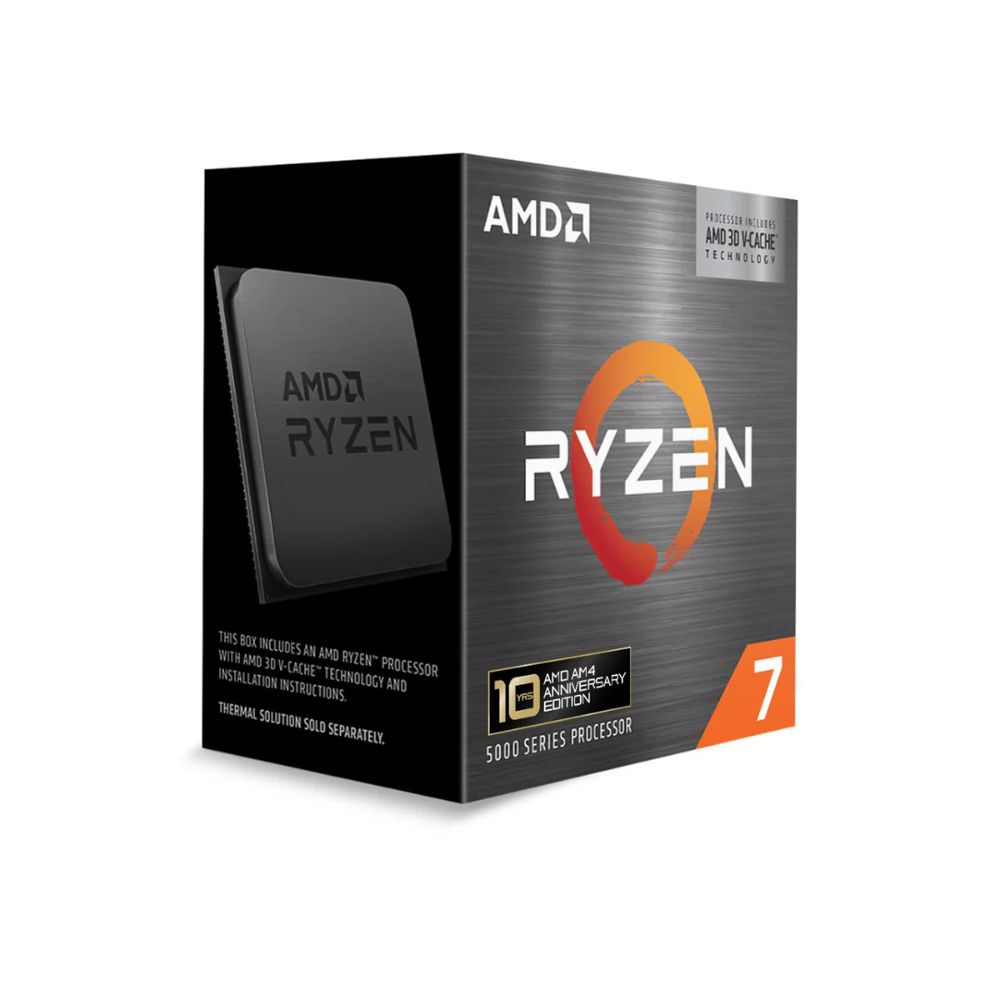

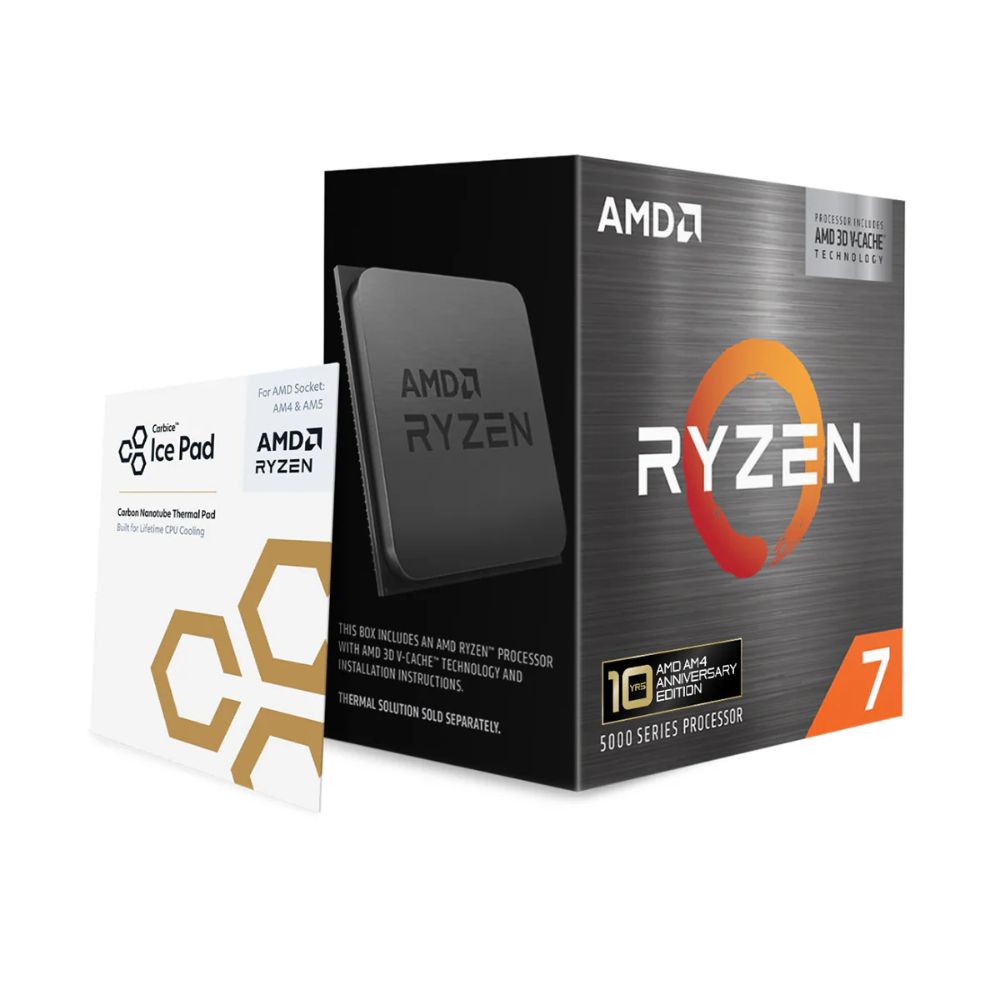

AMD Ryzen 7 5800X3D 8 Core 16 Thread Processor

Power up your gaming experiences with exceptional performance by including the AMD Ryzen 7 5800X3D 3.4 GHz Eight-Core AM4 Processor in your computer build. Featuring a unique AMD 3D V-Cache vertical design, this eight-core, 16 thread processor includes 96MB of L3 cache while still allowing the CPU to fit socket AM4 motherboards. Combined with the powerful Zen 3 7nm architecture, with a base clock speed of 3.4 GHz and a max boost clock speed of 4.5 GHz, this processor is designed to enhance 1080p video game performance by up to 15% with high graphical settings. Other features include support for PCIe 4.0 technology and 3200 MHz DDR4 RAM with compatible motherboards. This processor has a 105W TDP (Thermal Design Power) and does not include a cooling solution. Please note that it does not have an integrated GPU, so a dedicated graphics card is required.

GENERAL SPECIFICATION

Name: AMD Ryzen™ 7 5800X3D
Family: Ryzen
Series: Ryzen 5000 Series
Form Factor: Desktops , Boxed Processor
Market Segment: Enthusiast Desktop
Regional Availability: Global , China , NA , EMEA , APJ , LATAM
Processor Architecture: Zen 3
# of CPU Cores: 8
Multithreading (SMT): Yes
# of Threads: 16
Max. Boost Clock: Up to 4.5 GHz
Base Clock: 3.4 GHz
CPU Socket: AM4
Supporting Chipsets: X570 , X470 , B550 , B450 , A520

Connectivity

Native USB 3.2 Gen 2 (10Gbps): 4
Native SATA Ports: 2
PCI Express® Version: PCIe® 4.0
Additional Usable PCIe Lanes from Motherboard
-X570  16x Gen 4
-X470   2x Gen 3, 8x Gen 2
System Memory Type: DDR4
Memory Channels: 2
Max. Memory : 128GB
System Memory Subtype: UDIMM
