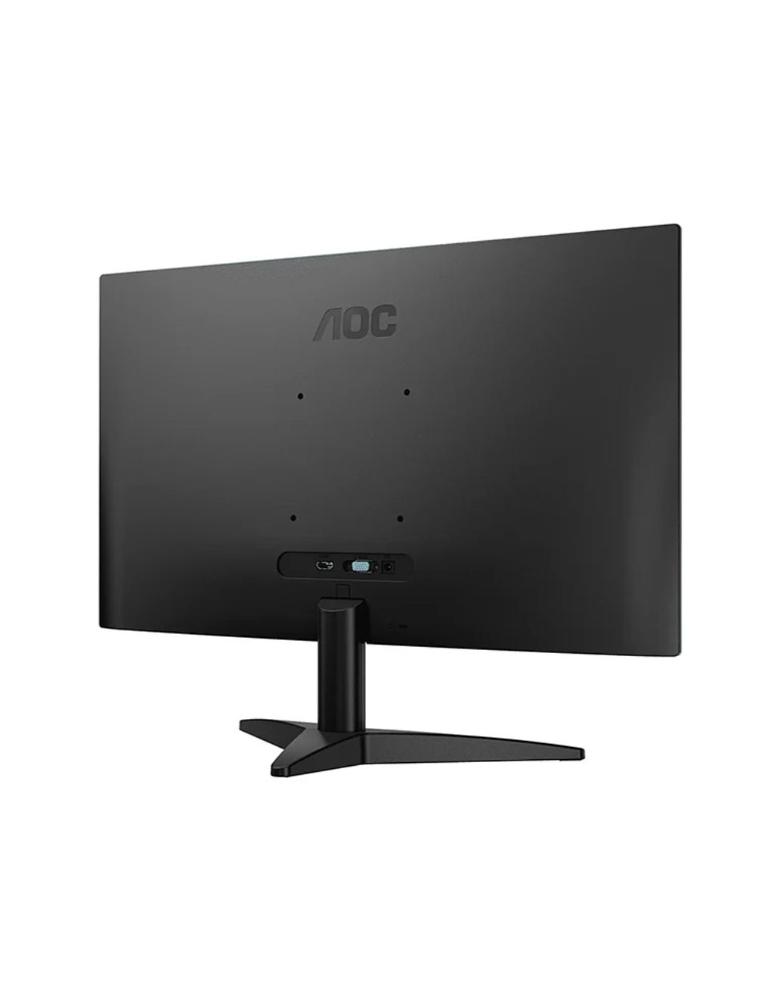

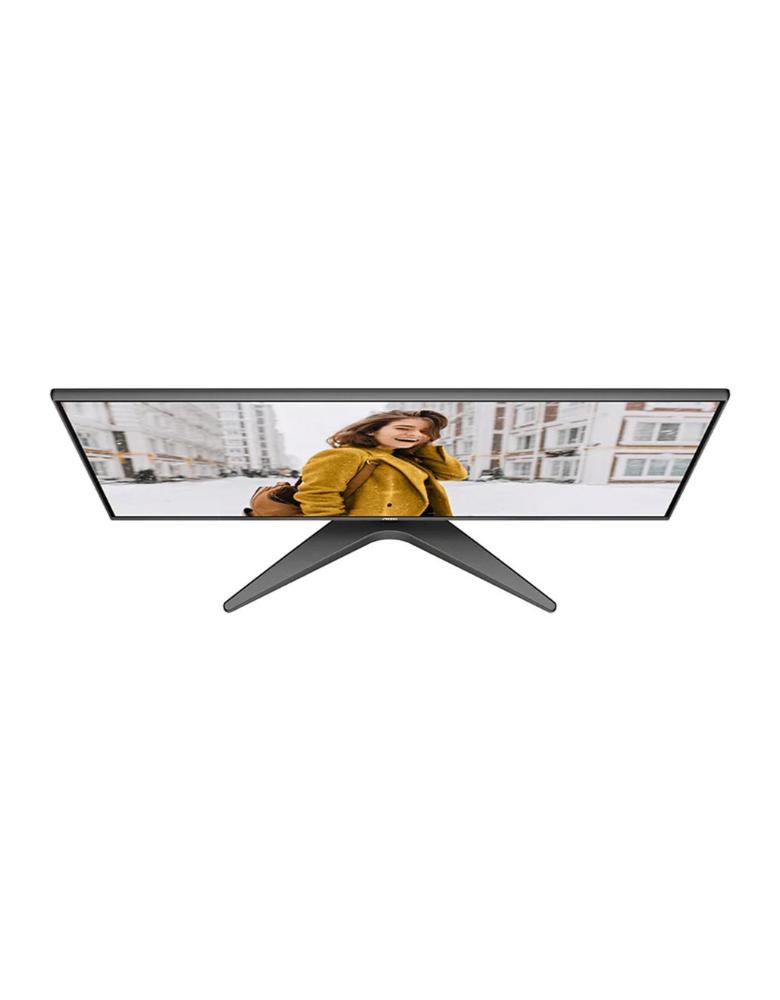

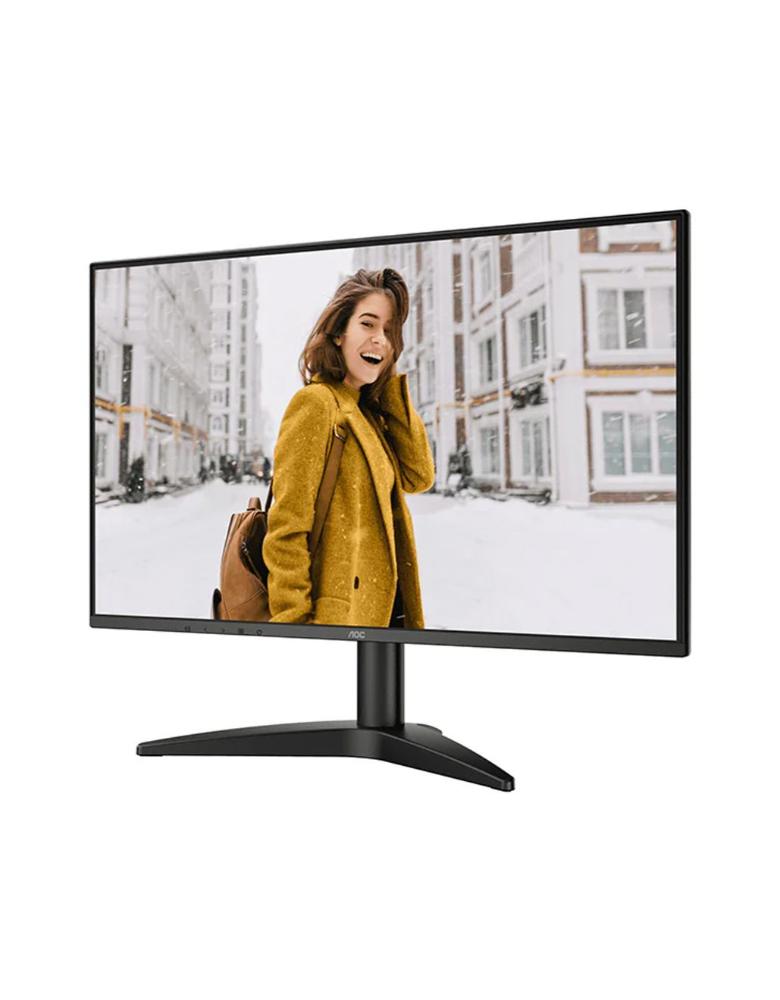

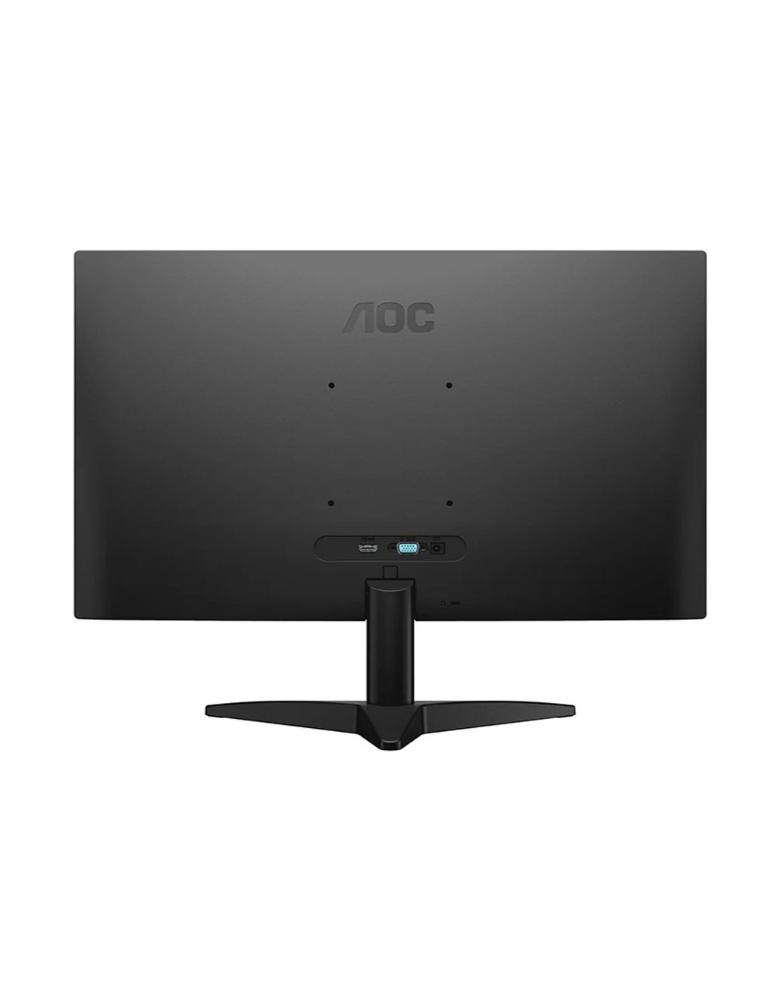

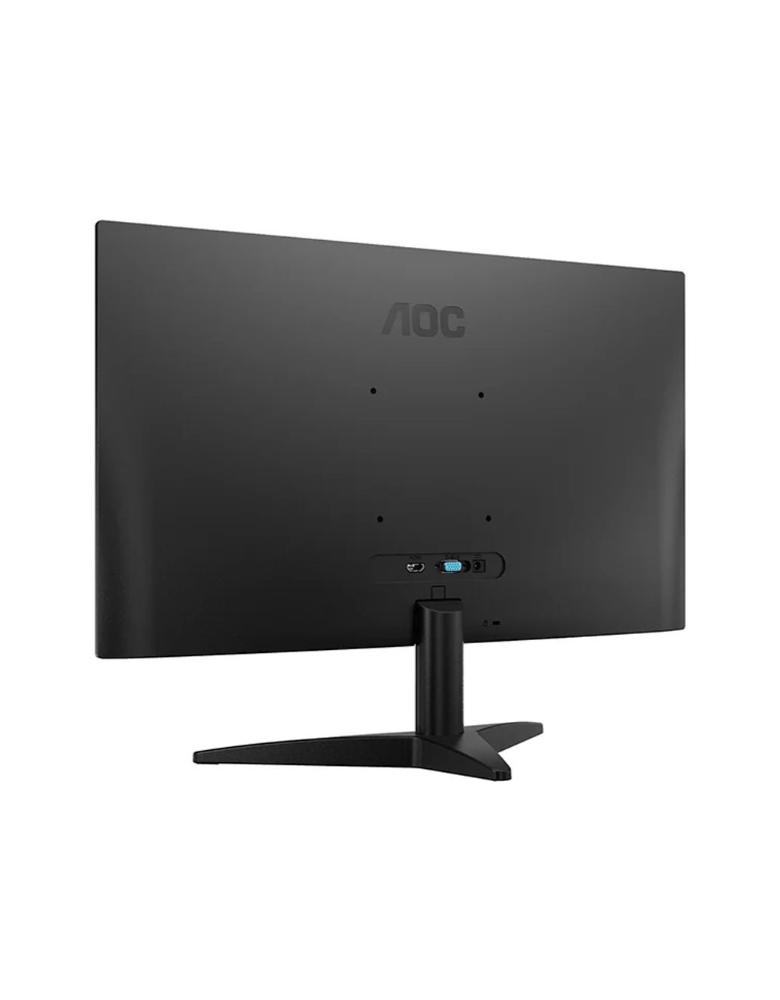

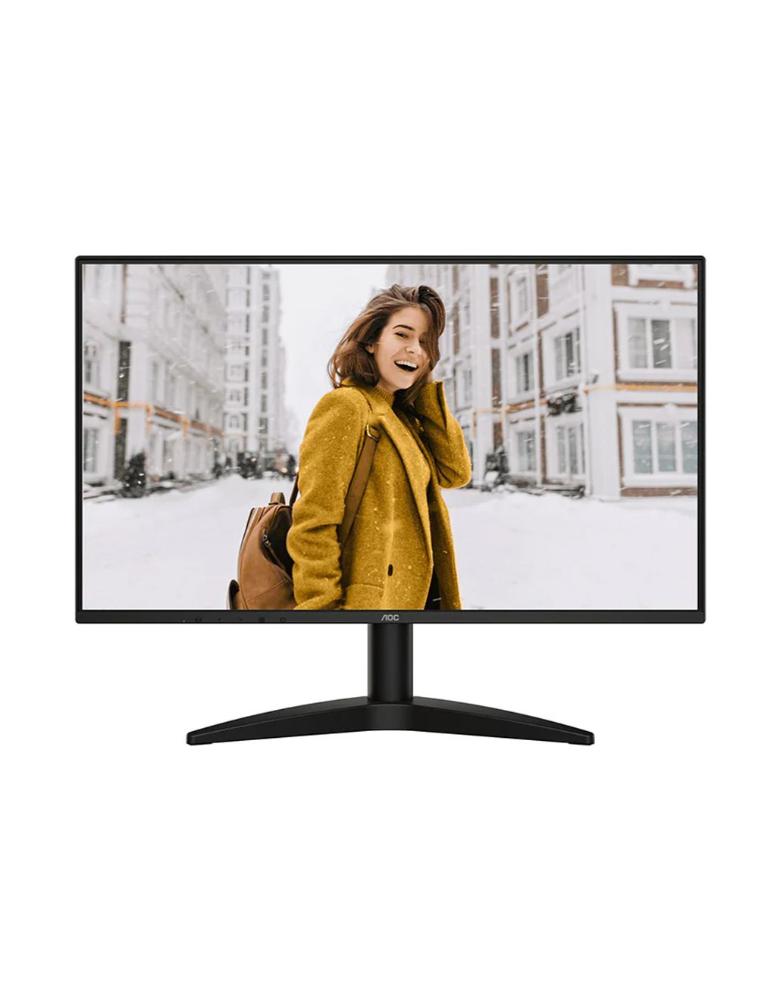

24B36H3
23.8″ 120Hz IPS Monitor
24B36H3 is a Full HD display with IPS wide viewing angle, Incredible, 120Hz refresh rate, and 1ms response time, upgraded 3-Sided Frameless, mega DCR. This IPS display deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions.
Specification:
Model Name: 24B36H3
Panel: 23.8″ / IPS LCD
Pixel Pitch (mm): 0.2745(H) * 0.2745(V)
Effective Viewing Area (mm): 527.04(H) * 296.46(V)
Brightness (typical): 300 cd/m²
Contrast Ratio: 1500:1 (typical) / MEGA DCR
Response Time: 4ms GtG / 1ms MPRT
Viewing Angle: 178° (H) / 178° (V) (CR > 10)
Color Gamut: NTSC 101% (CIE1976) / sRGB 116% (CIE1931)
Optimum Resolution
1920 x 1080 @ 120Hz – HDMI
1920 x 1080 @ 75Hz – VGA
Display Colors: 16.7 Million
Signal Input: VGA x 1, HDMI 1.4 x 1
USB Hub: No
Power Supply: External 19VDC, 1.31A
Power Consumption (typical): 17W
Speakers: No
Line In/Earphone: No
Wall-Mount: 100 mm x 100 mm
Adjustable Stand: Tilt: -5° – 23°
Product without Stand (mm): 316.2(H) * 542.4(W) * 34.7(D)
Product with Stand (mm): 410(H) * 542.4(W) * 198(D)
Packaging (mm): 420(H) * 615(W) * 111(D)
Product without Stand (kg): 2.15
Product with Stand (kg): 2.45
Product with Packaging (kg): 4.43
Cabinet Color: Black
Regulatory Approvals: CE / FCC / RoHS
