Technical Specification
CPU Support: Intel® LGA1851 socket designed for Intel® Core™ Ultra Processors (Series 2) supporting Turbo Boost Technology 2.0 and 3.0.
Chipset: Intel® B860 Chipset.
Memory Specifications: 4 x DIMM slots supporting up to 256GB DDR5, speeds up to 9066+ MT/s (OC), Non-ECC, Un-buffered CUDIMM, Dual-channel architecture, DIMM Fit, XMP, and ASUS Enhanced Memory Profile III (AEMP III).
Graphics Outputs: 1 x DisplayPort (supporting max. 4K @ 60Hz), 1 x HDMI™ port (supporting 4K @ 60Hz), and 1 x Intel® Thunderbolt™ 4 port supporting DisplayPort and Thunderbolt™ video outputs (up to 8K @ 60Hz via DSC).
Expansion Slots: 1 x PCIe 5.0 x16 slot powered by Intel® Core™ Ultra Processors (Series 2).
Storage Interfaces:
1 x M.2_1 slot (Key M, type 2242/2260/2280) supporting PCIe 5.0 x4 mode.
1 x M.2_2 slot (Key M, type 2280) supporting PCIe 4.0 x4 mode.
1 x M.2_3 slot (Key M, type 2280) supporting PCIe 4.0 x4 mode.
1 x M.2_4 slot (Key M, type 2230/2280) supporting PCIe 4.0 x4 mode.
4 x SATA 6Gb/s ports with Intel® Rapid Storage Technology support for SATA RAID 0/1/5/10.
Networking & Ethernet: Intel® 2.5Gb Ethernet with ASUS LANGuard.
Wireless & Bluetooth: Wi-Fi 7 (2×2 802.11be, supporting 2.4/5/6GHz bands up to 2.9Gbps) and Bluetooth® v5.4.
USB Connectivity:

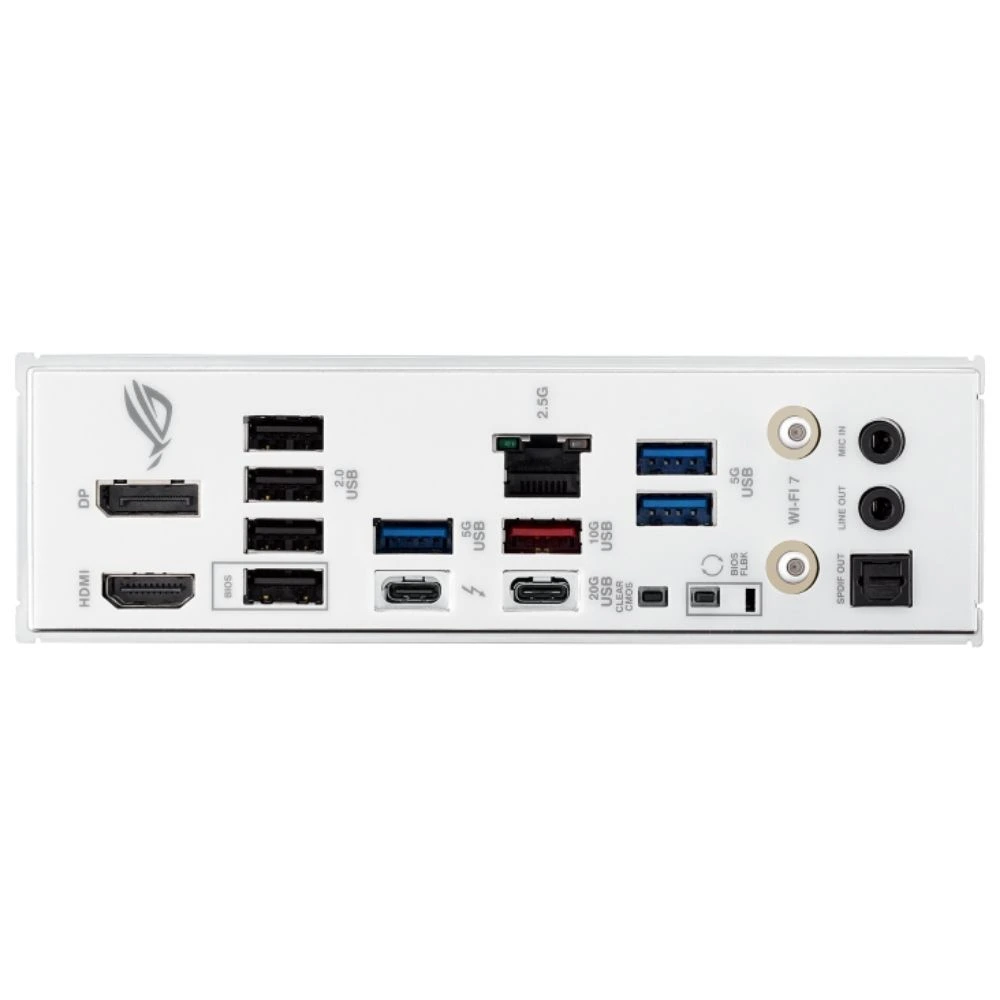

Rear Ports (10 total):
1 x Thunderbolt™ 4 USB Type-C®,
1 x USB 20Gbps (Type-C® with DP Alt mode),
1 x USB 10Gbps (Type-A),
3 x USB 5Gbps (Type-A),
4 x USB 2.0 (Type-A).
Front Ports (6 total):
1 x USB 10Gbps connector (Type-C®),
1 x USB 5Gbps header (supports 2 ports),
2 x USB 2.0 headers (supports 3 ports).
USB Type-C® power delivery output max. 5V/3A.
Audio System: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC featuring SupremeFX Shielding, Savitech SV3H712 amplifier, premium audio capacitors, and optical S/PDIF out.
Form Factor: Micro-ATX form factor (9.6 inches x 9.6 inches / 24.4 cm x 24.4 cm).
Operating System Support: Windows 11 (22H2 and later) for Intel® Core™ Ultra 200S Series.
