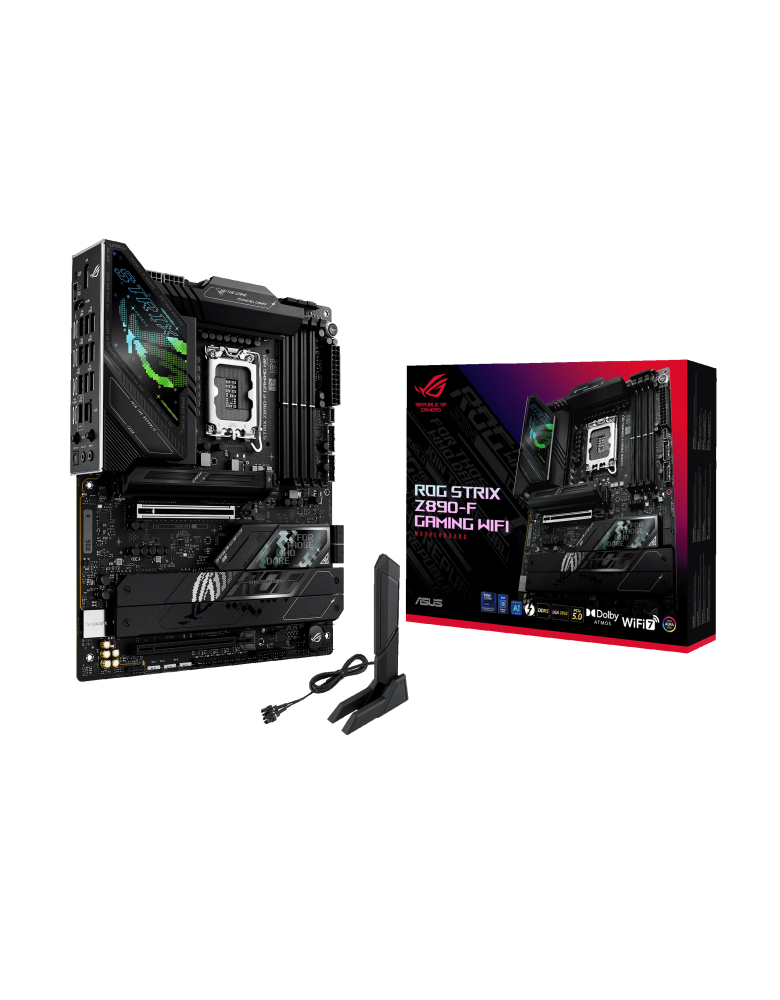

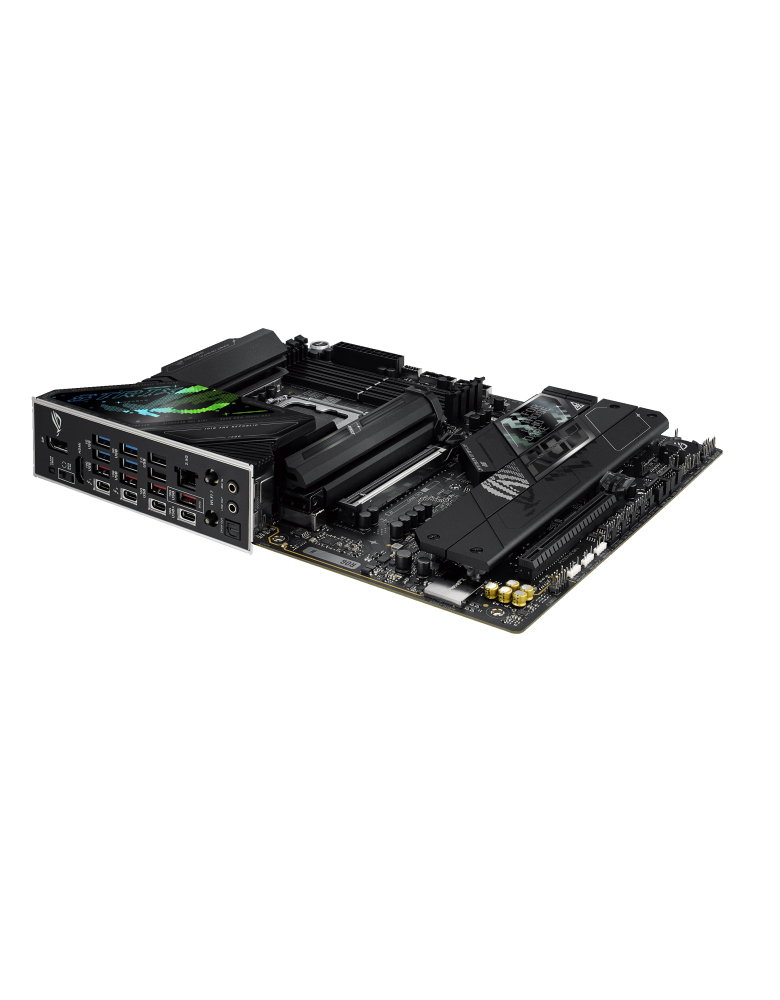

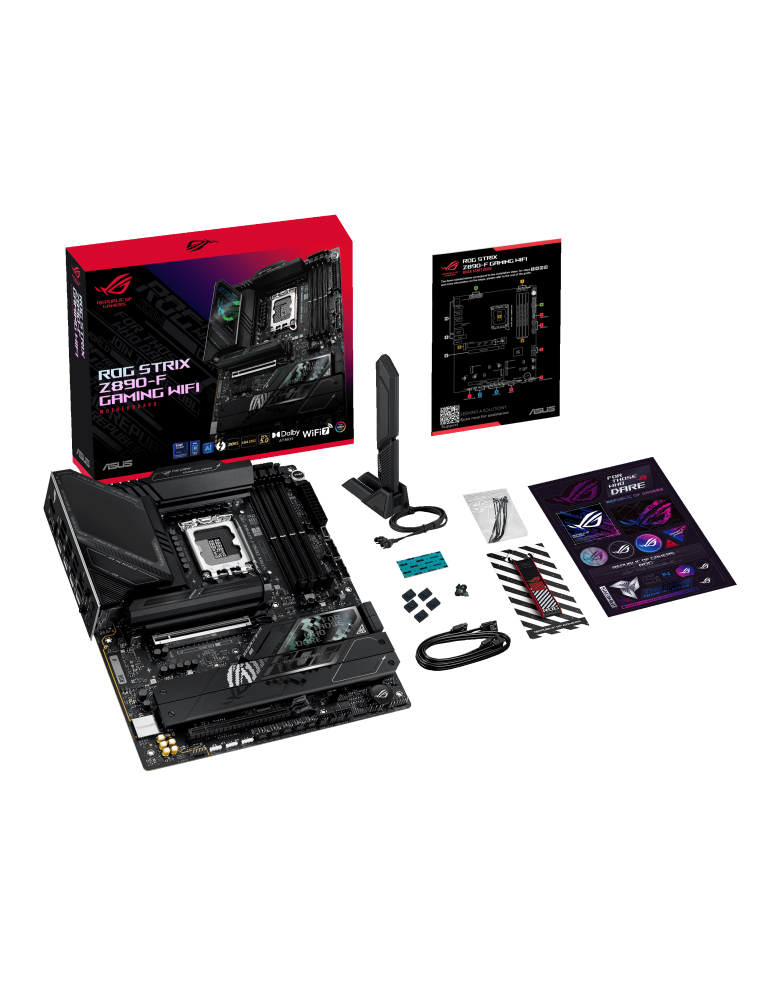

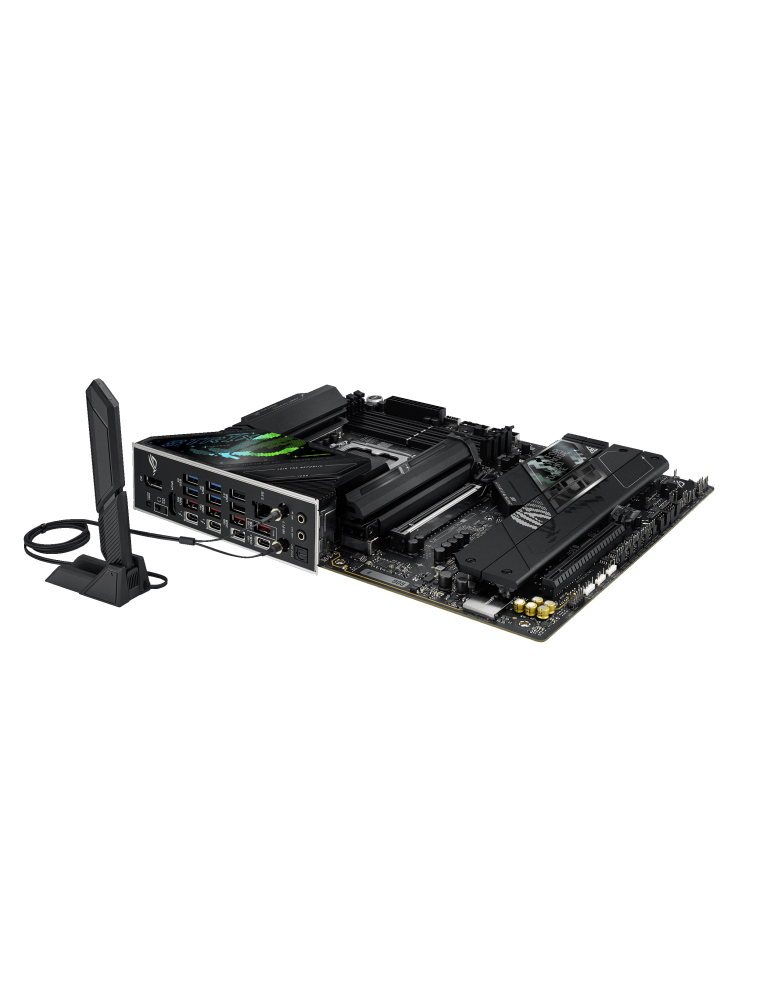

ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 Ultra Processor DDR5 WIFI 7 Motherboard

With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt™ 4, PCIe^® 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customizable aesthetic that can be either subtle or bold.

• Processor Support: Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2). Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.
• Chipset: Intel® Z890 Chipset.
• Form Factor: ATX (30.5 cm x 24.4 cm / 12 x 9.6 inches).

Memory:

• Slots: 4 x DIMM slots (Dual Channel Memory Architecture).
• Max Capacity: Up to 192GB DDR5.
• Memory Speed (OC): Supports up to 9066+ MT/s (OC).
• Technologies: Supports Intel® Extreme Memory Profile (XMP), DIMM Flex, DIMM Fit, and ASUS Enhanced Memory Profile III (AEMP III) for optimized DDR5 performance.

Power Solution:

• VRM Design: Robust 16 + 1 + 2 + 2 power stages.
  • 16 VCCCORE Power Stages rated for up to 110A each.
  • 1 VCCGT Power Stage rated for 90A.
  • 2 VCCSA Power Stages rated for 90A.
  • 2 VNNAON Power Stages rated for 80A.
• Connectors: Dual ProCool II Power Connectors for enhanced power delivery and heat dissipation.
• PCB: Eight-layer PCB for improved heat dissipation and stability.
• Components: High-end alloy chokes and durable capacitors for reliability.

Storage:

• M.2 Slots: 5 x M.2 slots total:
  • 1 x M.2 22110 (PCIe 5.0 x4 mode, directly from CPU).
  • 4 x M.2 (PCIe 4.0 x4 mode, from Chipset), one of which also supports SATA.
• SATA Ports: 4 x SATA 6Gb/s ports.
• RAID Support: Intel® Rapid Storage Technology supports PCIe RAID 0/1/5 and SATA RAID 0/1/5/10. (M.2 slot from CPU supports RAID 0/1/5).

Expansion Slots:

• PCIe 5.0: 1 x PCIe 5.0 x16 SafeSlot (from CPU, supports x16 or x8/x4/x4 modes).
• PCIe 4.0: 1 x PCIe 4.0 x16 slot (from Chipset, runs at x4 mode).

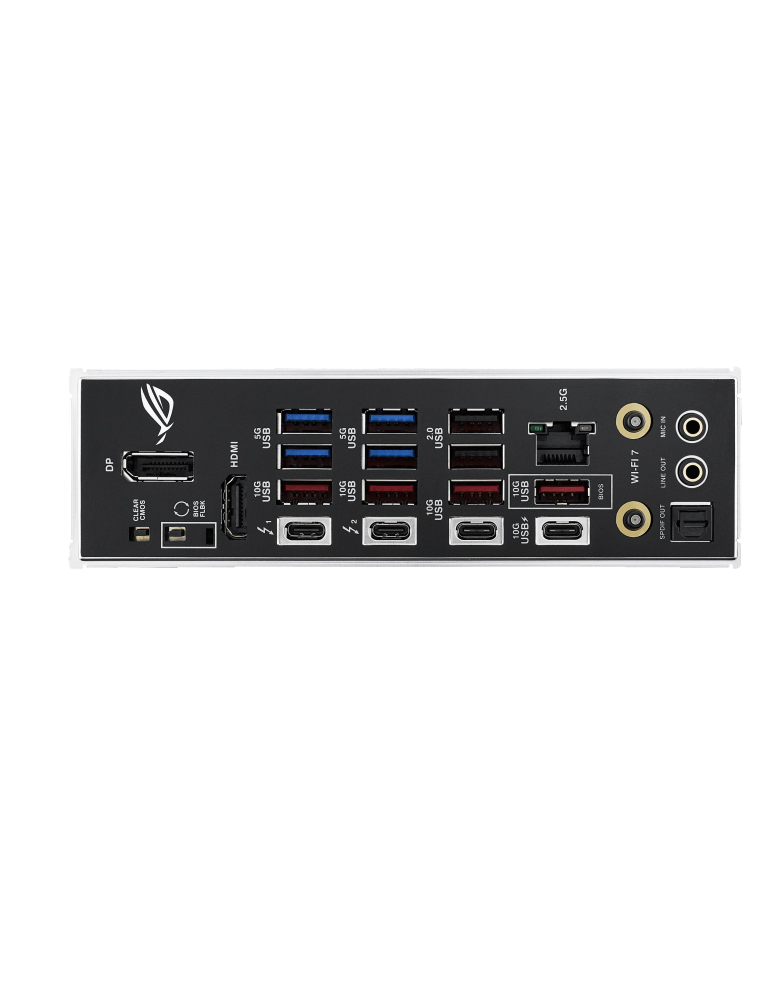

Connectivity (Rear I/O):

• Thunderbolt™ 4: 2 x Thunderbolt™ 4 ports (USB Type-C®) with DisplayPort and Thunderbolt video output (up to 40 Gbps bidirectional bandwidth, supports up to two external 4K displays or one 8K display).
• USB:
  • 6 x USB 10Gbps ports (4 x Type-A, 1 x USB Type-C®, 1 x USB Type-C® with up to 30W PD Fast-charge).
  • 4 x USB 5Gbps ports (Type-A).
  • 2 x USB 2.0 ports (Type-A).
• Video Outputs (from integrated CPU graphics, if present): 1 x DisplayPort (supports max. 8K@60Hz), 1 x HDMI® port (supports 4K@60Hz).
• Ethernet: 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard.
• Wireless: Wi-Fi 7 (802.11be, 2×2) with 2.4/5/6GHz frequency bands and up to 4.8X ultra-fast speeds, support for 320MHz bandwidth, 4096 QAM.
• Bluetooth: Bluetooth® v5.4.
• Audio: 2 x Gold-plated audio jacks, 1 x Optical S/PDIF Out Port.
• Buttons: 1 x BIOS FlashBack™ button, 1 x Clear CMOS button.

Internal I/O Connectors:

• USB Headers:
  • 1 x USB 20Gbps connector (supports USB Type-C®).
  • 2 x USB 5Gbps headers (supports 4 additional USB 5Gbps ports).
  • 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports).
• Fan & Cooling Headers: Multiple fan headers (CPU Fan, CPU OPT Fan, AIO Pump, Chassis Fan headers).
• Power Connectors: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors.
• Storage Headers: 5 x M.2 slots (as listed above), 4 x SATA 6Gb/s ports.
• RGB Headers: 3 x 3-Pin Addressable Gen2 RGB Headers for Aura Sync lighting.
• Other: Front Panel Audio header, Start button, System Panel header, Thermal Sensor header, Thunderbolt™ (USB4®) header.

Audio:

• Codec: ROG SupremeFX 7.1 Surround Sound CODEC ALC4080 with Savitech SV3H712 AMP.
• Features: Impedance sense for headphones, 120 dB SNR stereo playback, 110 dB SNR recording input, SupremeFX shielding, Dolby Atmos® support.

Special Features:

• ASUS AI Intelligence: AI Overclocking, AI Cooling II, AI Networking II.
• EZ PC DIY: M.2 Q-Latch, Q-Release Slim for PCIe slots, BIOS FlashBack™, Pre-mounted I/O Shield, Q-LED, Q-Code.
• Thermal Solution: M.2 Heatsinks, M.2 Backplate, VRM Heatsink Array.
• Aura Sync: RGB lighting synchronization.
• Software Utilities: Armoury Crate, Aura Creator, Fan Xpert 4 (AI Cooling II), GameFirst, Norton 360 (trial), etc.
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS with AI Overclocking Guide, CrashFree BIOS 3, MyHotkey.

The ROG STRIX Z890-F GAMING WIFI is positioned as a feature-rich motherboard for building a high-end gaming or workstation PC, offering extensive connectivity, robust power delivery for overclocking, and support for the latest generation of Intel processors and PCIe 5.0 devices.
