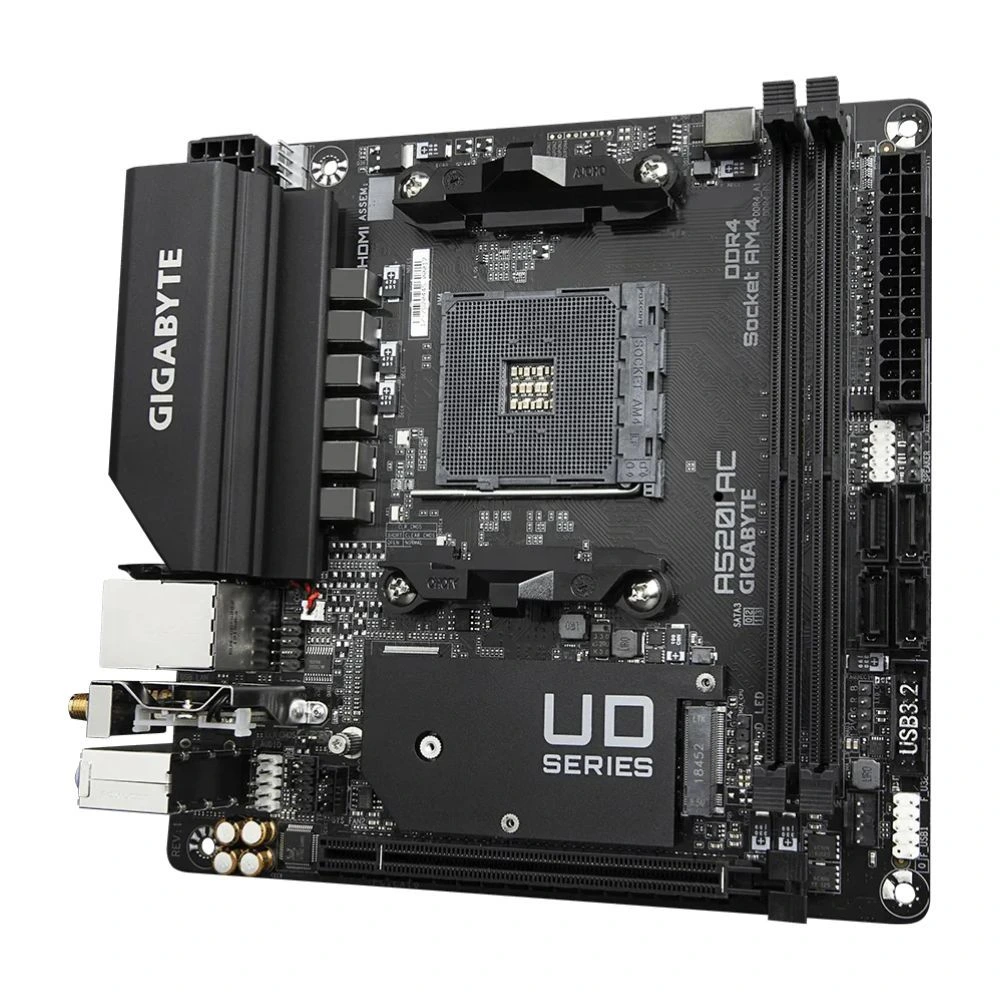

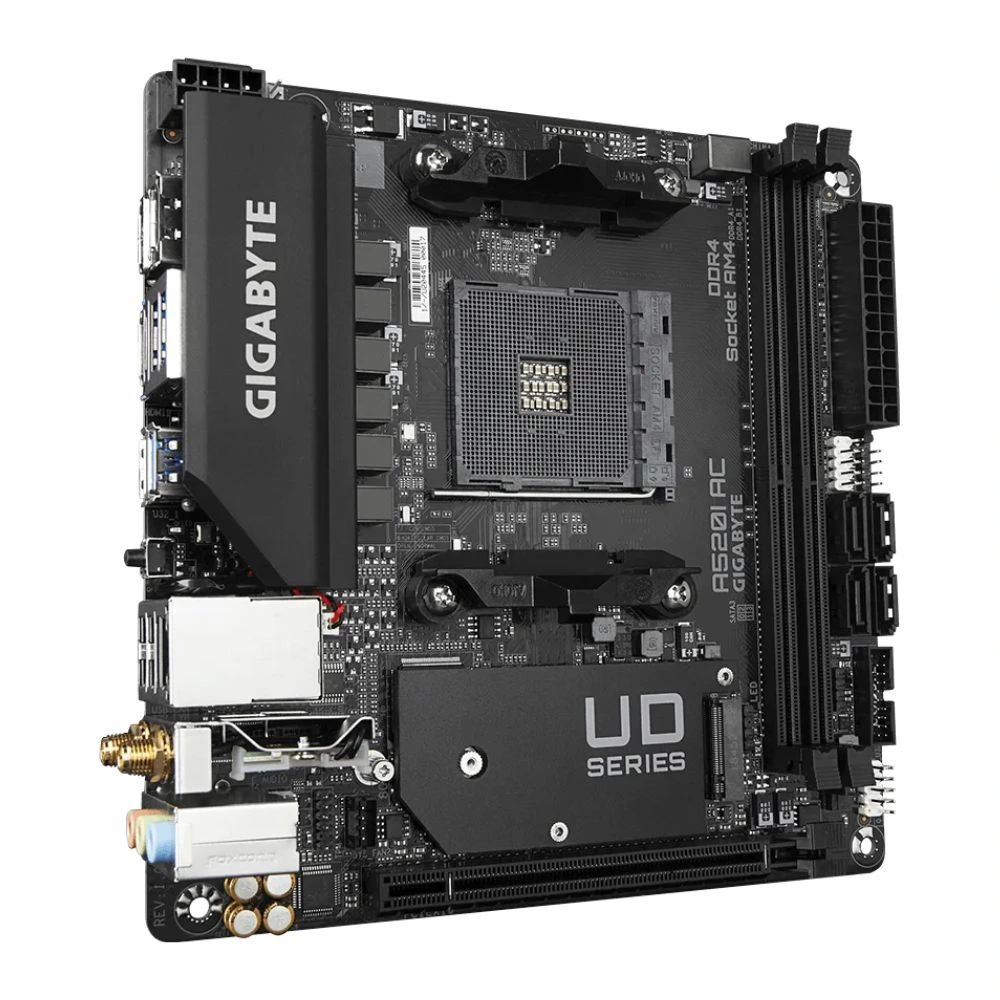

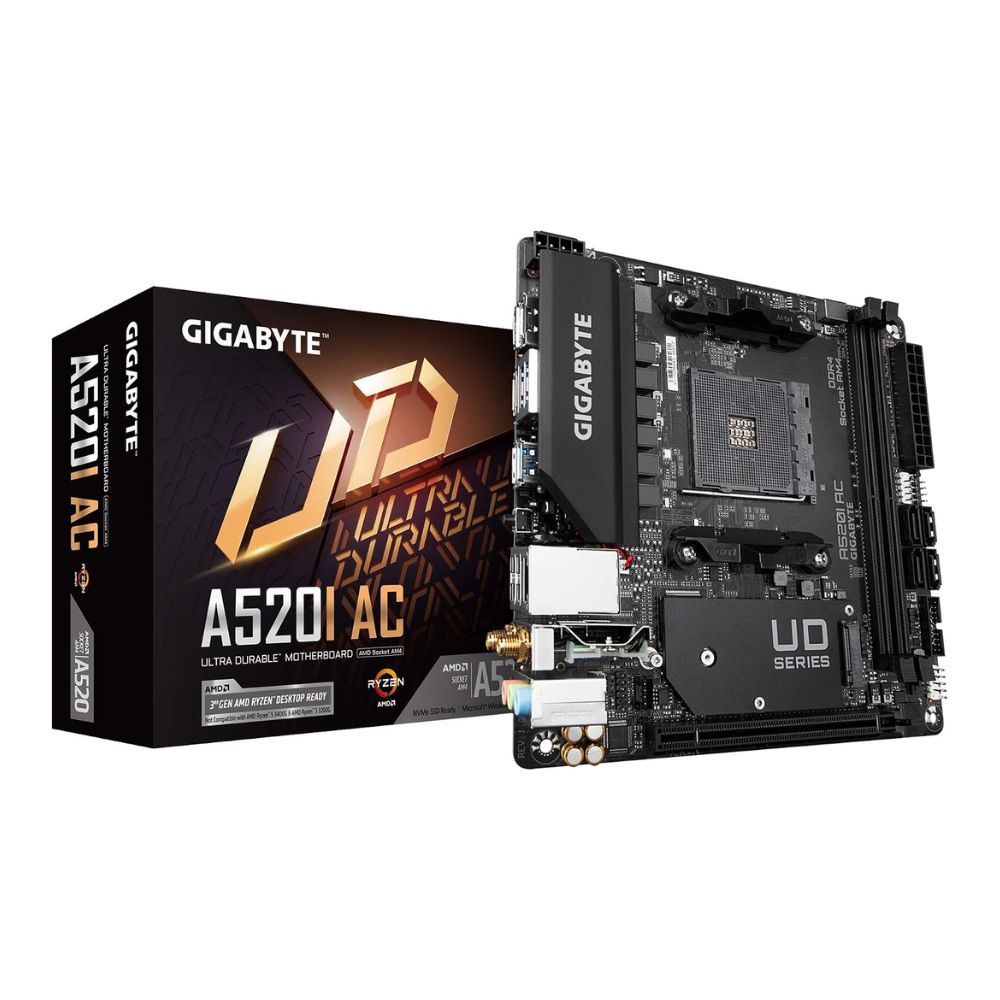

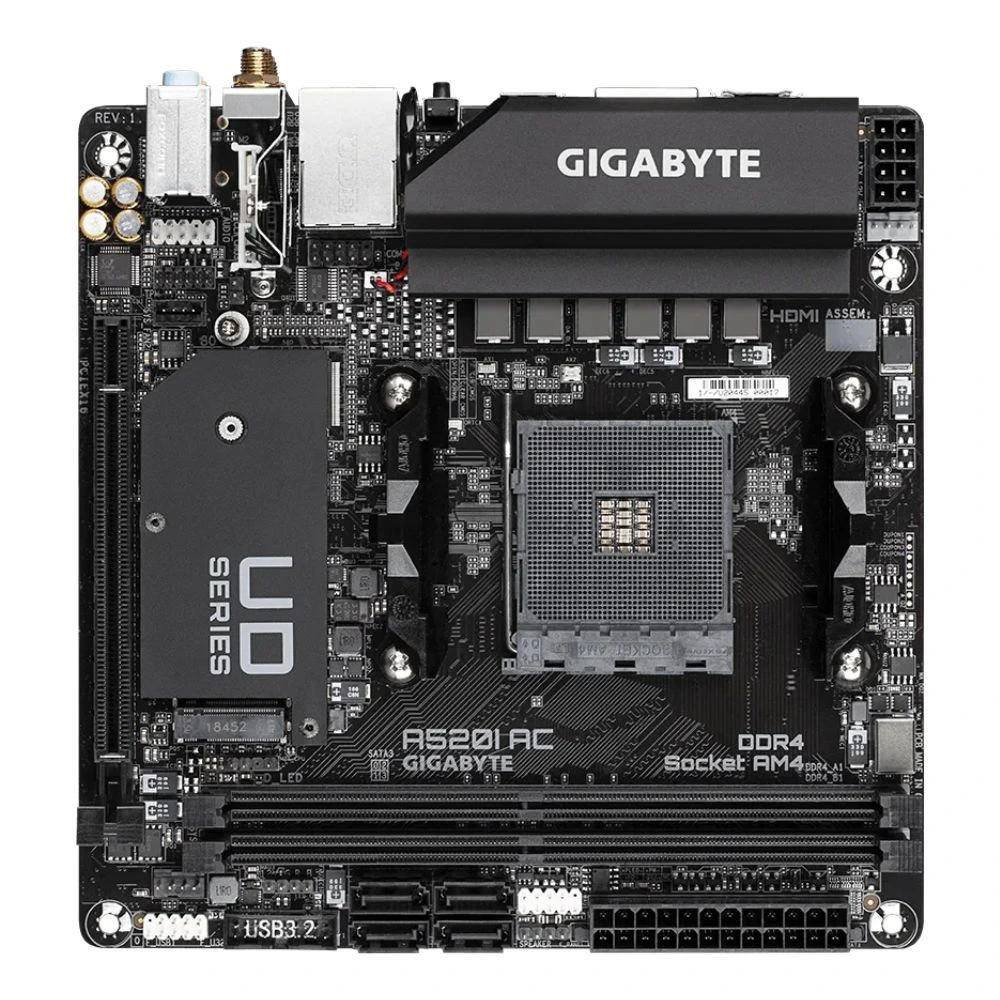

GIGABYTE A520I AC AMD AM4 Mini-ITX DDR4 PCIe 3.0 Wi-Fi Gaming Motherboard

Technical Specification

CPU
AMD Socket AM4, support for:
– AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 4000 G-Series / Ryzen 3000 / Ryzen 3000 G-Series Processors

Chipset
– AMD A520

Memory
– 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
– Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
– Dual channel memory architecture
– Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (ECC mode support varies by CPU)
– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
– Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics support:
– 1 x DisplayPort port, supporting a maximum resolution of 5120×2880@60 Hz (DisplayPort 1.4, HDCP 2.3, HDR)
– 2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR)
– Support for up to 3 displays at the same time
– Maximum shared memory of 16 GB

Audio
– Realtek Audio CODEC
– High Definition Audio
– 2/4/5.1/7.1-channel

LAN
– Realtek GbE LAN chip (10/100/1000 Mbit)

Wireless Communication Module
– Intel Wi-Fi AC 3168 (PCB rev. 1.0/1.2/1.3) / Intel Wi-Fi AC 9260 (PCB rev. 1.1) / Realtek Wi-Fi AzureWave AW-CB304NF (RTL8821CE) (PCB rev. 1.4)
– Wi-Fi 802.11a/b/g/n/ac, 2.4/5 GHz Dual-Band
– Bluetooth 4.2
– Support for 11ac wireless standard

Expansion Slots
– 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (Integrated in CPU)

Storage Interface
Integrated in CPU:
– 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
– 4 x SATA 6Gb/s connectors
– Support for RAID 0, RAID 1, and RAID 10

USB
Integrated in CPU:
– 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
– 2 x USB 3.2 Gen 1 ports available through internal header
– 4 x USB 2.0/1.1 ports (2 on back panel, 2 via internal header)

Internal I/O Connectors
– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 1 x CPU fan header
– 2 x system fan headers (supports up to 2A/12V @ 24W)
– 1 x addressable LED strip header
– 1 x RGB LED strip header
– 1 x M.2 Socket 3 connector
– 4 x SATA 6Gb/s connectors
– 1 x front panel header
– 1 x front panel audio header
– 1 x speaker header
– 1 x USB 3.2 Gen 1 header
– 1 x USB 2.0/1.1 header
– 1 x Trusted Platform Module (TPM) header (2×6 pin, GC-TPM2.0_S module only)
– 1 x serial port header
– 1 x Clear CMOS jumper

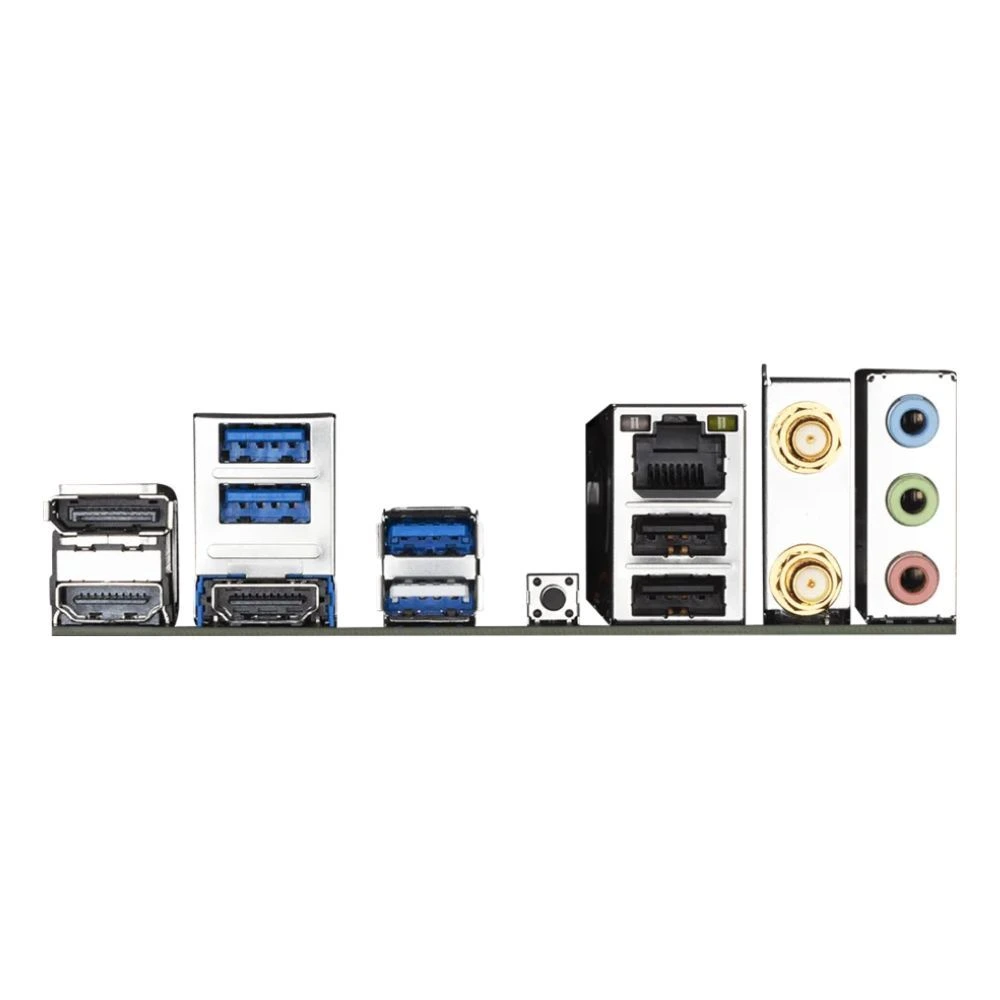

Back Panel Connectors
– 1 x DisplayPort
– 2 x HDMI ports
– 4 x USB 3.2 Gen 1 ports
– 2 x USB 2.0/1.1 ports
– 1 x Q-Flash Plus button
– 1 x RJ-45 port
– 2 x SMA antenna connectors (1T1R)
– 3 x audio jacks

I/O Controller
– iTE I/O Controller Chip

H/W Monitoring
– Voltage detection
– Temperature detection
– Fan speed detection
– Overheating warning
– Fan fail warning
– Fan speed control

BIOS
– 1 x 128 Mbit flash
– Licensed AMI UEFI BIOS
– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
– Support for APP Center (@BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer)
– Support for Q-Flash Plus
– Support for Q-Flash

Operating System
– Windows 11 64-bit
– Windows 10 64-bit

Form Factor
– Mini-ITX Form Factor (17.0 cm x 17.0 cm)
