Key Features
Processor Support: LGA1700 socket for 14th, 13th, and 12th Gen Intel processors.
Memory Architecture: Dual-channel DDR5 memory support across 2 DIMM sockets (up to 128 GB total capacity).
Storage Performance: Dual PCIe 4.0 M.2 connectors and 4 SATA 6Gb/s ports supporting RAID 0, 1, 5, and 10.
Connectivity & Display: Triple-display output capability via D-Sub, DisplayPort, and HDMI ports alongside Realtek® GbE LAN.
Management Software: Support for the GIGABYTE Control Center (GCC) and Q-Flash.
Specifications
CPU Support: LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset: Intel® B760 Express Chipset
Memory
– Support for DDR5 up to 7200(O.C.) / 4800 / 4000 MT/s
– 2 x DDR5 DIMM sockets (up to 128 GB total, 64 GB single DIMM capacity)
– Dual channel memory architecture and ECC/non-ECC Un-buffered DIMM support
– Support for Extreme Memory Profile (XMP)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x D-Sub port (max resolution 1920×1200 @ 60 Hz)
– 1 x DisplayPort (max resolution 4096×2304 @ 60 Hz, version 1.2 / HDCP 2.3)
– 1 x HDMI port (max resolution 4096×2160 @ 60 Hz, version 2.1 / HDCP 2.3)
– Support for up to triple-display simultaneously
Audio
– Realtek® Audio CODEC High Definition Audio (2/4/5.1/7.1-channel)
– Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps)
Expansion Slots
– CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (supports graphics card or NVMe SSD only)
– Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
– CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
– Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 4 x SATA 6Gb/s connectors supporting RAID 0, RAID 1, RAID 5, and RAID 10
USB Ports
– Chipset (Back Panel): 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports
– Internal Headers: 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
Internal I/O Connectors
– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 1 x CPU fan header, 2 x system fan headers
– 1 x RGB LED strip header
– 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors
– Front panel, audio, S/PDIF Out, USB headers, Trusted Platform Module (TPM), serial port header, and Clear CMOS jumper

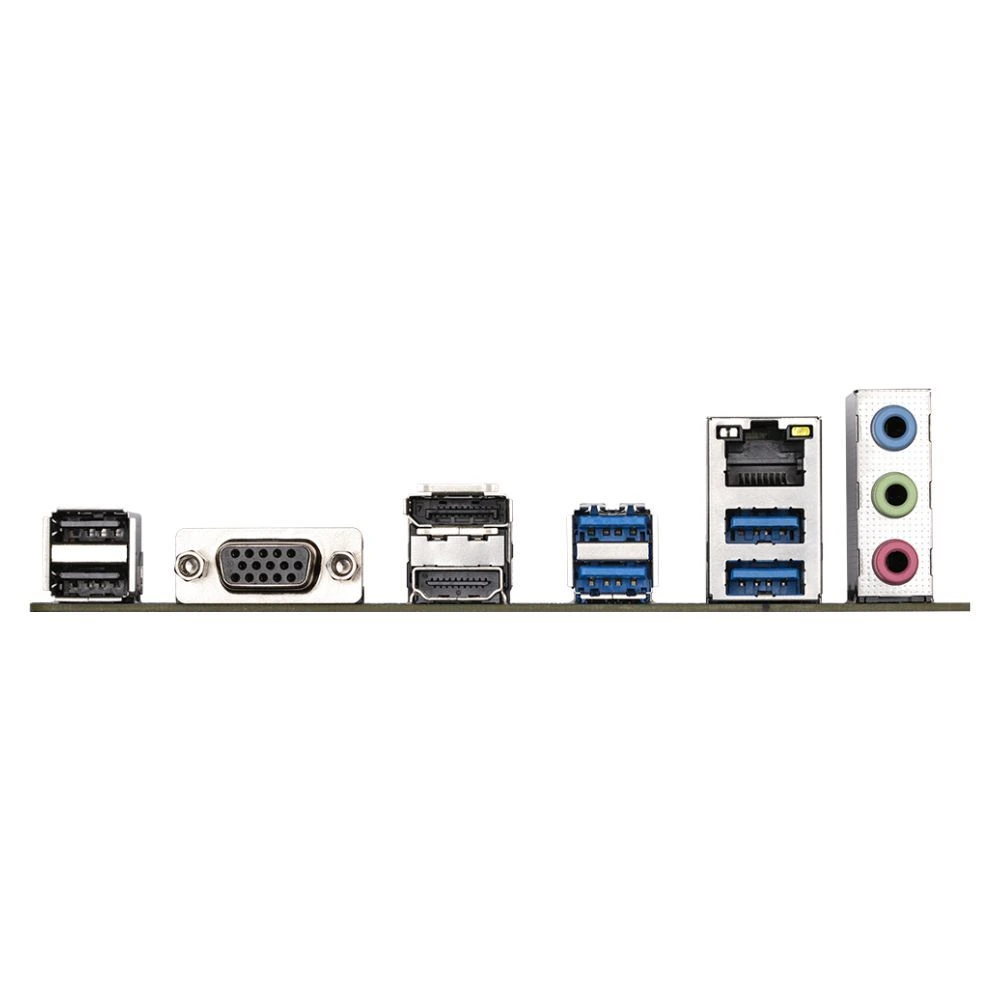

Back Panel Connectors
– 2 x USB 2.0/1.1 ports
– 1 x D-Sub port
– 1 x DisplayPort
– 1 x HDMI port
– 4 x USB 3.2 Gen 1 ports
– 1 x RJ-45 port
– 3 x audio jacks
H/W Monitoring: Voltage, temperature, fan speed, and water cooling flow rate detection; Fan fail warning and speed control
BIOS: 1 x 128 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0)
Operating System: Support for Windows 11 64-bit and Windows 10 64-bit
Form Factor: Micro ATX Form Factor (23.0cm x 21.5cm)
