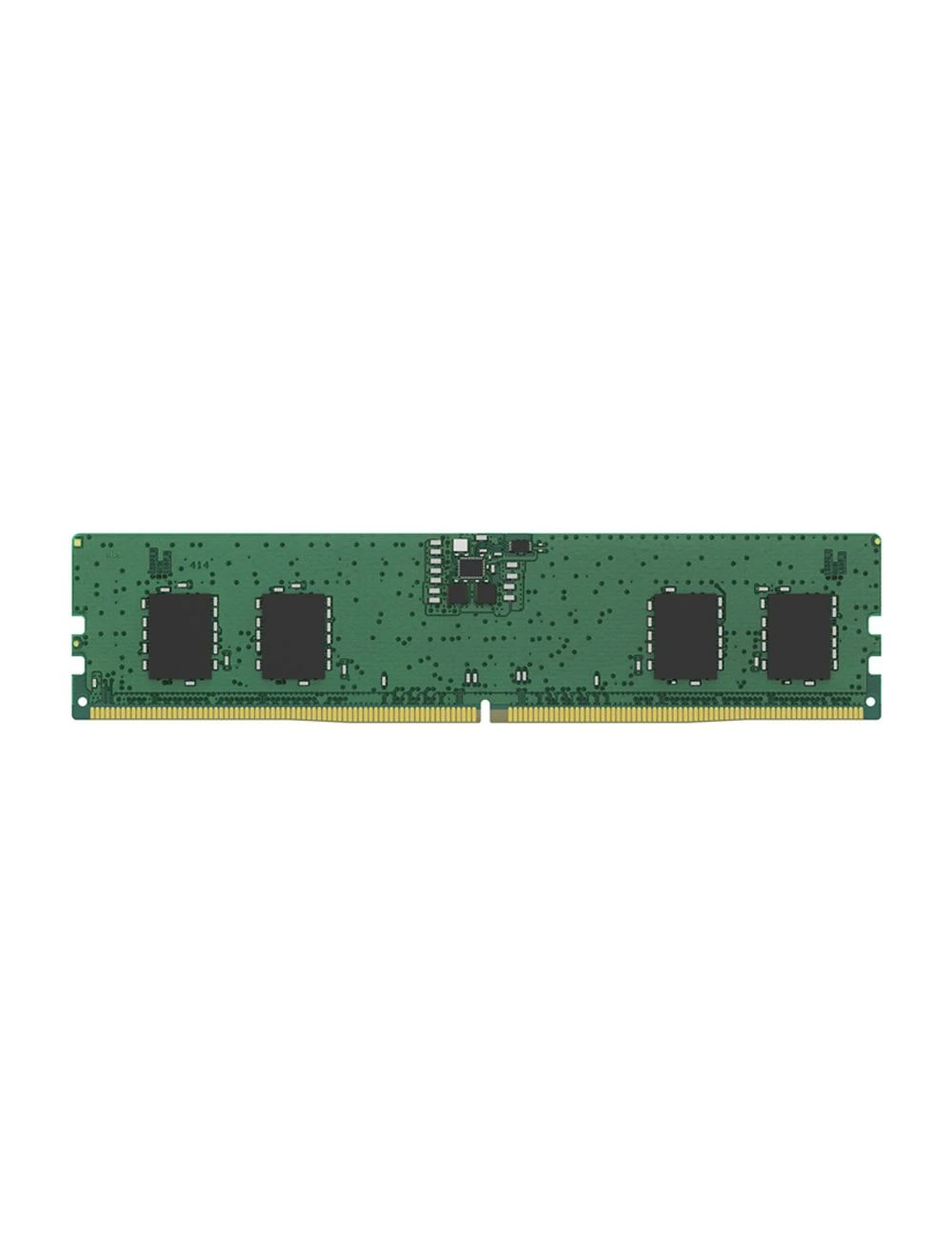

ValueRAM’s KVR56U46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers
Specification
Part Number: (KVR56U46BS6/8)
Capacity: 8GB
Here’s the complete two-column table based on your data: CL (IDD): 46 cycles
Row Cycle Time (tRCmin): 48ns (min.)
Refresh to Active/Refresh Command Time (tRFCmin): 295ns (min.)
Row Active Time (tRASmin): 32ns (min.)
UL Rating: 94 V – 0
Operating Temperature: 0°C to +85°C
Storage Temperature: -55°C to +100°C
