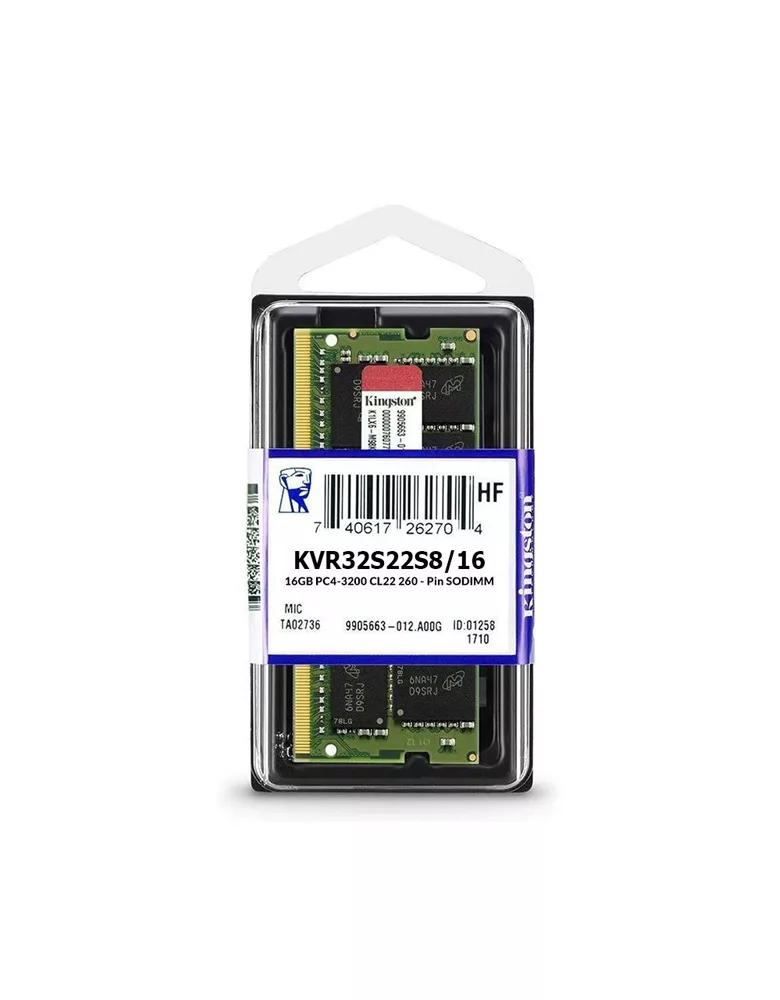

Upgrade your laptop or notebook with Kingston ValueRAM 16GB DDR4-3200 SODIMM for a faster, more responsive system—built for everyday smooth computing and reliable performance.
Key Features

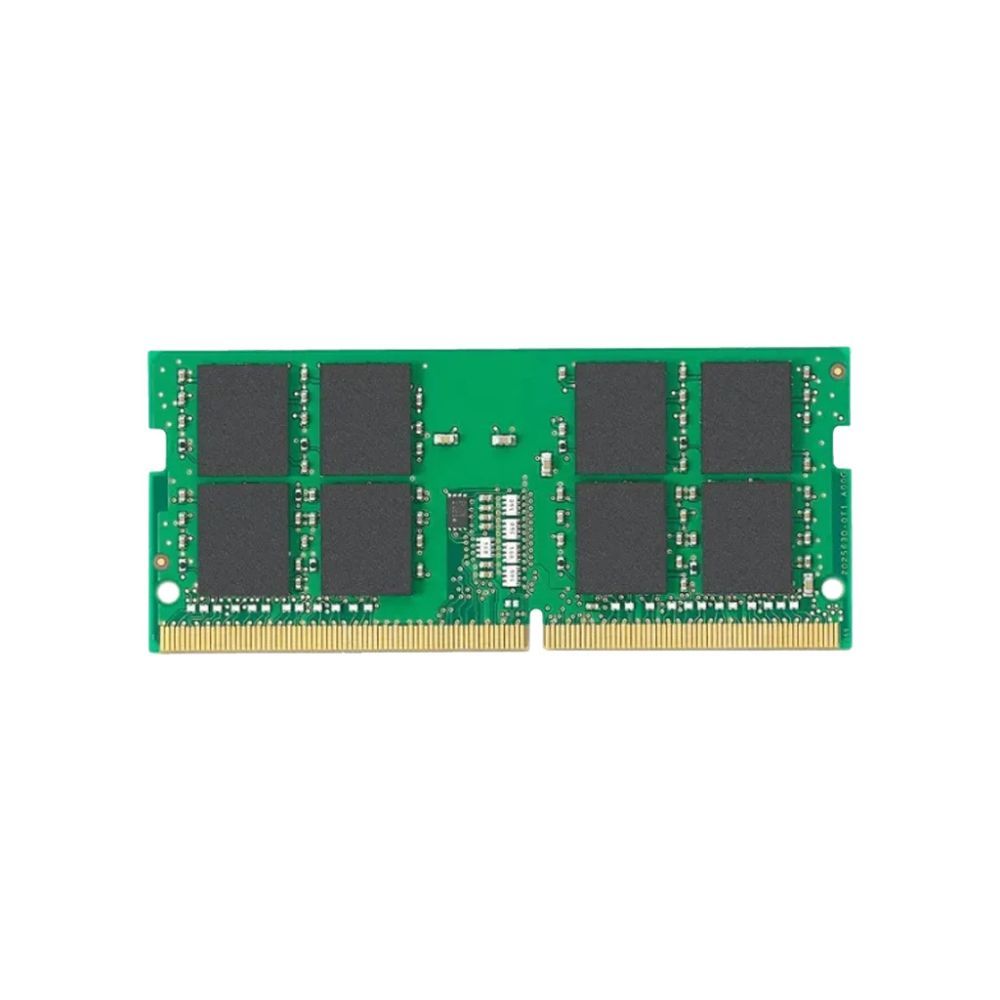

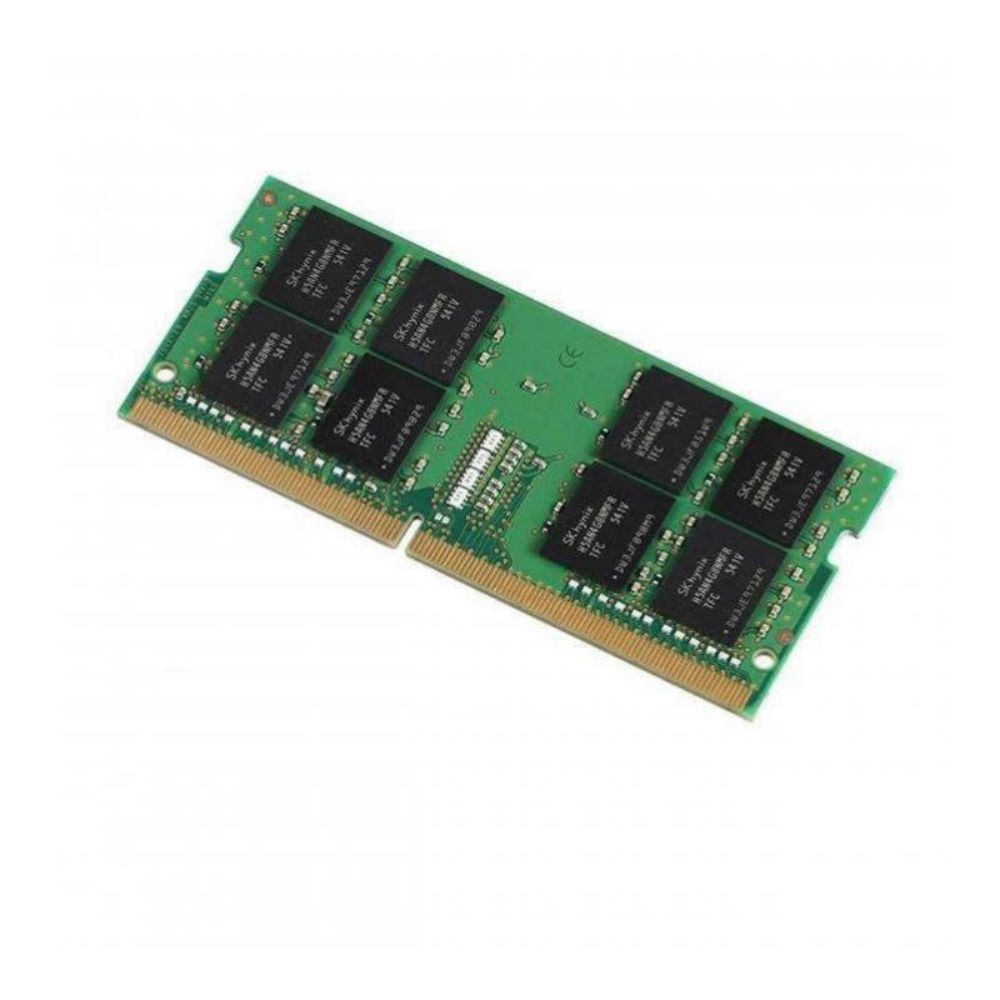

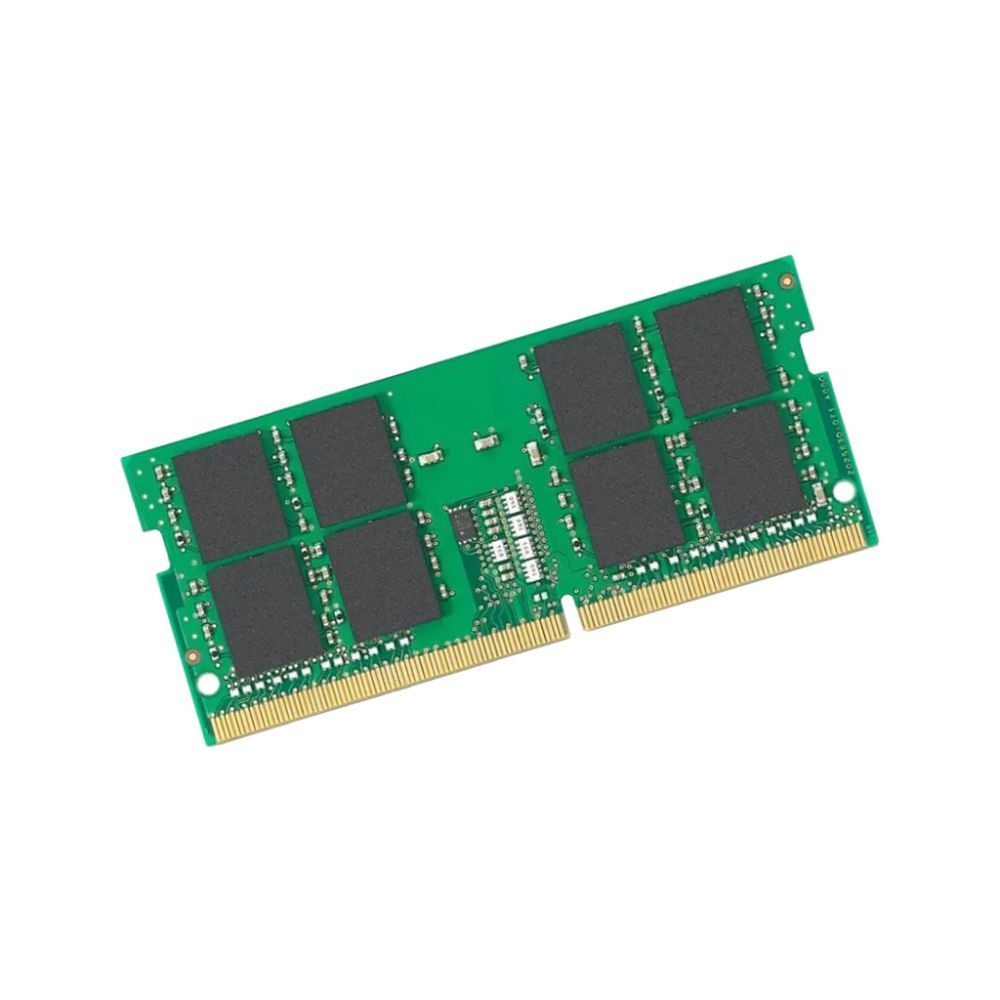

– 16GB capacity (2G x 64-bit) DDR4-3200 SDRAM module
– 2Rx8, non-ECC memory design based on sixteen 1G x 8-bit FBGA components
– SPD programmed to JEDEC standard DDR4-3200 timing: 22-22-22 at 1.2V
– 260-pin DIMM with gold contact fingers
Performance & Timing
– CL: 22 cycles
– Row Cycle Time (tRCmin): 45.75ns (min.)
– Refresh to Active/Refresh Command Time (tRFCmin): 350ns (min.)
– Row Active Time (tRASmin): 32ns (min.)
Power & Electrical Specs
– Power Supply: VDD = 1.2V Typical
– VDDQ = 1.2V Typical
– VPP = 2.5V Typical
– VDDSPD = 2.2V to 3.6V
– Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
– Low-power auto self refresh (LPASR)
– Data bus inversion (DBI) for data bus
– On-die VREFDQ generation and calibration
Memory Architecture & Bus Design
– Dual-rank
– 16 internal banks; 4 groups of 4 banks each
– Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
– Selectable BC4 or BL8 on-the-fly (OTF)
– Fly-by topology
– Terminated control command and address bus
– On-board I2 serial presence-detect (SPD) EEPROM
Physical Build & Compliance
– PCB height: 1.18” (30.00mm)
– UL Rating: 94 V – 0
– RoHS Compliant and Halogen-Free
