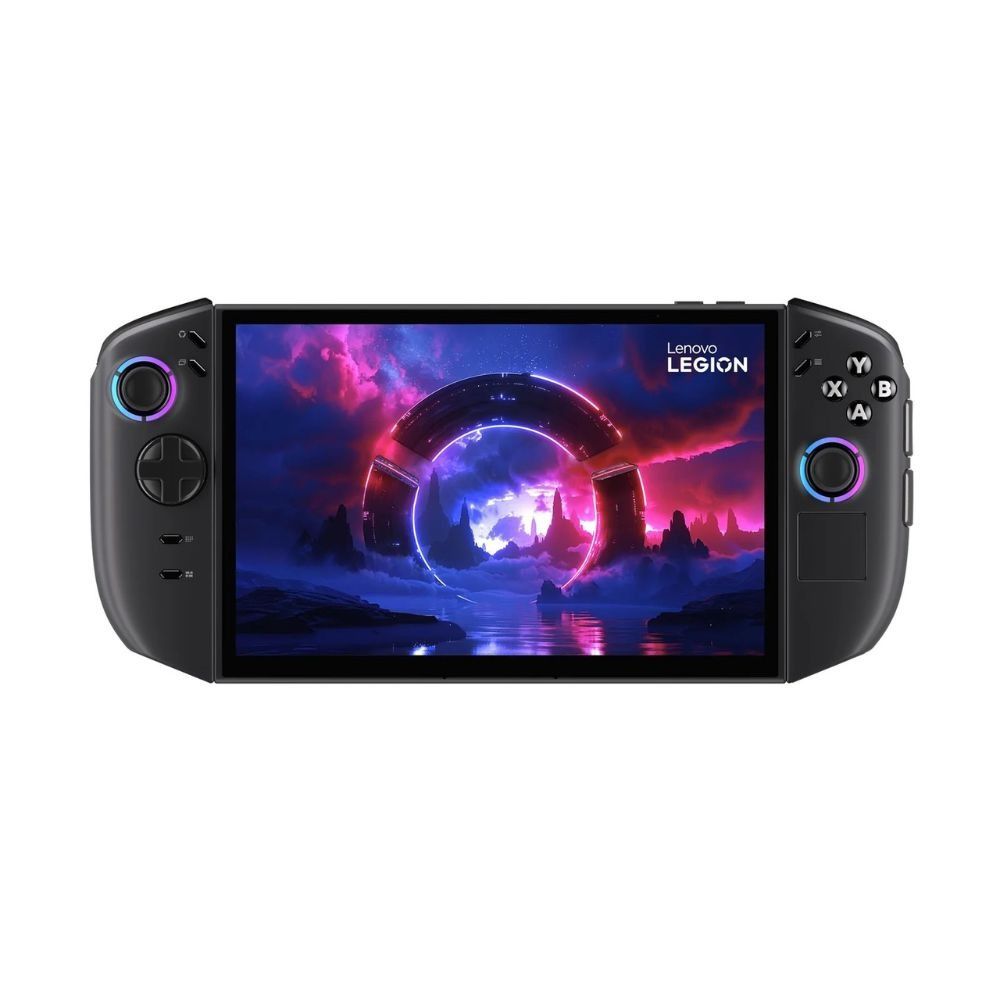

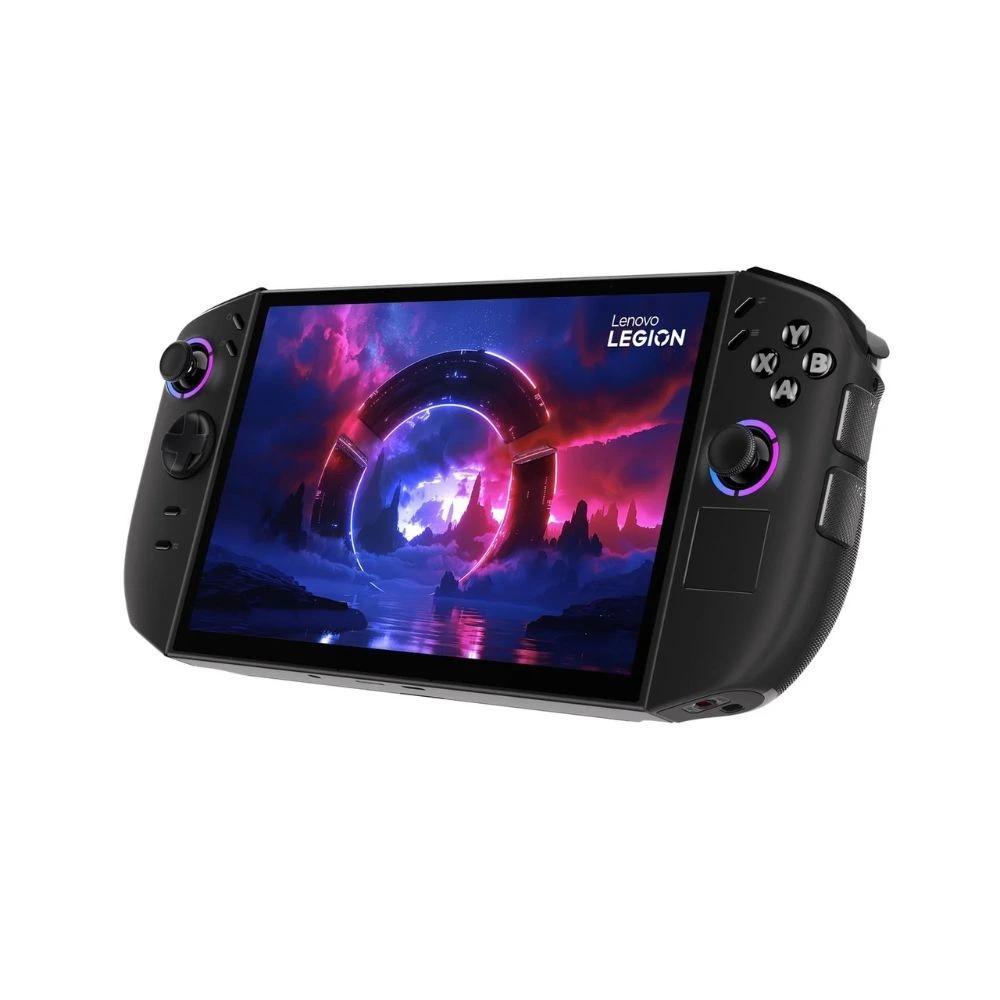

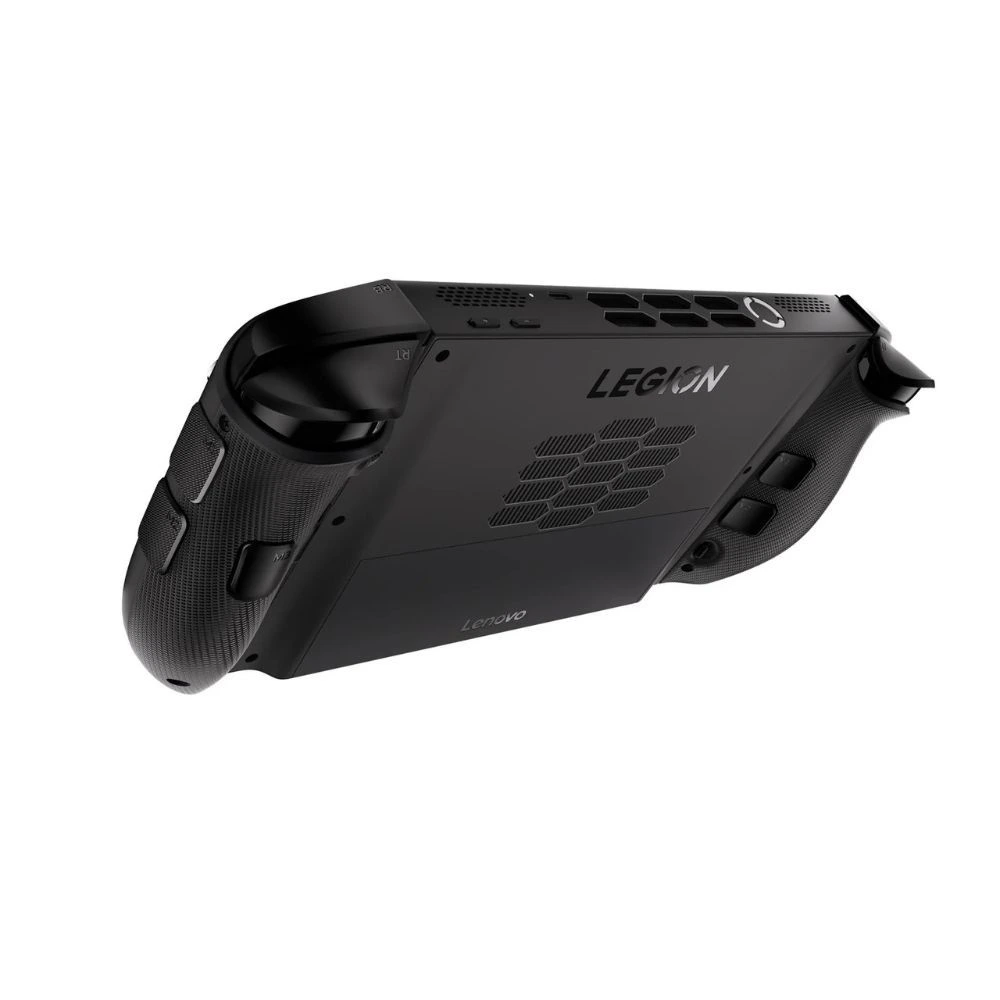

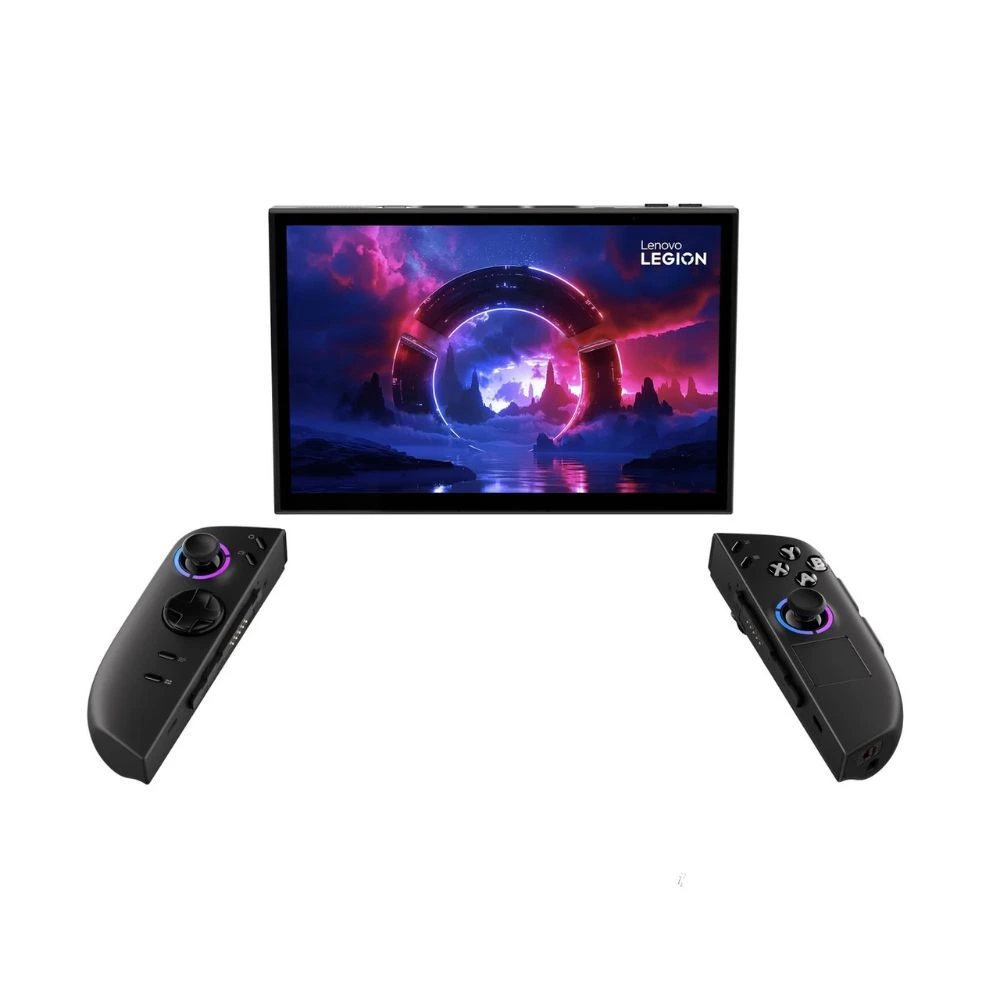

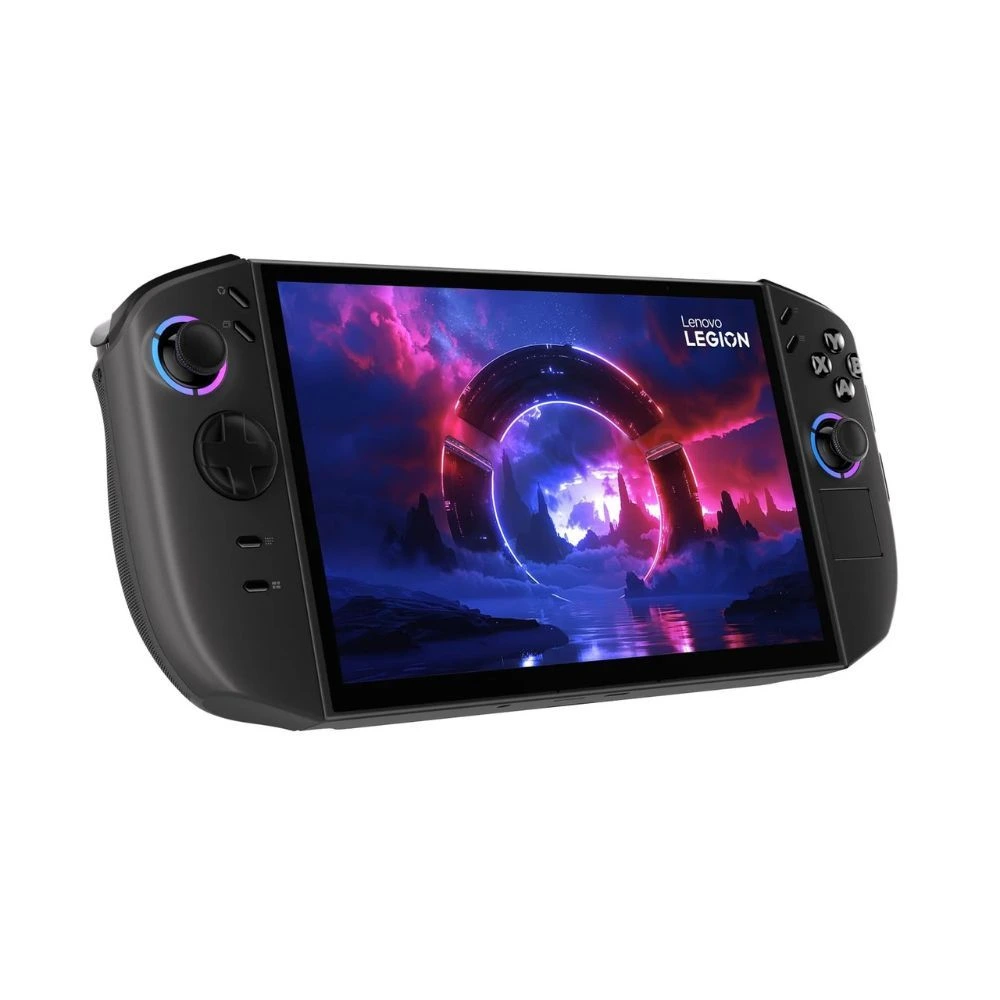

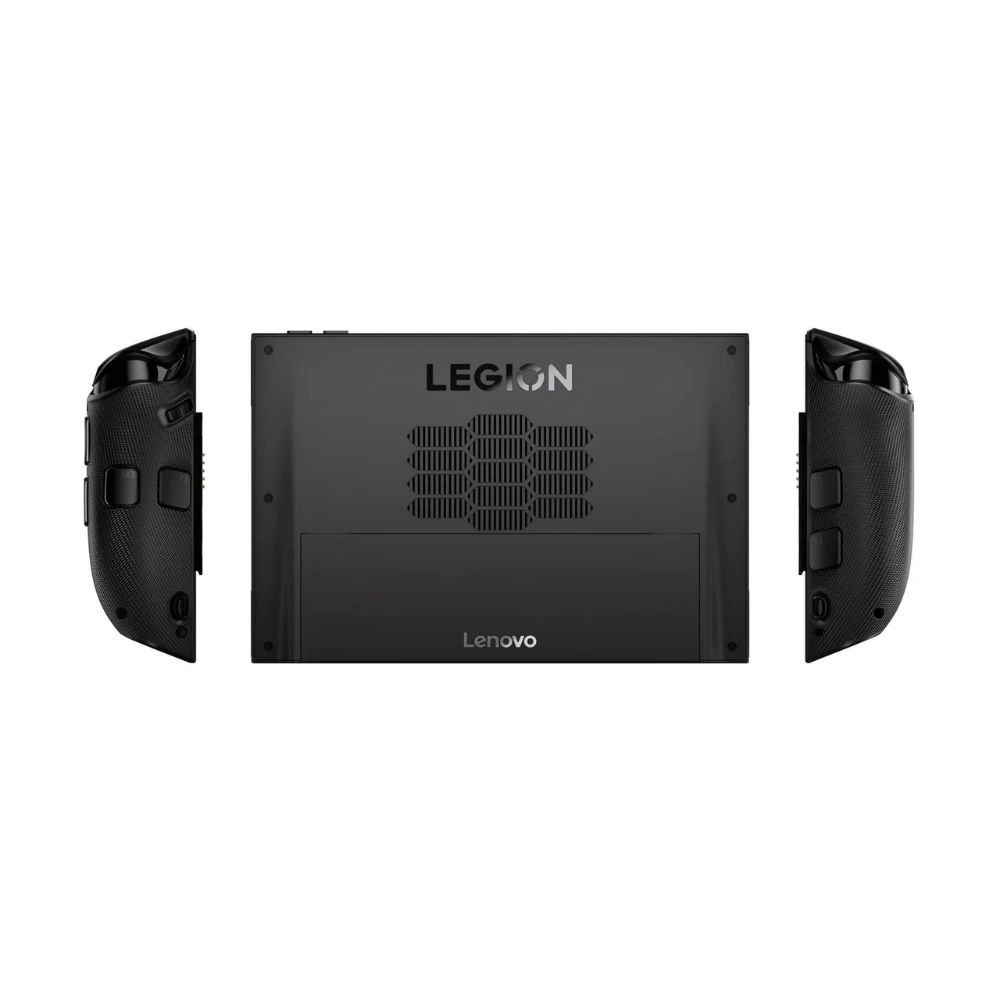

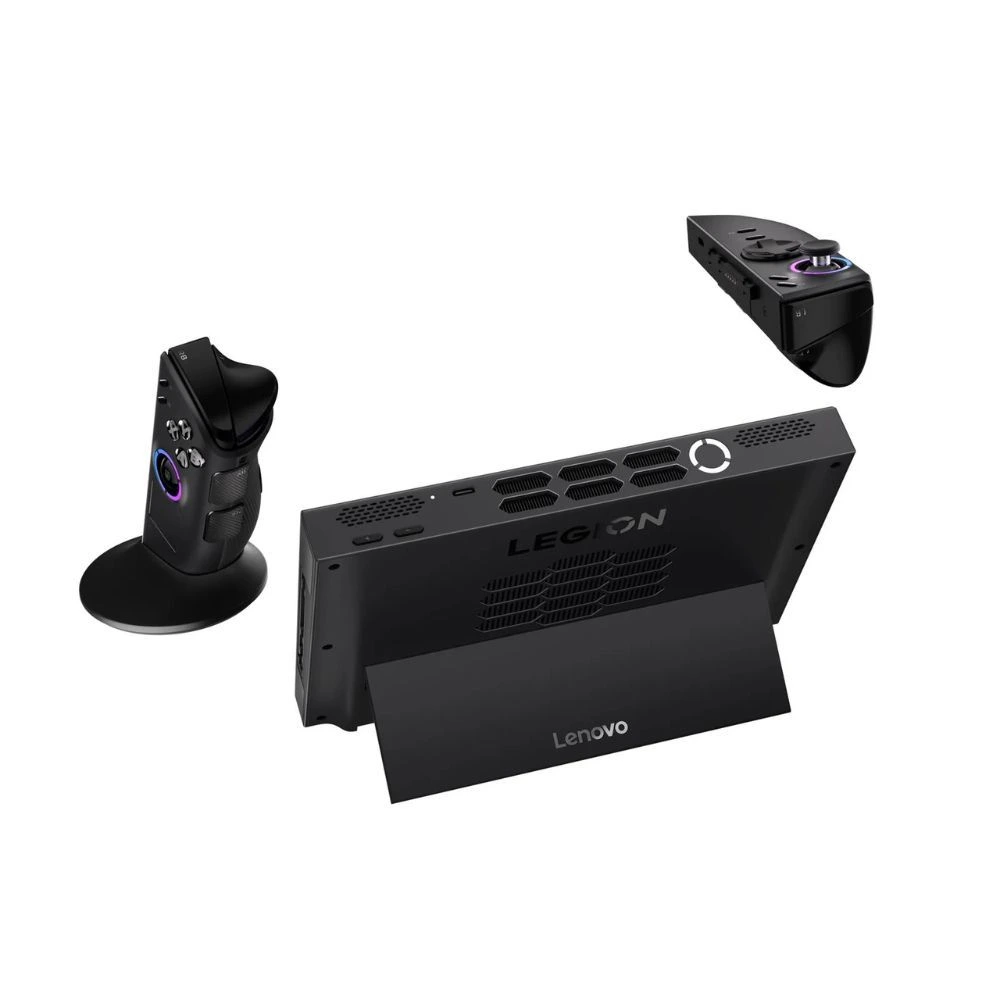

System Specifications
Processor: AMD Ryzen™ Z2 Extreme (8C / 16T, 2 / 5GHz, 8MB L2 / 16MB L3)
Graphics: Integrated AMD Radeon™ Graphics
Chipset: AMD SoC Platform
Memory: 32GB Soldered LPDDR5X-8000
Memory Slots: Memory soldered to systemboard, no slots
Max Memory: 32GB soldered memory, not upgradable
Storage: 1TB SSD M.2 2242 PCIe® 4.0×4 NVMe®
Storage Slot: One M.2 2280 PCIe® 4.0 x4 slot
Max Storage Support: One drive, up to 1TB M.2 2242 SSD or 2TB M.2 2280 SSD
Optical: None
Card Reader: microSD Card Reader
Audio Chip: High Definition (HD) Audio
Speakers: Stereo speakers, 2W x2 (woofers)
Microphone: 2x, Array
Camera: None
Battery: 74Wh
Power Adapter: 65W USB-C® Slim (2-pin, Wall-mount)
Special Features: Legion Coldfront 2.0 cooling system
Display: 8.8″ WUXGA (1920×1200) OLED 500nits (typical) / 1100nits (peak) Glossy / Anti-fingerprint, 100% DCI-P3, 144Hz, DisplayHDR™ True Black 1000, Corning® Gorilla® Glass 3, Low Blue Light, Touch
Touchscreen: In-cell, 10-point Multi-touch
Screen-to-Body Ratio: 85.8% AAR (active area ratio)
Pen: Pen Not Supported
Touchpad: Buttonless Mylar® surface touchpad (on the right controller), 24 x 24 mm (0.94 x 0.94 inches)
Controls
A B X Y buttons
D-pad
Touchpad
FPS mode switch
Mouse wheel (on right controller)
Left & right Joysticks
Left & right release buttons
LB & LT buttons
RB & RT buttons
Y1 & Y2 buttons
M3 & Y3 buttons
M1 & M2 buttons
6x function buttons
Dimensions (WxDxH)
Gamepad | 206 x 136.7 x 22.95 mm (8.11 x 5.38 x 0.90 inches)

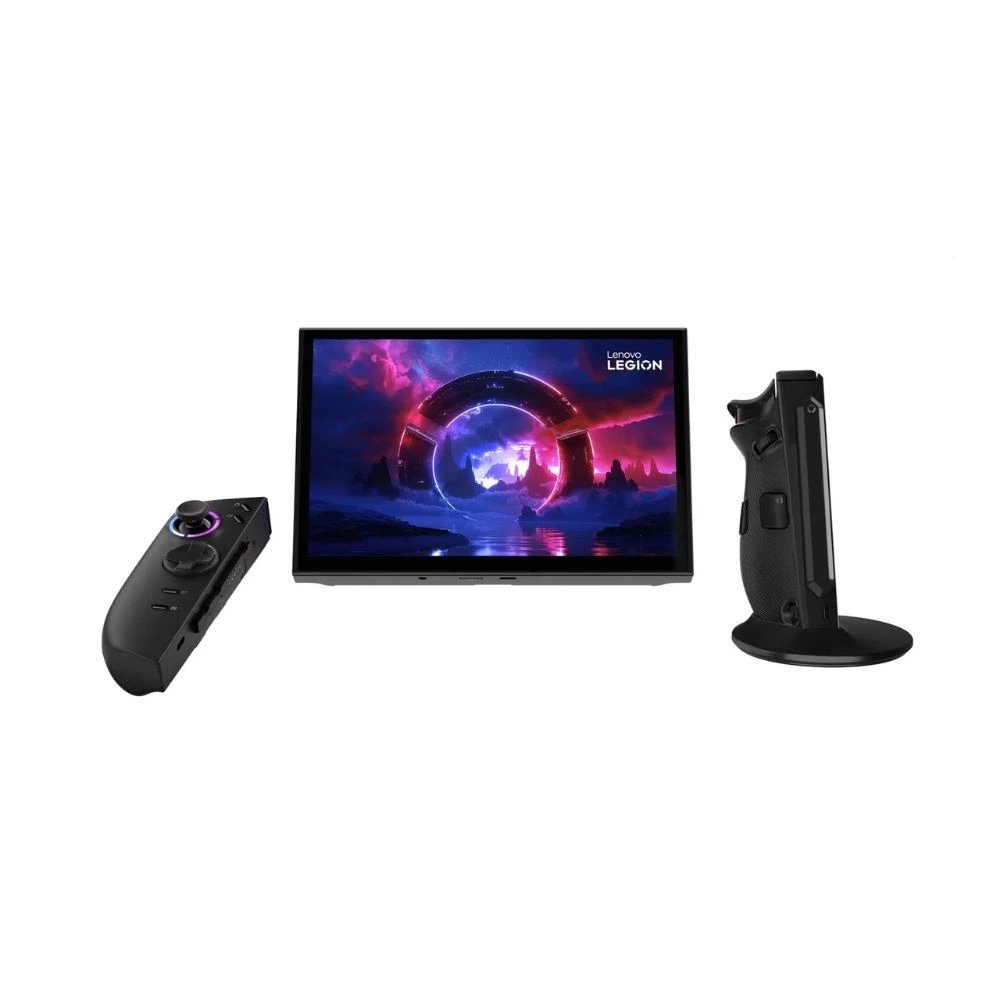

Gamepad with controllers | 295.6 x 136.7 x 42.25 mm (11.64 x 5.38 x 1.66 inches)
Weight: Gamepad with controllers | Around 920 g (2.03 lbs), Controllers only | Less than 210 g (0.46 lbs)
Case Color: Eclipse Black
Case Material: PC-ABS (Gamepad), PC-ABS (Controllers)
Surface Treatment: Painting (Gamepad), Painting + Special Texture (Controllers)
Others: Power button, Volume keys
Operating System: Windows® 11 Home, English
WLAN + Bluetooth: Wi-Fi® 6E, 802.11ax 2×2 + BT5.3
WWAN: WWAN Not Supported
Ethernet: No Onboard Ethernet
Standard Ports
2x USB-C® (USB4® 40Gbps), with USB PD 65-100W and DisplayPort™ 2.1
2x USB-C® (support charging only)
1x Headphone / microphone combo jack (3.5mm)
1x Card reader
Docking
Various docking solutions supported via USB-C®.
For more compatible docking solutions, please visit Docking for Legion Go 8ASP2
Security Chip: Firmware TPM 2.0 Enabled
Fingerprint Reader: Touch Style, Integrated in Power Button
