Specifications

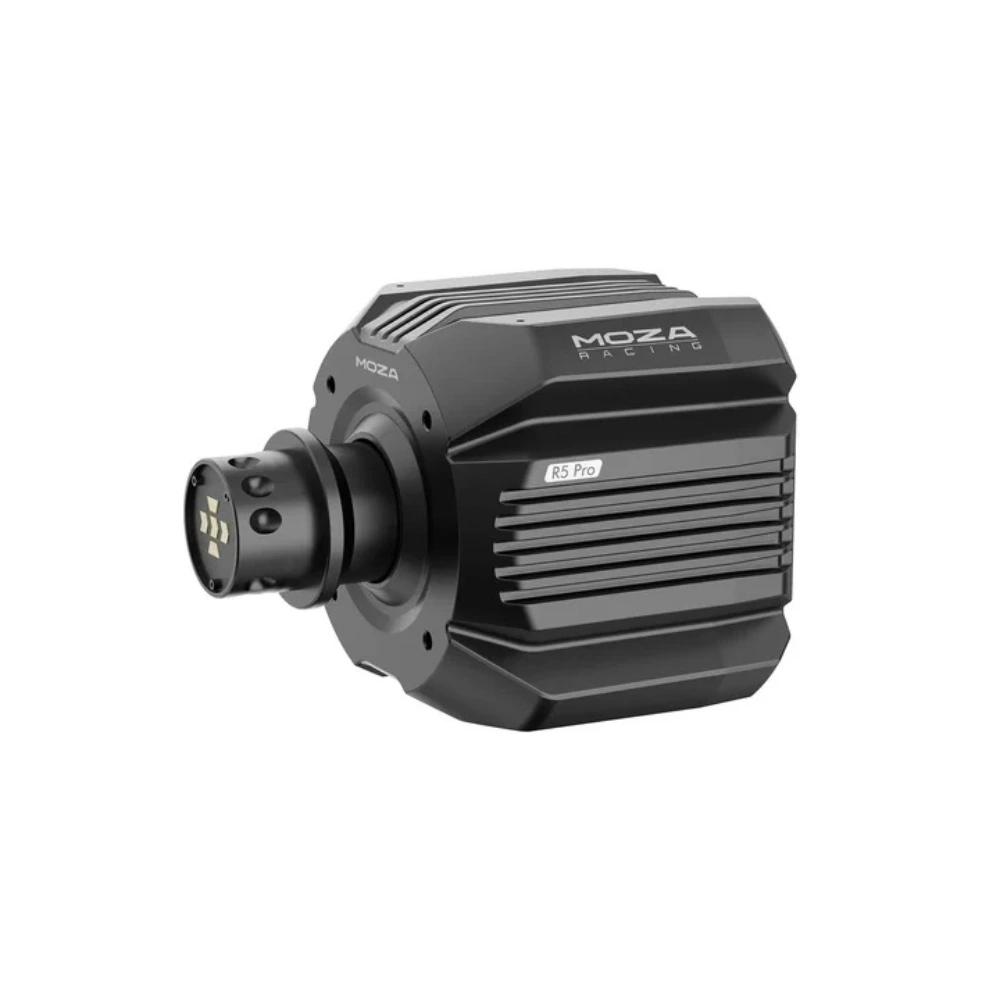

R5 Pro Wheel Base
Platform: PC
Drive System: Direct Drive
Peak Torque: 6Nm
Steering Rotation: 90°–2700°
Encoder Resolution: 21-Bit Magnetic Encoder
USB Refresh Rate: 1000Hz
Housing Material: Aviation-Grade Aluminium Alloy
Quick Release: Supported
MOZA Pit House: Supported
Mounting Method: Bottom Mount
Weight: 3.45kg

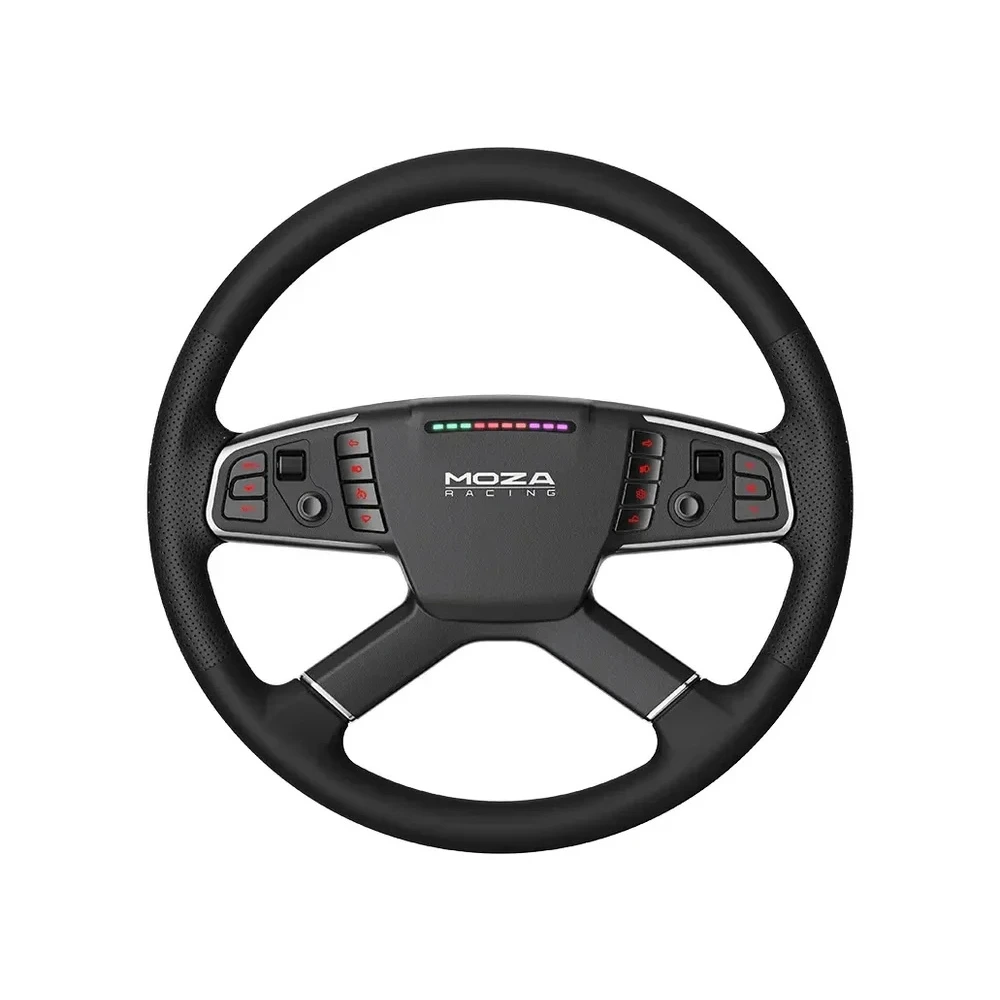

TSW Truck Wheel
Wheel Diameter: 400mm
Rim Material: Aerospace-Grade Aluminium
Hub Material: Polymer Composite
Buttons: 14 Backlit Short-Travel Buttons
Thumbwheels: 2 Aluminium
Joysticks: 2 Ultra-Thin
RGB LEDs: 10
Telemetry Support: Yes
Communication: Wireless & Wired
Quick Release: Aluminium Quick Release

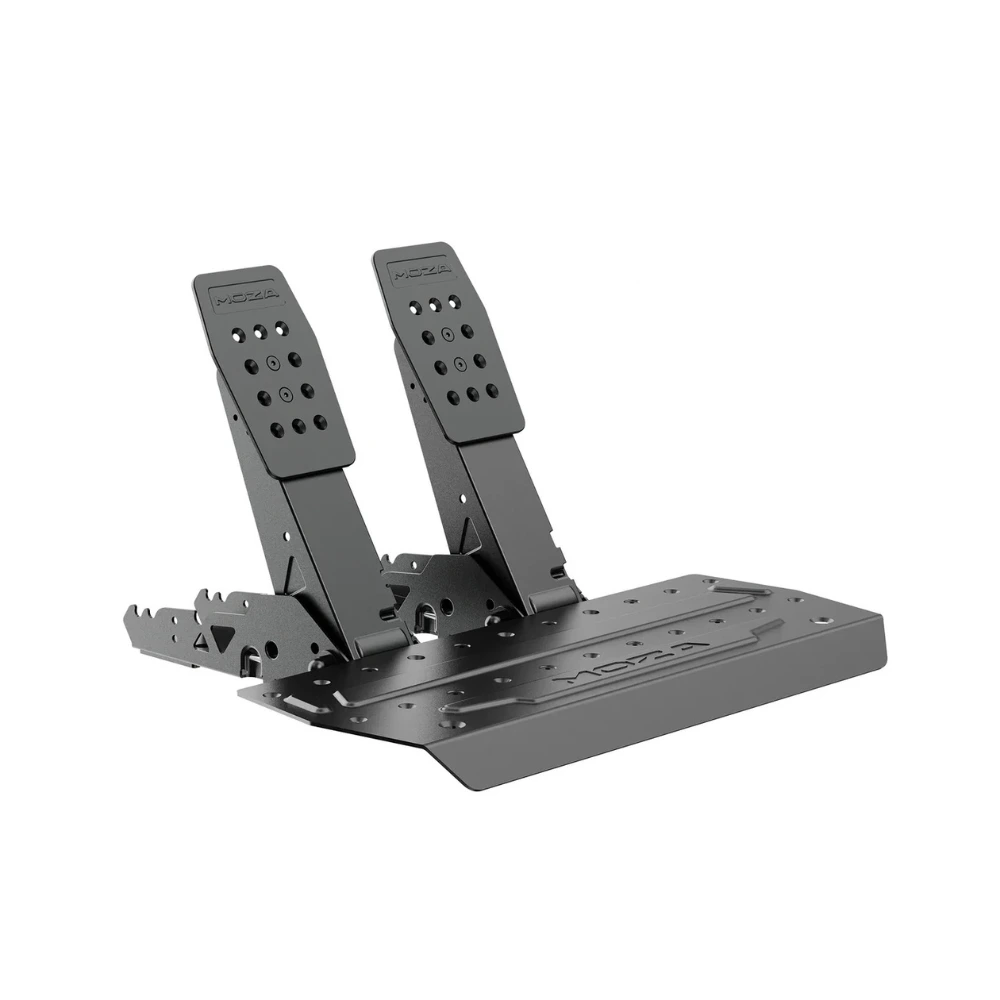

SR-P Lite2 Pedals
Pedals: Throttle & Brake
Sensor Type: Hall Sensor
Material: High-Strength Steel
Adjustable Pedal Spacing
Adjustable Pedal Plate Height
Adjustable Output Curve
Pedal Input Reversal Supported
Truck Wheel Clamp
Material: High-Strength Steel
Compatible Desktop Thickness: 3-70mm
Angle Adjustment: 0°-75°
Compatible with Aluminium Profile Rigs

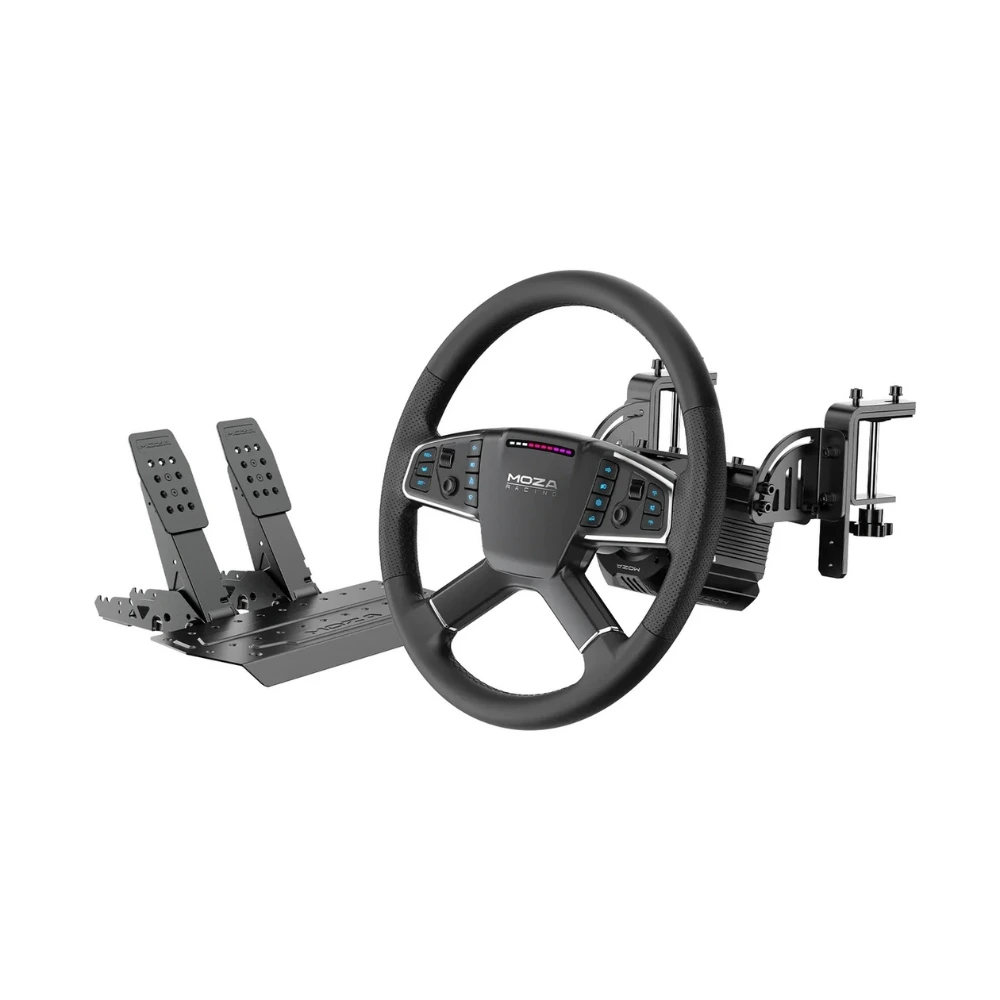

What’s in the box
MOZA R5 Pro Direct Drive Wheel Base
MOZA TSW Truck Steering Wheel
MOZA SR-P Lite2 Two-Pedal Set
Truck Wheel Clamp
Power Supply
USB Cable
Toolkit
User Manual
Warranty Card
