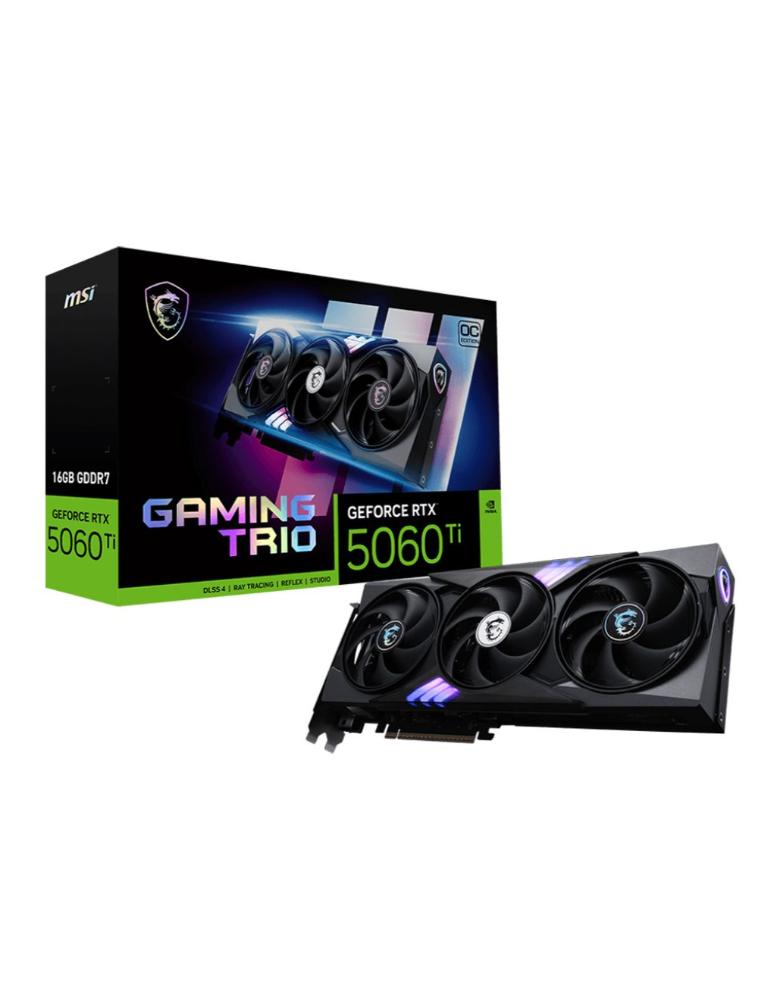

MSI GeForce RTX 5060 Ti 16GB Gaming Trio OC GDDR7 Graphics Card

GeForce RTX™ 5060 Ti 16G GAMING TRIO OC

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clocks:
  Extreme Performance: 2662 MHz (MSI Center)
  Boost: 2647 MHz
• TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
• STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
• Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
• Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
• Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specifications:

Marketing Name:  GeForce RTX™ 5060 Ti 16G GAMING TRIO OC
Model Name:  G506T-16GTC
Graphics Processing Unit:  NVIDIA® GeForce RTX™ 5060 Ti
Interface:  PCI Express® Gen 5 x16 (uses x8)
Core Clocks
– Extreme Performance: 2662 MHz (MSI Center)
– Boost: 2647 MHz
CUDA® CORES:  4608 Units
Memory Speed:  28 Gbps
Memory:  16GB GDDR7
Memory Bus:  128-bit
Output
– DisplayPort x 3 (v2.1b)
– HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support:  Yes
Power Consumption:  180 W
Power Connectors:  16-pin x 1
Recommended PSU:  600 W
Card Dimension (mm):  300 x 125 x 44 mm
Weight (Card / Package):  844 g / 1384 g
DirectX Version Support:  12 Ultimate
OpenGL Version Support:  4.6
Maximum Displays:  4
G-SYNC® technology:  Yes
Digital Maximum Resolution:  7680 x 4320
