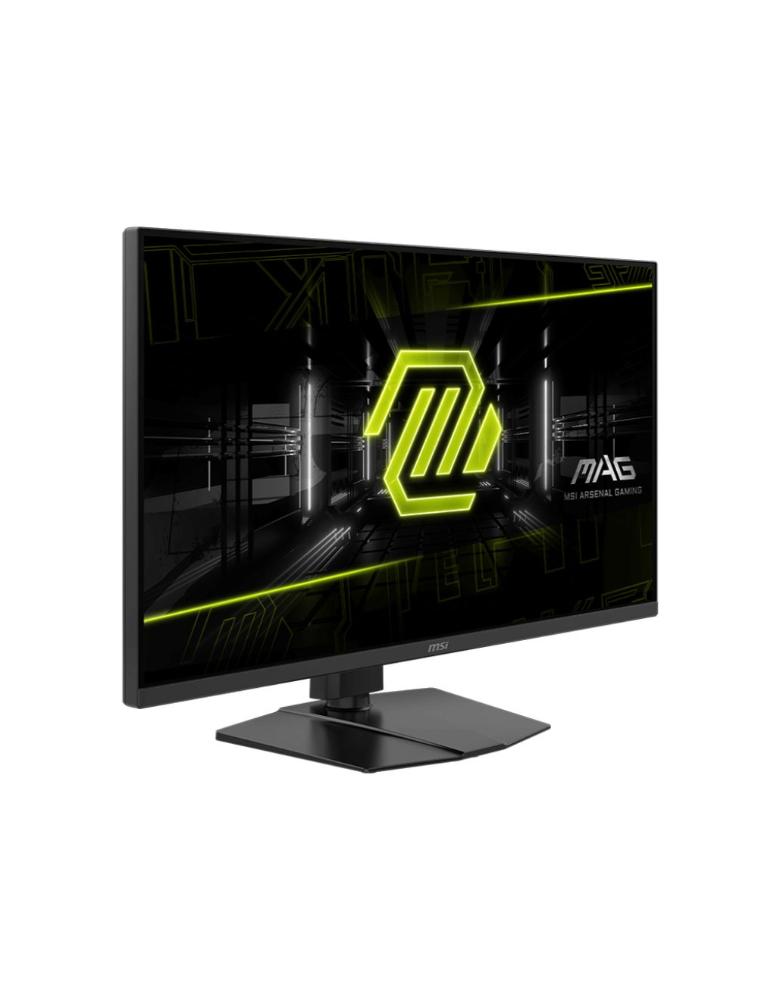

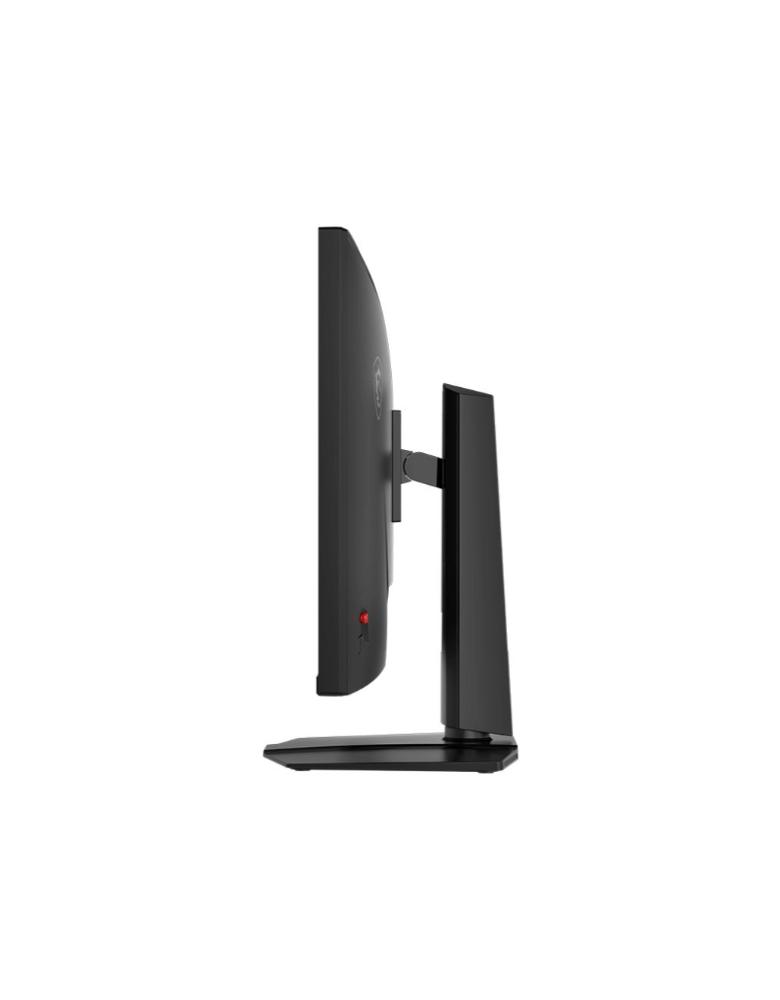

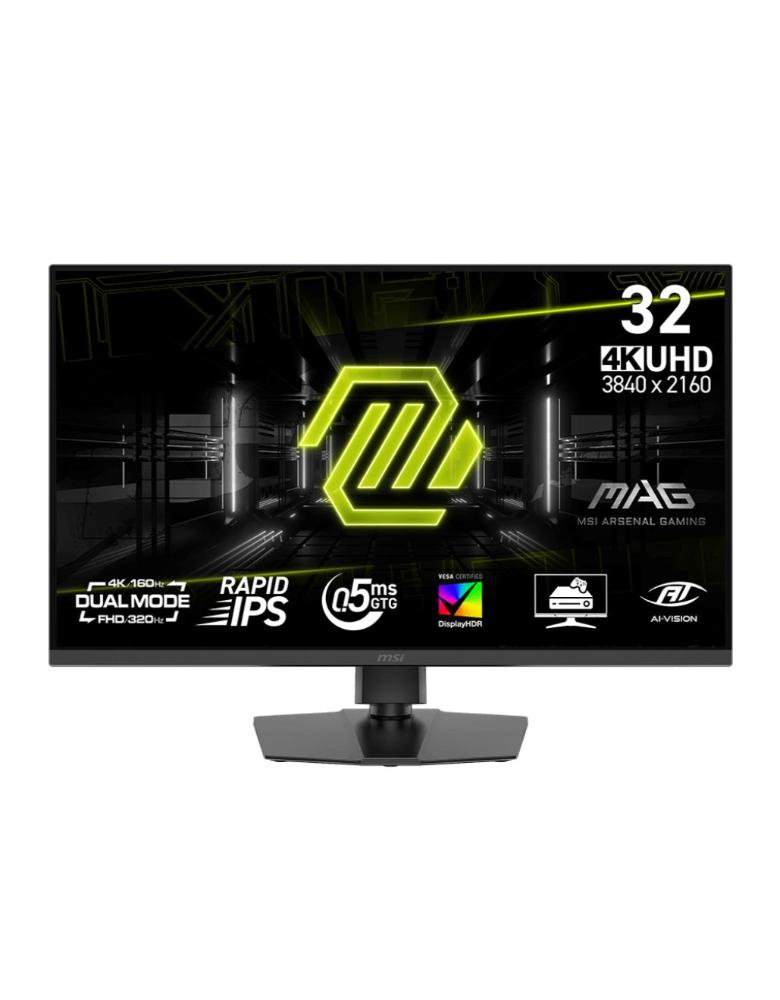

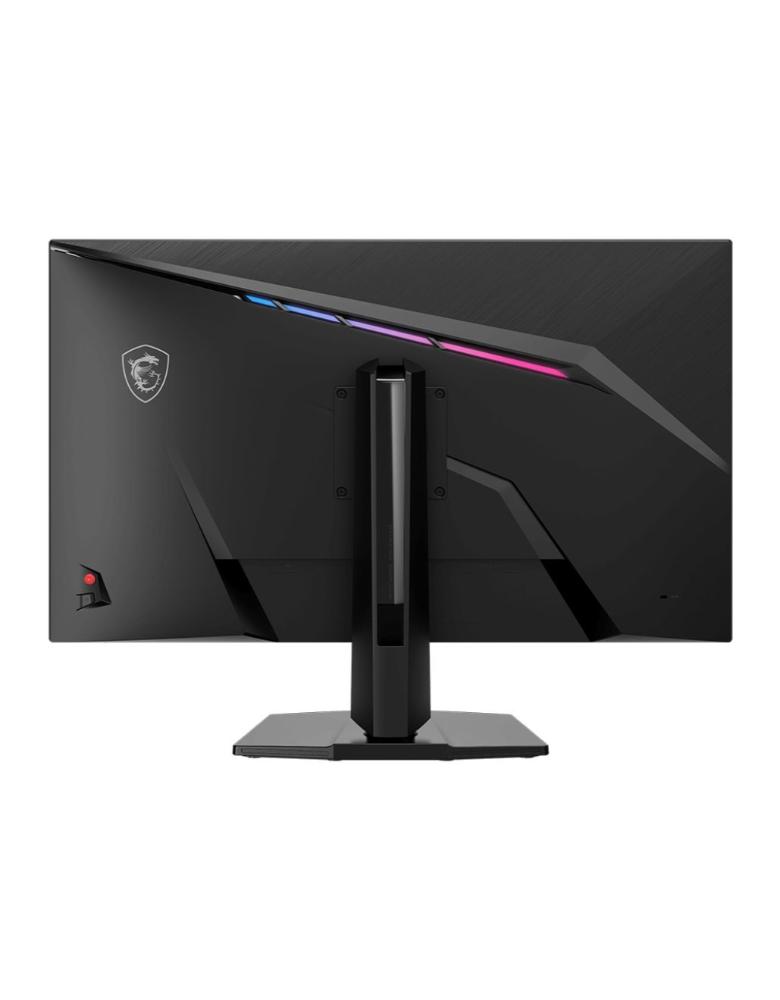

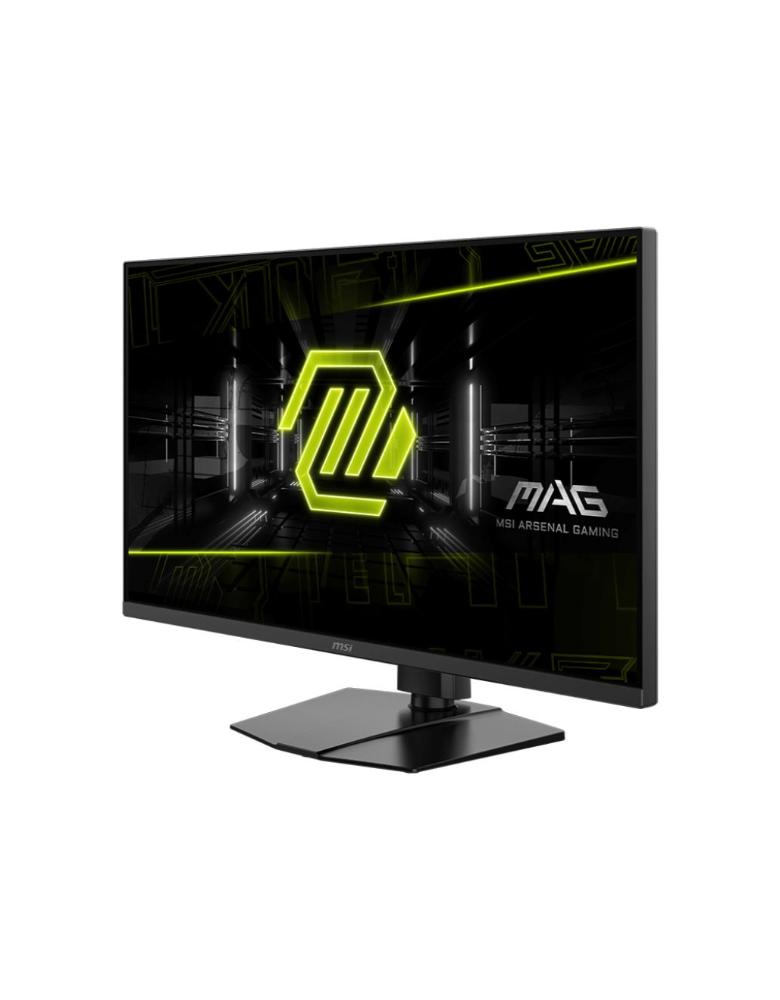

MSI MAG 322URDF E16 32″ Dual Mode (4K 160Hz or FHD 320Hz) 0.5ms Rapid IPS Gaming Monitor

MAG 322URDF E16

Experience immersive gaming with the MAG 322URDF E16 gaming monitor. Featuring Dual Mode with UHD 160Hz and FHD 320Hz, along with AI Navigator for an enhanced gaming experience, it delivers exceptional performance. Certified with VESA DisplayHDR 400, it refines contrast and shadows for stunning visual clarity. Designed for competitive FPS, first-person RPG/MMORPG, and flight/racing simulators, the MAG 322URDF E16 redefines casual gaming, pushing players to see beyond the game.

• Dual Mode – Easily switch between different resolutions and refresh rates, allowing user to adjust settings based on the game.
• Rapid IPS – Ensures the intensity and purity of colors when gaming.
• 0.5ms (GtG, Min.) Response Time – Eliminates screen tearing and choppy frame rates.
• VESA DisplayHDR 400 – VESA-certified eye-catching details through precise contrast and shadow adjustment.
• Console Mode – Optimized for seamless compatibility with gaming consoles like PS5 and Xbox Series X|S.
• Aspect Ratio Options – Choose between multiple aspect ratios for a more personalized gaming experience.

Specification:

Panel Size:  31.5″
Active Display Area (mm):  695.04 (H) x 390.96 (V)
Curvature:  Flat
Panel Type:  Rapid IPS
Panel Resolution
– Normal: 3840 x 2160 (UHD)
– Dual Mode: 1920 x 1080 (FHD)
Pixel Pitch (H x V):  0.181 (H) x 0.181 (V)
Aspect Ratio:  16:9
Brightness (nits)
– SDR: 400 cd/m² (Typ.)
– HDR: 450 cd/m² (Peak)
Contrast Ratio:  1000:1 (Typ.)
DCR: 100000000:1
Signal Frequency
– Normal: 146.3~353.1KHz(H) / 48~160Hz(V)
– Dual Mode: 352.2~356.1KHz(H) / 48~320Hz(V)
ACTIVATED RANGE
– Normal: 48~160Hz
– Dual Mode: 48~320Hz
Refresh Rate
– Normal: 160Hz
– Dual Mode: 320Hz
Response time:  0.5ms (GtG, Min.)
DYNAMIC REFRESH RATE TECHNOLOGY:  Adaptive-Sync
HDR Support:  VESA DisplayHDR 400
Video ports
– 1 x DisplayPort 1.4a (HBR3)
– 2 x HDMI™ 2.1 (4K@160Hz)
USB ports
– 2 x USB 2.0 Type-A
– 1 x USB 2.0 Type-B
Audio ports
– 1x Headphone-out
Viewing Angle:  178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB:  93% / 99% / 131% (CIE1976 Standard)
Surface Treatment:  Anti-glare
Display Colors:  1.07B, 10 bits (8 bits + FRC)
Console Mode          Supported Resolution & Refresh Rate:
– 1080p: 60Hz and 120Hz
– 1440p: 60Hz and 120Hz
– 2160p: 60Hz and 120Hz

HDMI™ CEC: Supported
VRR: PS5 and Xbox Supported
Power Type:  Internal Power Board
Power Input:  100~240V, 50/60Hz
Adjustment (Tilt):  -5° ~ 15°
Adjustment (Swivel):  -30° ~ 30°
Adjustment (Pivot):  -10° ~ 10°
Adjustment (Height):  0~110 mm
Kensington Lock:  Yes
VESA Mounting:  100 x 100 mm
Dimension with Stand (W x D x H):  714 x 227.8 x 564.5mm
(28.1 x 8.9 x 22.2 inch)
Dimension without Stand (W x D x H):  714 x 72.9 x 421.3mm
(28.1 x 2.8 x 16.5 inch)
Weight (NW / GW):  9 kg (19.8lbs) / 13 kg (28.6lbs)
Carton Dimension (W X D X H):  985 x 183 x 513mm
(38.7 x 7.2 x 20.1 inch)
Accessories
1x DisplayPort Cable (1.4a), 1x USB Type-B to A Cable, 1x Power Cord (C13), 1x Quick Guide, 4x Stand Screw
Note
HDMI™: Normal (UHD) : 3840 x 2160 (Up to 160Hz)
Dual (FHD) : 1920 x 1080 (Up to 320Hz)
DisplayPort: Normal (UHD) : 3840 x 2160 (Up to 160Hz)
Dual (FHD) : 1920 x 1080 (Up to 320Hz)
Support: HDMI™ CEC, PIP/PBP; Non Support: KVM
