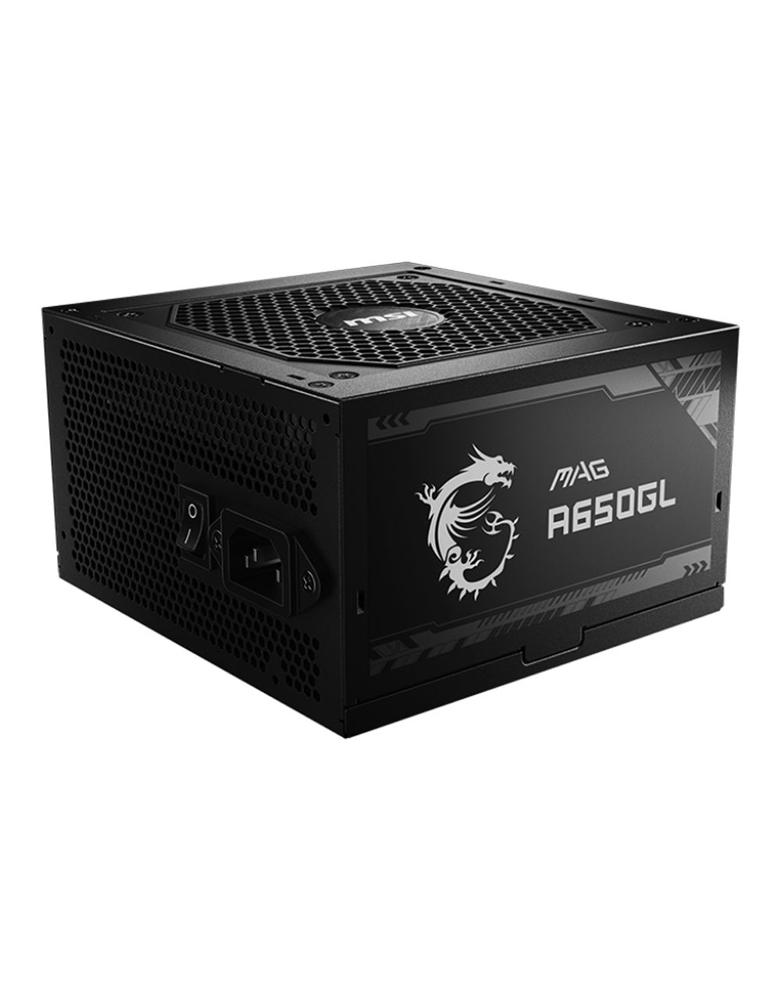

MSI MAG A650GL PCIE5 650W 80 Plus Gold Full Modular Power Supply

MAG A650GL

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

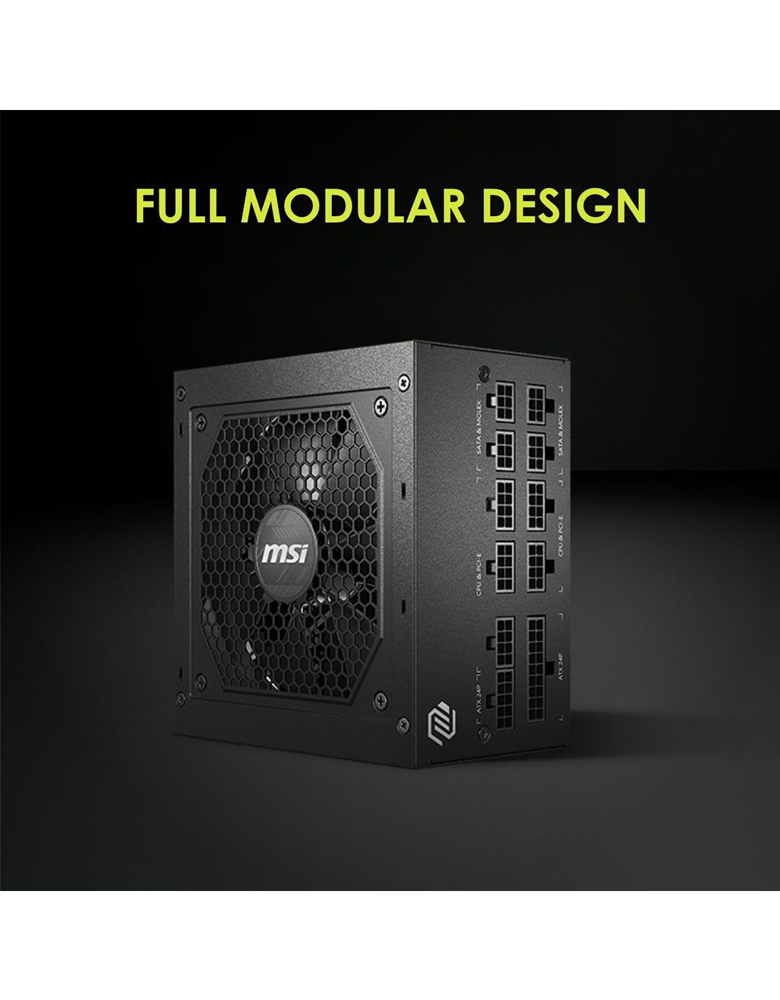

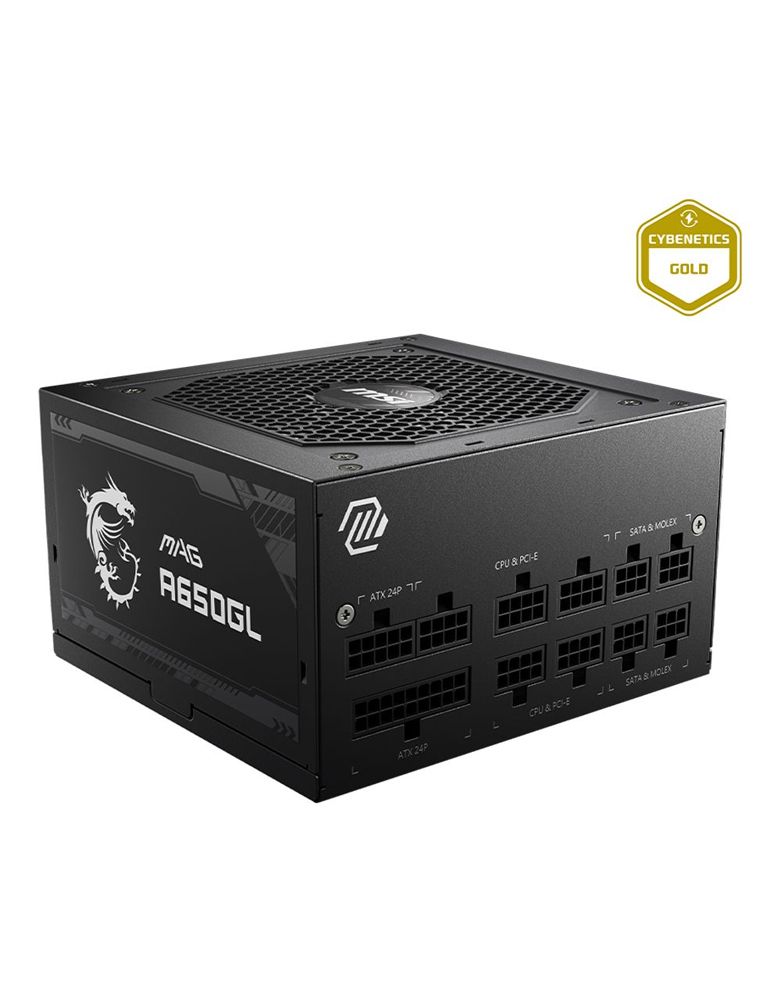

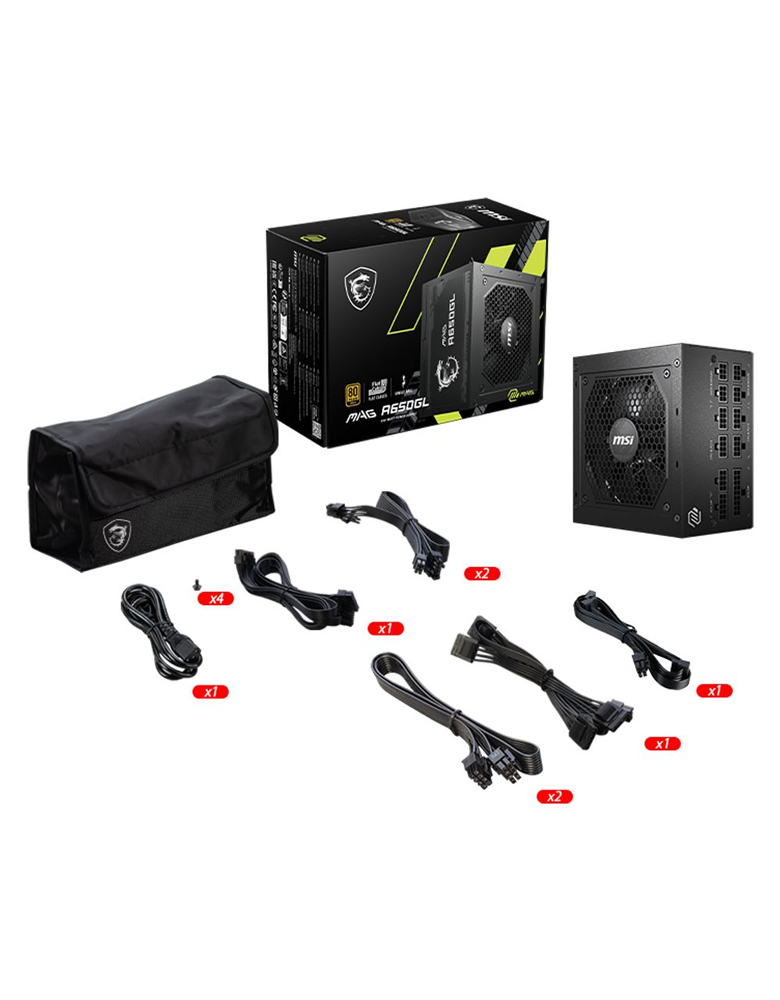

• Full modular design, Flat cables
• 80 Plus Gold certified for high efficiency
• Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

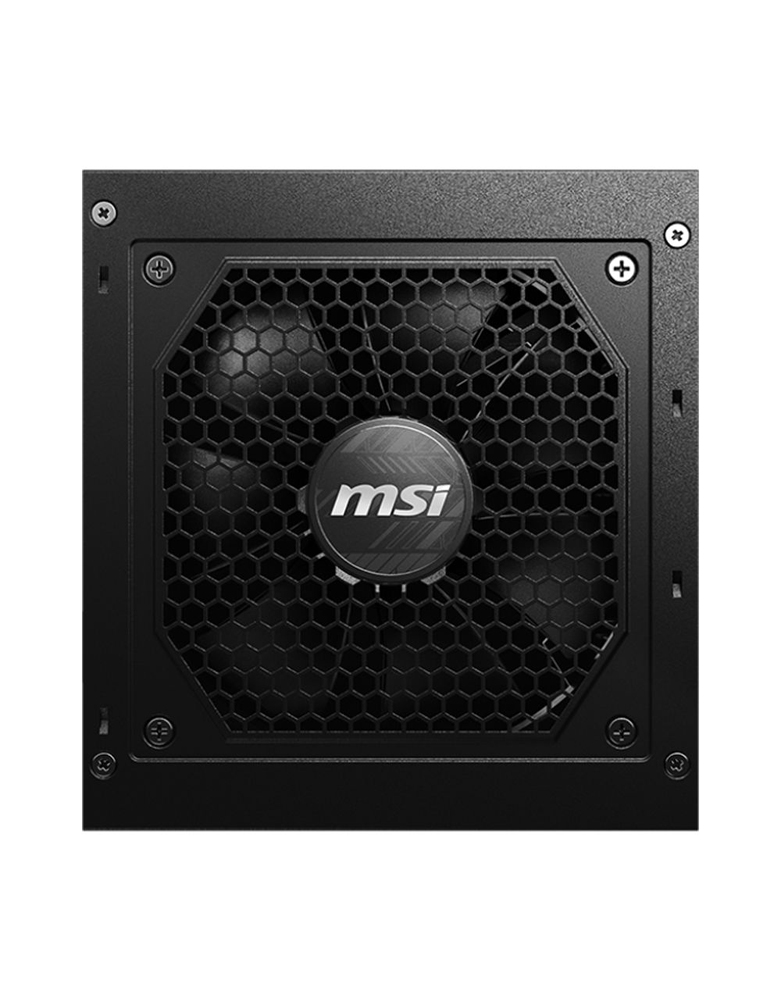

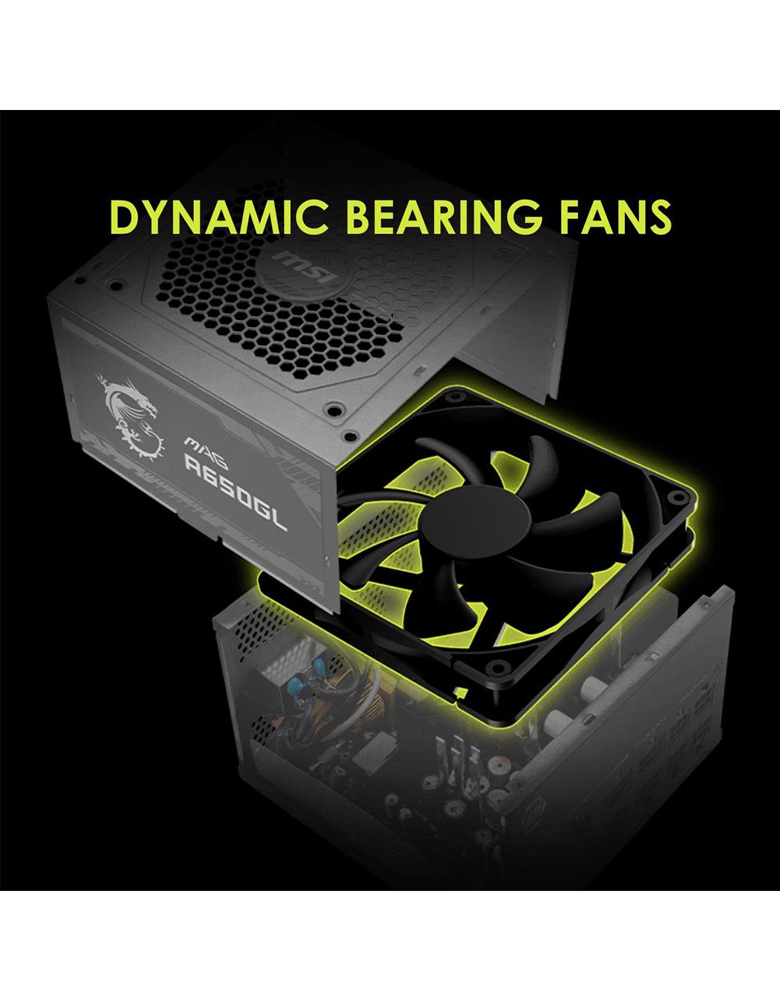

• 120mm Fluid Dynamic Bearing Fan

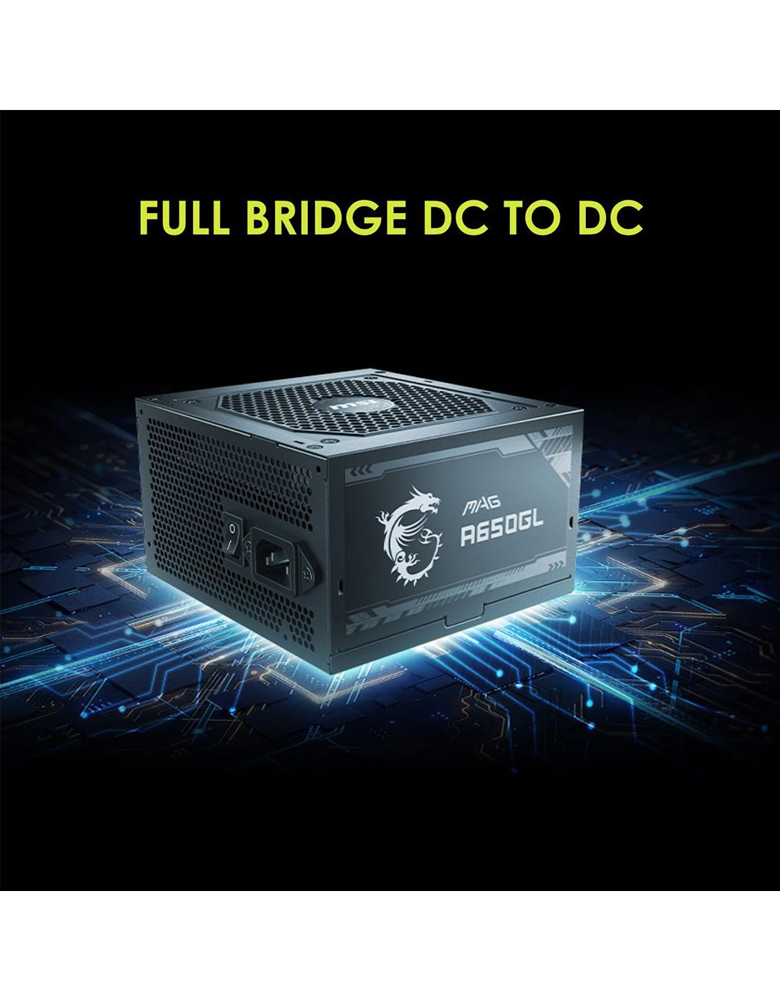

• LLC Full Bridge Topology with DC-DC module design

Specification

Efficiency Rating:  80 PLUS Gold (up to 90%)
Modular:  Yes (full modular)
Fan Size:  120 mm
Fan Bearing:  Fluid Dynamic Bearing
Dimensions (DxWxH):  140 x 150 x 86 mm
PFC Type:  Active PFC
Input Voltage Range:  100~240 VAC
Power Watt:  650W
Input Frequency Range:  47-63Hz
Protection:  OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin):  1
EPS (4+4 pin):  2
PCI-E (6+2 pin):  4
SATA (15 pin):  6
PERIPHERAL (4 pin):  3
FDD (4 pin):  1
