The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

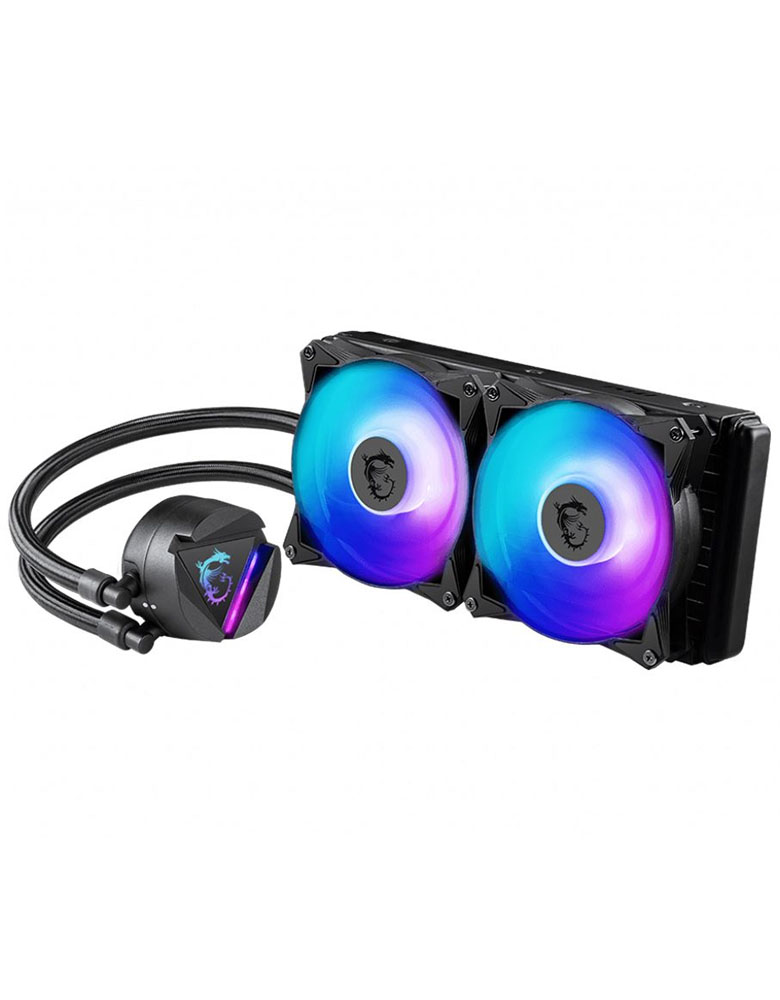

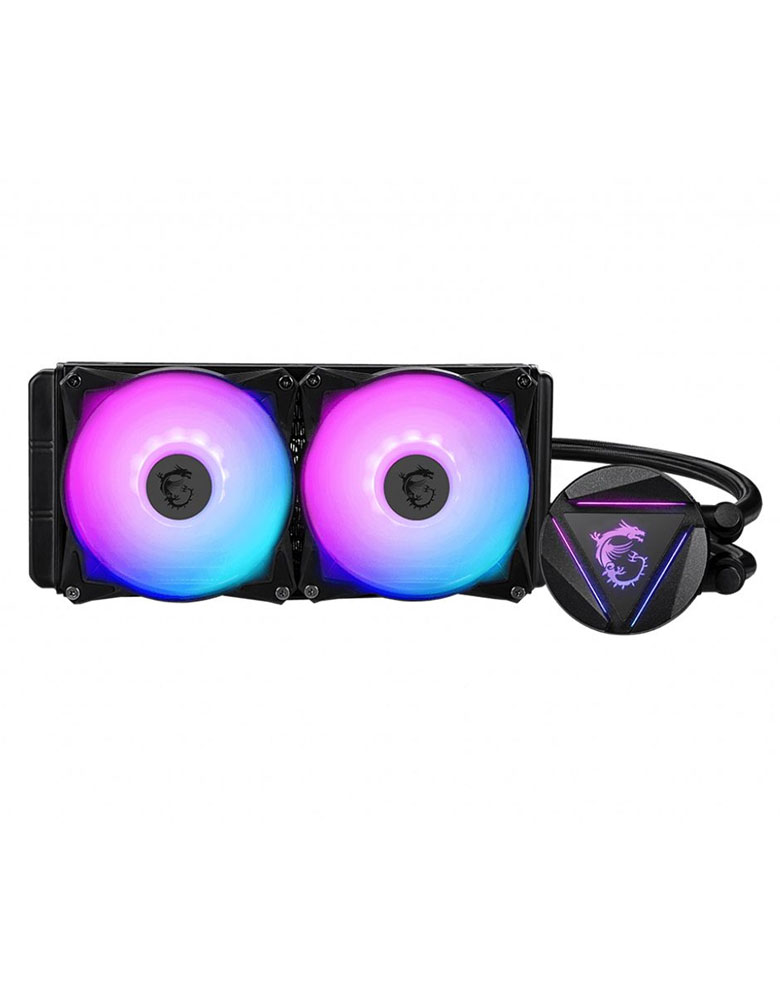

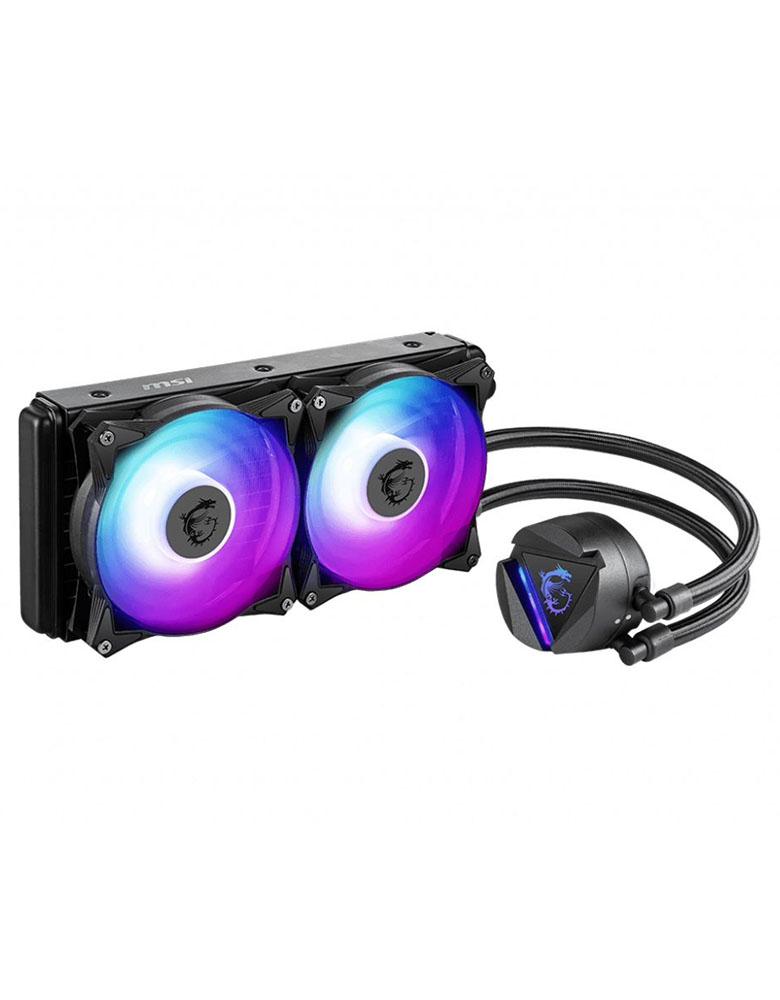

The newly introduced MAG CORELIQUID has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
Radiator Pump Design
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.
Pump Motor Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
High Thermal Dissipation
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
Evaporation Proof Tubing
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
Number of Fans: 2
Fan Dimension: 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
Fan Speed: 500 ~ 2000 RPM
Fan Power Consumption: 1.8 W
Fan Rated Current: 0.15 A
Fan Fated Voltage: 12V DC
Fan Bearing: Two Ball Bearing
Fan Air Pressure: 0.23 ~ 2.39 mmH2O
Fan Noise Level: 14.3 ~ 34.3 dBA
Fan Air Flow: 21.63 ~ 78.73 CFM
Fan Lighting: ARGB
Fan ARGB Cable Connector: Pin + Socket
PWM Mode: Yes
Fan Cable Length (5V ARGB / PWM) 550 / 350mm; 21.65 / 13.78 inches
Radiator Material: Aluminum
Radiator Dimensions: 274 x 120 x 27mm / 10.79 x 4.7 x 1.06 inches
Radiator Water Cooling Pipe Length: 400mm / 15.75 inches
Block Dimension: 80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches
Block Lighting: ARGB
Block ARGB 5V Cable Length: 400mm / 15.75 inches
Block ARGB Cable Connector: Pin + Socket
Pump Load Current: 0.34 A
Pump Rated Voltage: 12V DC
Pump Speed: 4200 RPM
Pump Power Consumption: 4.08W
Intel Socket: LGA 1150/1151/1155/1156/1200
AMD Socket: AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Accesories:1 to 2 Fan PWM cable x 1
PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
