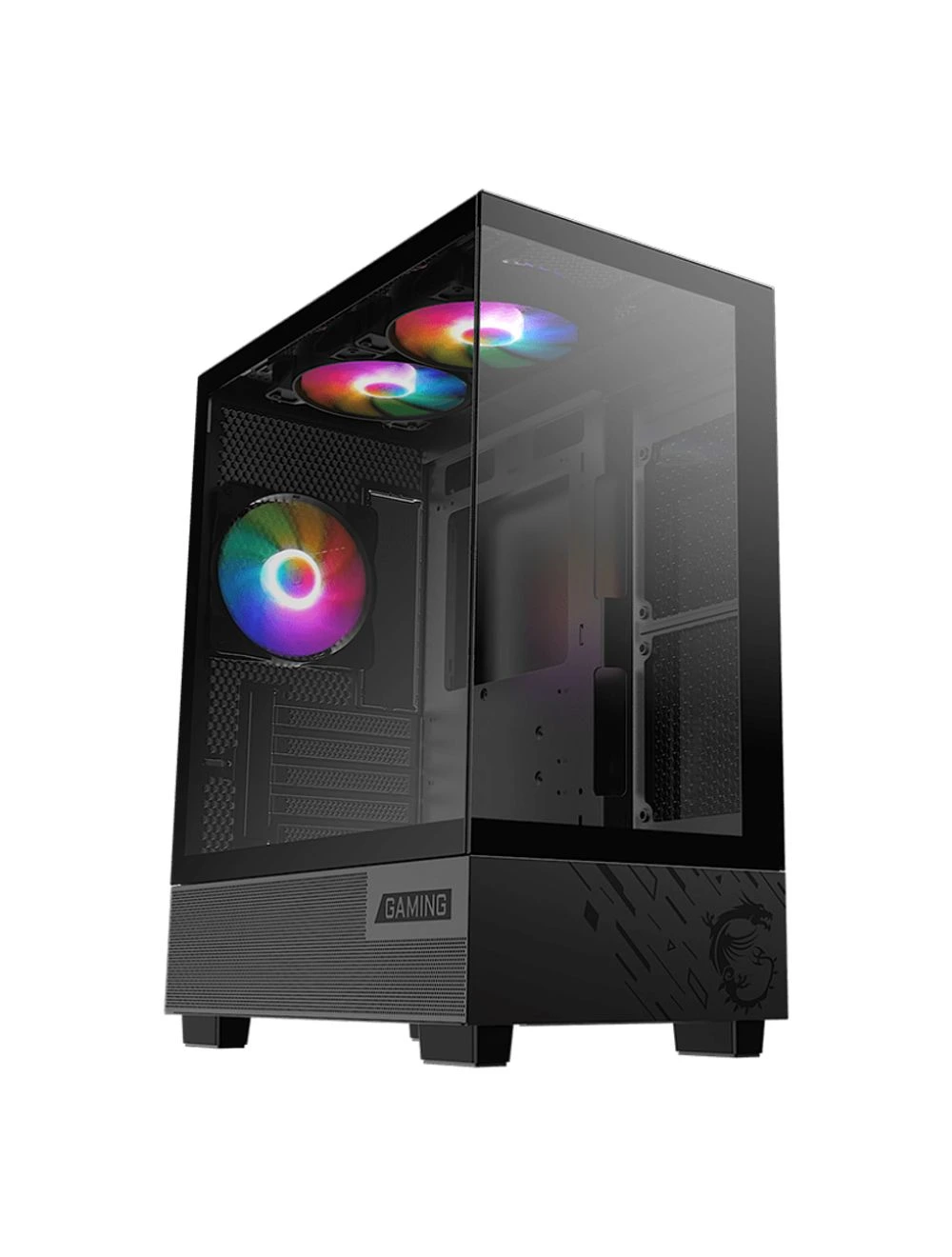

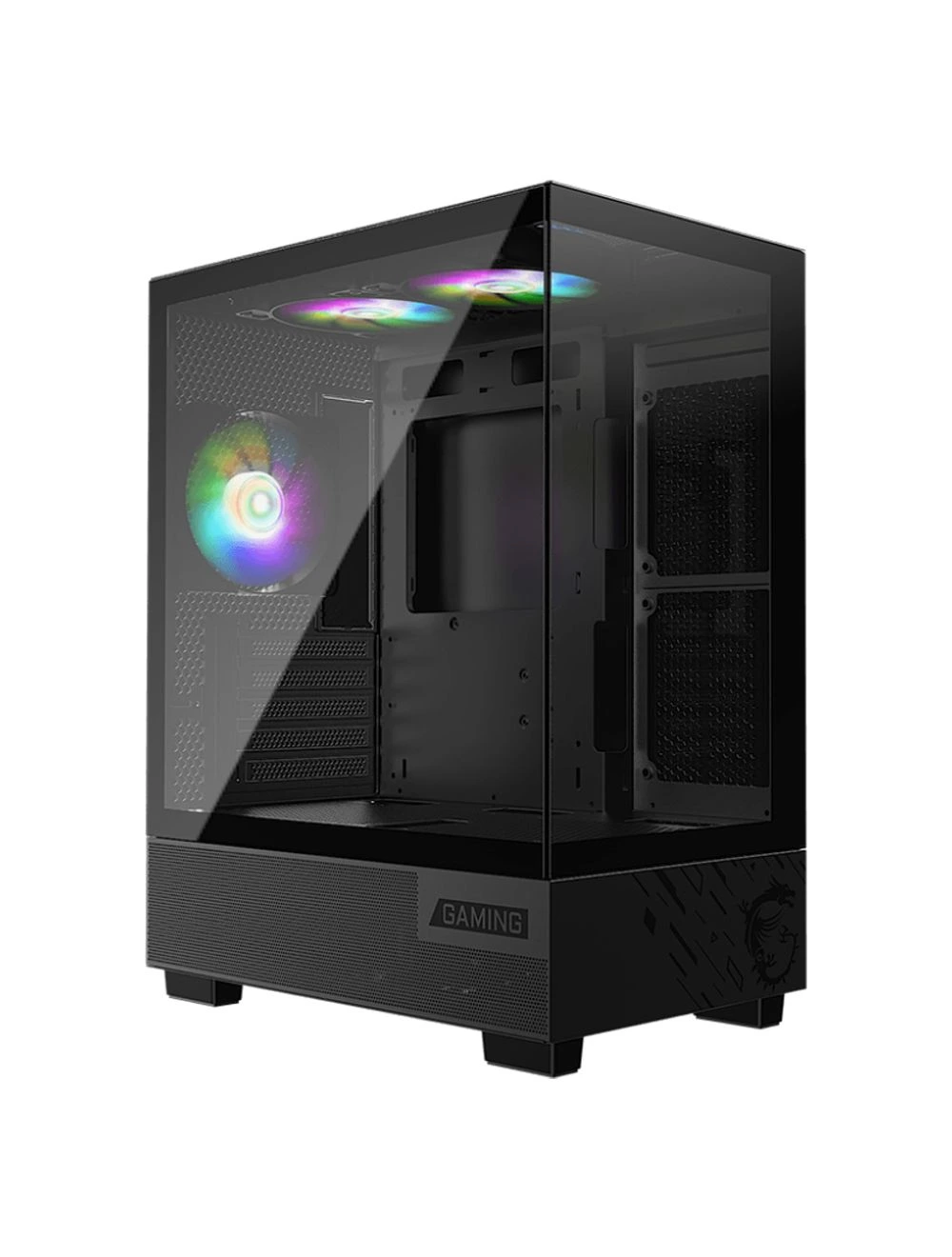

PAG PANO M110A
Auto RGB Fan： Packed with premium quality system fans to cool your system for maximized performance.
System Fan Included： Packing with premium quality system fans to cool your system for the maximum performance.
Magnetic Filter： The magnetic dust filter on the top side is designed to give users the best experience in uninstalling and cleaning.
Optimized Air Flow： This case supports up to 7 system fans installation and provides the whole system with ventilation for better stability.
Specification
Radiator Compatibility 120 / 140 / 240 mm
Case Form Factor Mid Tower
Motherboard Form Factor Support Micro-ATX, Mini-ITX
Product Name PAG PANO M110A
Drive Mount Support 1 x 2.5″, 2 x 3.5″
Dimension 369(D) x 210(W) x 448(H) mm / 14.52 x 8.26 x 17.63 inches
Weight N/A kg / N/A lbs (TBD)

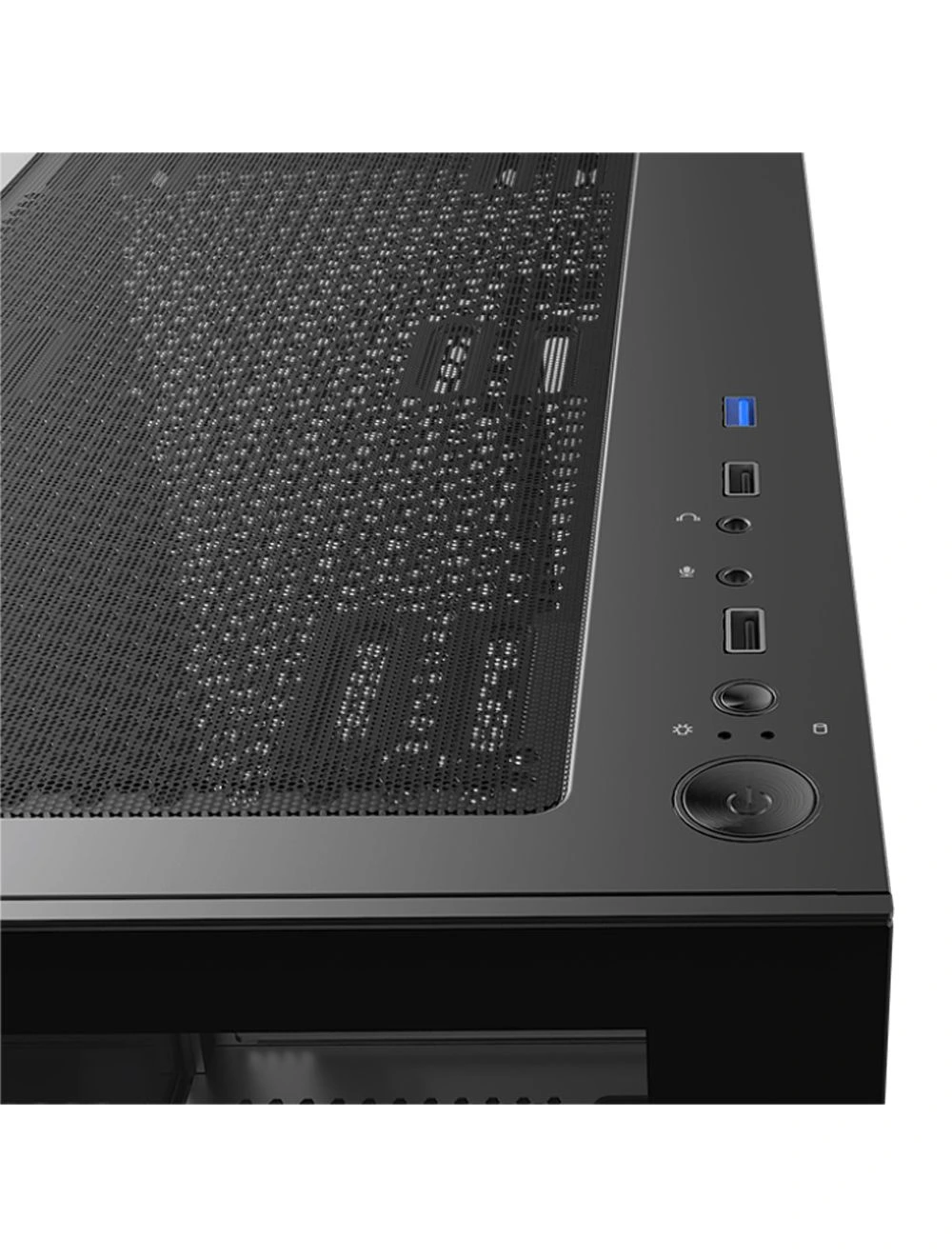

I/O Ports 1 x USB 5Gbps (Type-A)
1 x USB (Type-A)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button
Case Expansion Slots 5
Pre-install Fan Top: 2 x Auto RGB Fan
Rear: 1 x Auto RGB Fan
Fan Support Top: 2 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Bottom: 2 x 120 mm
Rear: 1 x 120 mm
Maximum PSU Length 160 mm / 6.29 inches
Maximum GPU Length 330 mm / 12.99 inches
Maximum CPU Cooler Height 160 mm / 6.29 inches
Radiator Layout Rear: 120 mm
Top: 120 / 240 mm
Lighting Top: 2 x Auto RGB Fan
Rear: 1 x Auto RGB Fan
Power Supply ATX
Gross Weight N/A kg / N/A lbs (TBD)
