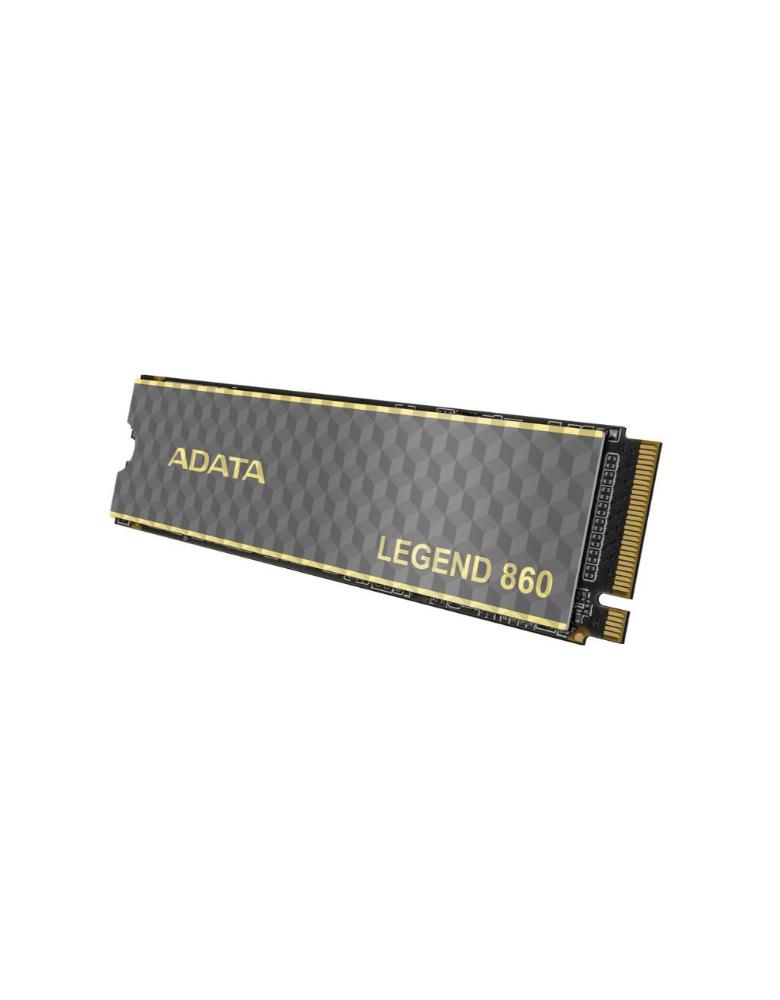

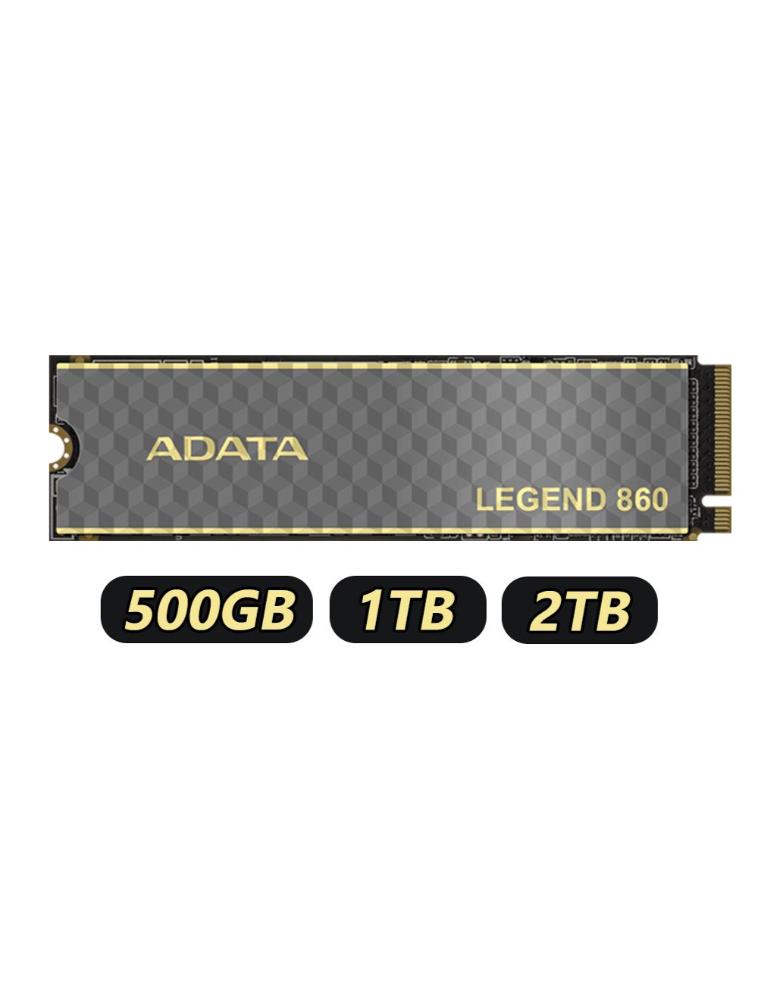

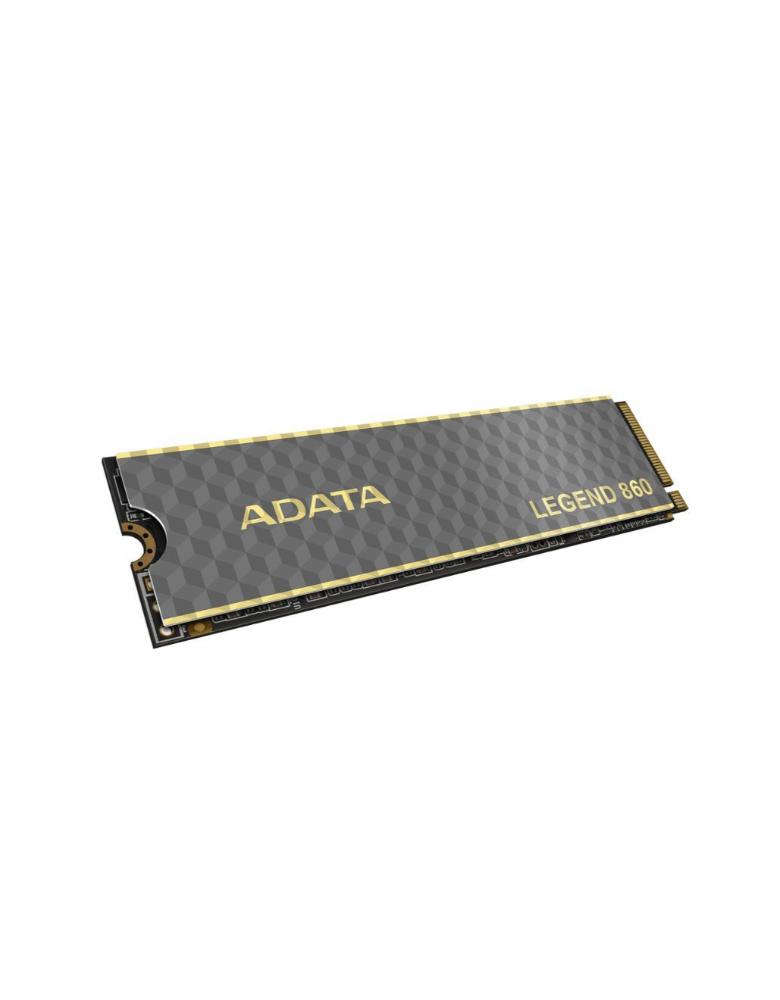

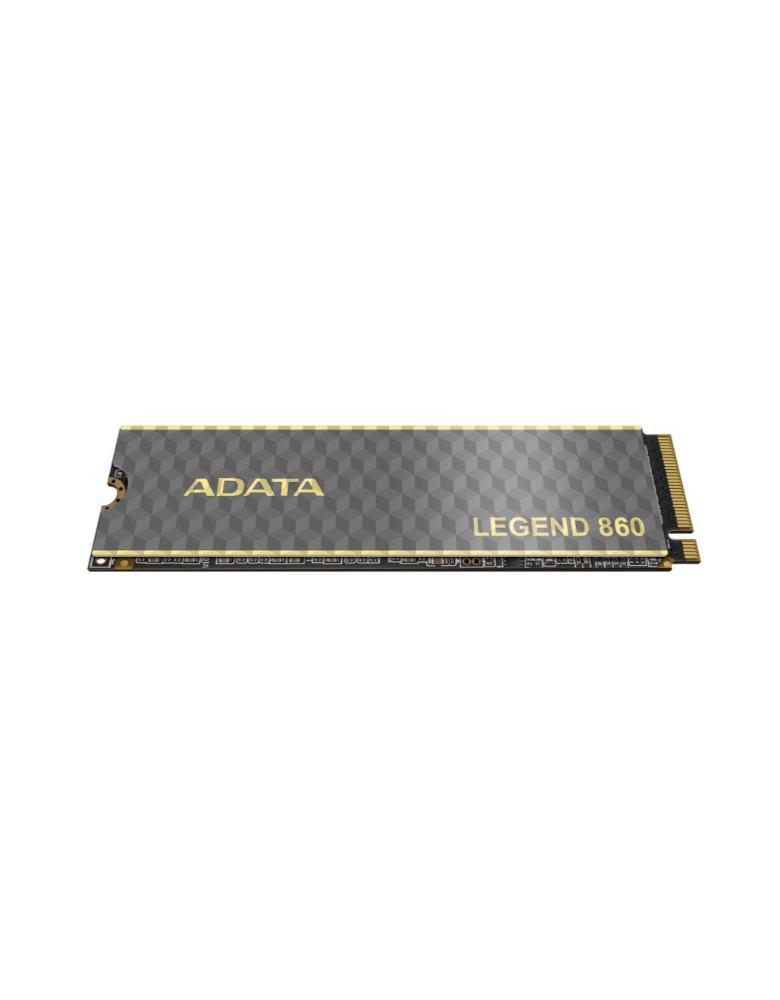

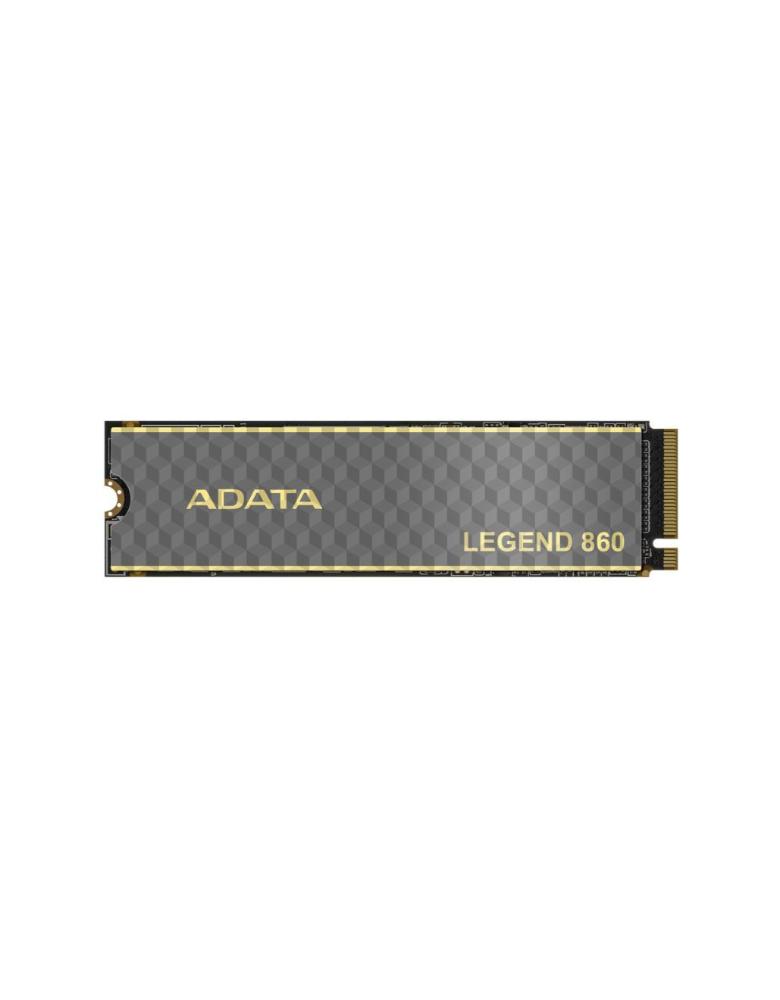

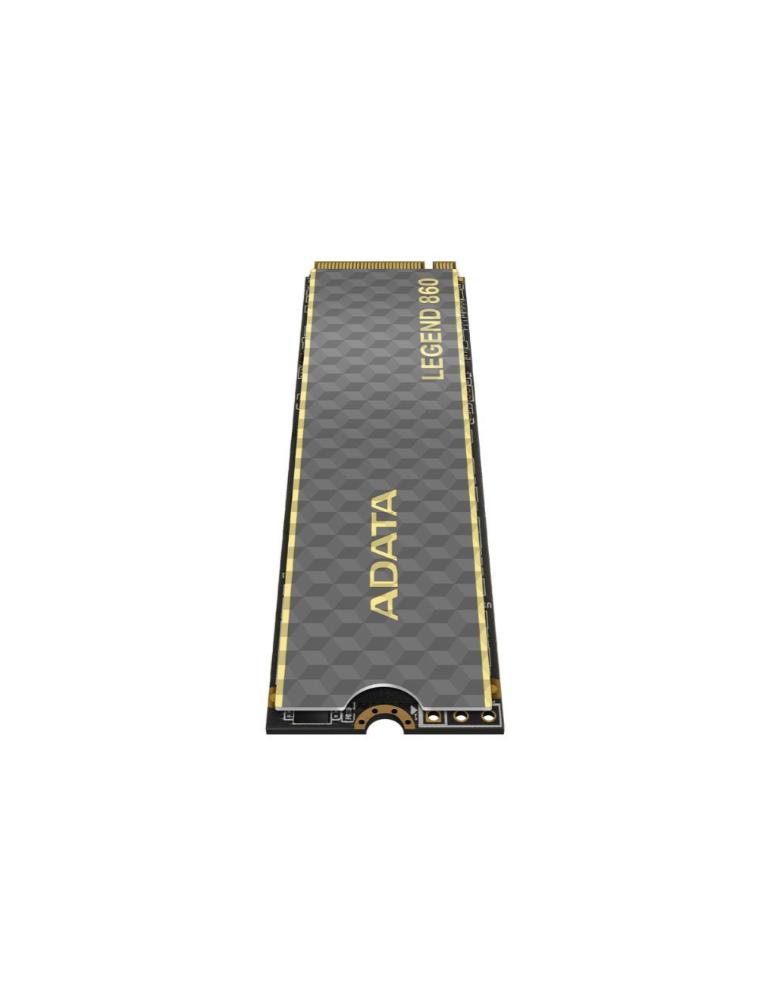

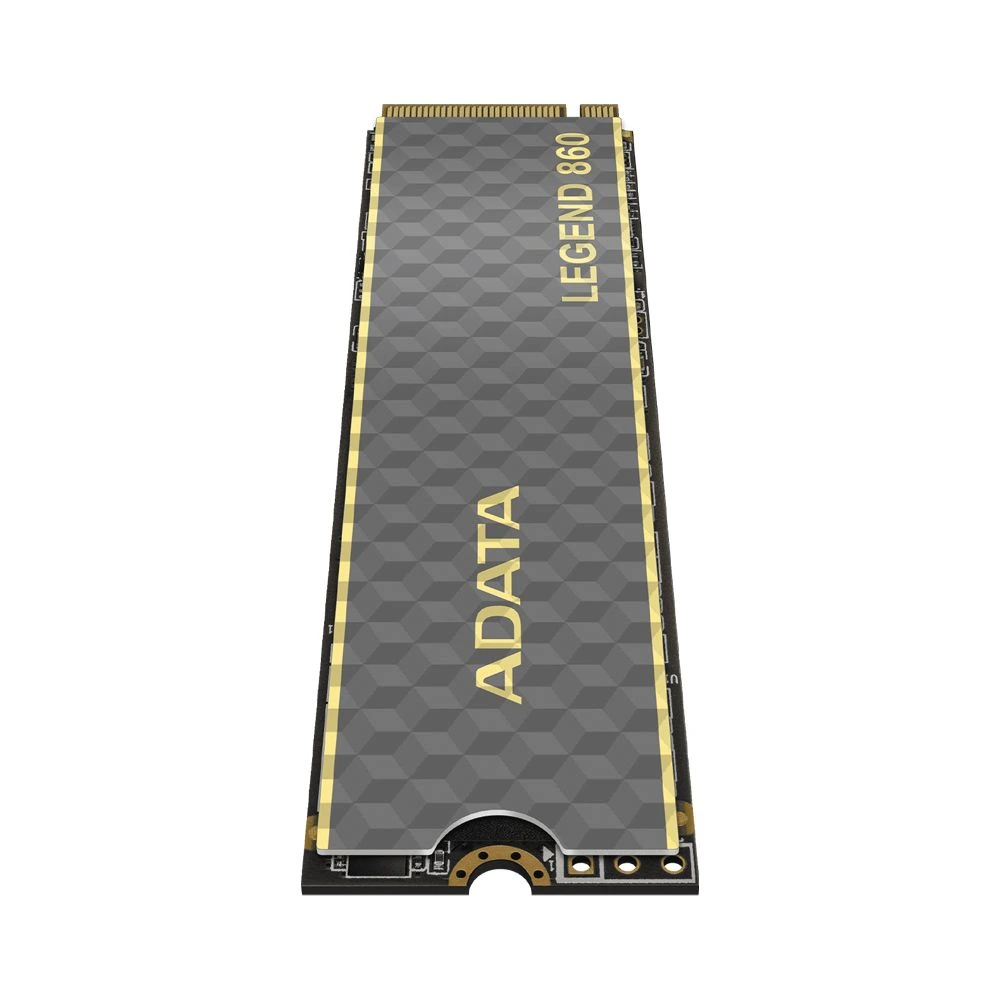

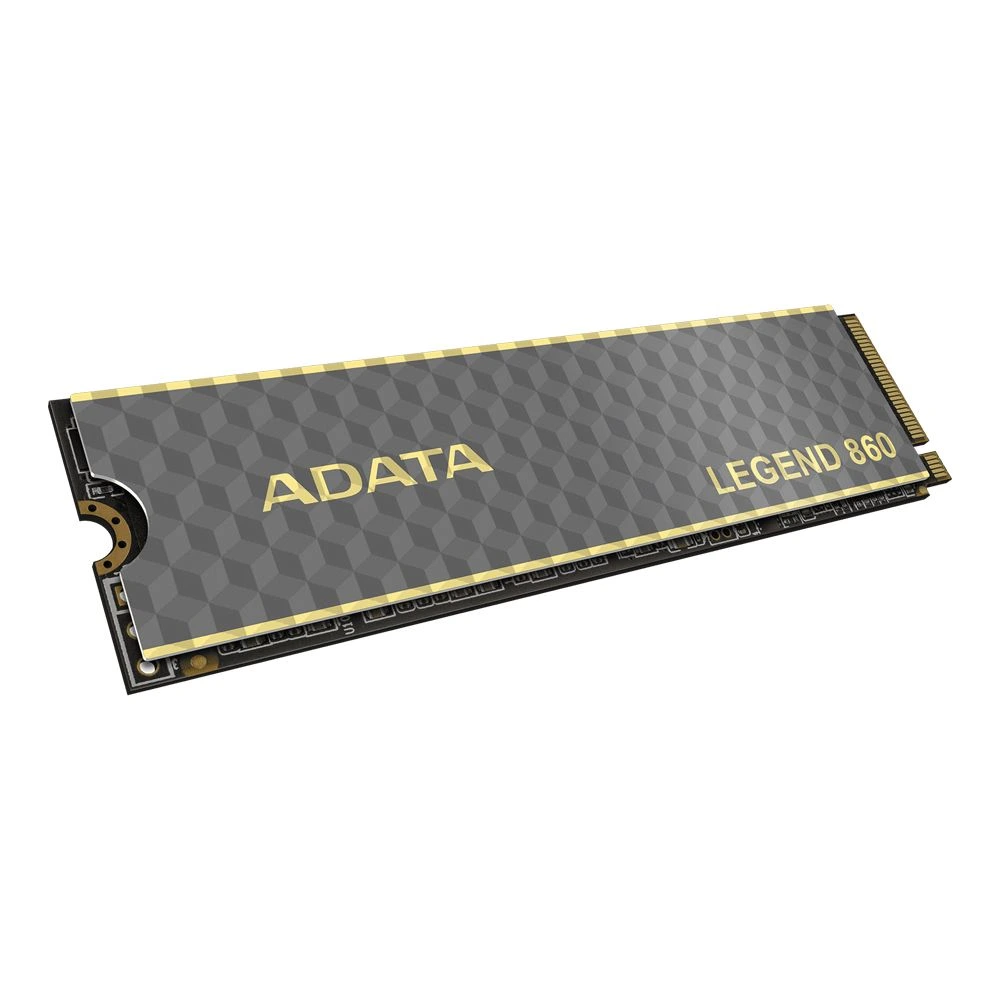

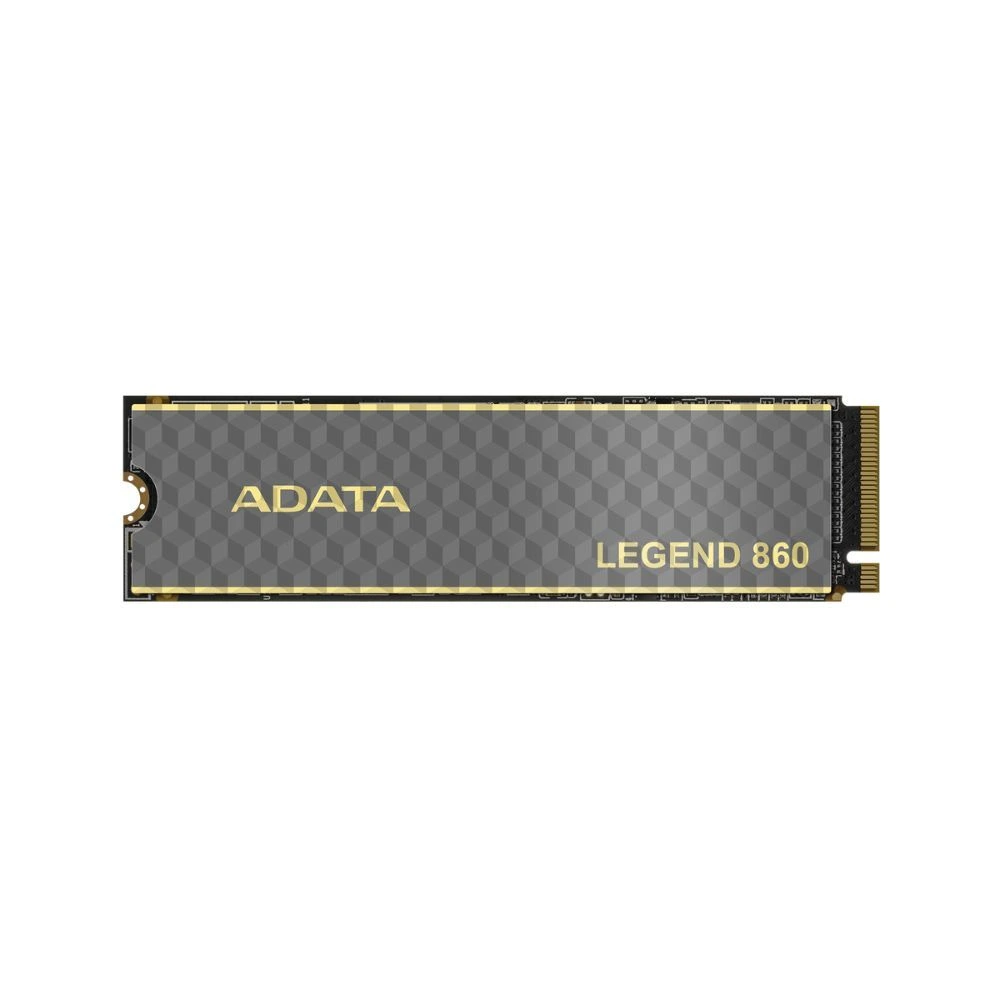

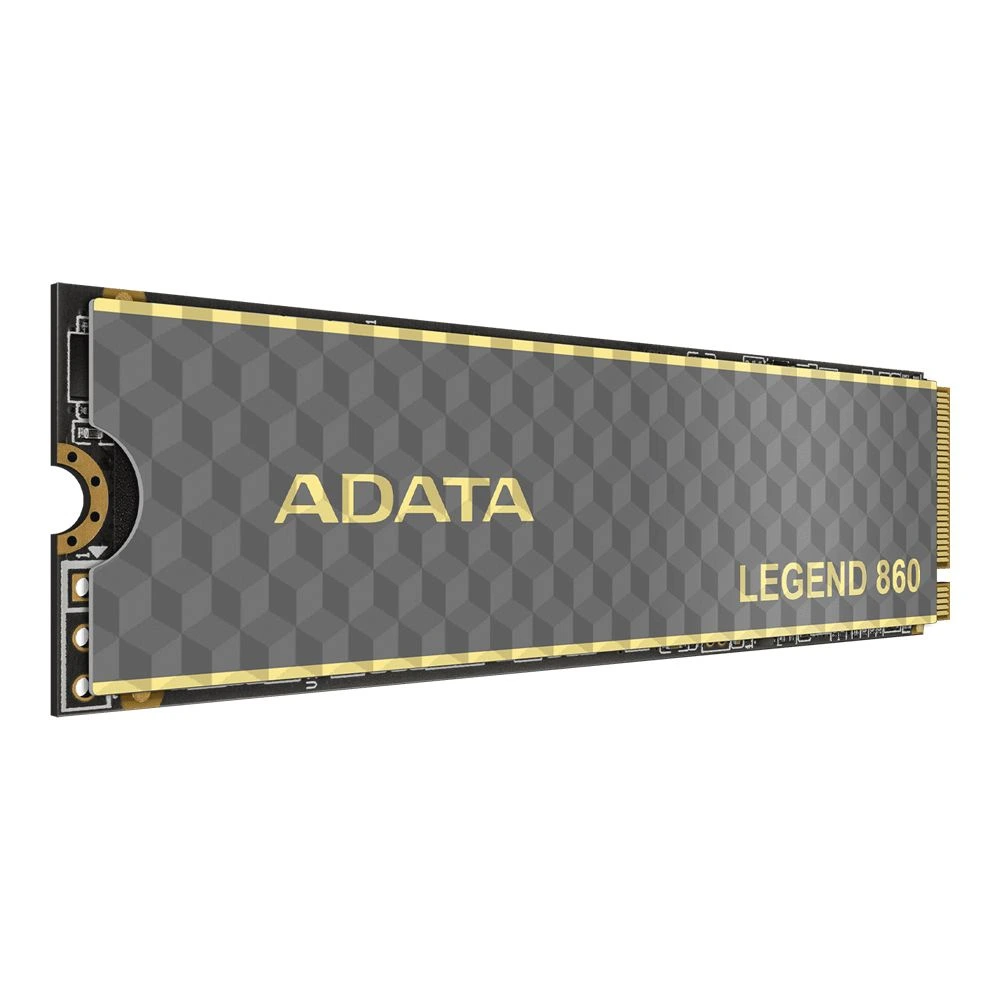

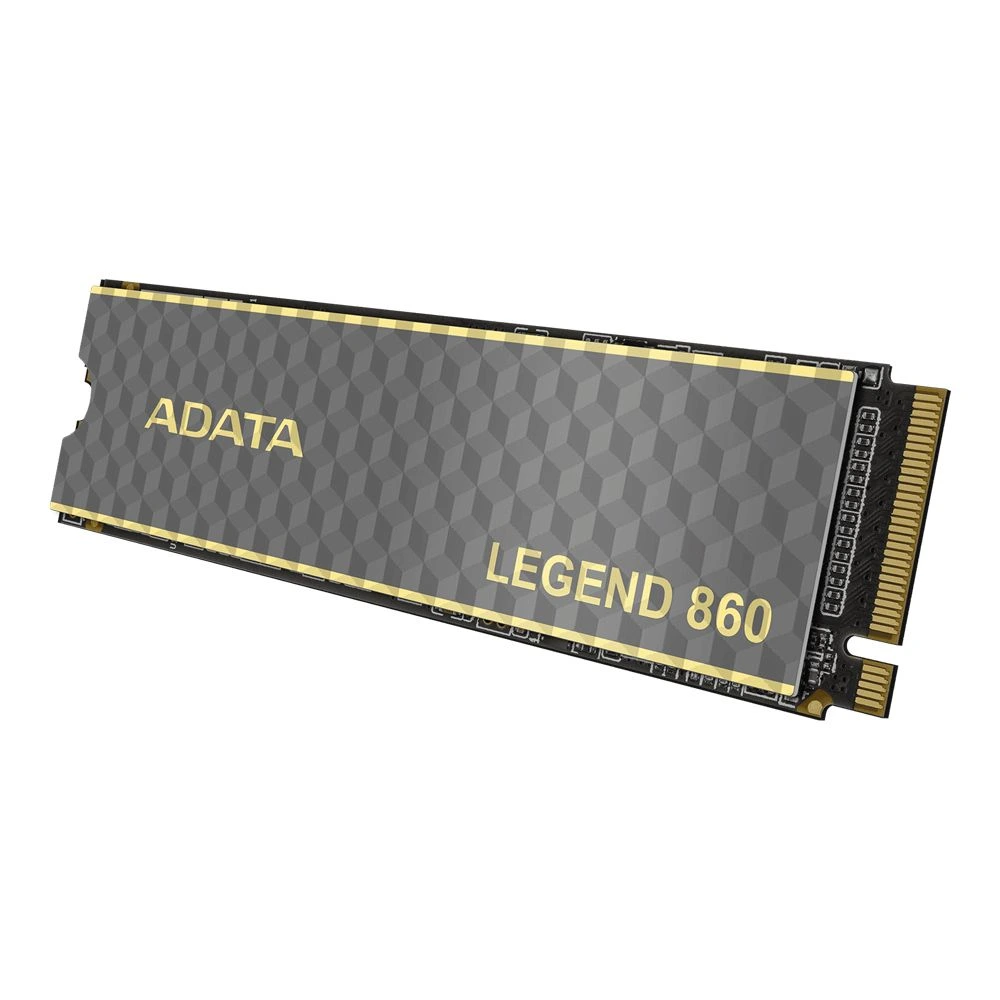

Adata Legend 860 500GB, 1TB, 2TB PCIe Gen4 x4 M.2 2280 Internal SSD

Features

• PCIe Gen4 x4 transmission interface
• Up to 6,000/5,000MB/s sequential read/write speed
• 2000GB capacity
• Supports latest Intel and AMD platforms
• 5-year warranty
• Works with PS5 as expanded storage

Specifications

Capacity: 500GB, 1TB, 2TB

Form factor: M.2 2280

NAND Flash: 3D NAND

Dimensions (L x W x H): 80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (w/ heat sink); 80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (w/o heat sink)

Weight: 9.5g / 0.33oz (w/ heat sink); 6.5g / 0.23oz (w/o heat sink)

Interface: PCIe Gen4 x4

Sequential Read (Max): Up to 6,000MB/s (PC/Laptop)*, up to 5,000MB/s (PS5)*

Sequential Write (Max): Up to 5,000MB/s*

Operating temperature: 0°C – 70°C

Storage temperature: -40°C – 85°C

Shock resistance: 1,500G/0.5ms

MTBF: 2,000,000 hours

Terabytes Written (TBW): 640TB**

Warranty: 5-year limited warranty***

Remark
*This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.

*  This product is backward compatible with PCIe 3.0. If a third-generation PCIe motherboard is used, this product will be able to achieve sequential read/write speeds of 3400/3000MB per second.

* Test system configuration: 1. MB Info: GIGABYTE X570 AORUS ELITE WIFI, 2. CPU: AMD Ryzen 7 3700X 8 Core Processor 3.59GHz, 3. BIOS Ver: F11, 4. RAM: DDR4 8GB*2 2666MHz, 5. OS Ver: Windows 10 / 21H1

** The value is the minimum amount of terabyte written that could be reached.

*** The SSD is based on the TBW or Warranty period.
