Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

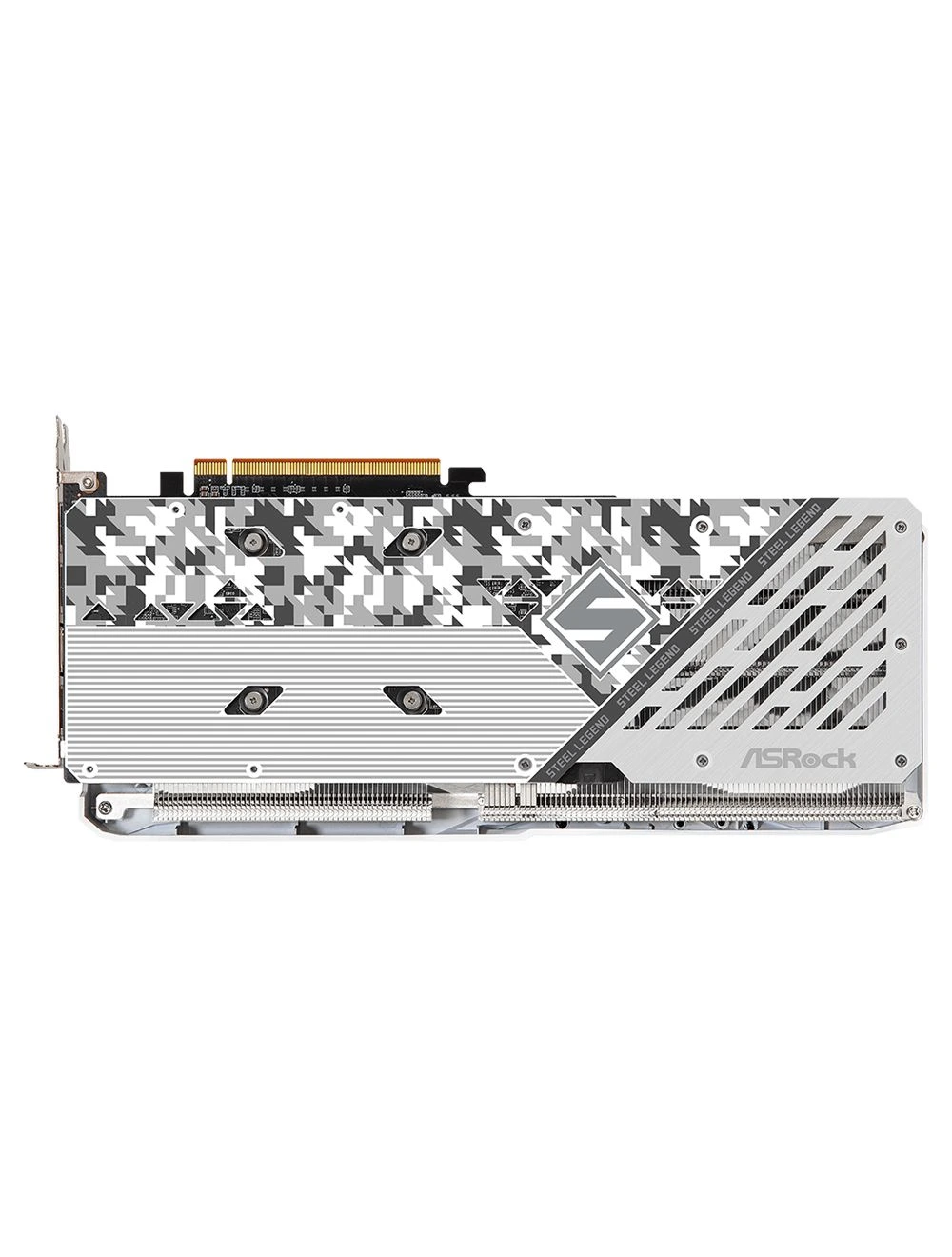

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

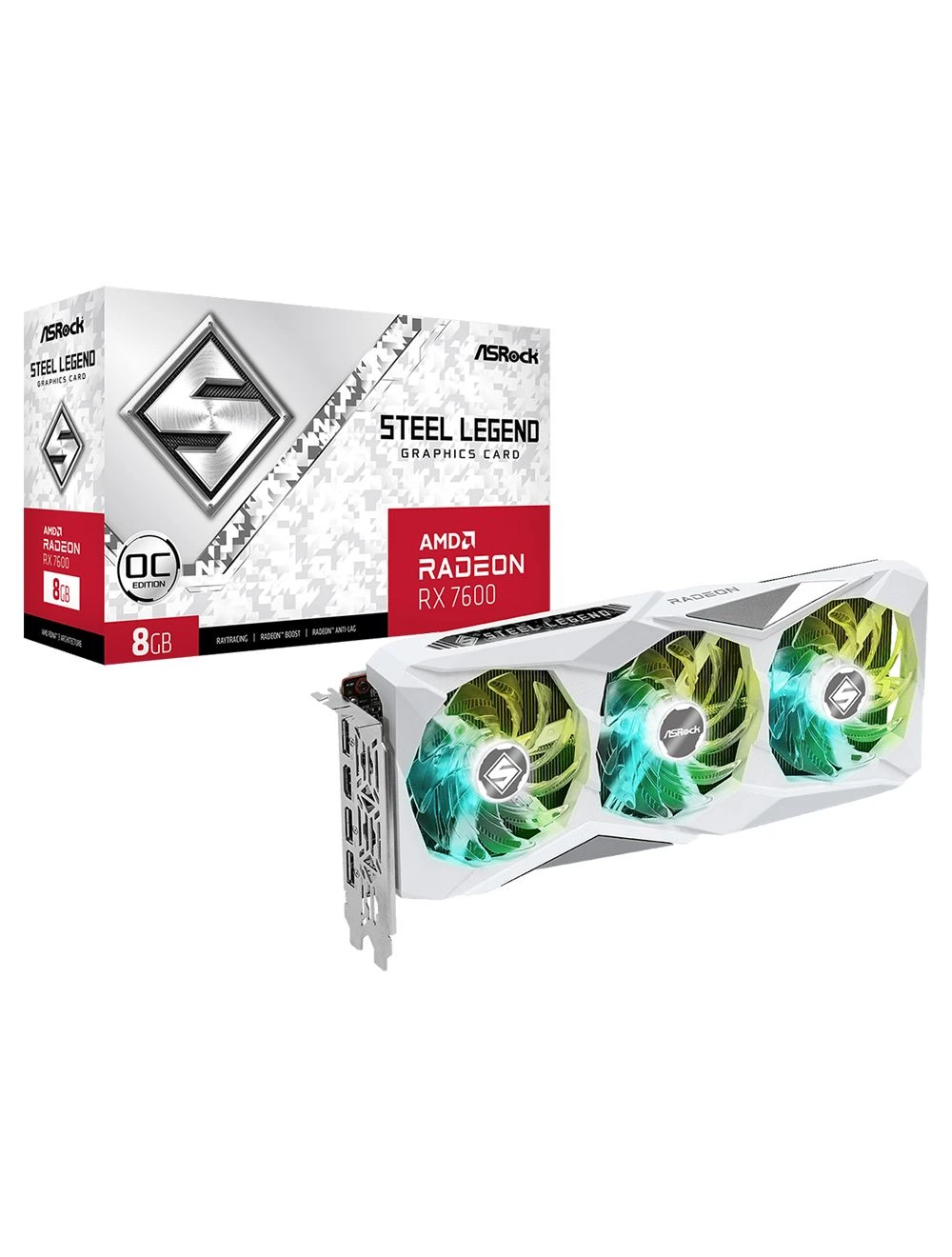

AMD Radeon RX 7600 Steel Legend 8GB OC
Clock: GPU / Memory
Boost Clock*: Up to 2725 MHz / 18 Gbps
Game Clock**: 2320 MHz / 18 Gbps
Key Specification
AMD Radeon™ RX 7600 GPU
8GB GDDR6 on 128-Bit Memory Bus
32 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
32MB AMD Infinity Cache™ technology
Microsoft® DirectX® 12 Ultimate
PCI® Express 4.0 Support
1 x 8-pin Power Connector
3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1
Key Features
Polychrome SYNC

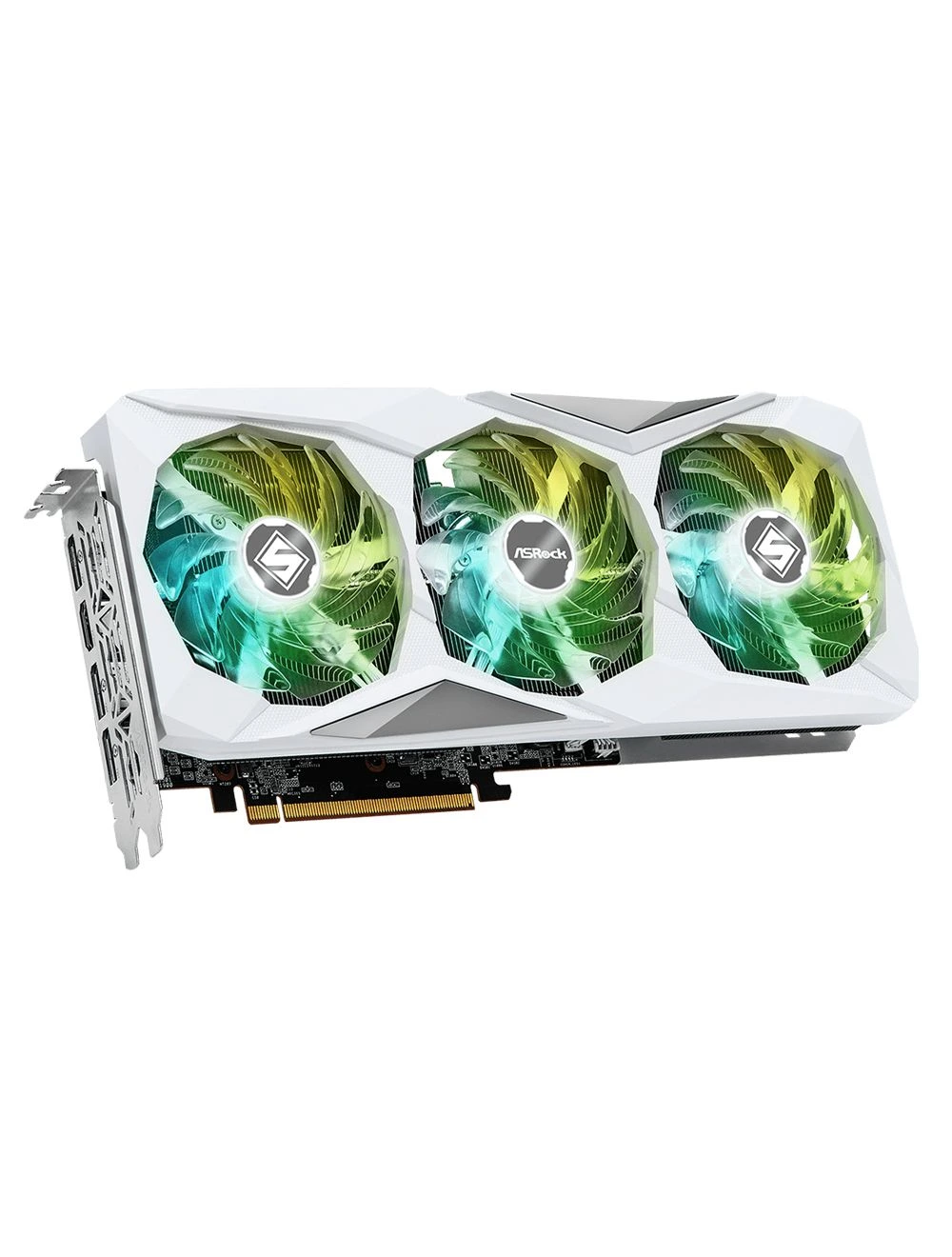

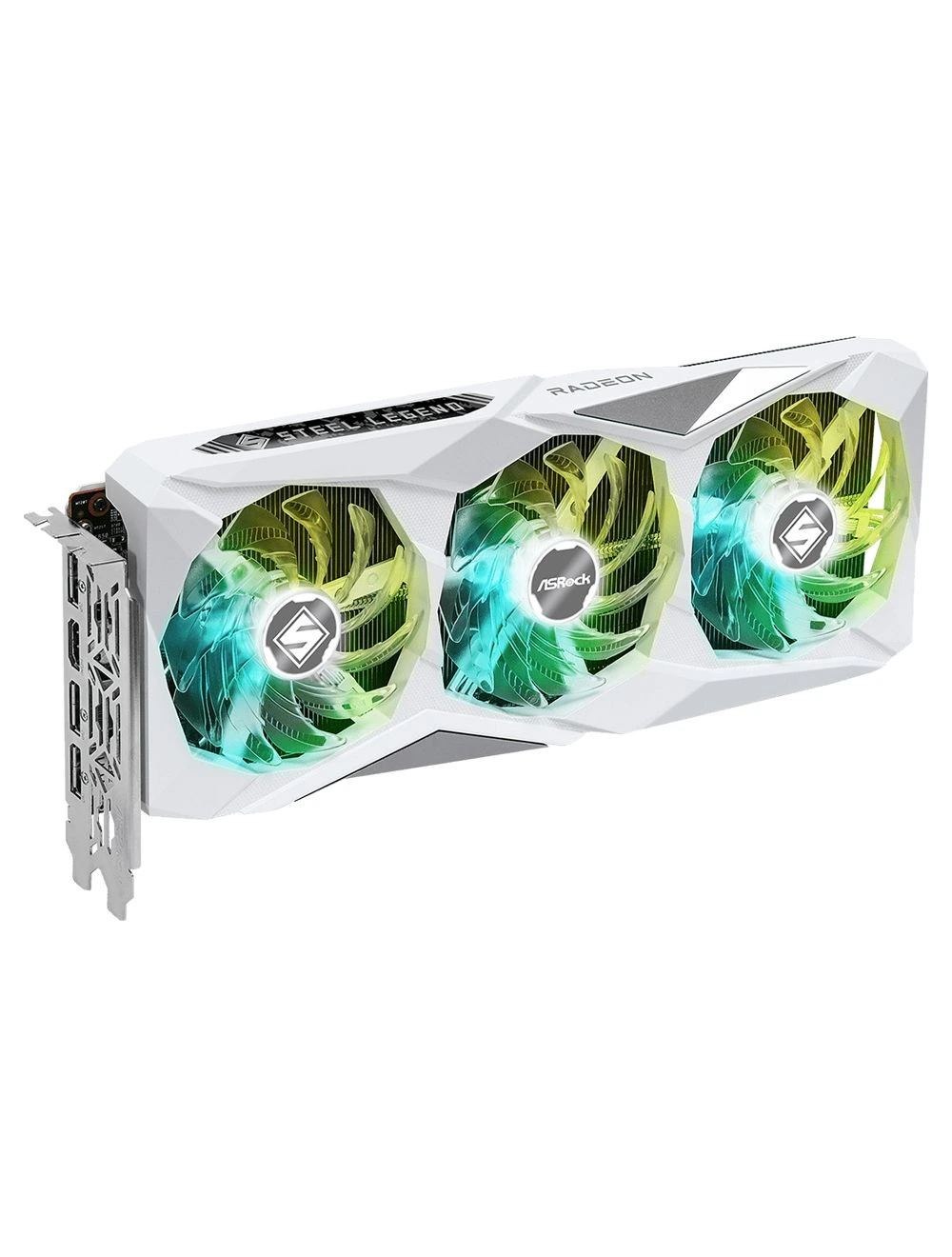

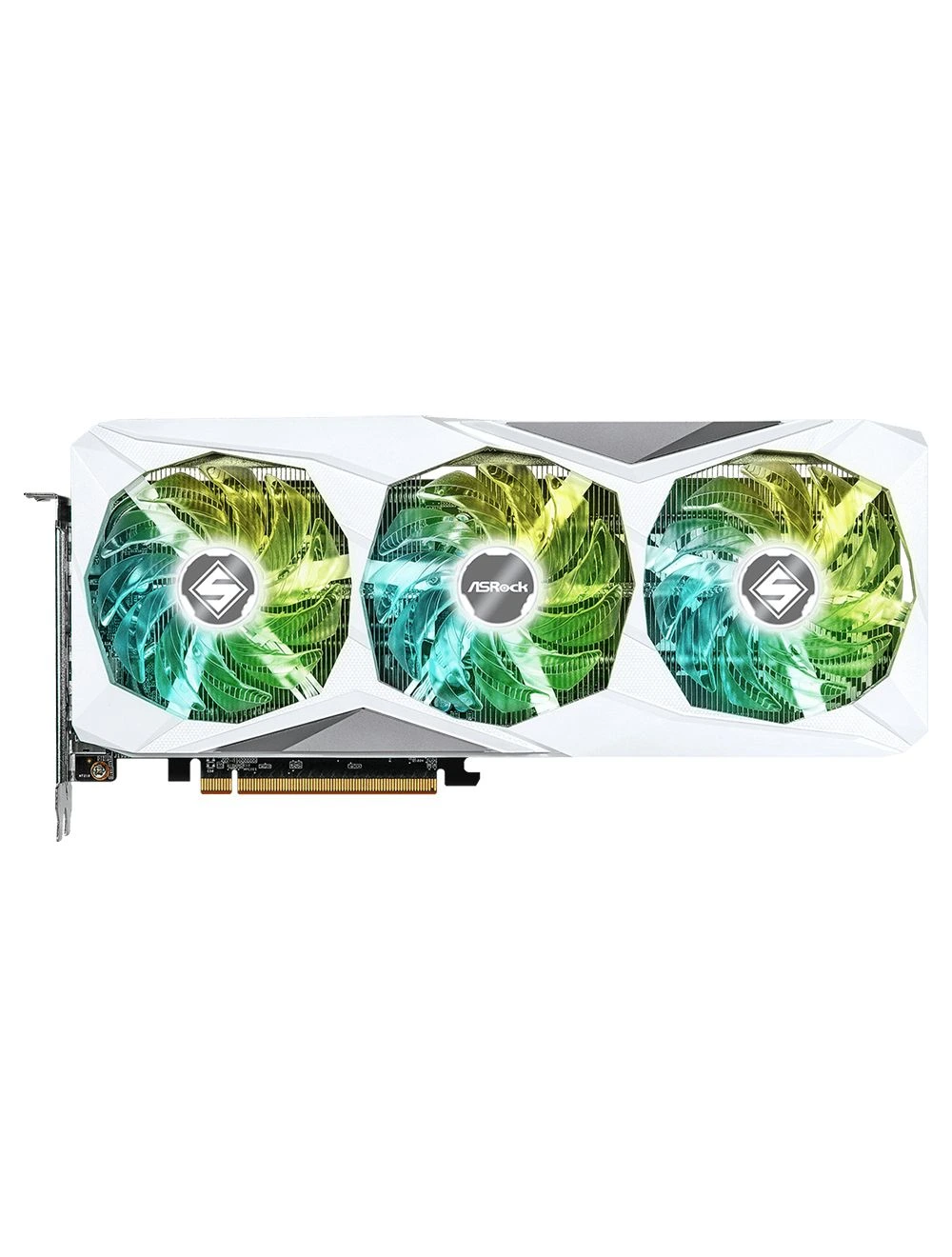

Triple Fan Design
Stylish Metal Backplate
Striped Axial Fan
0dB Silent Cooling
Ultra-fit Heatpipe
Super Alloy Graphics Card
Specification:
Graphics Engine: AMD Radeon™ RX 7600
Bus Standard: PCI® Express 4.0 x8
DirectX: 12 Ultimate
OpenGL: 4.6
Memory: 8GB GDDR6
Engine Clock
– Boost Clock*: Up to 2725 MHz
– Game Clock**: 2320 MHz
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Stream Processors: 2048
Memory Clock: 18 Gbps
Memory Interface: 128-bit
Resolution: Digital Max Resolution: 7680 x 4320
Interface
– 3 x DisplayPort™ 2.1*
– 1 x HDMI™ 2.1
*DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously.
HDCP: Yes
Multi-view: 4
Recommended PSU: 600W
Power Connector: 1 x 8-pin
Accessories: 1 x Quick Installation Guide
Dimensions: 303 x 131 x 45 mm, 2.25-slot
Net Weight: 834 g
