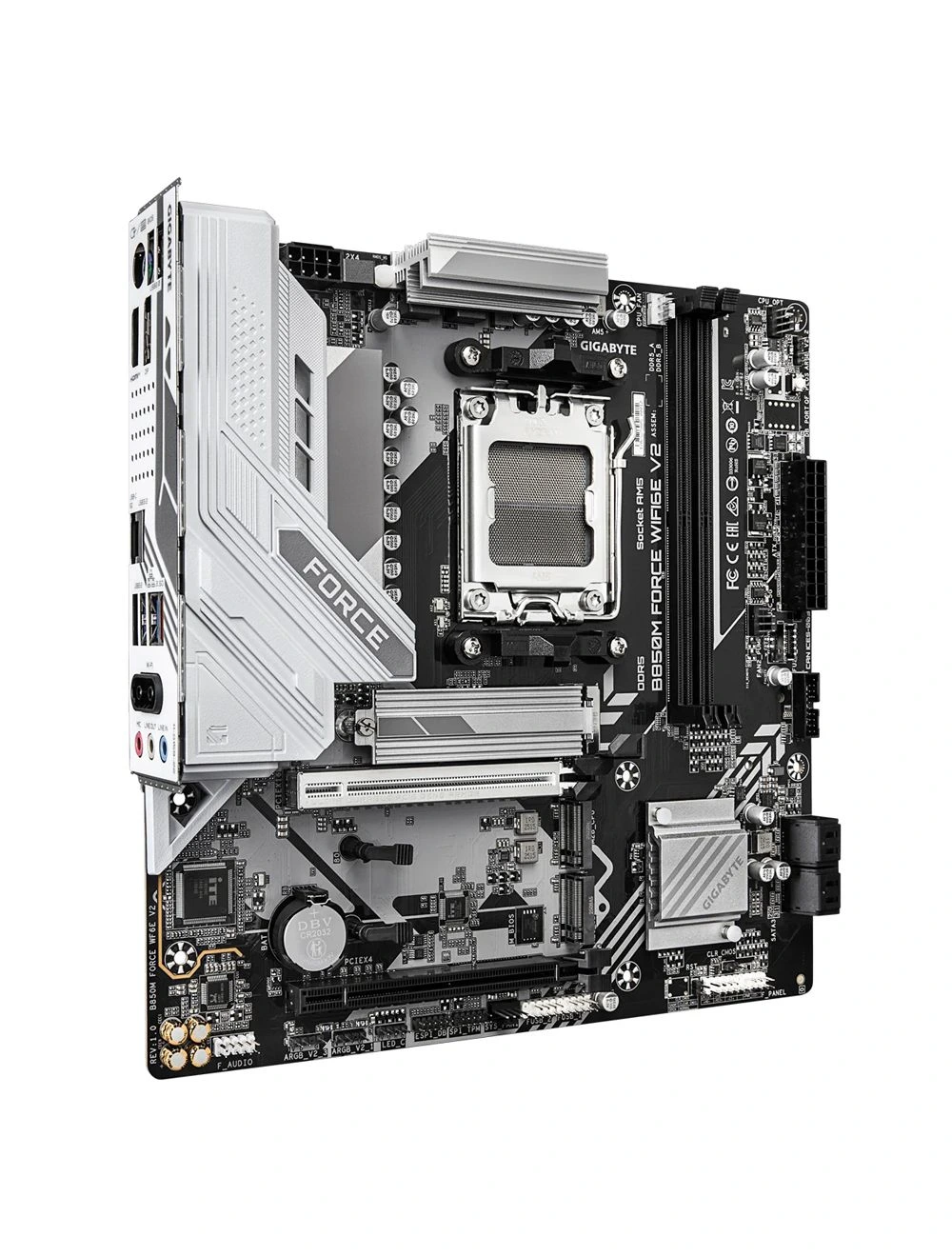

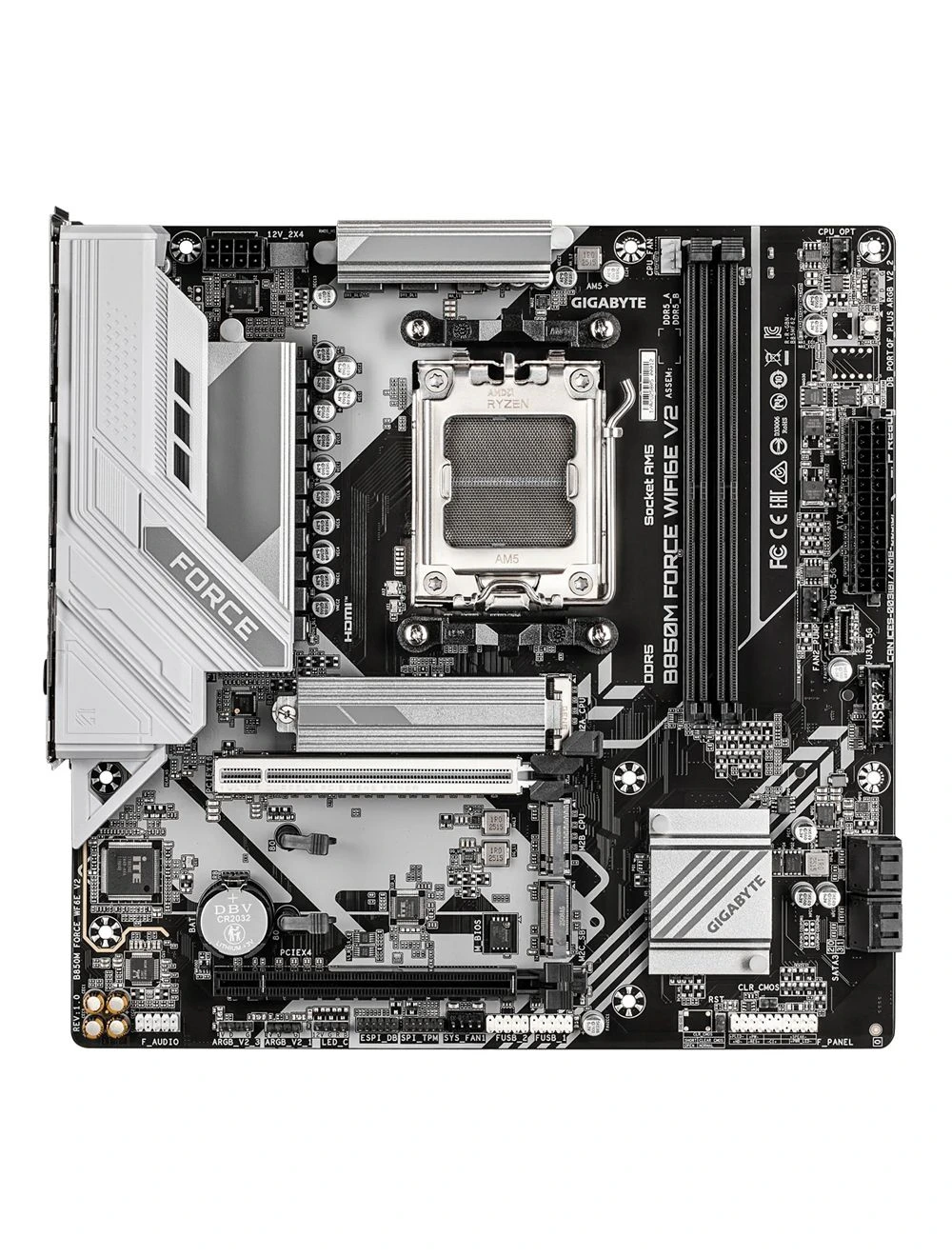

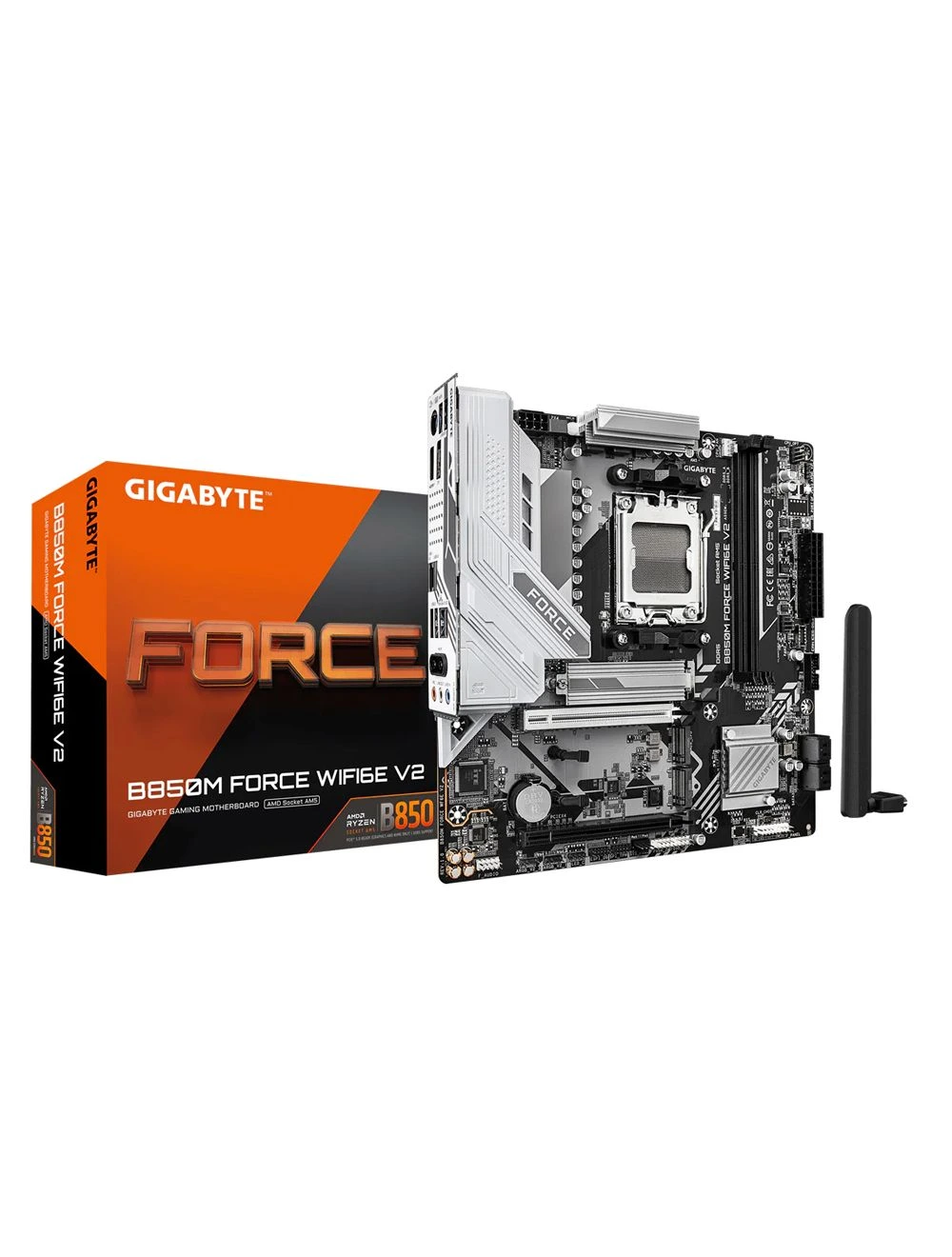

Gigabyte B850M Force WiFi6E V2 DDR5 AMD Gaming Motherboard

Key Features

• X3D Turbo Mode to unleash new era gaming performance
• AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
• Digital 8+2+2 phases VRM solution
• Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  EZ-Latch : PCIe x16 Slot with Quick Release Design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
• Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN
• Extended Connectivity : DP, HDMI

Specification :
CPU AMD Socket AM5
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Chipset AMD B850
Memory DDR5 up to 9600(OC)
2× DDR5 DIMM, Max 128GB
Dual Channel Architecture
Onboard Graphics Ports 1× HDMI 2.1
1× DisplayPort 1.4
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN Realtek® 2.5GbE LAN (2.5G / 1G / 100Mbps)
Wireless MediaTek Wi-Fi 6E MT7902
2.4 / 5 / 6 GHz
Bluetooth® 5.3
160MHz Bandwidth Support
Expansion Slots 1× PCIe x16
1× PCIe 4.0 x16 (x4 mode)
Storage Interface 1× M.2 PCIe 5.0 x4
2× M.2 PCIe 4.0
4× SATA 6Gb/s
USB Rear: USB-C 3.2 Gen1, USB-A 3.2 Gen2, USB 2.0
Internal: USB-C Gen1, USB 3.2 Gen1, USB 2.0
Internal Connectors 24-pin ATX, 8-pin CPU Power
CPU / System Fan & Pump Headers
RGB & ARGB Headers
M.2, SATA, USB, TPM, Clear CMOS, Q-Flash Plus

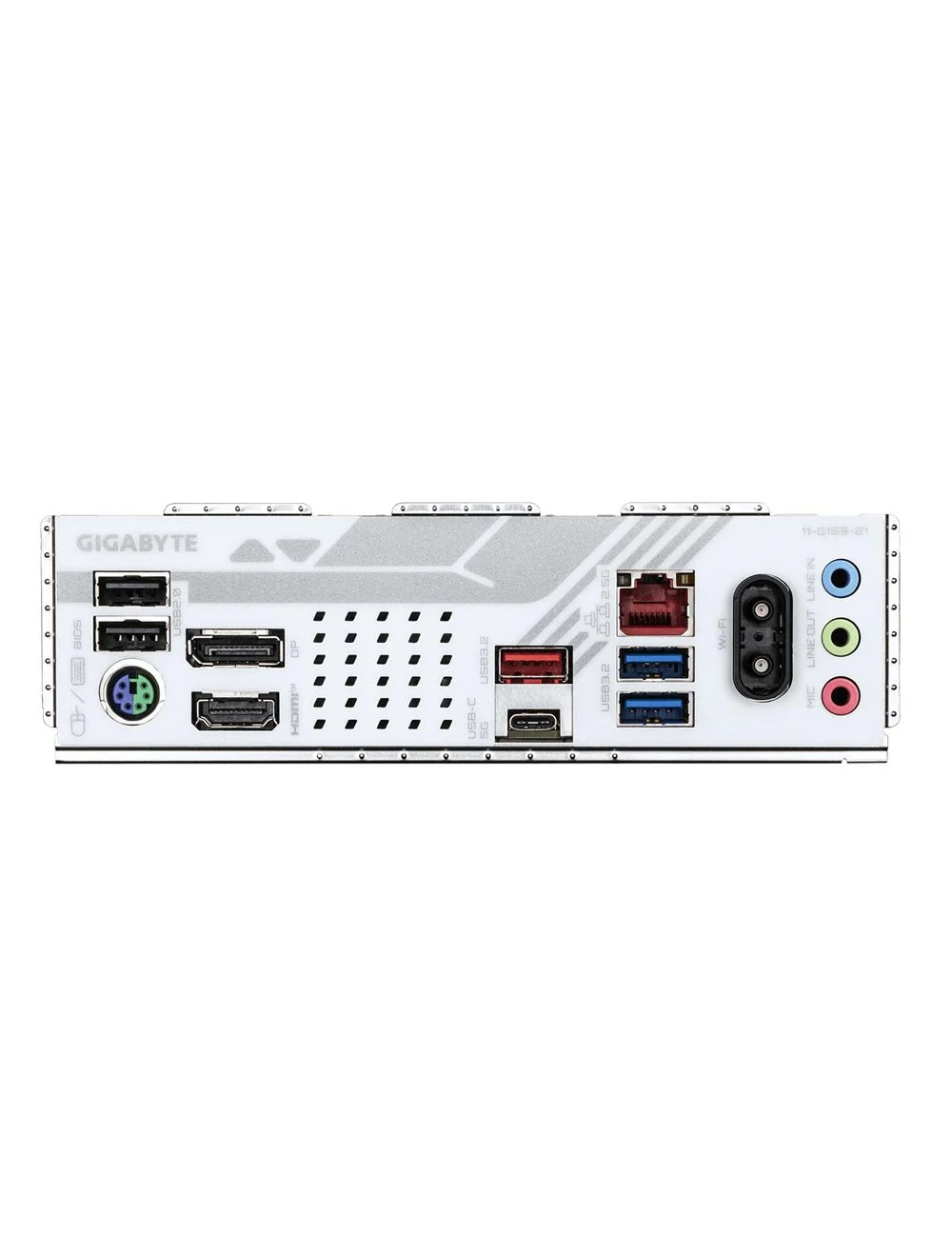

Back Panel I/O HDMI, DisplayPort
USB-C, USB 3.2 Gen1, USB 3.2 Gen2, USB 2.0
RJ-45 LAN, PS/2
Audio Jacks, Wi-Fi Antenna
Unique Features Q-Flash
Q-Flash Plus
Operating System Windows® 11 64-bit
Windows® 10 64-bit
Form Factor Micro ATX
24.4 cm × 24.4 cm
