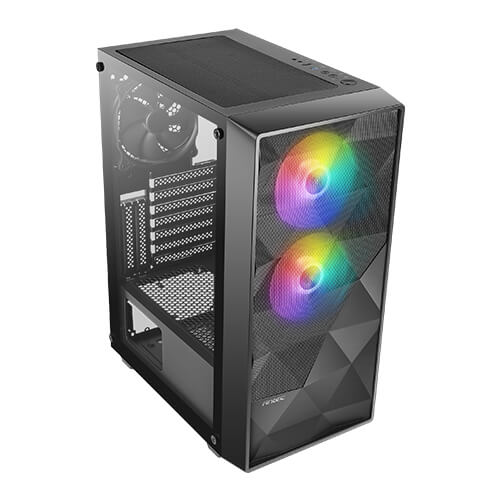

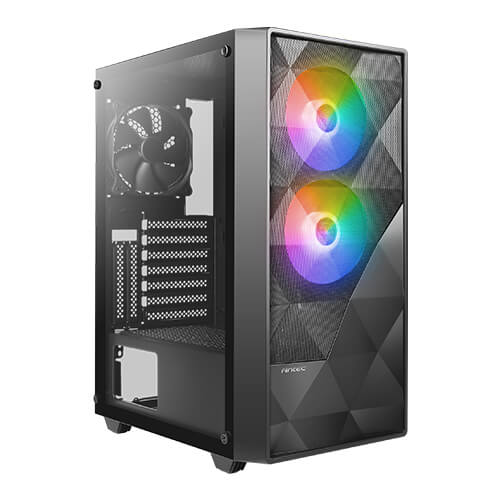

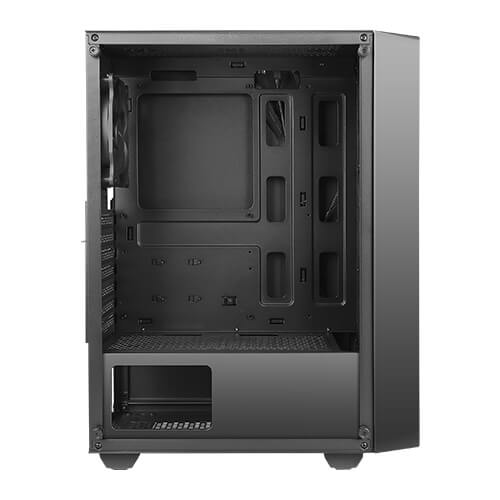

Antec NX270 Tempered Glass ATX Mid-Tower Gaming Case

Creation of
Value & Function
The NX270 mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes 2 x 120 mm ARGB fans in front & 1x 120 mm fan in the rear. With support for up to a 280 mm liquid cooling radiator in front & a 240 mm radiator on top, NX270 is easy to build with and easy to cool.

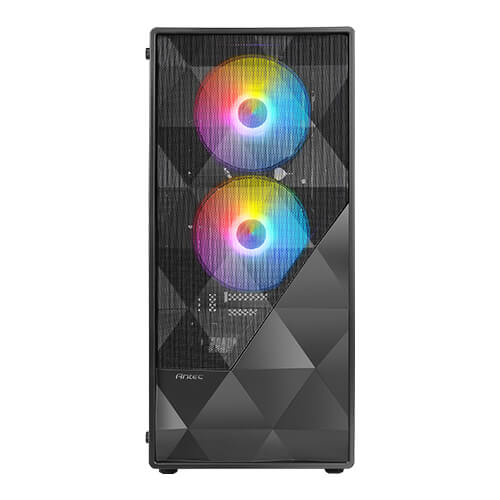

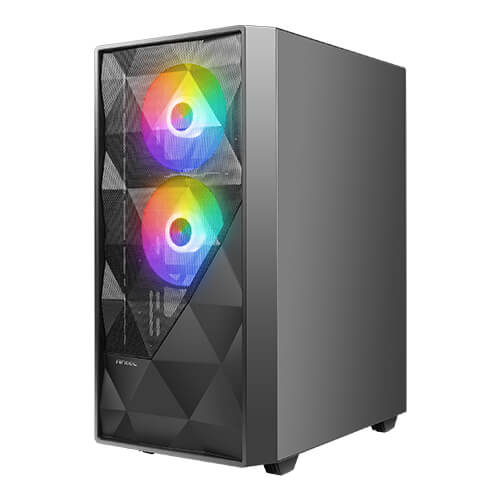

Mesh & Geometric Diamond-shaped Design Front Panel
The NX270 features an unique mesh and geometric diamond-shaped design on its front panel. With its preinstalled 2 x 120 mm ARGB fans in front & 1 x 120 mm fan in the rear, the NX270 provides massive airflow and good thermal performance.

General Specifications

• Form Factor: Mid Tower
• Dimensions (DxWxH): 362 x 217 x 461 mm
• Materials: Steel + Plastic

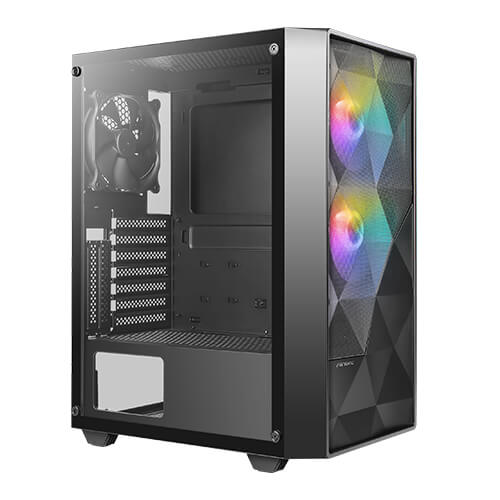

• Side Panel: Tempered glass
• Net Weight: 4.35 kg
• Gross Weight: 5.3 kg
• Dust Filter: Top

Compatibility & Clearance

• Mainboard Support: ATX, Micro-ATX, ITX
• Max GPU Length: ≤ 270 mm
• Max CPU Cooler Height: ≤ 160 mm
• Max PSU Length:
  • ≤ 160 mm (with HDD)
  • ≤ 295 mm (without HDD)

I/O & Bays

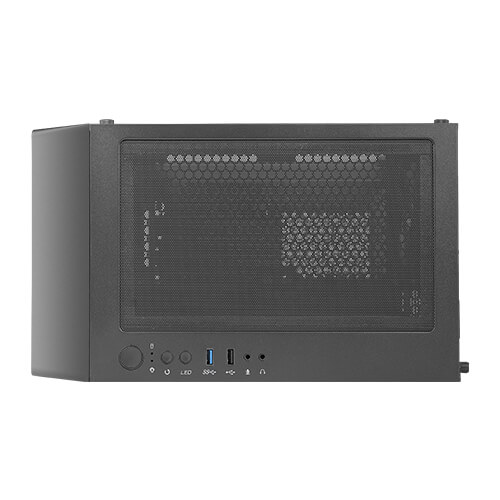

• Front Access & Controls: Power, Reset, LED control button, 1 x USB 2.0, 1 x USB 3.0, MIC/HD-AUDIO
• Expansion Slots: 7
• Drive Bays:
  • 3.5″ / 2.5″: 2/1
  • 2.5″: 1

Cooling System

• Included Fans:
  • Front: 2 x 120 mm ARGB fans
  • Rear: 1 x 120 mm fan
• Fan Support:
  • Front: 3 x 120 mm / 3 x 140 mm
  • Top: 2 x 120 mm
  • Power Supply Shroud: 2 x 120 mm
  • Rear: 1 x 120 mm
• Radiator Support:
  • Front: 120 / 140 / 240 / 280 mm
  • Top: 120 / 240 mm
