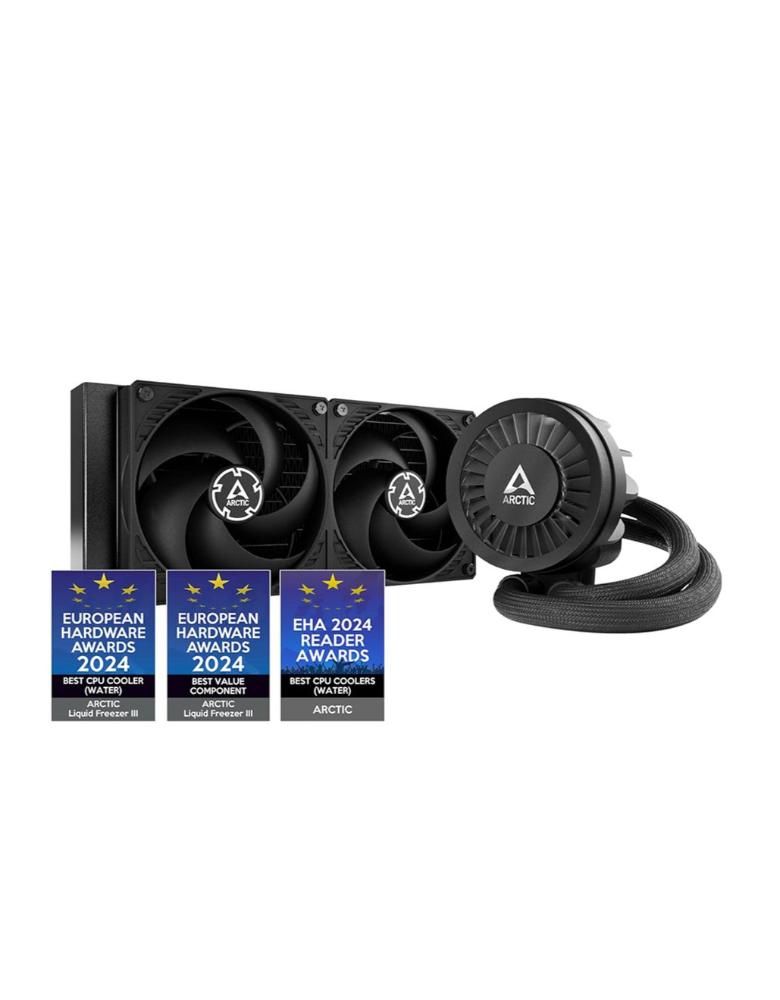

Arctic Liquid Freezer III 240 Multi Compatible AIO CPU Water Cooler

Features

• LGA1851 AND LGA1700 CONTACT FRAME: Improved contact pressure distribution through Intel mounting frame for efficient heat transfer, thanks to even CPU contact surface

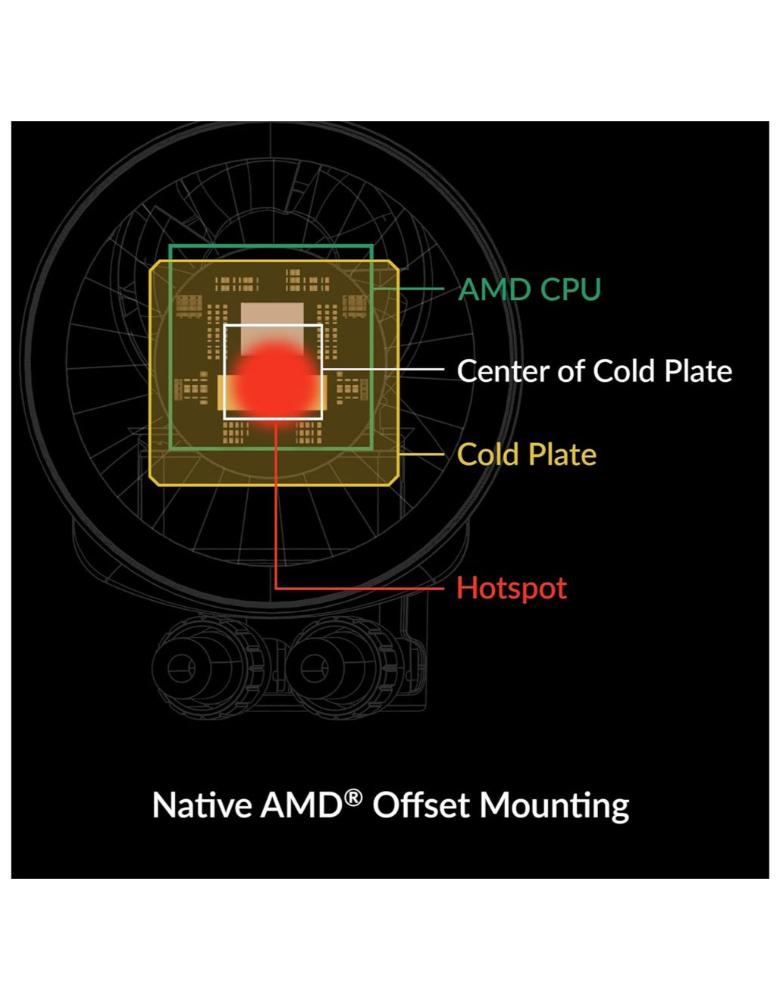

• NATIVE AMD OFFSET MOUNTING: Optimized for the multi-die chiplet design of Ryzen processors – 5mm offset for optimal coverage of the CPU hotspot, resulting in more efficient heat transfer
• ACTIVE COOLING OF THE VOLTAGE CONVERTERS: PWM-controlled VRM fan that additionally cools components in the base area, such as voltage converters

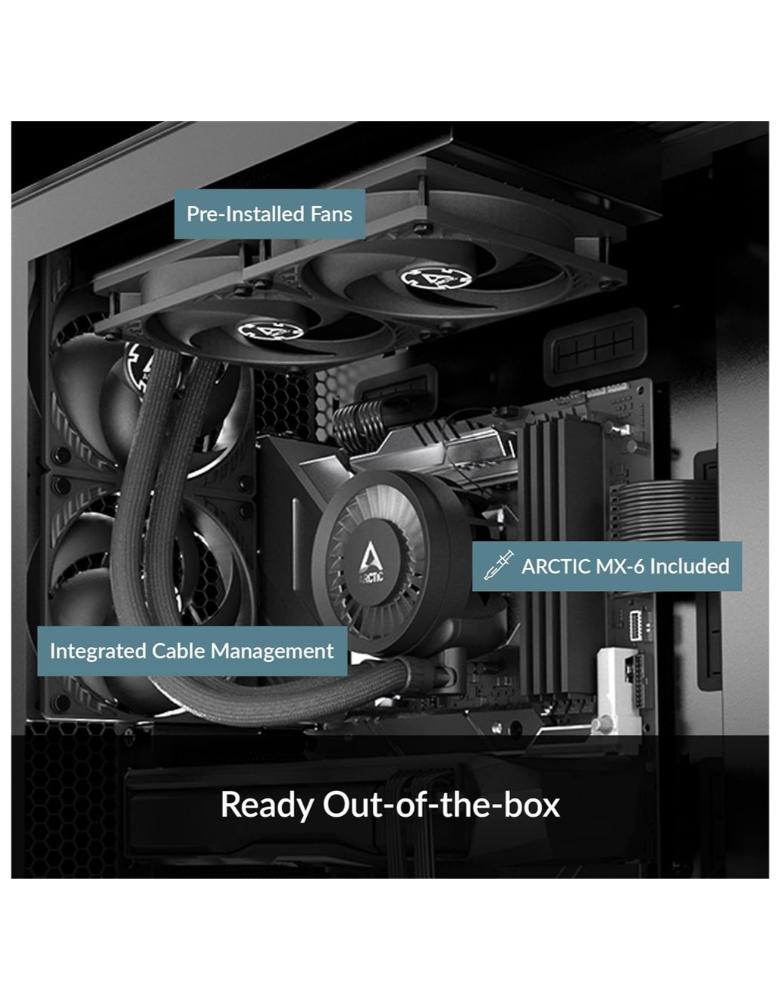

• INTEGRATED CABLE MANAGEMENT: The PWM cables of the radiator fans are integrated into the jacket of the hoses, which means that only one visible cable is connected to the motherboard
• LIMITED COMPATIBILITY WITH A FEW MOTHERBOARDS: Oversized coolers on the M.2_1 slot can lead to compatibility problems. An overview and solution is available in the technical data, in the manual and on the manufacturer’s website. Please use the compatibility check

Specification

TIM:   MX-6 (0.8 g)
Operating Ambient Temperature:   0—40 °C
PI | NNPI:   308 | 230

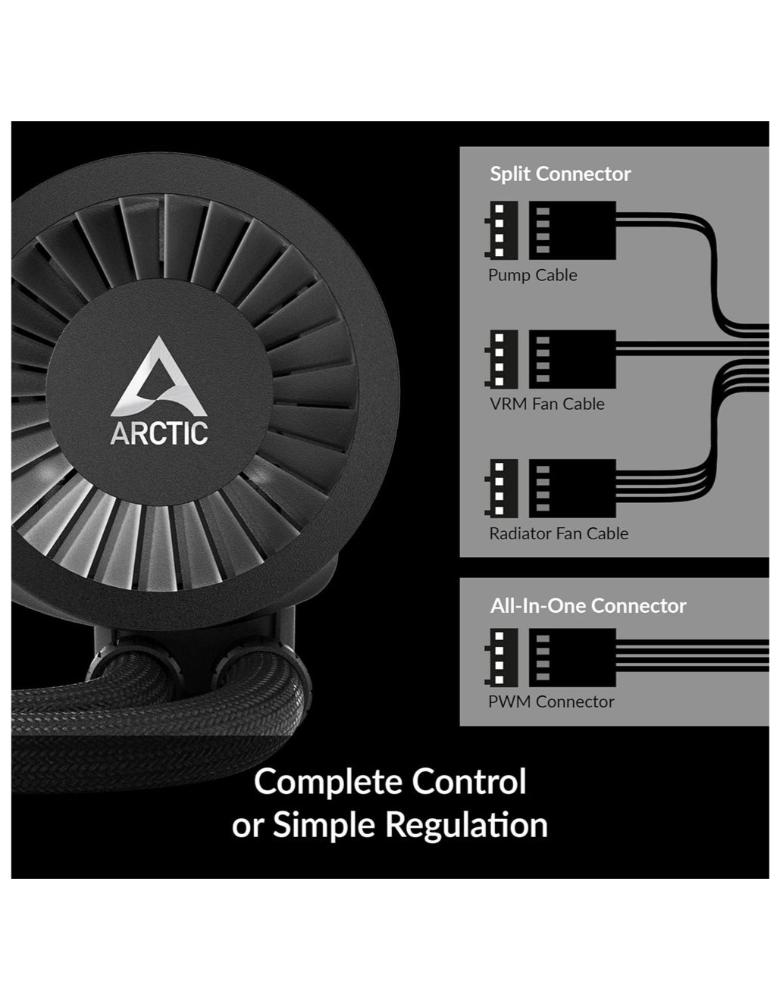

All-In-One Connector:  4-Pin PWM Connector
Splitt Connector:  3x 4-Pin PWM Connector
Weight:  1490 g

Compatibility
Intel:  1851, 1700
AMD:  AM5, AM4

Pump Specifications
Pump:  800—2800 rpm (PWM controlled)
Current | Voltage:  0.35 A | 12 V DC
Cold Plate:  Copper, Micro Skived Fins
Tube Length:  450 mm
Tube Diameter:  Outer: 12.4 mm
Inner: 6.0 mm

Radiator Specifications
Material:  Aluminium
Dimensions:  277 (L) x 120 (W) x 38 (H) mm

VRM Modul Specifications
VRM Fan:  400—2500 rpm (PWM controlled)
Current | Voltage:   0.05 A | 12 V DC

Fan Specifications
General:  2x P12 PWM
Speed:  200—1800 rpm
Air Flow:  56.30 cfm | 95.65 m3/h
Static Pressure:  2.20 mmH2O
Bearing:  Fluid Dynamic Bearing
Current | Voltage:  0.10 A | 12 V DC
Cable Lenght:  40 mm
Connector:  4-Pin PWM Connector
