Features
Contact Frame for Intel LGA1851 | LGA1700: Optimized contact pressure distribution for longer CPU lifespan and better heat dissipation.
ARCTIC’s P12 Pro fan: More performance at every speed – especially more powerful and quieter than the P12 at low speeds. Higher maximum speed for optimal cooling performance under high load.
Native offset mounting for Intel and AMD: Shifting the cold plate center toward the CPU hotspot ensures more efficient heat transfer.
Integrated VRM fan: PWM-controlled fan that lowers the temperature of the voltage converters and ensures reliable performance.
Integrated cable management: The PWM cables of the radiator fans are integrated into the sheathing of the hoses, so that only a single visible cable is connected to the motherboard.
Technical Specifications
General Specifications
TIM: MX-6 (0.8 g); Promise: 6 Years; Operating Ambient Temperature: 0–40 °C; Pump: 800–2800 rpm (PWM controlled); Current | Voltage: 0.35 A | 12 V DC; Cold Plate: Copper, Micro Skived Fins; Tube Length: 450 mm Tube Diameter, Outer: 12.4 mm, Inner: 6.0 mm
Compatibility
Intel: LGA1851, LGA1700, AMD: AM5, AM4
Radiator

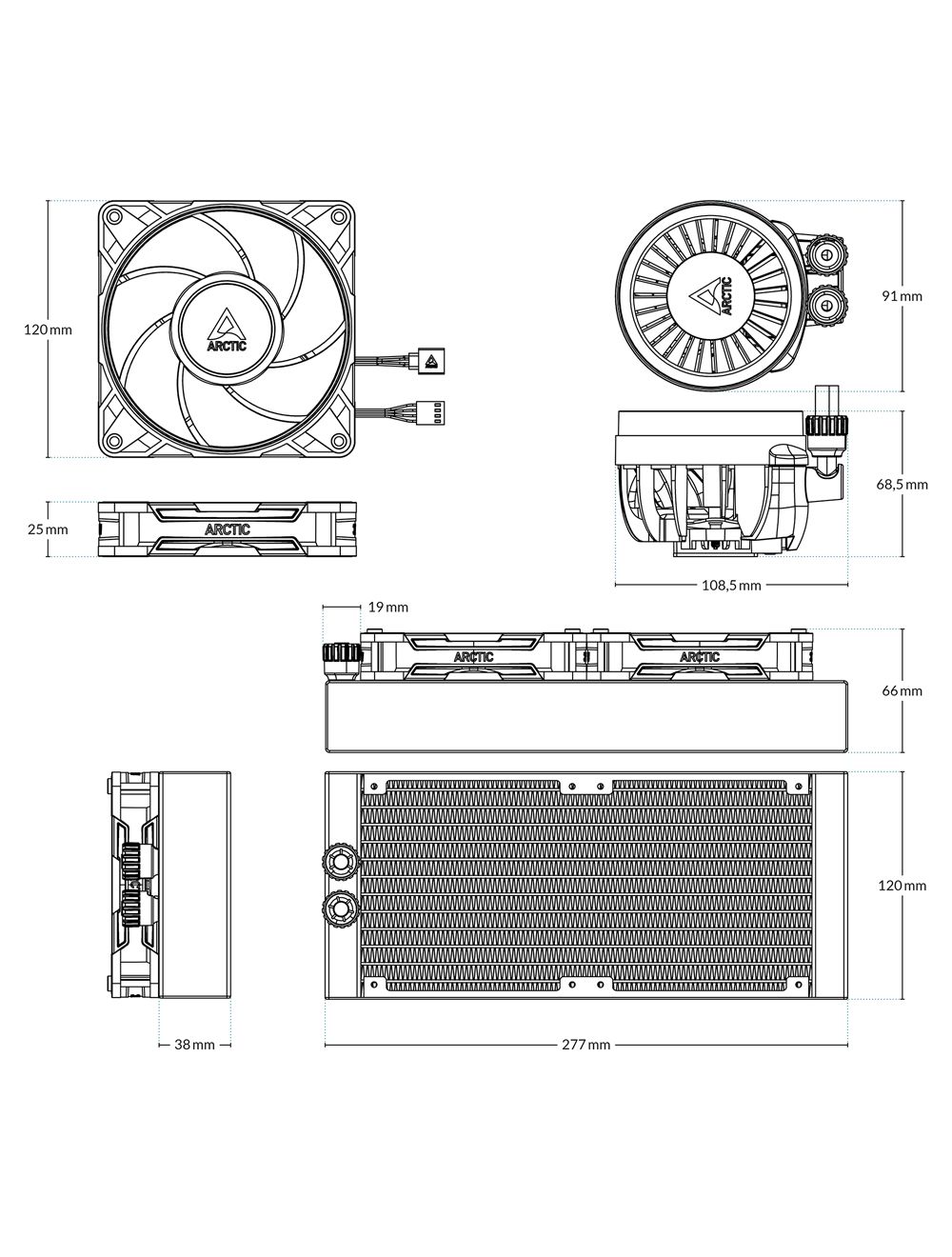

Material: Aluminum; Dimensions: 277 (L) x 120 (W) x 38 (H) mm
VRM Module
VRM Fan: 400–2500 rpm (PWM-controlled); Current | Voltage: 0.05 A | 12 V DC
Radiator Fans
General: 2x P12 Pro; Speed: 600–3000 rpm; Airflow: 77 cfm | 131 m³/h³; Static Pressure: 6.9 mmH₂O; Bearing: Fluid Dynamic Bearing; Current | Voltage: 0.33 A | 12 V DC; Connector: 4-Pin Fan Plug
Size & Weight
Radiator & Fans: 10.9″L x 4.7″W x 2.6″H; Weight: 3.7lbs
