Technical Specification

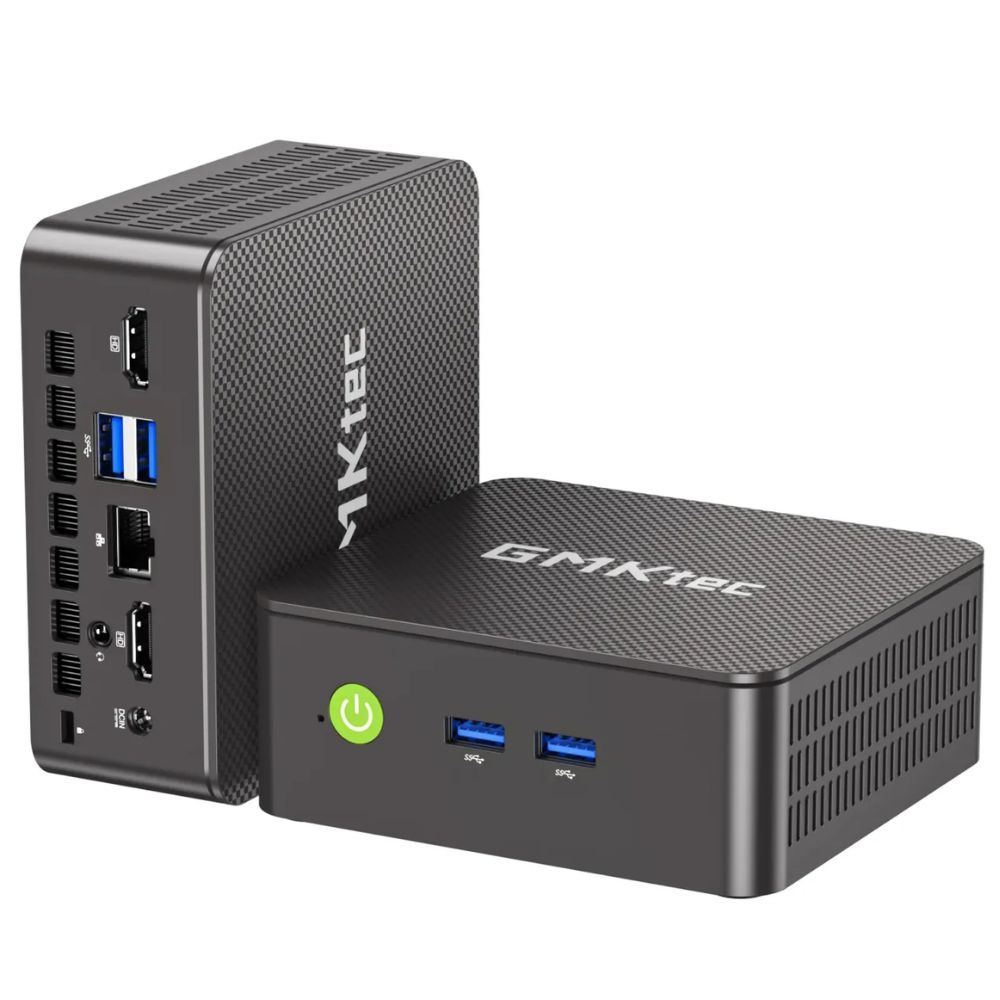

Model Name: GMKtec NucBox G3 Pro
Processor & Graphics
Processor (CPU): Intel® Core™ i3-10110U (10th Generation) 2 Cores / 4 Threads
Clock Frequency: Base 2.1GHz | Max Turbo Frequency up to 4.1GHz
Cache: 4MB Intel® Smart Cache
Integrated Graphics: Intel® UHD Graphics for 10th Gen Intel® Processors 300MHz Base | 1.0GHz Max Dynamic Frequency
TDP Modes: Silent (8W) | Balanced (10W) | Performance (15W)
Memory & Storage
Memory (RAM): 16GB DDR4 (2x 8GB Dual-Channel Pre-installed) 2x SO-DIMM Slots (Supports up to 64GB total)
Primary Storage: 512GB M.2 NVMe PCIe 3.0 SSD Pre-installed
Storage Expansion: Dual M.2 Slot Design Supports expansion up to 8TB (Total expandable to 16TB)
Networking & Video Output
Wired LAN: 1× 2.5G Gigabit Ethernet (Intel i226)
Wireless: Wi-Fi 6 (Theoretical speed up to 1201Mbps) | Bluetooth 5.2
Video Output: 2× HDMI 1.4 Ports Supports Dual 4K Display (up to 4K@24Hz)

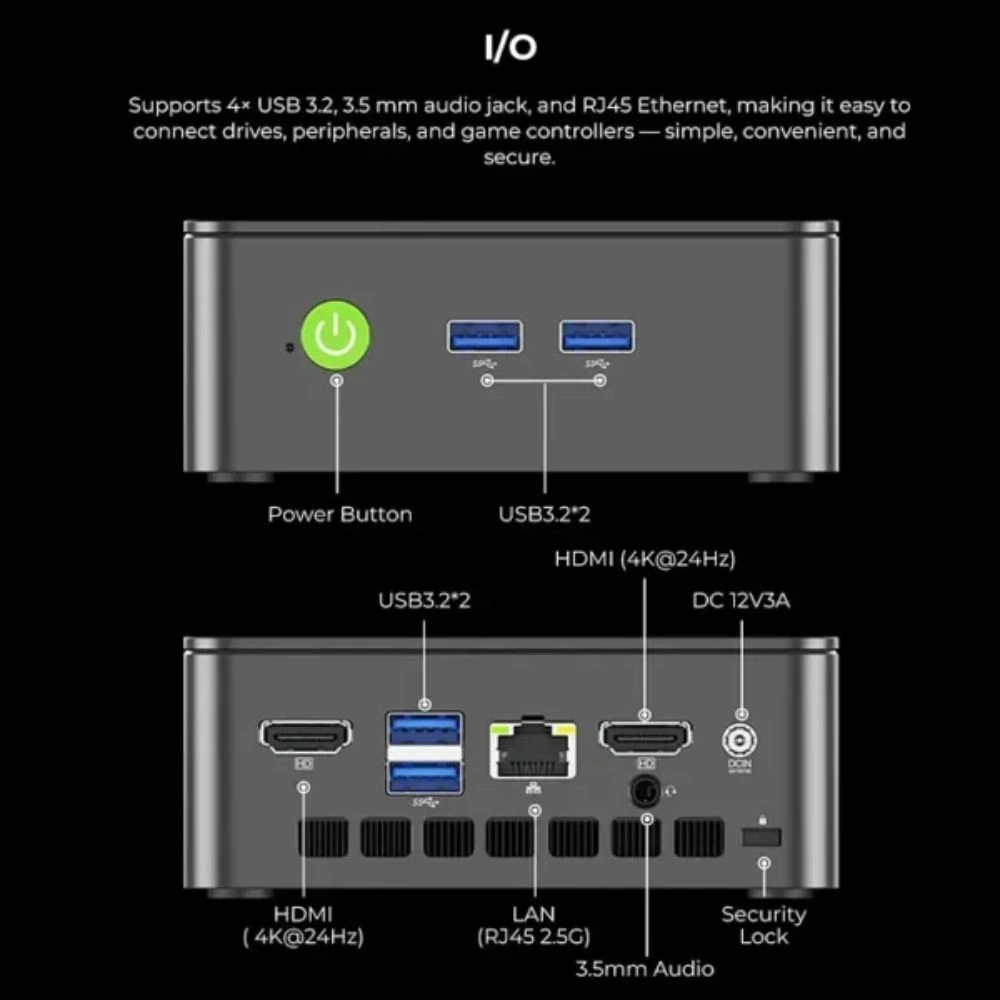

I/O Interface
Front Interface: 2× USB 3.2 Gen1 (5Gbps) Power Button with White LED Indicator
Rear Interface: 2× USB 3.2 Gen1 (5Gbps) 2× HDMI 1.4 1× 3.5mm Audio Jack (CTIA) 1× RJ45 2.5G LAN 1× Security Lock Slot | 1× Reset Button
Physical & System Specs

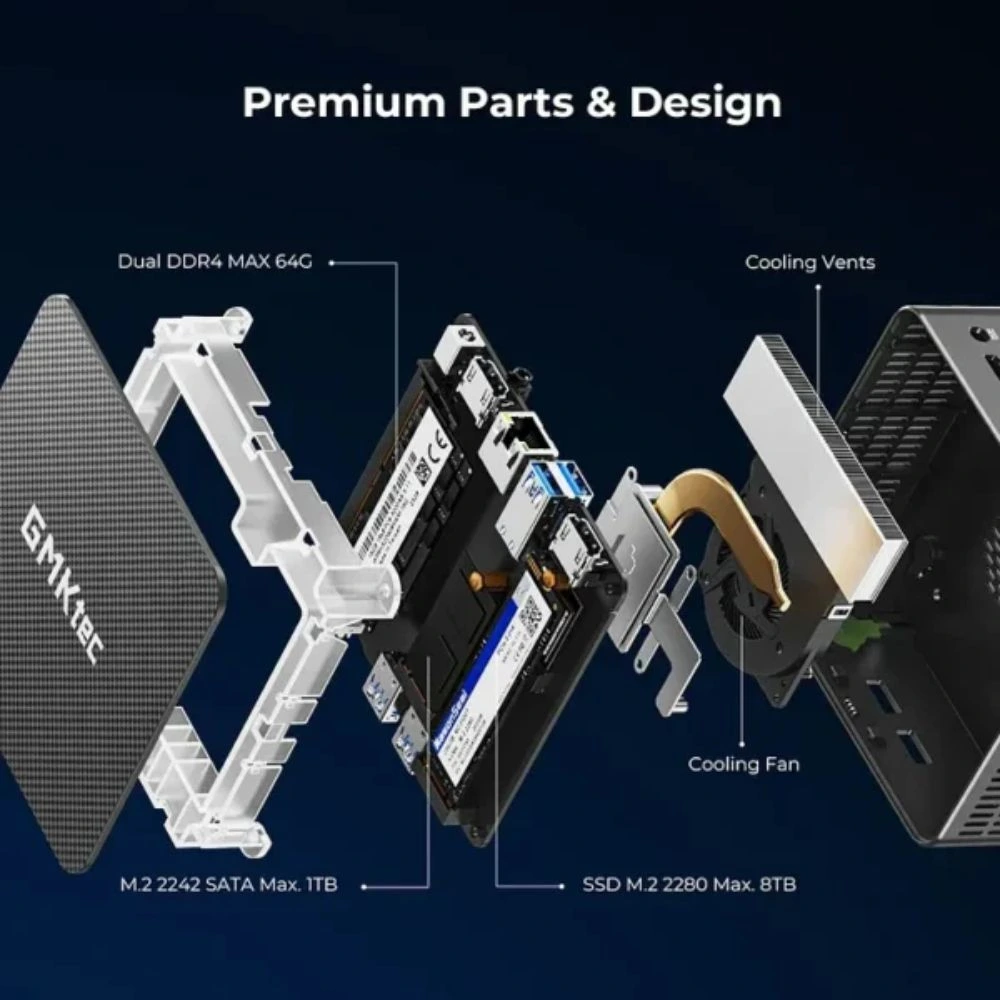

Cooling Design: Single Fan + Single Copper Heat Pipe
Dimensions: 114 × 106 × 44 mm
Weight: Device: ~280g | Full Package: ~920g
Power Adapter: DC 12V / 3A (5.5/2.5mm Interface)
OS Support: Windows 11 Pro (Multi-Language Supported)
