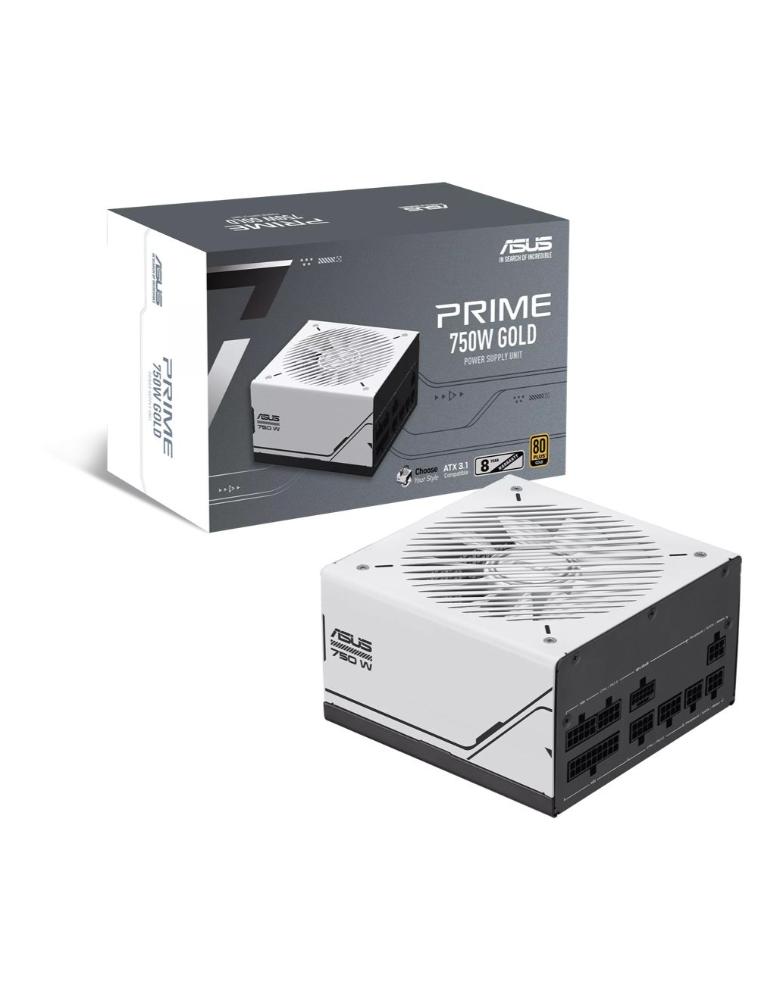

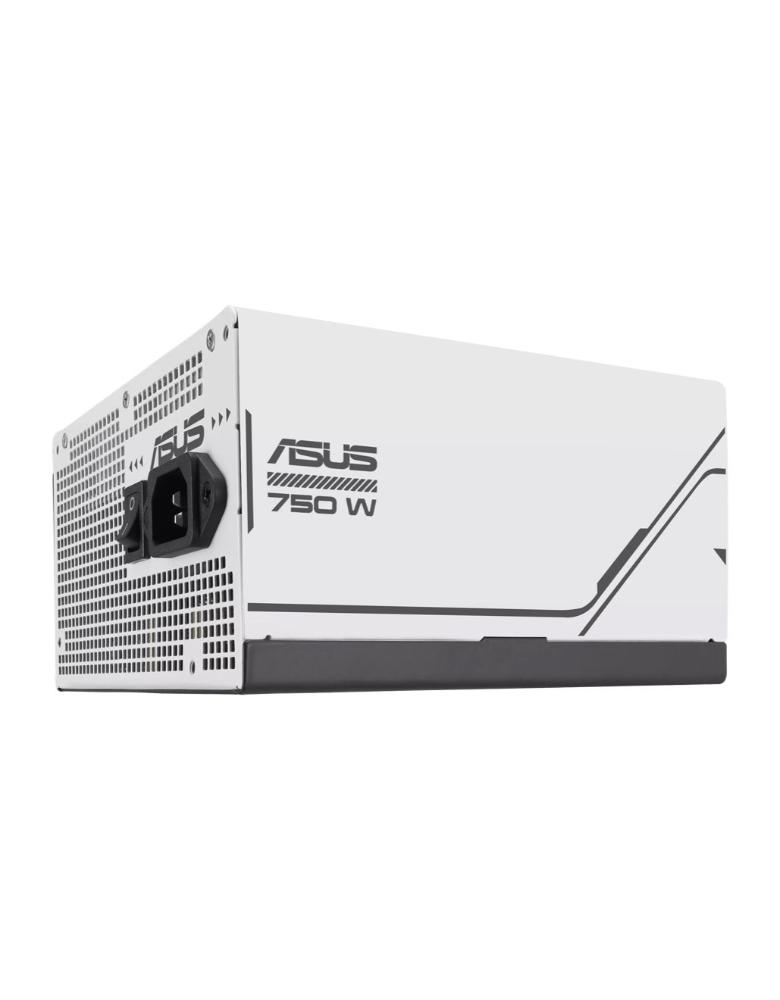

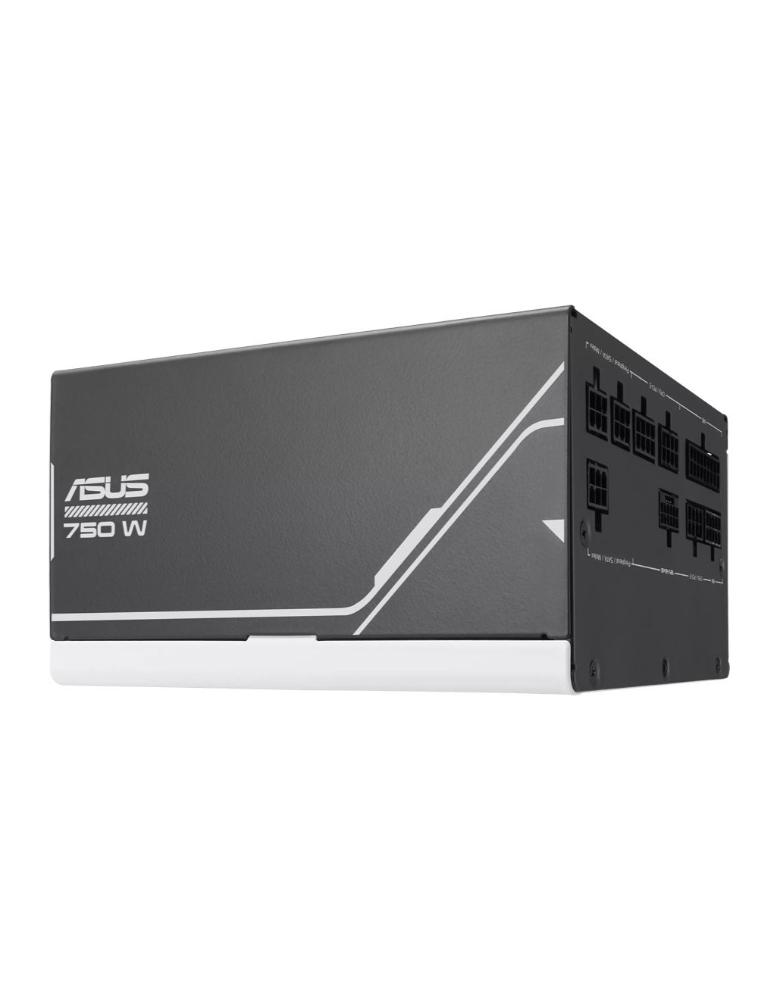

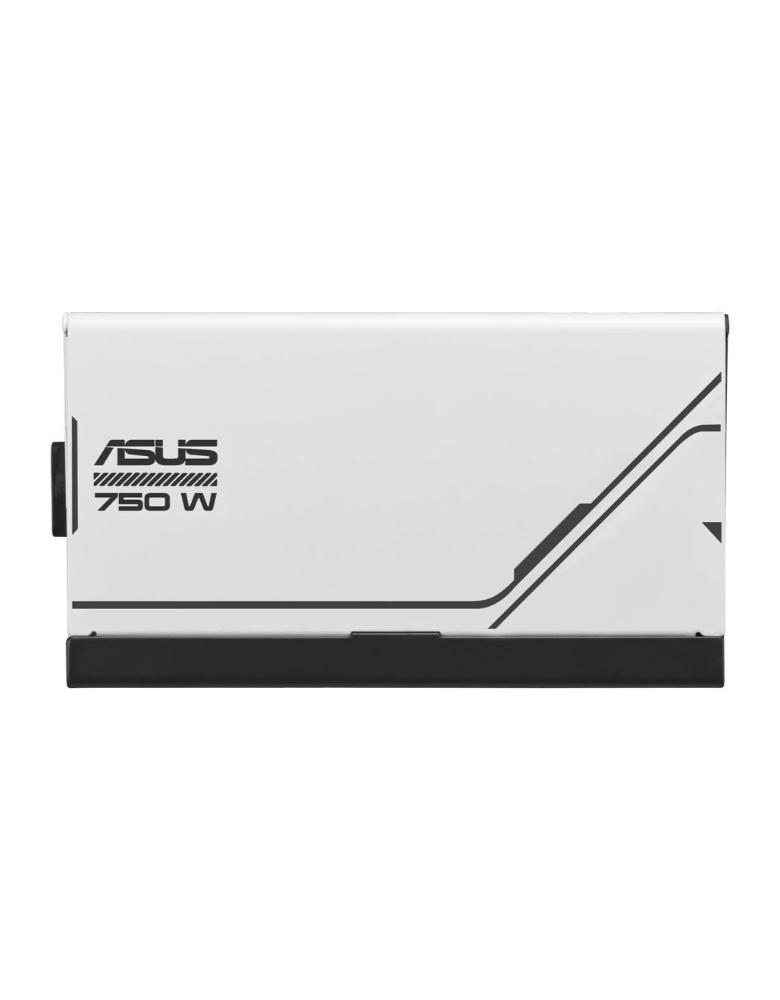

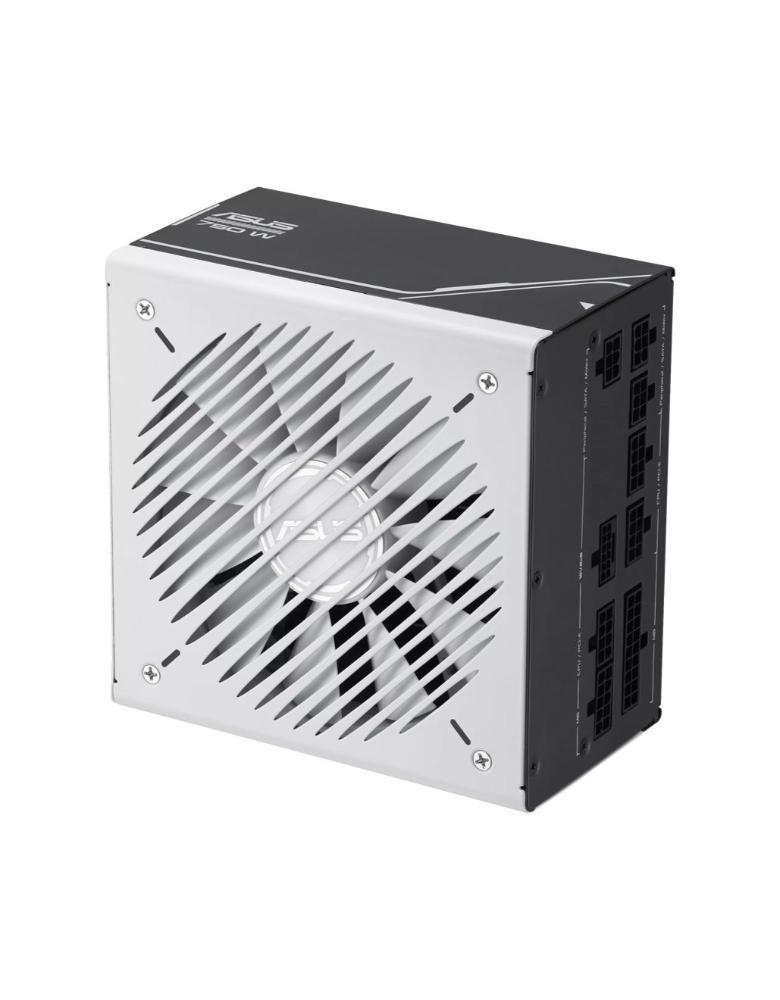

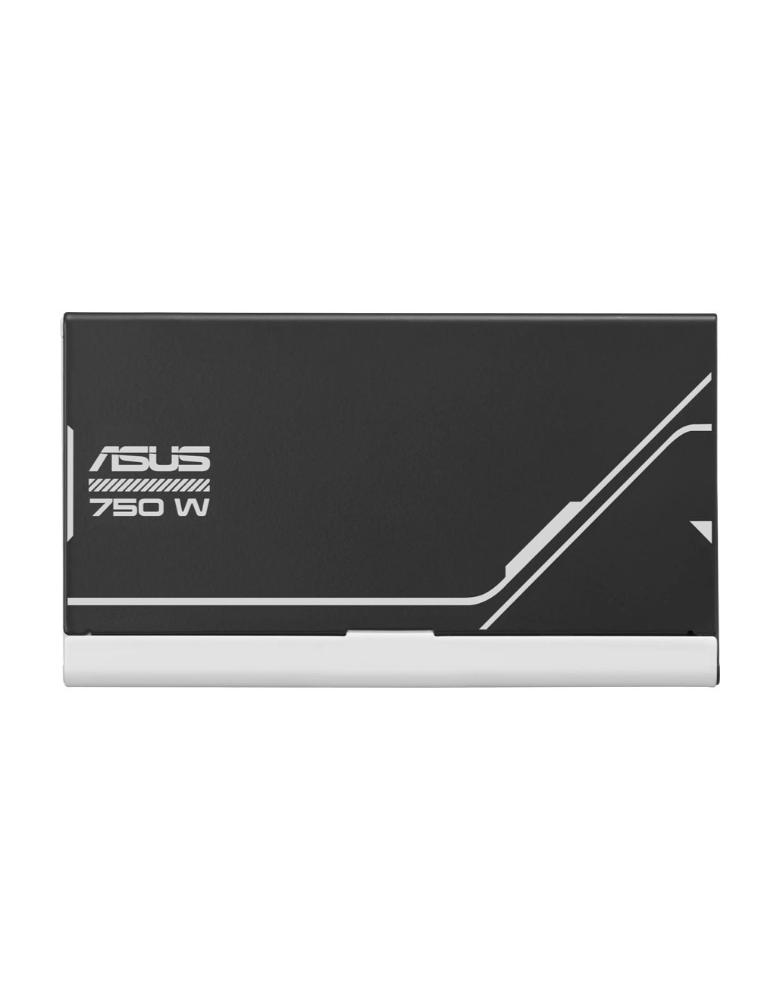

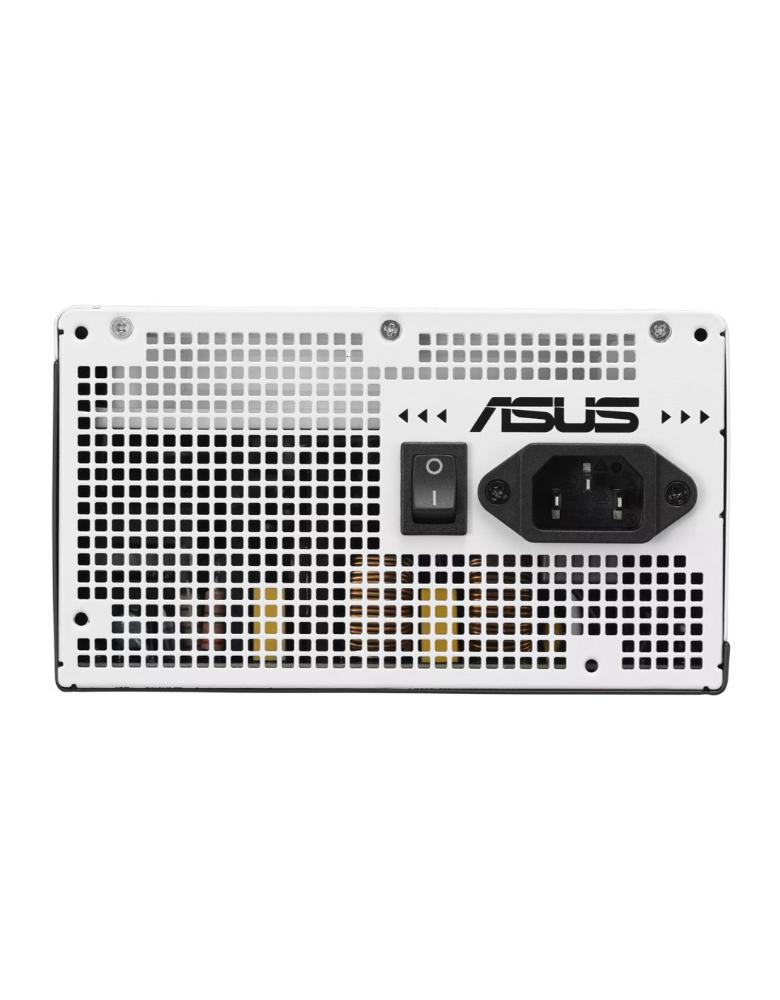

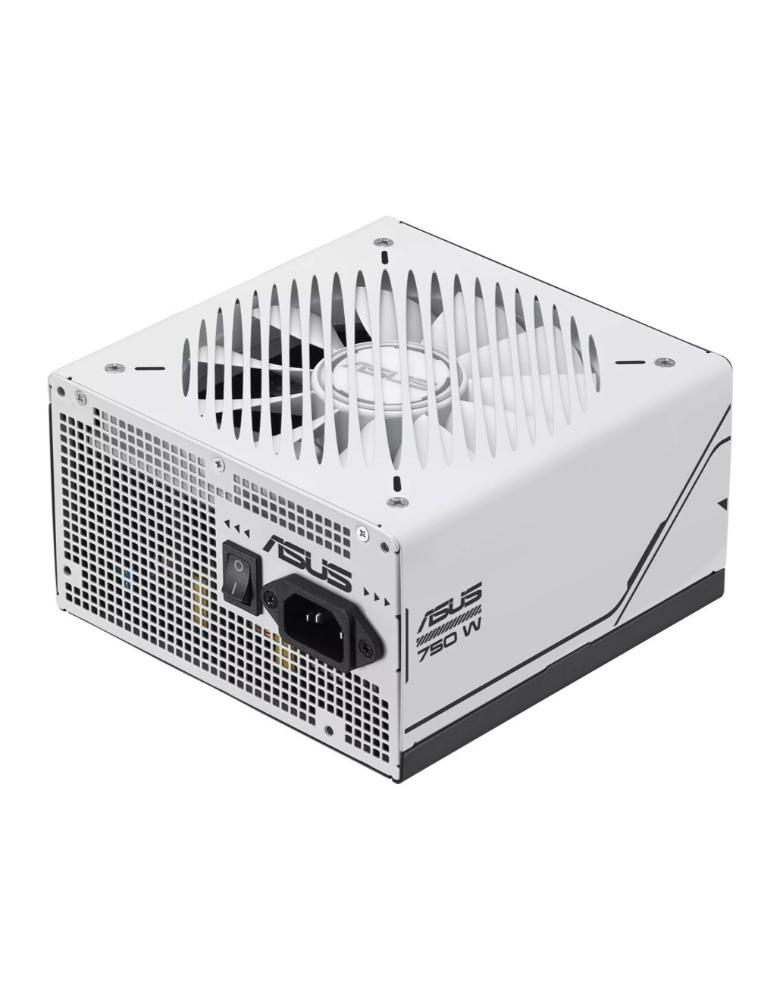

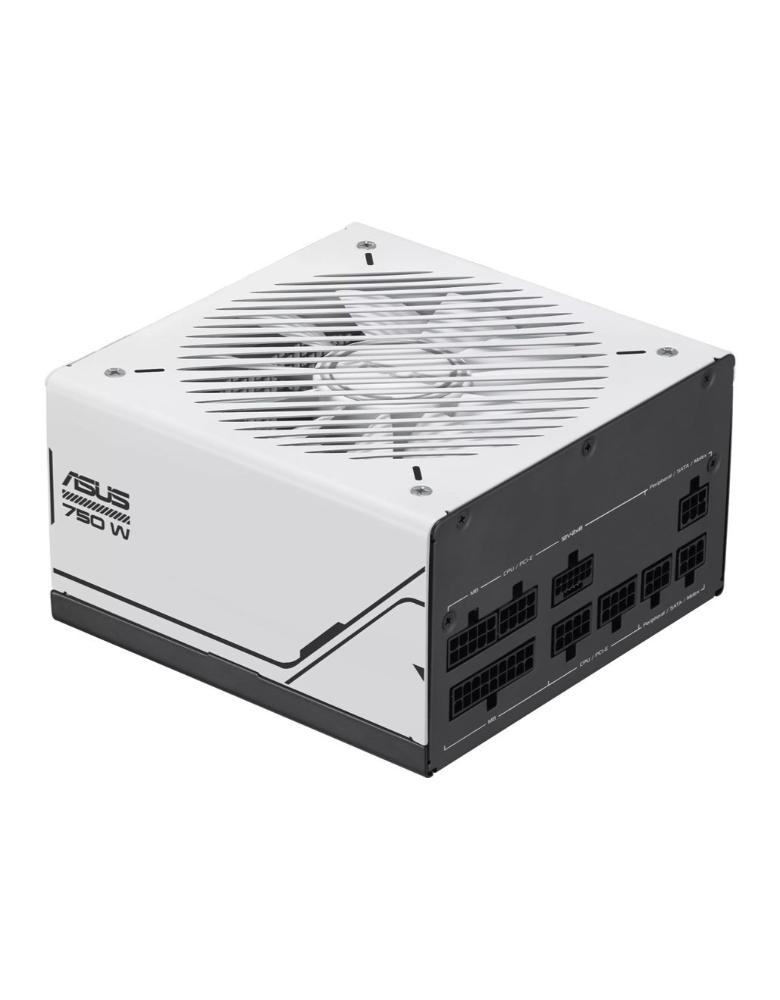

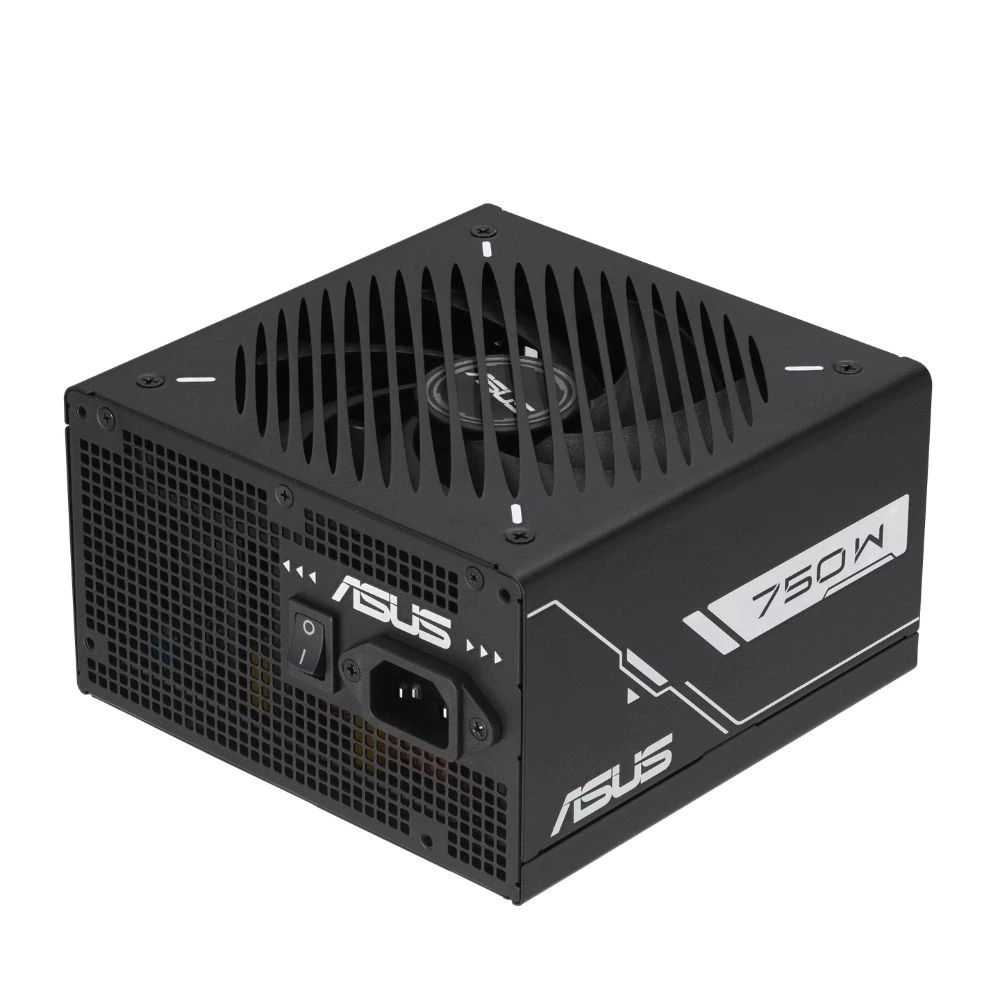

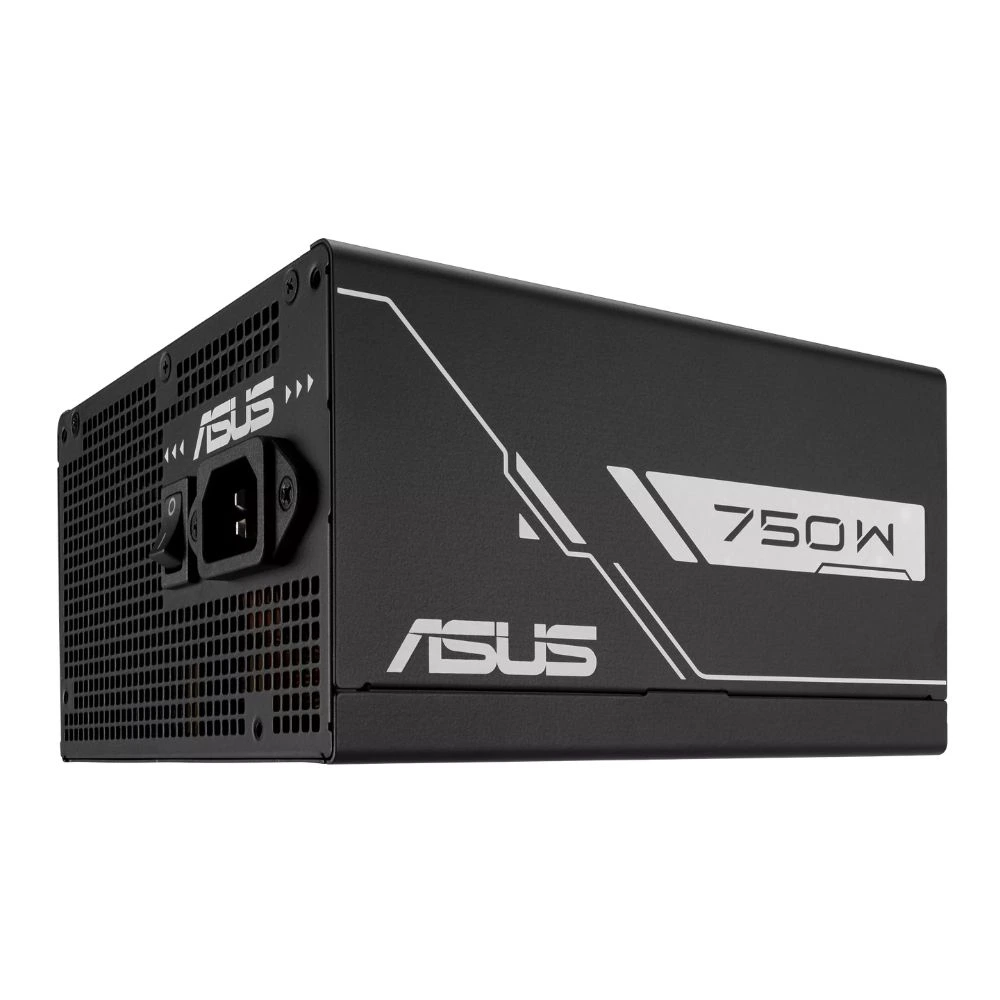

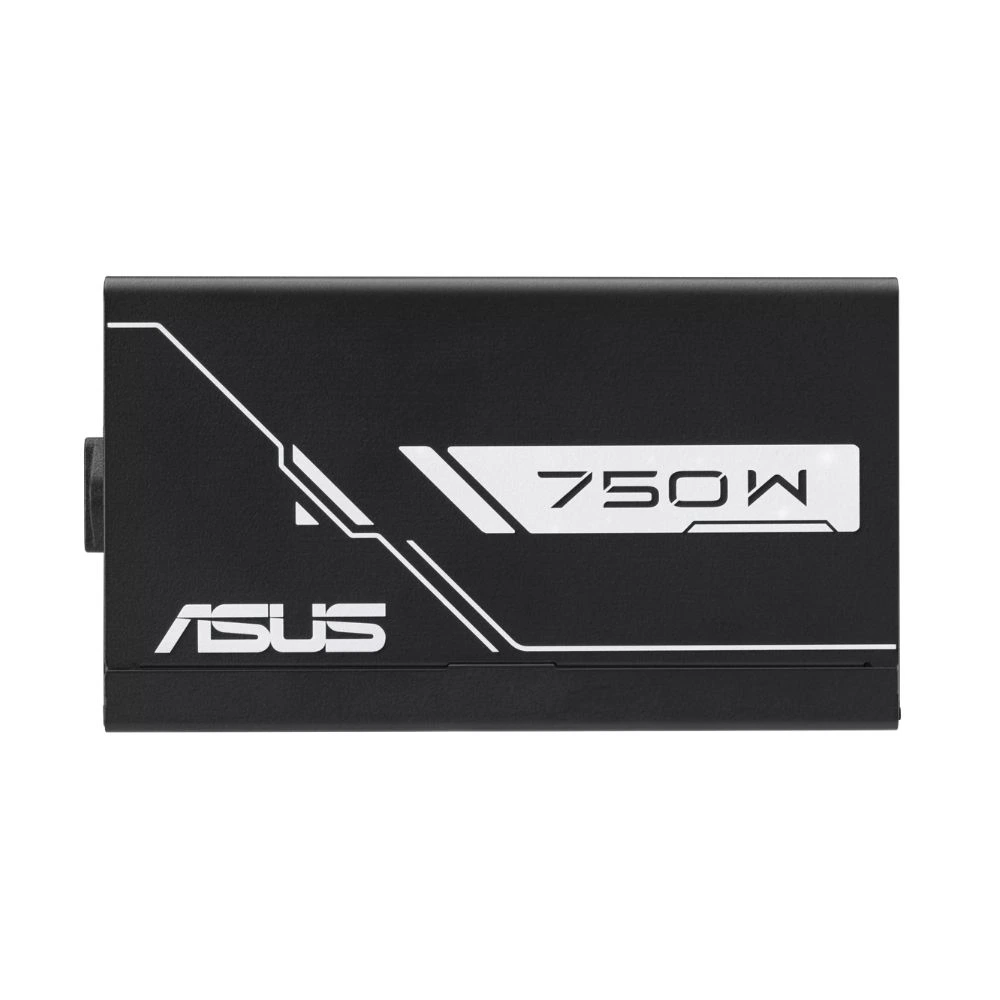

Asus Prime 750W 80 plus Gold ATX 3.1 Power Supply (AP-750G)

ASUS Prime 750W Gold Black Edition PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.

• 80 Plus & Cybenetics Gold certified: the result of low-ESR capacitors and other premium components.
• ATX 3.1 Compatible: Prime Gold series is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe® cable that is compatible with PCIe Gen 5.1 graphics cards.
• Dual-ball fan bearings that can last up to twice as long as sleeve bearing designs.
• Fully modular etched cables keep your rig neat and tidy.

Specifications

Model: PRIME-750G

Intel Form Factor: ATX12V

PFC Type: Active PFC

ATX Standard: ATX 3.1

80 PLUS Efficiency: 80Plus Gold

Cybenetics Efficiency: Gold (230V) ; Gold (115V)

Protection Features: OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials: ROHS

AC Input Range: 100-240Vac

DC Output Voltage: +3.3V +5V +12V -12V +5Vsb

Maximum Load: 20A 20A 62A 0.3A 2.5A

Combined Load: 110W 110W 744W 3.6W 12.5W

Total Output: 750W

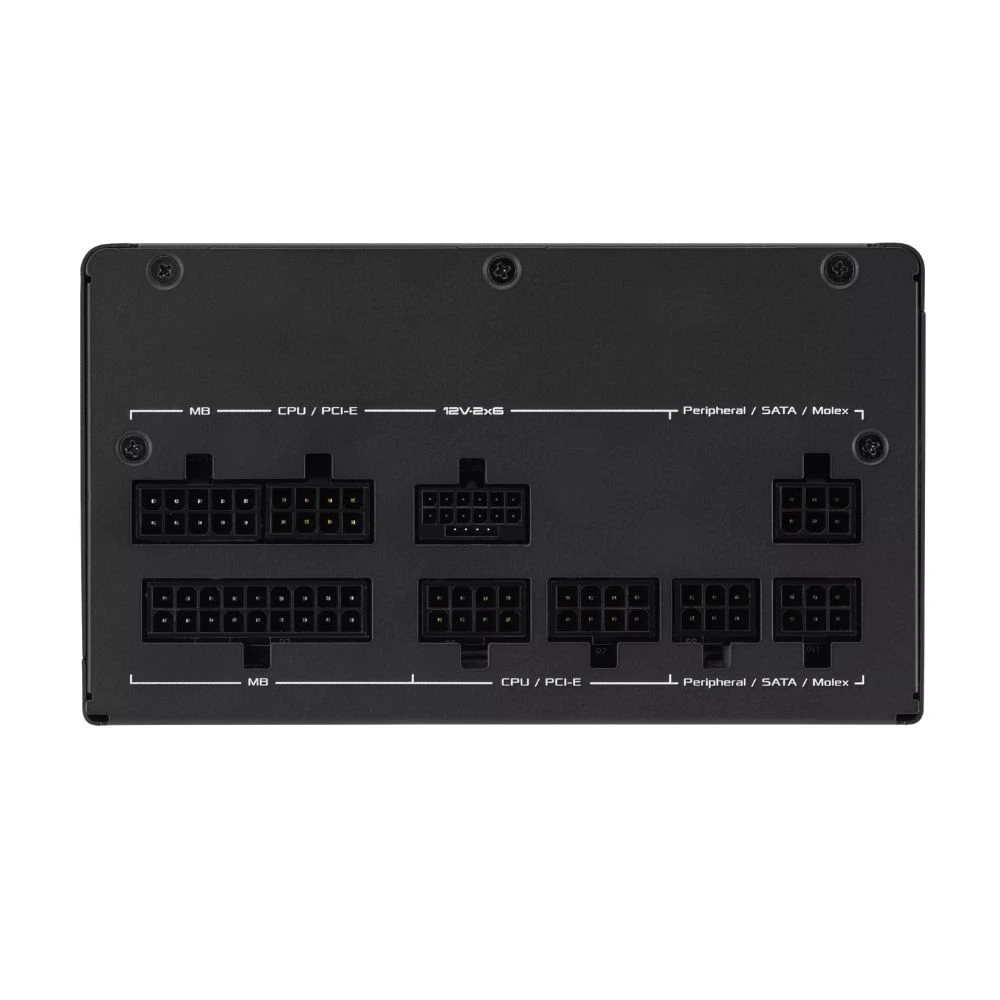

Cable Connectors:

– MB 20+4pin x 1

– CPU 4+4pin x 2

– PCI-E 16pin x1 (12V-2×6)

– PCI-E 6+2pin x 2

– SATA x 5

– PERIPHERAL x 4

Package Contents:

– Power Cord x 1

– Motherboard Power cable x 1 (600mm)

– CPU 1-to-2 Cable x 1 (650mm+150mm)

– PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (600mm)

– PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) x 1 (600+150mm)

– SATA 1-to-2 Cable x 1 (400+120mm)

– SATA 1-to-3 Cable x 1 (400+120+120mm)

– Peripheral 1-to-4 Cable x1 (400+150+150+150mm)

– User Manual x 1

Dimensions: 150 x 150 x 86 mm

Weight: 1.45 kg (single PSU)

Cybenetics Noise Level Certification: S++

AURA SYNC: No

MTBF: >120,000 hrs @ 25°C

0dB Fan Button: No, this product is without 0dB technology.
