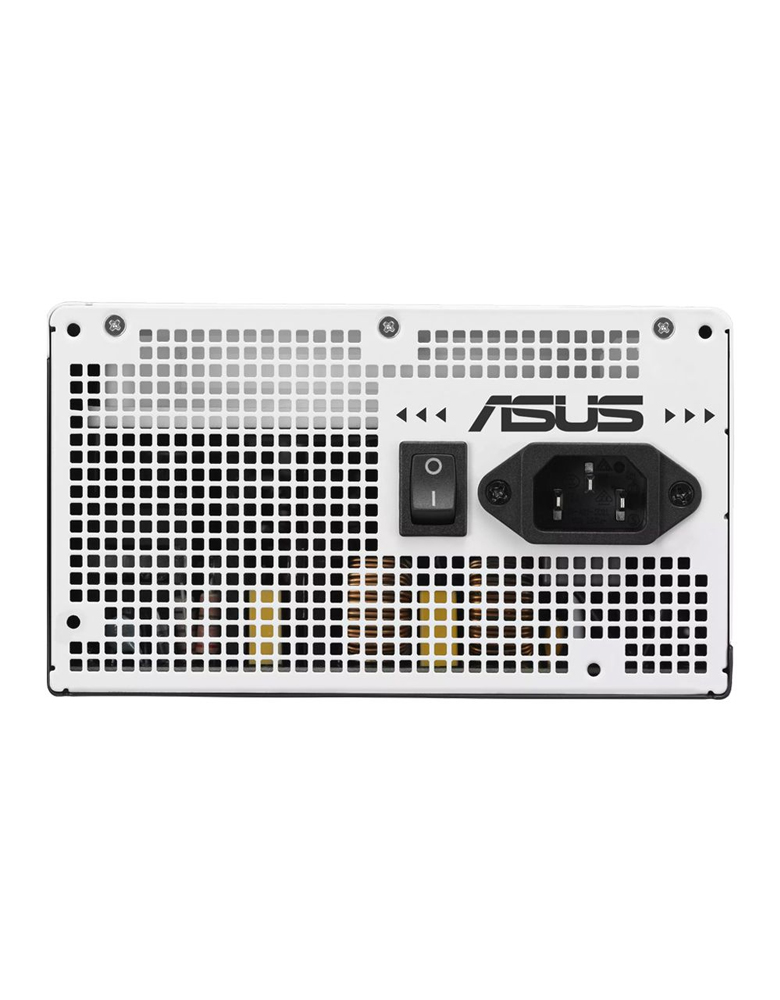

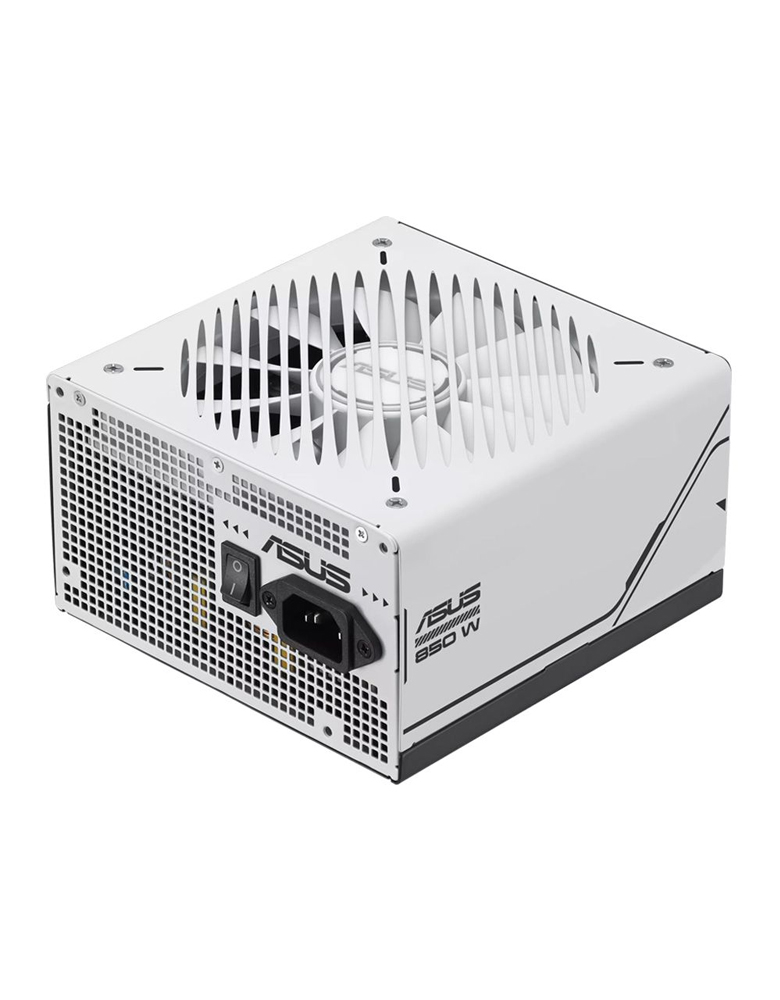

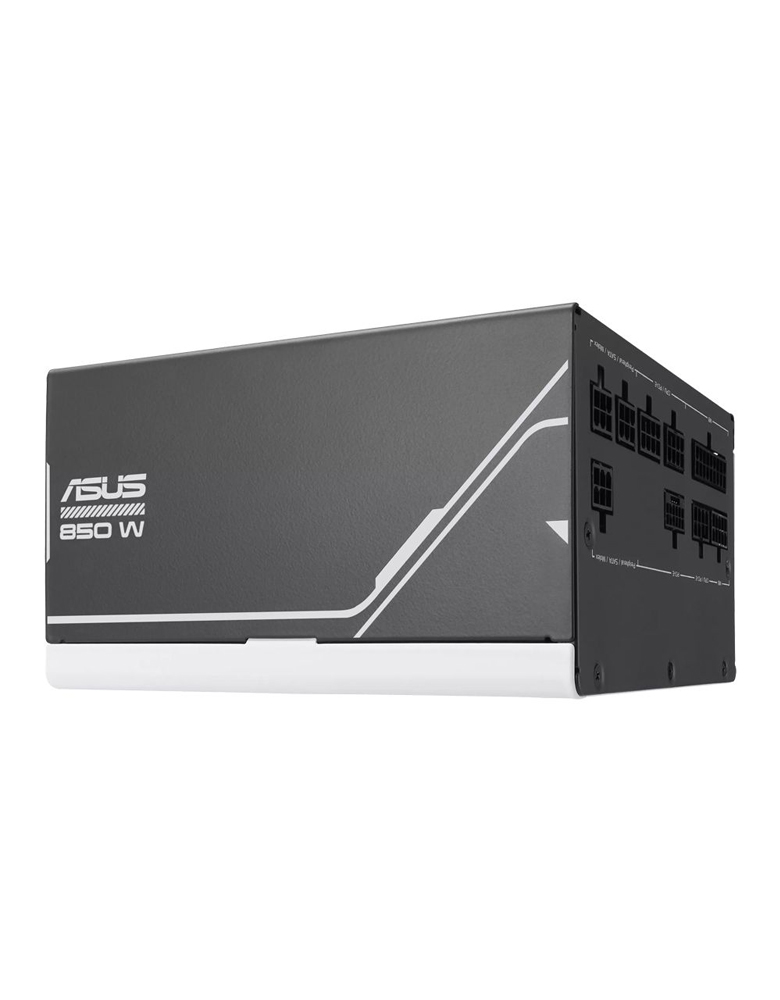

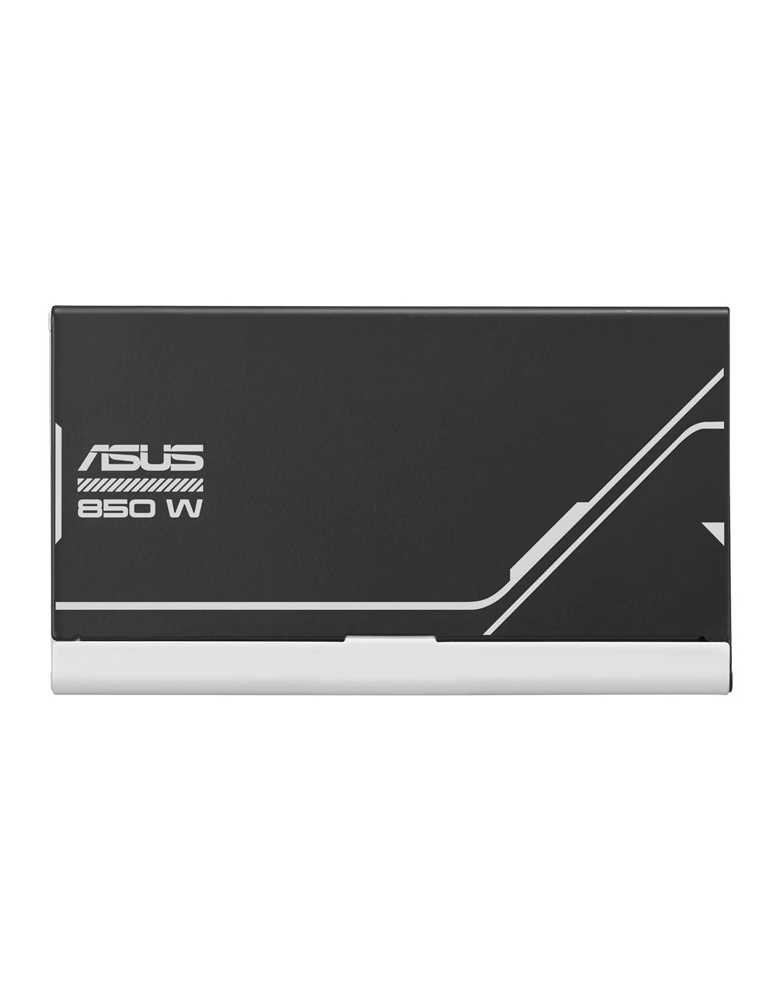

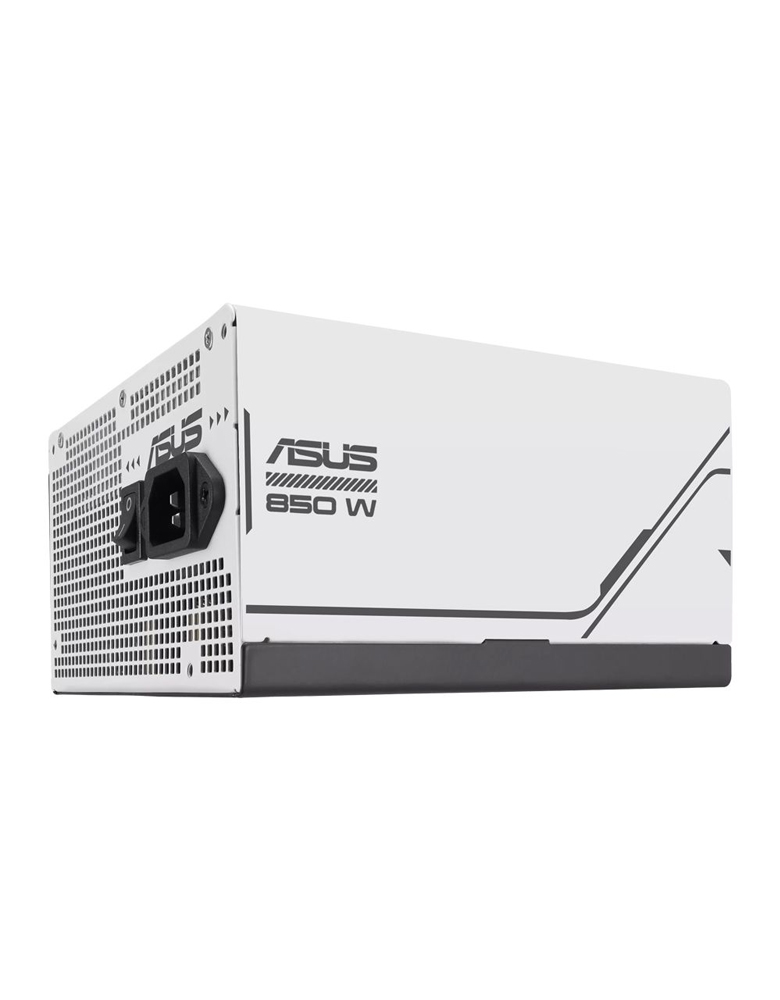

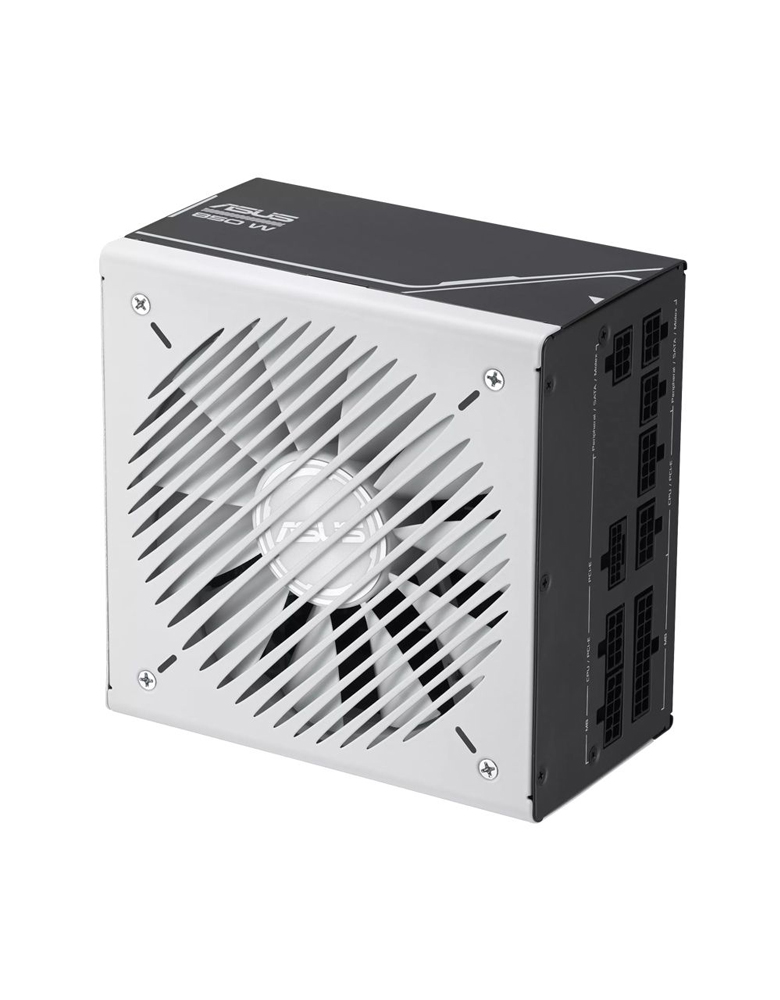

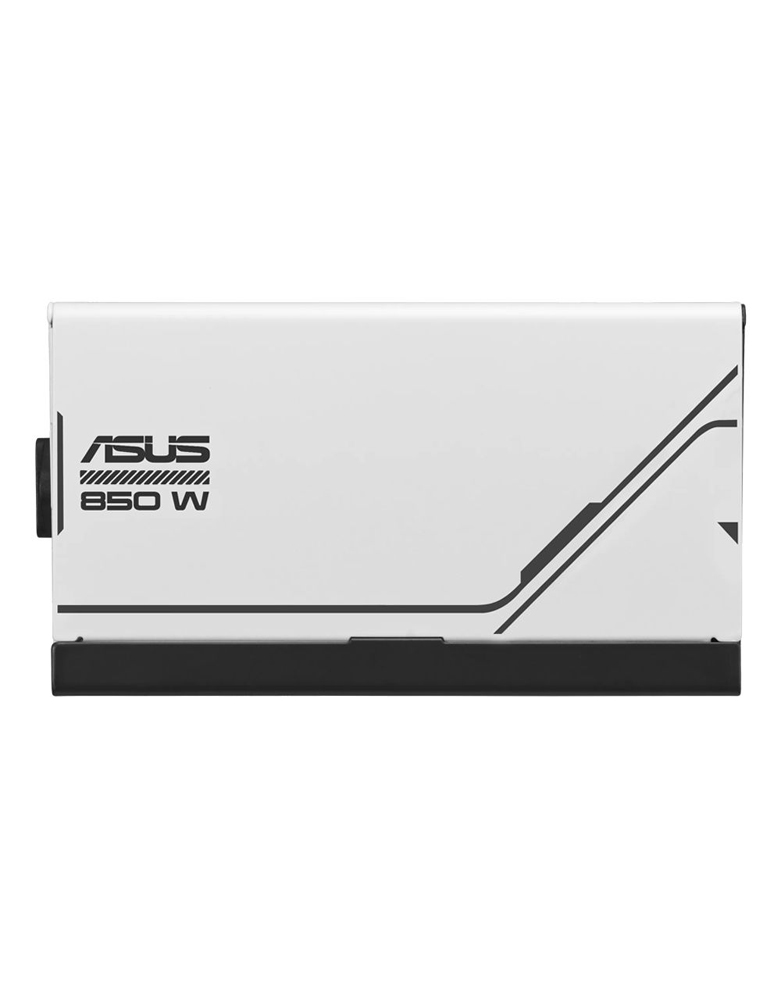

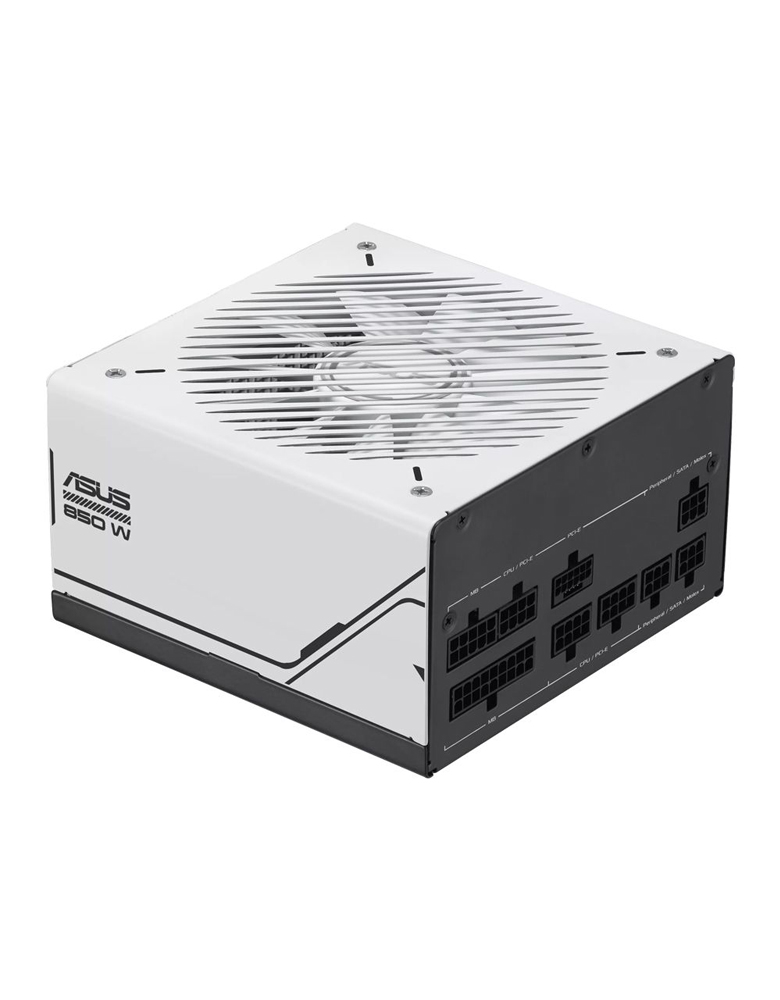

ASUS Prime 850W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs
Features
| Model | AP-850G |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.0 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 20A20A70.5A 0.3A 2.5A |
| Combined Load | 110W 110W 846W 3.6W 12.5W |
| Total Output | 850W |
| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & connector side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 3 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) User Manual x 1 |
| Weight | 1.502 kg (single PSU) |
| 0dB Technology | No |
| 0dB Fan Button | No, this product is without 0dB technology. |
