Specification
CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD B850 Chipset
Memory: 4 x DIMM slots, max. 256GB, DDR5; supports up to 8400+MT/s(OC) with Ryzen™ 9000 Series, 9000+MT/s(OC) with Ryzen™ 8000 Series, and 8000+MT/s(OC) with Ryzen™ 7000 Series Processors; supports ECC and Non-ECC Un-buffered DIMM, dual channel architecture, AMD EXPO™, and AEMP
Graphics: 1 x HDMI™ port (supports 4K@60Hz as specified in HDMI 2.1)
Expansion Slots:
Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (x16 mode)
Ryzen™ 8700 & 8600 & 8400 Series: 1 x PCIe 5.0 x16 slot (PCIe 4.0 x8 mode)
Ryzen™ 8500 & 8300 Series: 1 x PCIe 5.0 x16 slot (PCIe 4.0 x4 mode)
AMD B850 Chipset: 1 x PCIe 4.0 x16 slot (supports x4/x2 mode)
Storage: Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports (M.2_1, M.2_2, M.2_3, and M.2_4 slots with varying PCIe 4.0/5.0 lane configurations depending on the installed CPU)
RAID Support: AMD RAIDXpert2 Technology (RAID 0/1/5/10 for Ryzen™ 9000 & 8000 & 7000 Series Processors)
Ethernet: 1 x Realtek® 5Gb Ethernet with ASUS LANGuard
Wireless & Bluetooth: Wi-Fi 7 (MediaTek MT7925) 2×2 Wi-Fi 7 (802.11be) across 2.4/5/6GHz bands with 160MHz bandwidth; Bluetooth® v5.4 (support LE Audio)
USB:
Rear (12 ports): 4 x USB 10Gbps (2 x Type-A + 2 x USB Type-C®), 6 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A)
Front (11 ports): 1 x USB 20Gbps connector (USB Type-C®), 2 x USB 5Gbps headers (supports 4 additional ports), 3 x USB 2.0 headers (supports 6 additional ports)
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 with Savitech SV3H712 AMP, rear optical S/PDIF out, premium audio capacitors, and dedicated audio PCB layers

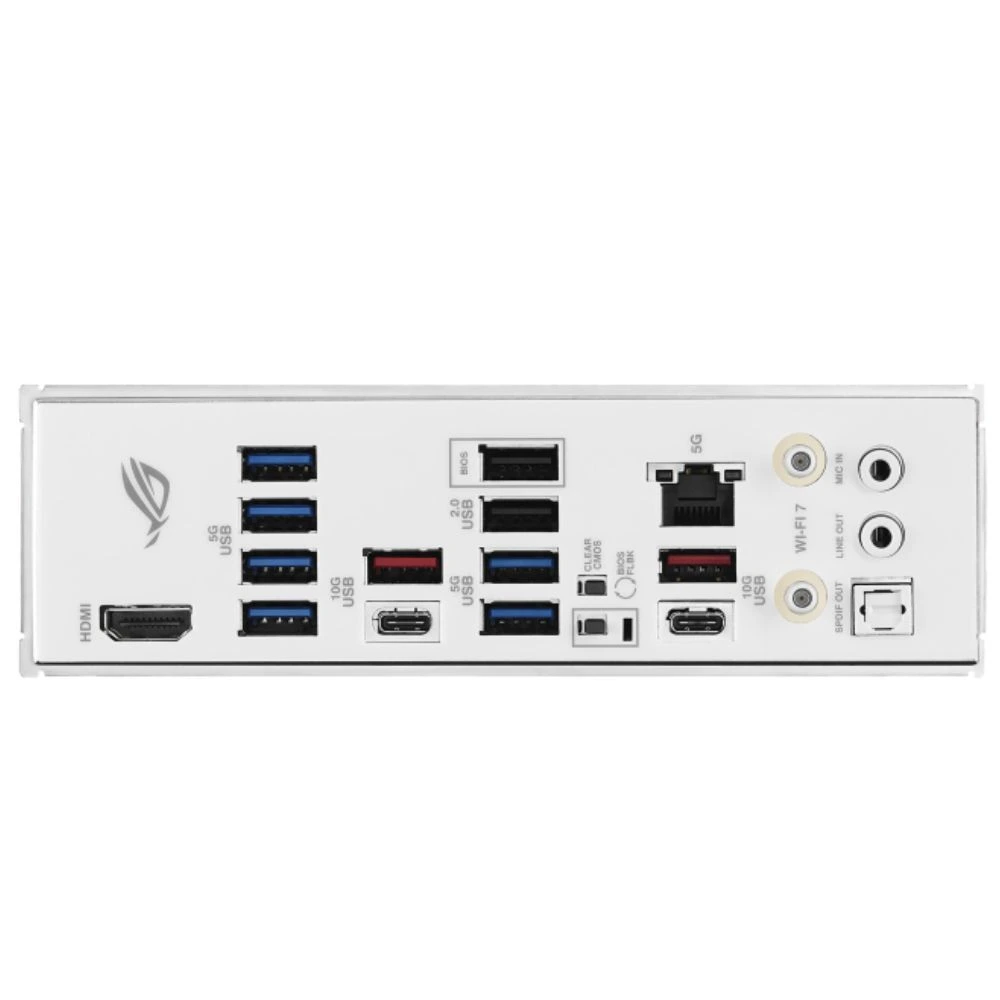

Back Panel I/O Ports: 4 x USB 10Gbps, 6 x USB 5Gbps, 2 x USB 2.0, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek® 5Gb Ethernet port, 2 x audio jacks, 1 x optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button
Internal I/O Connectors:
Fan/Cooling: 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan headers
Power: 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power connectors
Storage: 4 x M.2 slots (Key M), 2 x SATA 6Gb/s ports
USB: 1 x USB 20Gbps connector (Type-C®), 2 x USB 5Gbps headers, 3 x USB 2.0 headers
Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x CPU Over voltage jumper, 1 x Front Panel Audio header, 1 x Start button, 1 x Front Panel System header, 1 x Thunderbolt™ (USB4®) header
Special Features: Asynchronous Clock, Extreme Engine Digi+, ASUS Q-Design (M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot), ASUS Thermal Solution (M.2 heatsink backplate/heatsink, VRM heatsink design), ASUS EZ DIY, and Aura Sync RGB headers
Software Features: ROG Exclusive (ROG CPU-Z, Dolby Atmos), ASUS Exclusive (Armoury Crate, Aura Creator, Fan Xpert 4 with AI Cooling II, GameFirst, WiFi Q-Antenna, MLO Wizard, ASUS DriverHub, MB Manager, AI Advisor), UEFI BIOS (AI Overclocking Guide, AI Cache Boost, EZ Mode)
BIOS: 64MB (512Mb) Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE

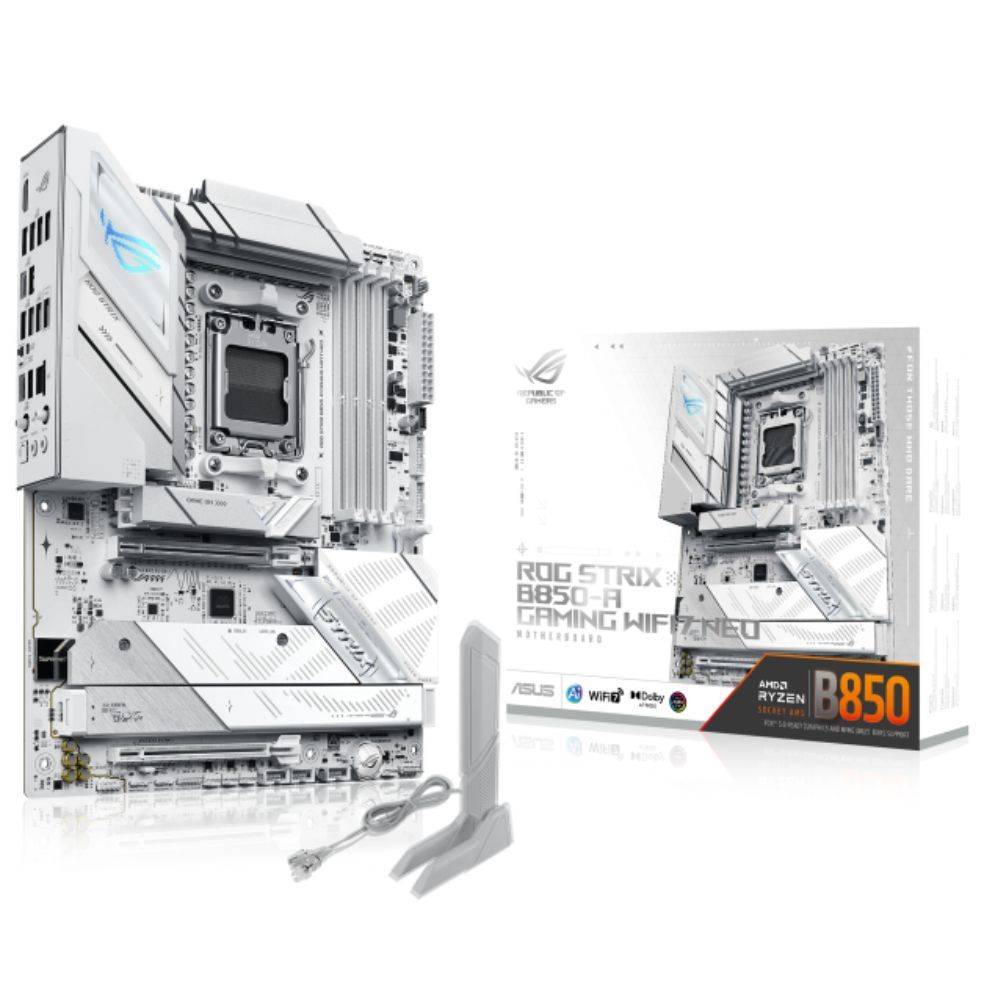

Accessories: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, M.2 Q-Latch package, M.2 Q-Slide package, 1 x ROG key chain, ROG Strix stickers, 4 x M.2 rubbers, 1 x quick start guide
Operating System: Windows 11 (22H2 & later)
Form Factor: ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
