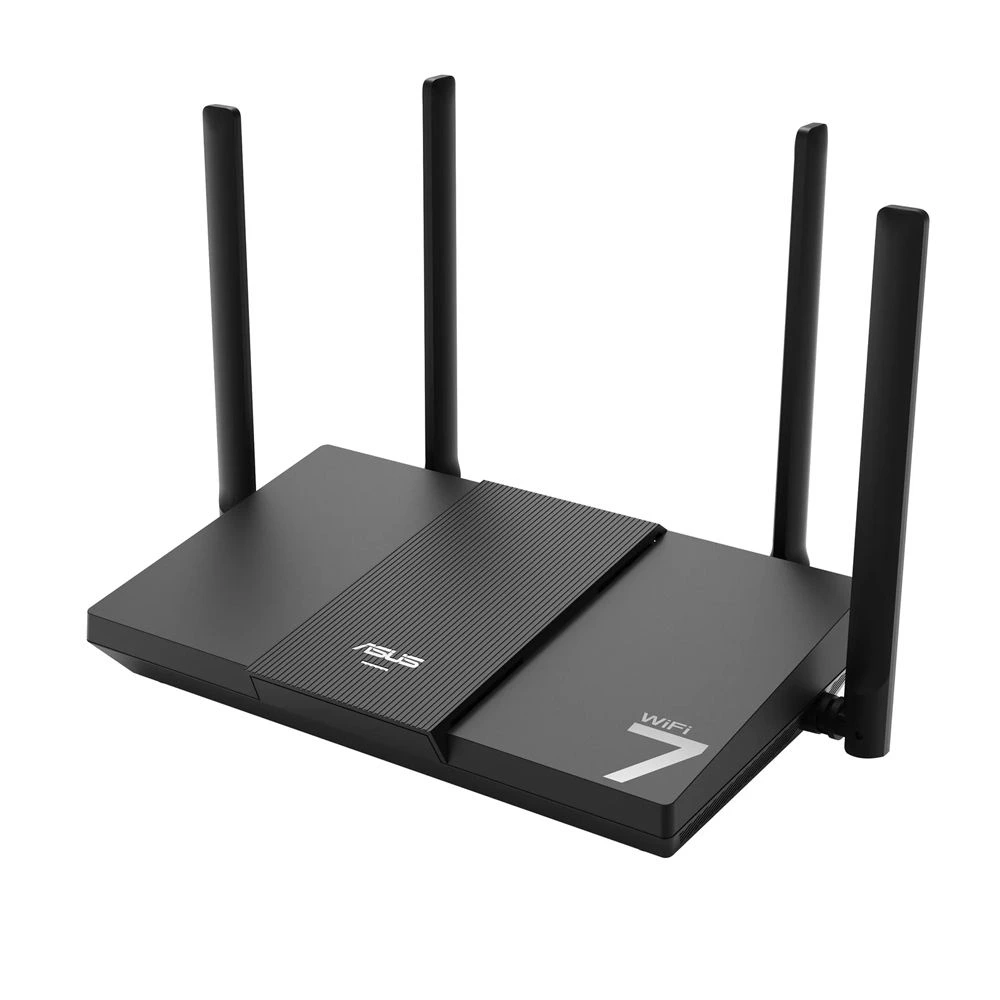

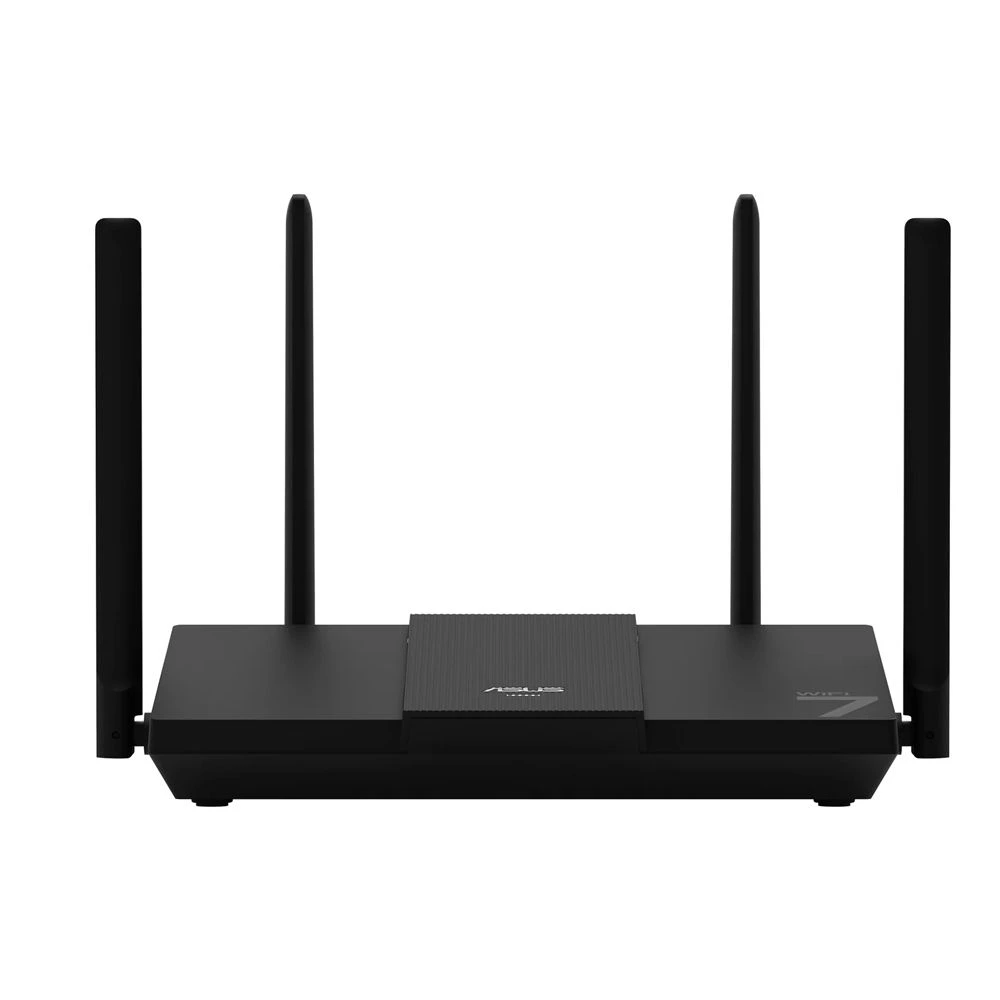

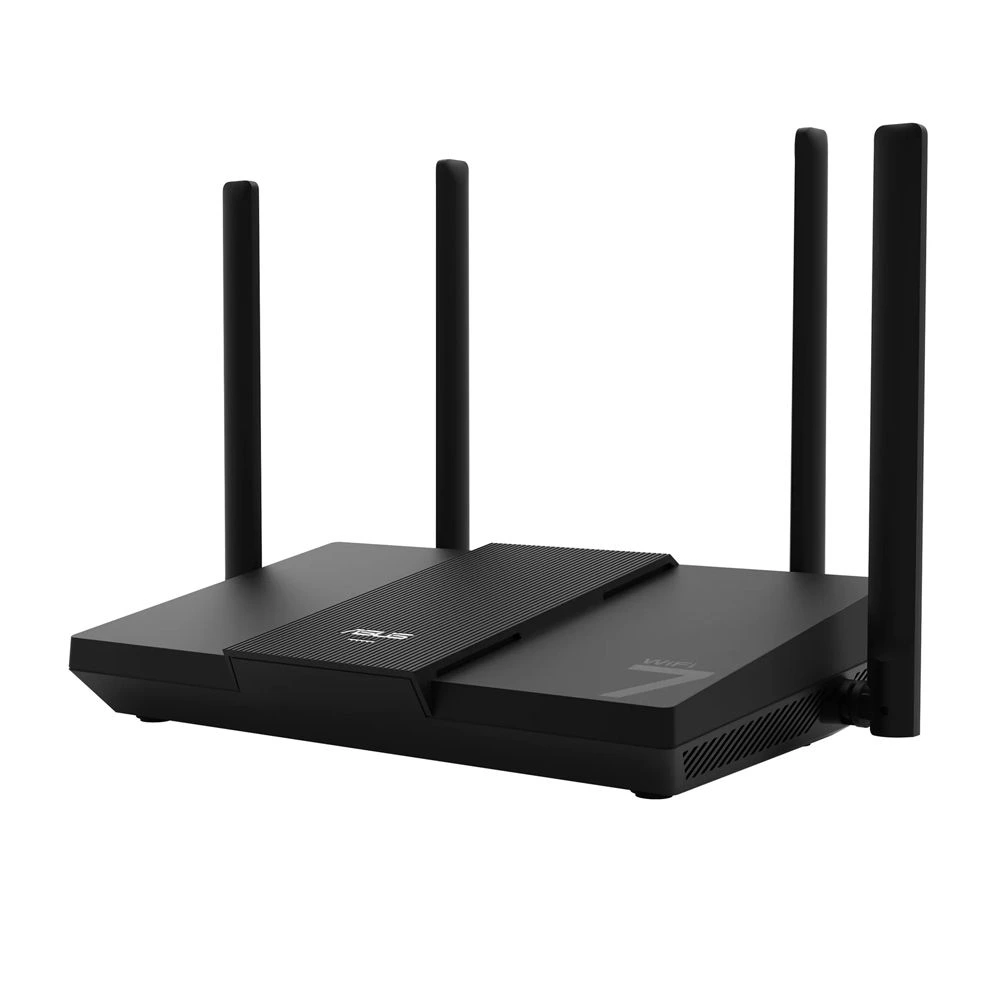

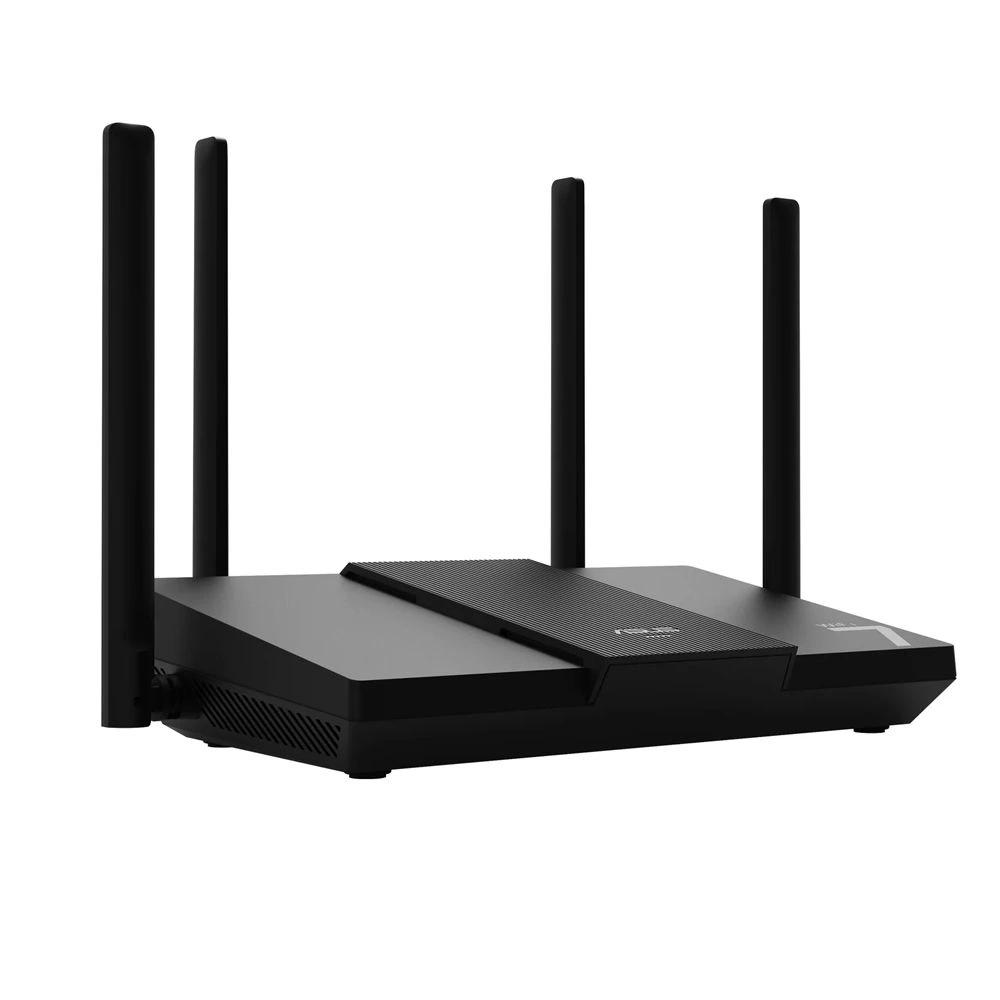

Asus RT-BE50 BE3600 Dual-band AI Mesh WiFi 7 Extendable Router

Specifications:

• Model: RT-BE50
• Network Standard
  IEEE 802.11a
  IEEE 802.11b
  IEEE 802.11g
  WiFi 4 (802.11n)
  WiFi 5 (802.11ac)
  WiFi 6 (802.11ax)
  WiFi 7 (802.11be)
  IPv4
  IPv6
• Product Segment: BE3600 ultimate BE performance : 688+2882 Mbps
• WiFi Data Rate
  802.11a : up to 54 Mbps
  802.11b : up to 11 Mbps
  802.11g : up to 54 Mbps
  WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
  WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
• Antenna: External antenna x 4
  Transmit / Receive: 2.4GHz 2×2 |5GHz 2×2
• Processor: Quad-core processor
• Memory: 128 MB Flash|256 MB RAM
• Boosts Speed
  OFDMA (Orthogonal Frequency Division Multiple Access)
  Beamforming: standard-based and universal
  4096-QAM high data rate
  20/40/80/160 MHz bandwidth
• Operating Frequency
  2.4GHz / 5GHz
  2.4 GHz
  5 GHz
• Operating Mode
  Wireless router mode
  Access point mode
  Media bridge mode
  Wireless Router Mode
  AiMesh Node Mode
  Range Extender Mode
  Access Point Mode
  Media Bridge Mode
  Repeater Mode

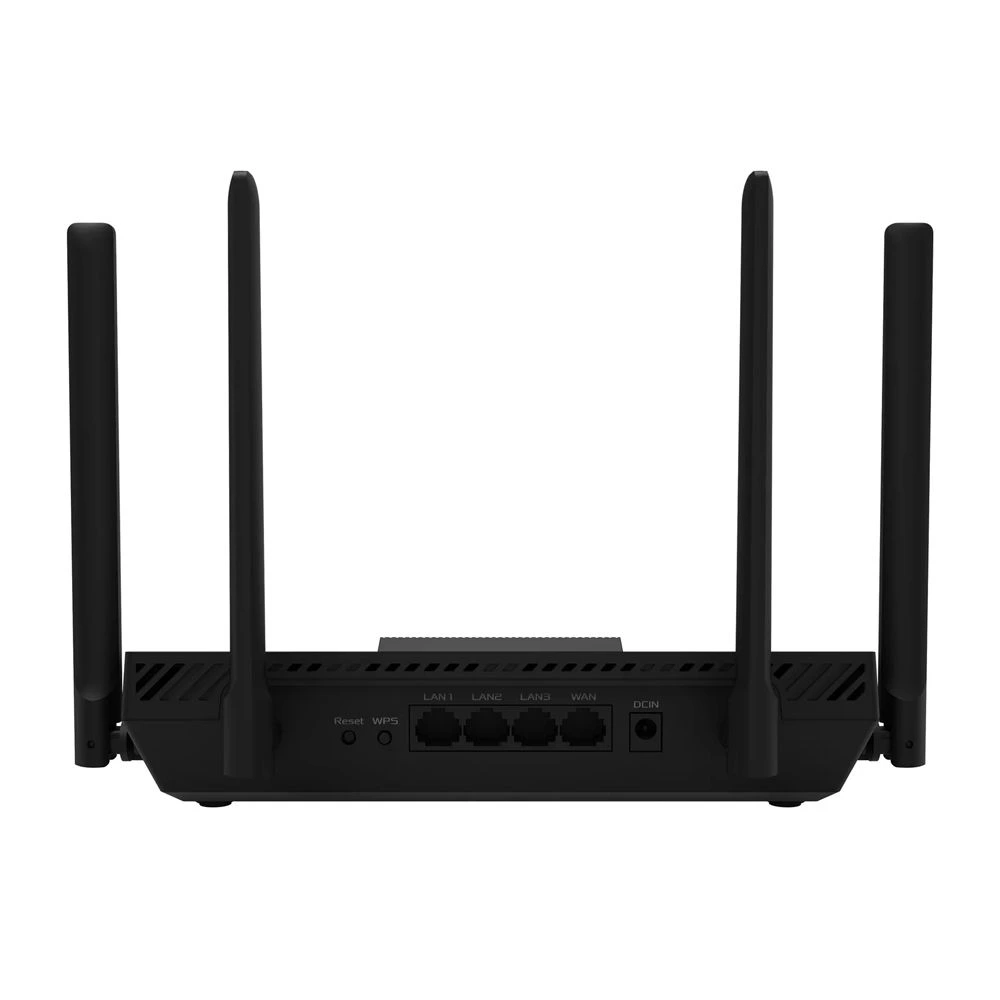

• I/O Ports
  1x 2.5G for WAN,
  3x 1G for LAN,
• Buttons
  WPS Button, Reset Button
  LED Indicator
  Power x 1
• Power Supply
  AC Input : 100V~240V (50~60Hz)
  DC Output : 12 V with max. 1.5 A current
  Package Content
  RT-BE50
  RJ-45 cable
  Power adapter
  Quick Start Guide
  Warranty card
  Product Weight (g)
  450g
• Product Dimensions
  261 x 156 x 50 mm

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control
Allow you to block access to unwanted websites and apps.
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule

Guest Network
The Guest Network provides Internet connection for guests but restricts access to your local network.
Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit

Security
VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control
• Bandwidth Monitor
• Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
Traditional QoS
— Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Website History

WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

User Interface
WEB: ASUSWRT
APP: ASUS Router APP

Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
