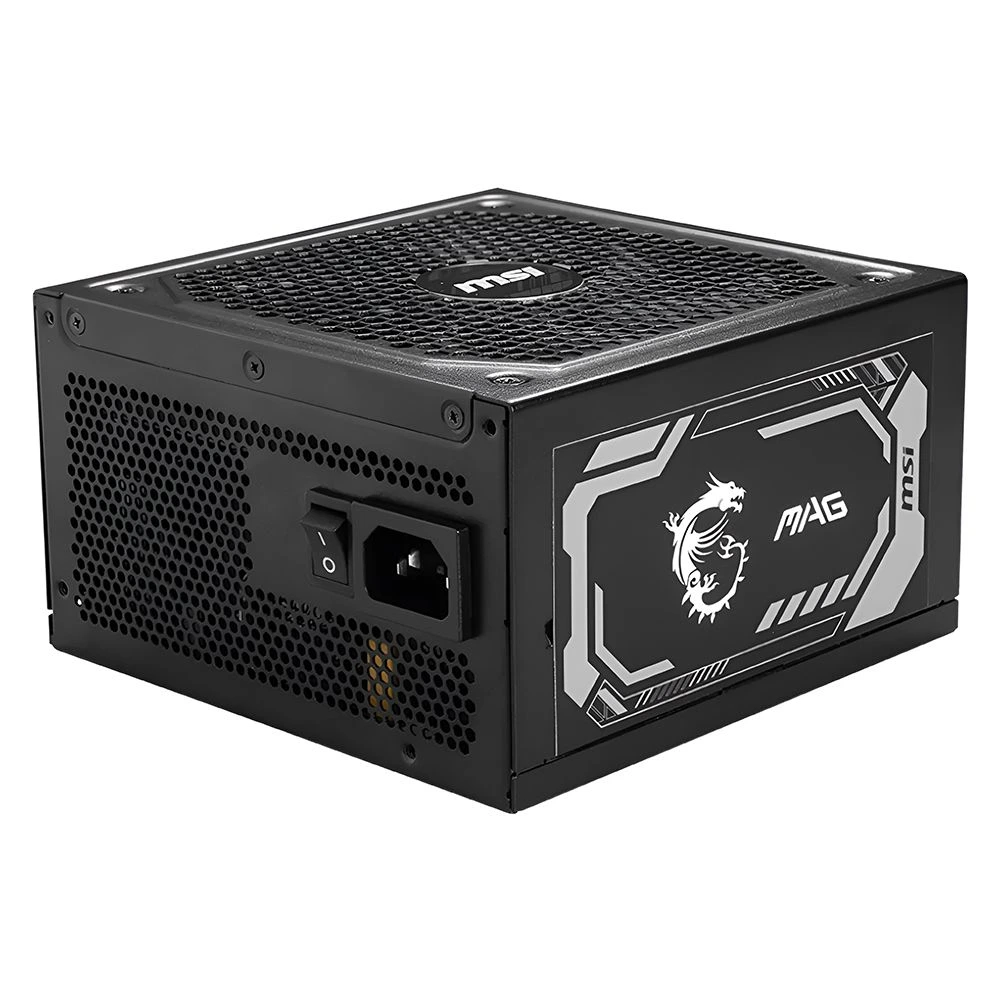

MSI MAG A1250GL PCIe5 1250W 80+ Gold Fully Modular Power Supply

MAG A1250GL PCIE5

• ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
• Supports NVIDIA® GeForce RTX™ 40 / 50 series graphics cards

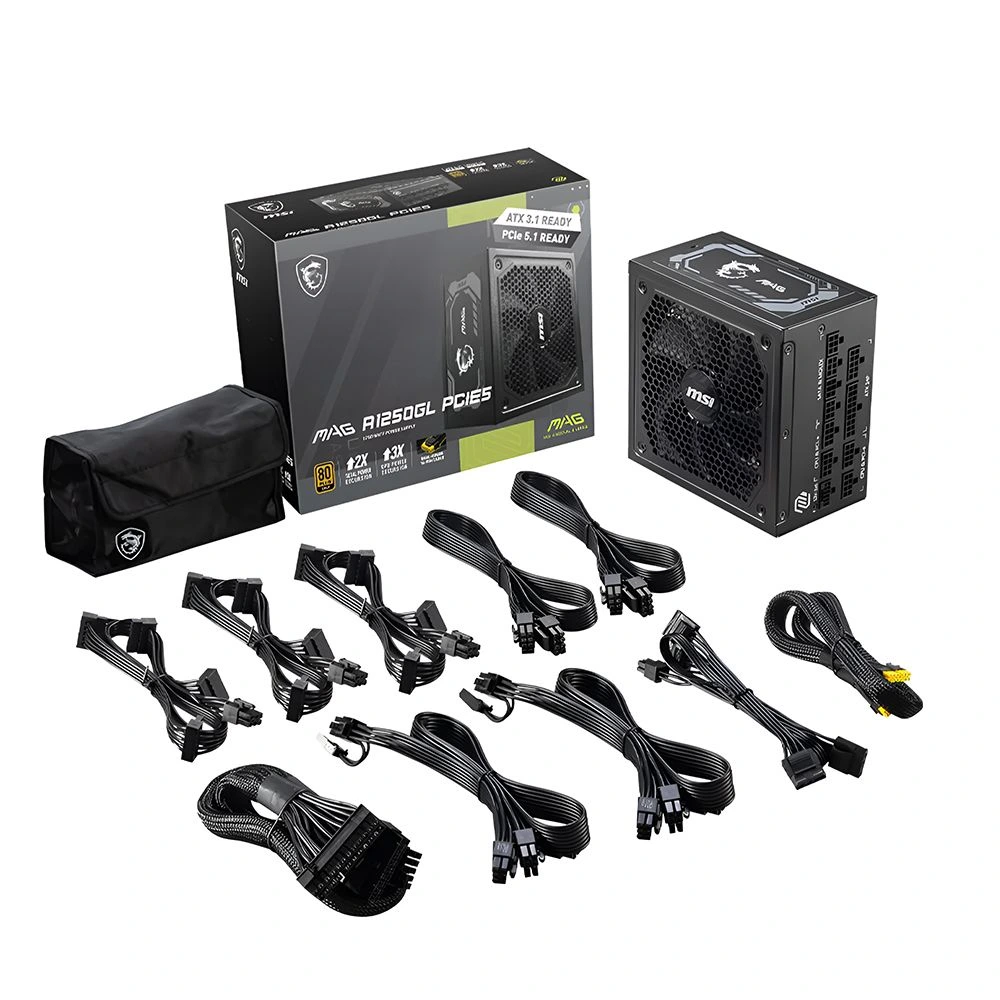

• Fully modular design, flat cables
• 80 PLUS Gold certified for high efficiency
• Active PFC design
• Protection with OVP / OCP / OPP / OTP / SCP / UVP

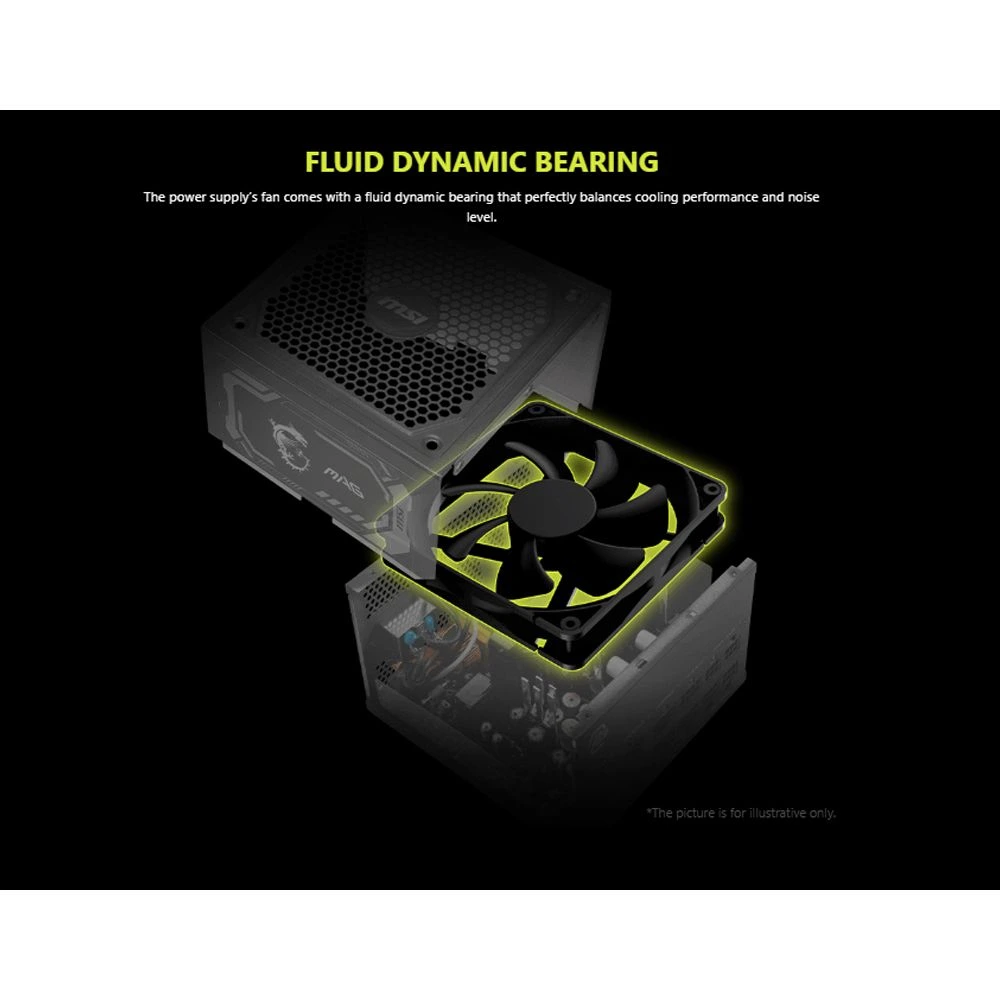

• 135 mm fluid dynamic bearing fan
• LLC half bridge topology with DC-to-DC module design

Specifications:

Efficiency Rating: 80 PLUS Gold (up to 90%)
Modular: Yes (fully modular)
Fan Size: 135 mm
Fan Bearing: Fluid Dynamic Bearing
Dimensions (DxWxH): 150 x 150 x 86 mm
PFC Type: Active PFC
Input Voltage Range: 100-240V~
Power Watt: 1250W
Power Excursion: 2500W (*up to 200% of the PSU’s rated power for 100μs)
Input Frequency Range: 50-60Hz

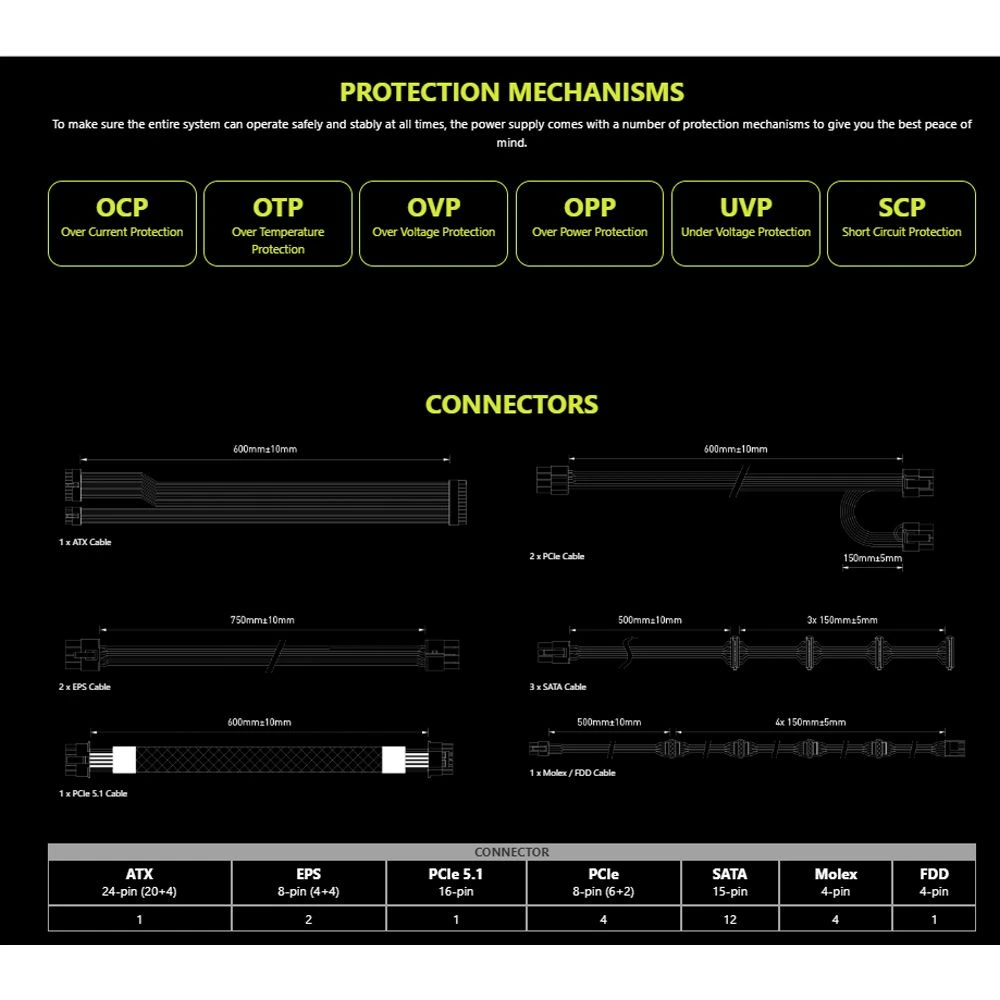

Protection: OCP / OVP / OPP / OTP / SCP / UVP

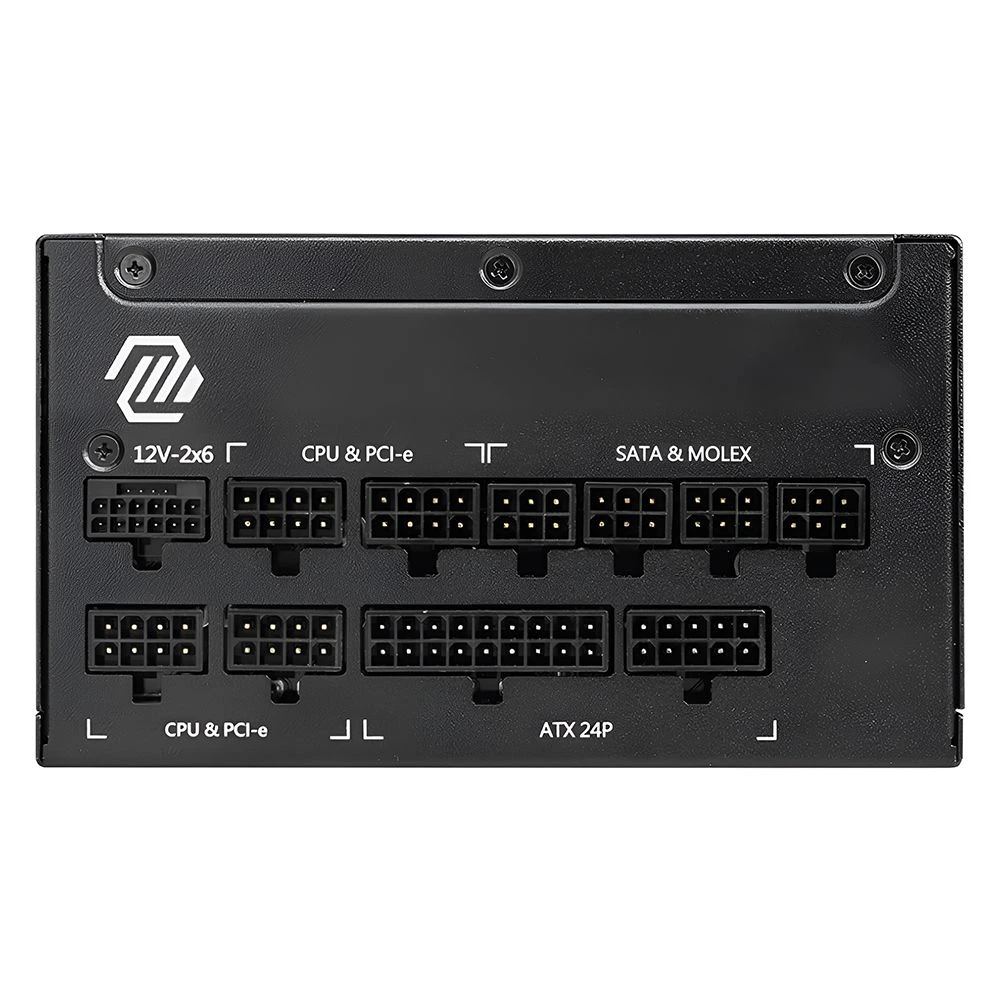

ATX (24 pin): 1
EPS (4+4 pin): 2
PCI-E 5.1 (16 pin): 1 (600W)
PCI-E (6+2 pin): 4
SATA (15 pin): 12
PERIPHERAL (4 pin: )4
FDD (4 pin): 1
