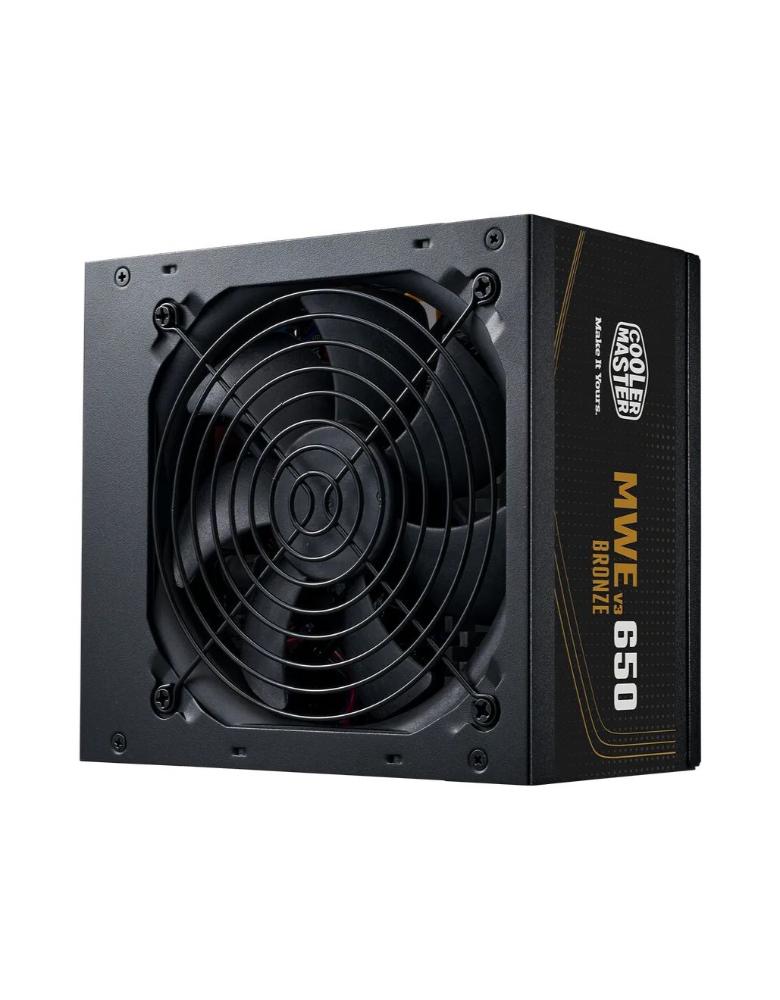

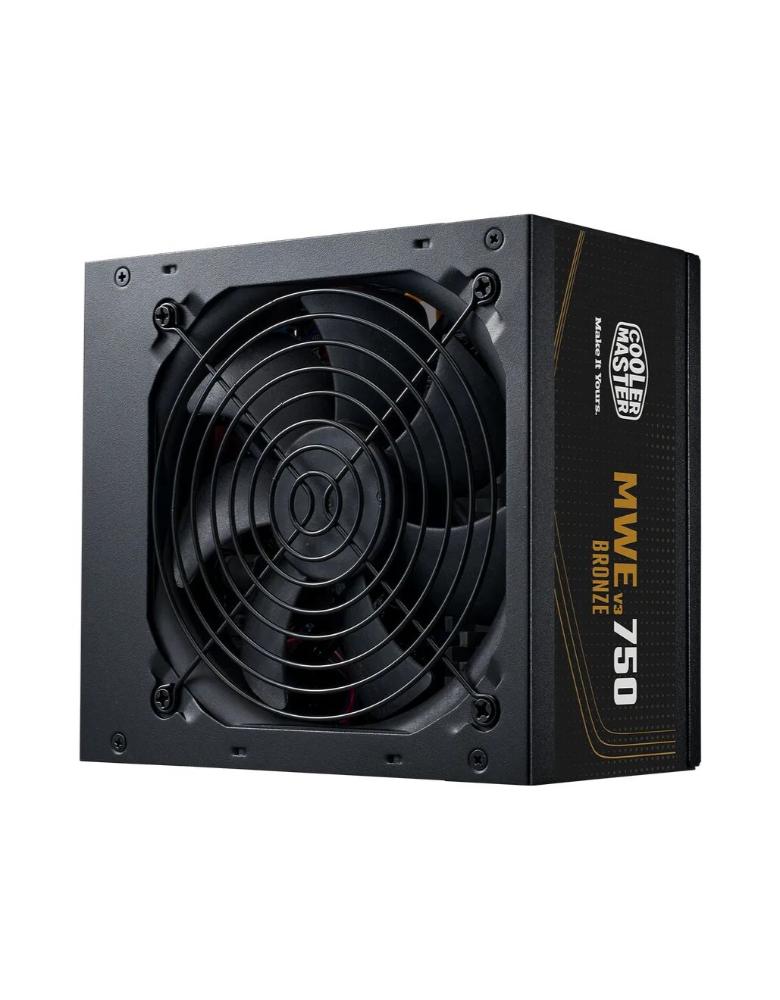

Cooler Master MWE Bronze V3 230V ATX 3.1 Non-Modular Power Supply (650, 750)

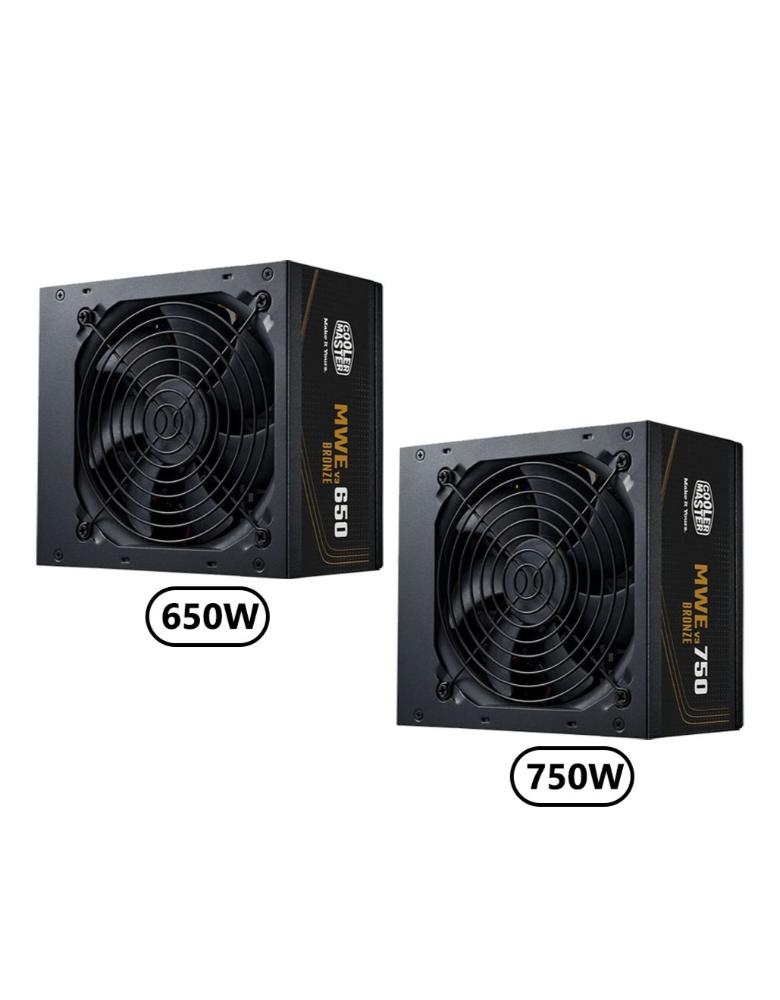

MWE Bronze 650, 750 V3 230V

• ATX 3.1 support
• High temperature resilience
• Quiet HDB fan
• 80 Plus Bronze certified efficiency
• Embossed cable

Specification

ATX Version:  ATX 12V Ver. 3.1
PFC:  Active PFC
Input Voltage:  200-240V
Input Current:  6A
Input Frequency:  50-60Hz
Dimensions (L x W x H):  140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
Fan Size:  120mm
Fan Bearing:  HDB
Efficiency:  >88% @ Typical Load
80 PLUS Rating:  80 PLUS Bronze EU 230V
ErP 2014 Lot 3:  Yes
Operating Temperature:  0-40°C
Power Good Signal:  100 – 150 ms
Hold Up Time:  >16ms
MTBF:  >100,000 Hours
Protections:  UVP / OVP / OPP / OTP / SCP
Regulatory:  TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.)
ATX 24 Pin Connectors:  1
EPS 8 Pin / 4+4 Pin Connectors:  2
SATA Connectors:  6
Peripheral 4 Pin Connectors:  3
PCI-e 6+2 Pin Connectors:  4
Series:  MWE Bronze Series
Category:  500 to 750W
Modular:  Non Modular
80 Plus Efficiency:  Bronze
Form Factor:  ATX
Watts:  650W, 750W
