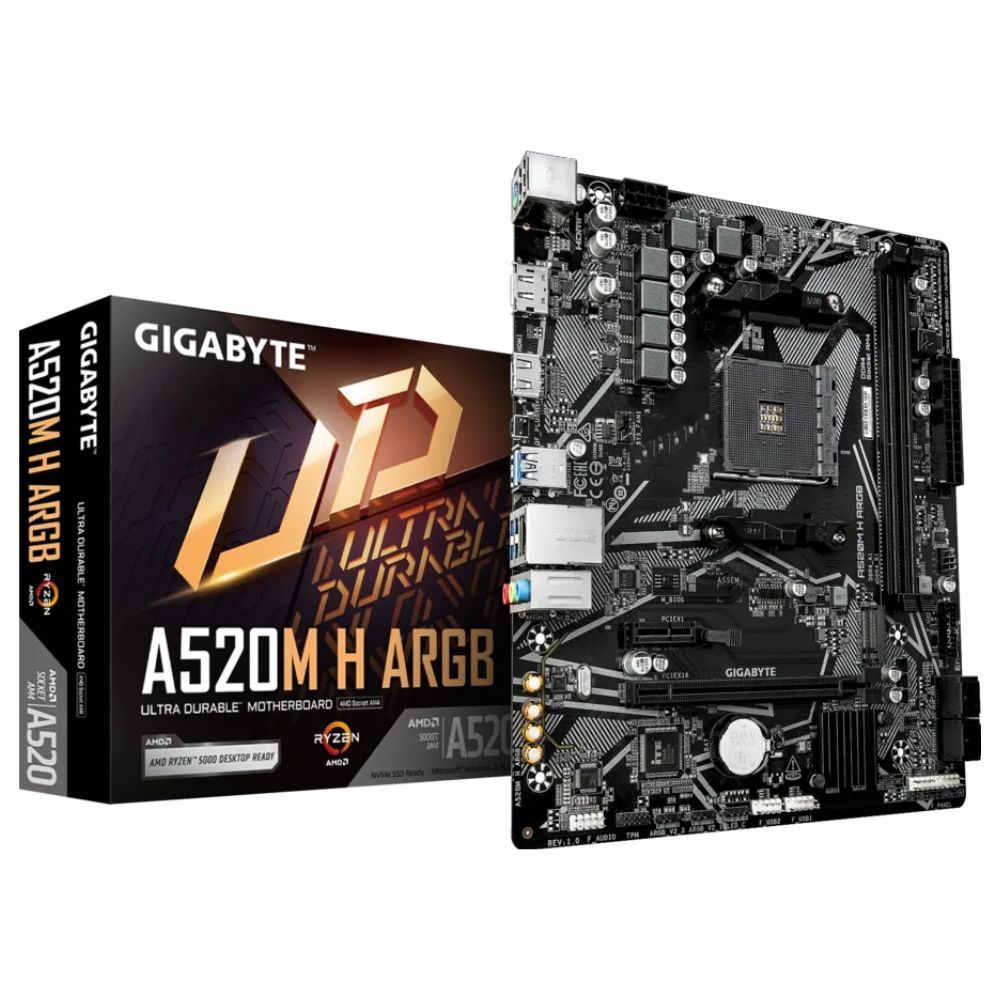

Gigabyte AMD A520M H ARGB Ultra Durable AM4 DDR4 M-ATX Gaming Motherboard (Rev. 1.0)

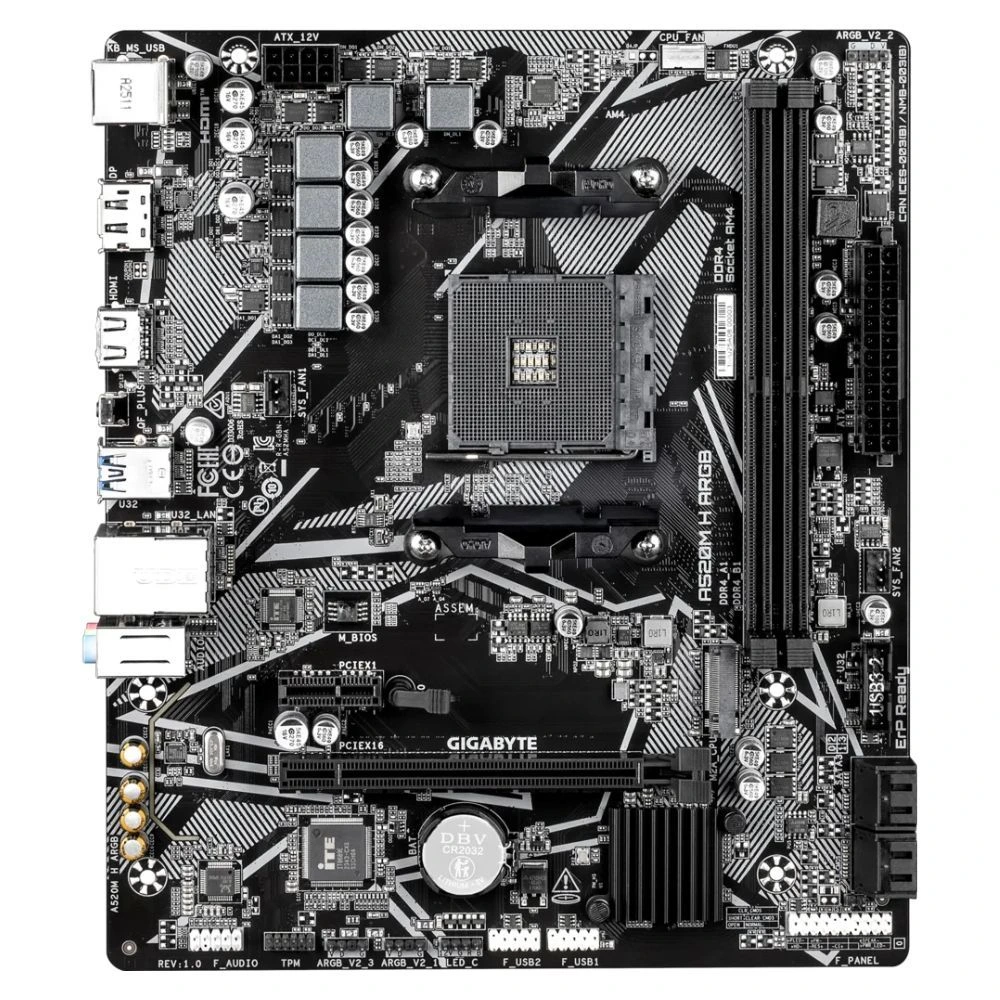

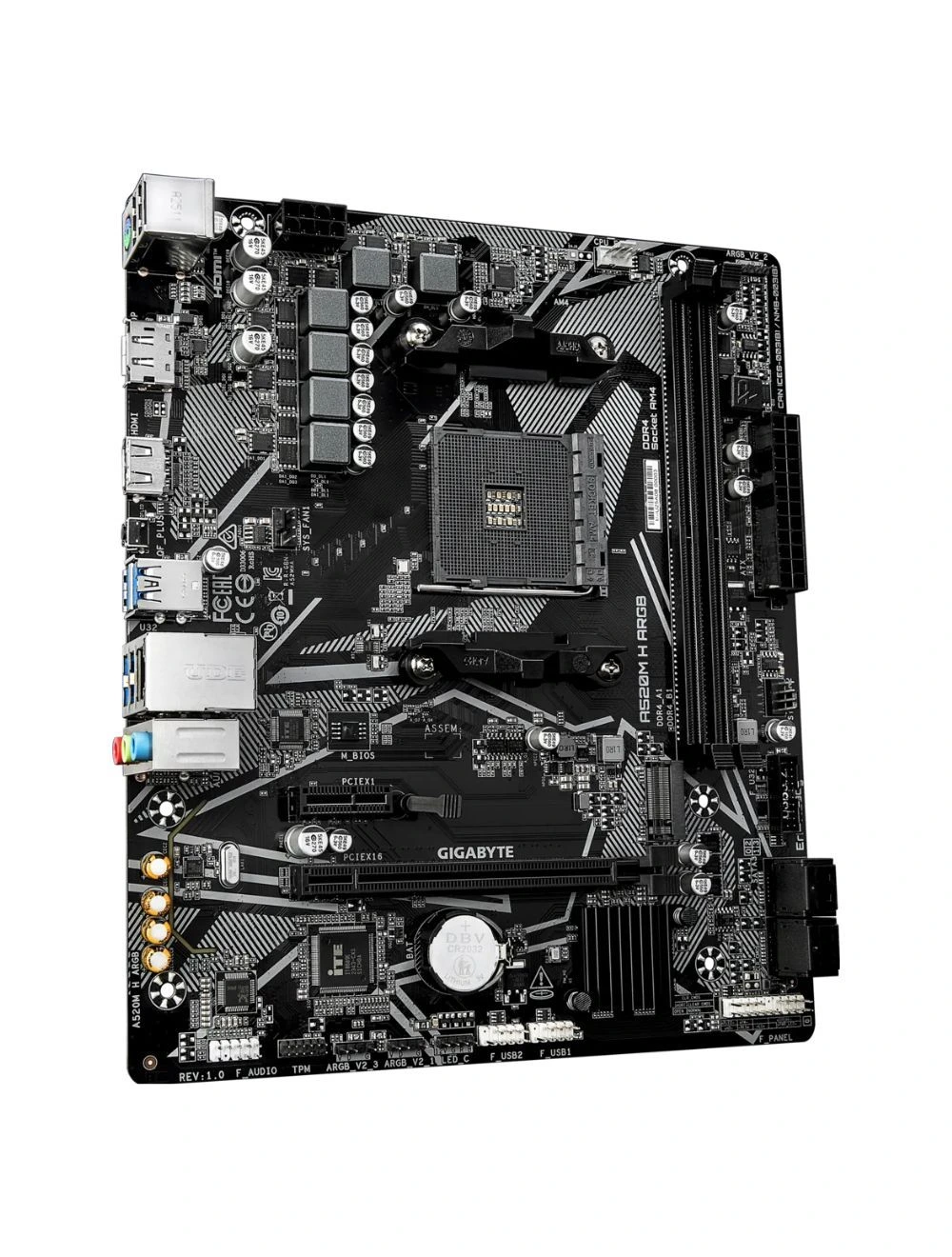

The A520M H ARGB (Rev. 1.0) is a Micro-ATX motherboard powered by the AMD A520 Chipset, designed to support AMD Socket AM4 processors. It provides a reliable and stable foundation for everyday computing, office work, and budget-conscious gaming or content creation builds, featuring robust support for high-speed DDR4 memory, PCIe 3.0 storage, and addressable lighting headers.

Key Features
– AMD Socket AM4 Support: Compatible with AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series Processors.
– Lighting & Customization: Includes 3 addressable RGB Gen2 LED strip headers and 1 standard RGB LED strip header for comprehensive lighting sync via GIGABYTE Control Center (GCC).
– Q-Flash Plus: Update the BIOS easily without needing to install a CPU, memory, or graphics card.
– Smart Backup: Integrated utilities to manage and backup storage efficiently.

Detailed Specifications
CPU Support: AMD Socket AM4 (Ryzen™ 5000/4000/3000 Series & G-Series)
Chipset: AMD A520
Memory (RAM): 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
Supports speeds up to 5100(O.C.) / 3200 (native) MHz, Dual Channel architecture, and XMP modules

Onboard Graphics
Integrated Graphics Processor (dependent on CPU):
– 1 x DisplayPort (max resolution 5120×2880 @ 60 Hz)
– 1 x HDMI port (max resolution 4096×2160 @ 60 Hz)

Audio: Realtek® Audio CODEC, High Definition Audio (supports up to 7.1-channel audio)
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots
– 1 x PCI Express x16 slot (PCIe 3.0 @ x16, from CPU)
– 1 x PCI Express x1 slot (PCIe 3.0 @ x1, from Chipset)

Storage Interface
-1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
– 4 x SATA 6Gb/s connectors
– Supports RAID 0, RAID 1, and RAID 10 for NVMe and SATA storage

USB Ports
– CPU: 4 x USB 3.2 Gen 1 ports on the back panel
– Chipset: 2 x USB 3.2 Gen 1 ports (internal header), 6 x USB 2.0/1.1 ports (2 on back panel, 4 via internal headers)

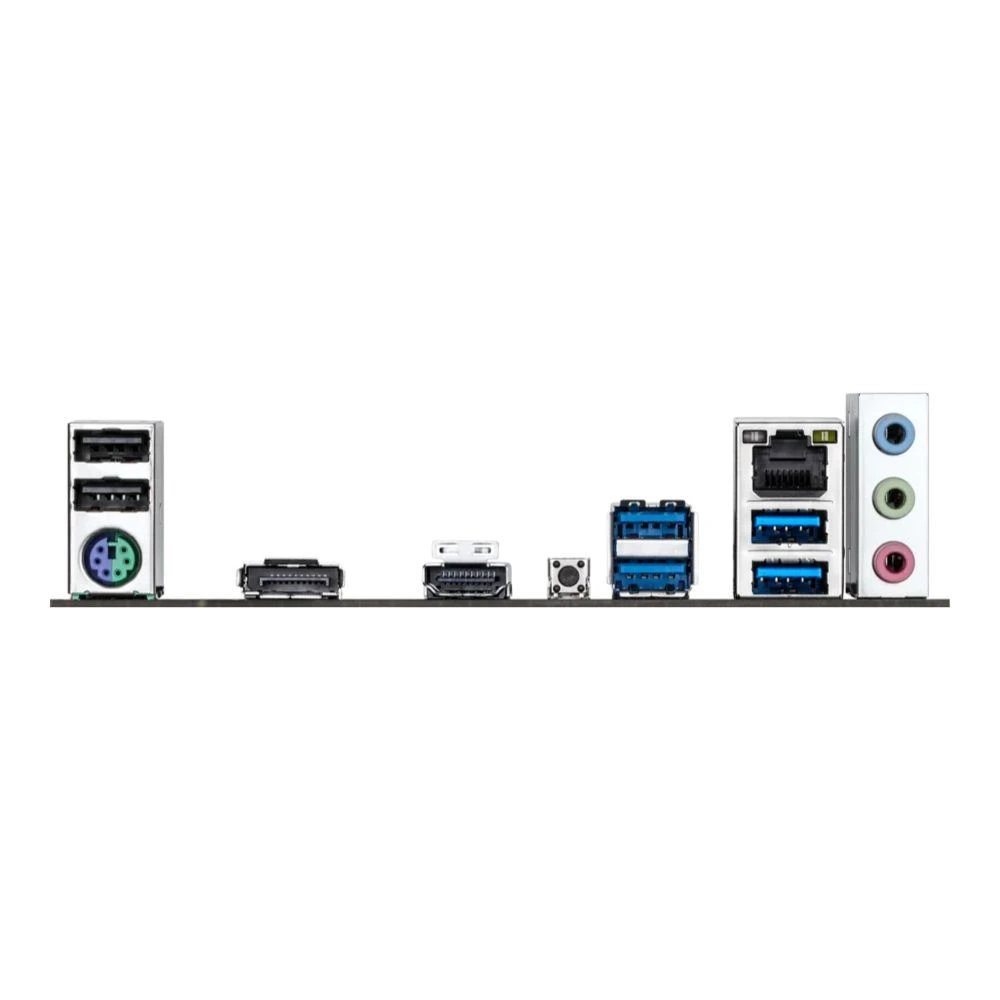

Back Panel Connectors
2 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse, 1 x DisplayPort, 1 x HDMI, 1 x Q-Flash Plus button, 4 x USB 3.2 Gen 1, 1 x RJ-45 LAN, 3 x audio jacks

Internal I/O Connectors
24-pin ATX power, 8-pin ATX 12V power, CPU/system fan headers, 3 x ARGB Gen2 headers, 1 x RGB header, M.2 socket, 4 x SATA ports, front panel/audio headers, USB headers, TPM header, Clear CMOS jumper

Operating System: Support for Windows 11 64-bit and Windows 10 64-bit
Form Factor: Micro ATX Form Factor (23.3cm x 19.8cm)
