Key Features
– PCIe Gen5 Performance: Features a PCIe 5.0 x16 slot with an armored PCIe UD Slot design for enhanced graphic card support and durability.
– Hybrid 6+2+1 Phases VRM Solution: Delivers clean and efficient power delivery to support multi-core Intel processors.
– Dual Channel DDR5 Support: 4 DIMM slots supporting up to 256GB of system memory with Extreme Memory Profile (XMP) capability.
– Next-Generation Storage: Equipped with dual PCIe 4.0 x4 M.2 connectors for high-speed NVMe SSD performance.
– Fast Networking: Includes a Realtek 2.5GbE LAN chip for high-speed, low-latency wired networking.
– Smart Fan 6: Features multiple temperature sensors and hybrid fan headers with FAN STOP technology for customized and quiet cooling.
– Q-Flash Plus: Allows you to update the BIOS easily without needing to install a CPU, memory, or graphics card.
– DIY-Friendly Design: Includes the PCIe EZ-Latch mechanism for quick release and hassle-free graphics card removal.
Specifications
CPU Socket: LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors (L3 cache varies with CPU)
Chipset: Intel B760 Express Chipset
Memory: 4 x DDR5 DIMM sockets supporting up to 256 GB; supports speeds up to 5600/5200/4800/4400 MT/s (depending on CPU tier) and XMP modules
Onboard Graphics: Integrated Graphics Processor:
– 1 x D-Sub port (max resolution 1920×1200@60Hz)
– 1 x HDMI port (supporting HDMI 2.1, max 4096×2160@60Hz)
– 2 x DisplayPorts (supporting DisplayPort 1.2, max 4096×2304@60Hz)
Expansion Slots
– CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 at x16 (supports graphics cards or NVMe SSDs)
– Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 at x1
Storage Interface
– CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
– Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors (supports RAID 0, 1, 5, and 10)

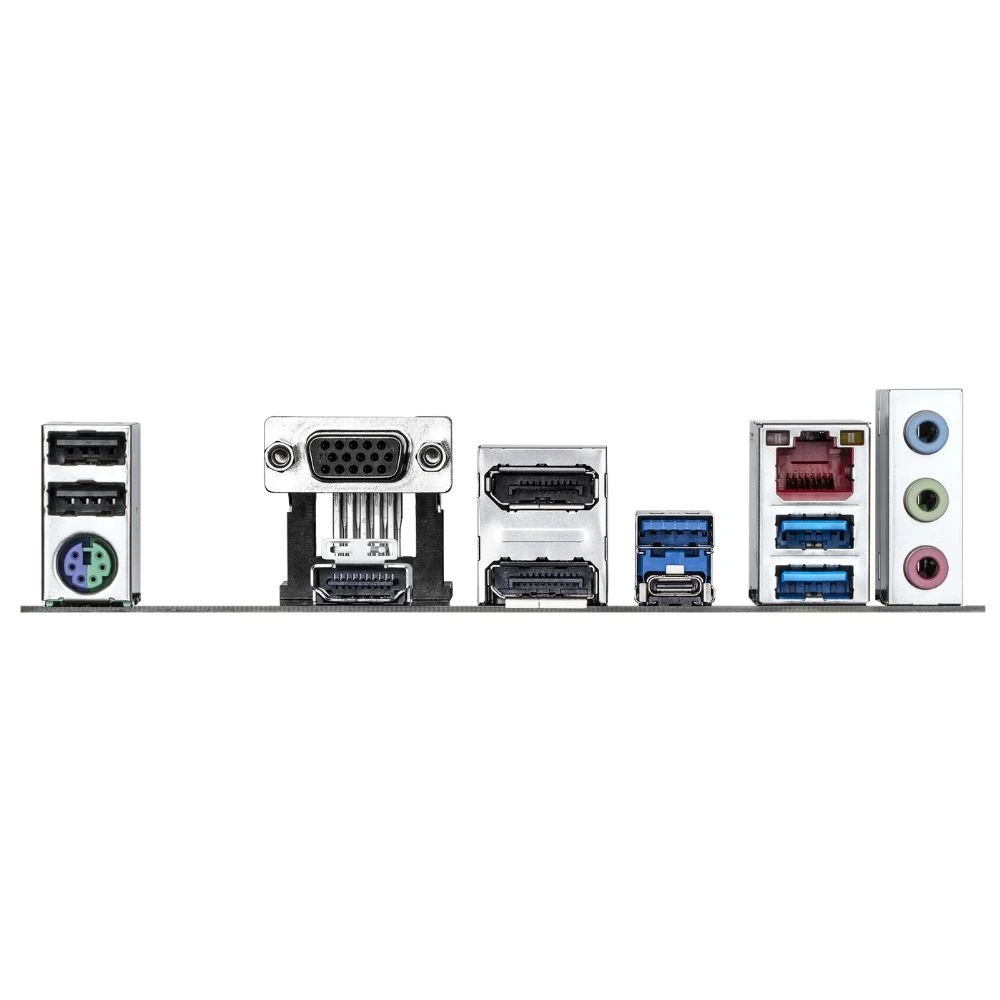

USB Ports
– Back Panel: 1 x USB Type-C (USB 3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
– Internal: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers
Audio: Realtek Audio CODEC supporting High Definition Audio (2/4/5.1/7.1-channel) and S/PDIF Out
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Operating System: Support for Windows 11 64-bit and Windows 10 64-bit
Form Factor: Micro ATX Form Factor (24.4cm x 24.4cm)
