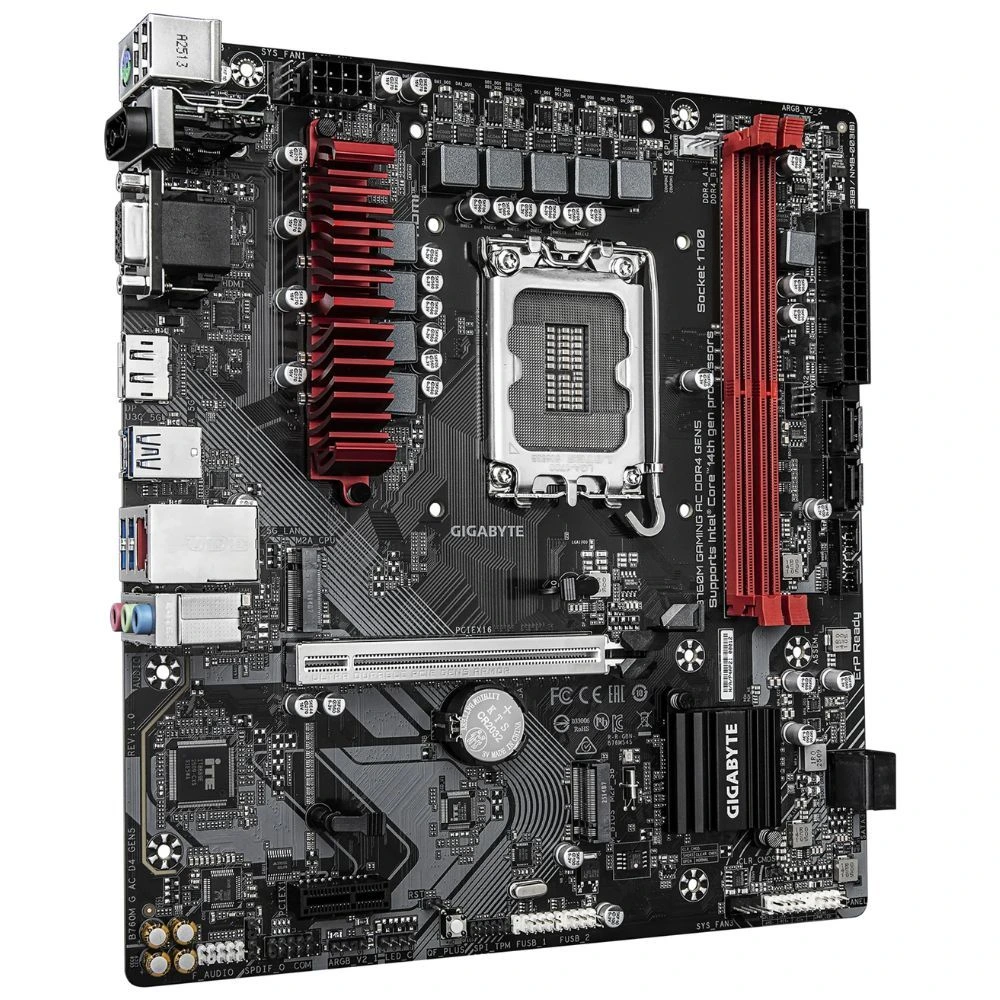

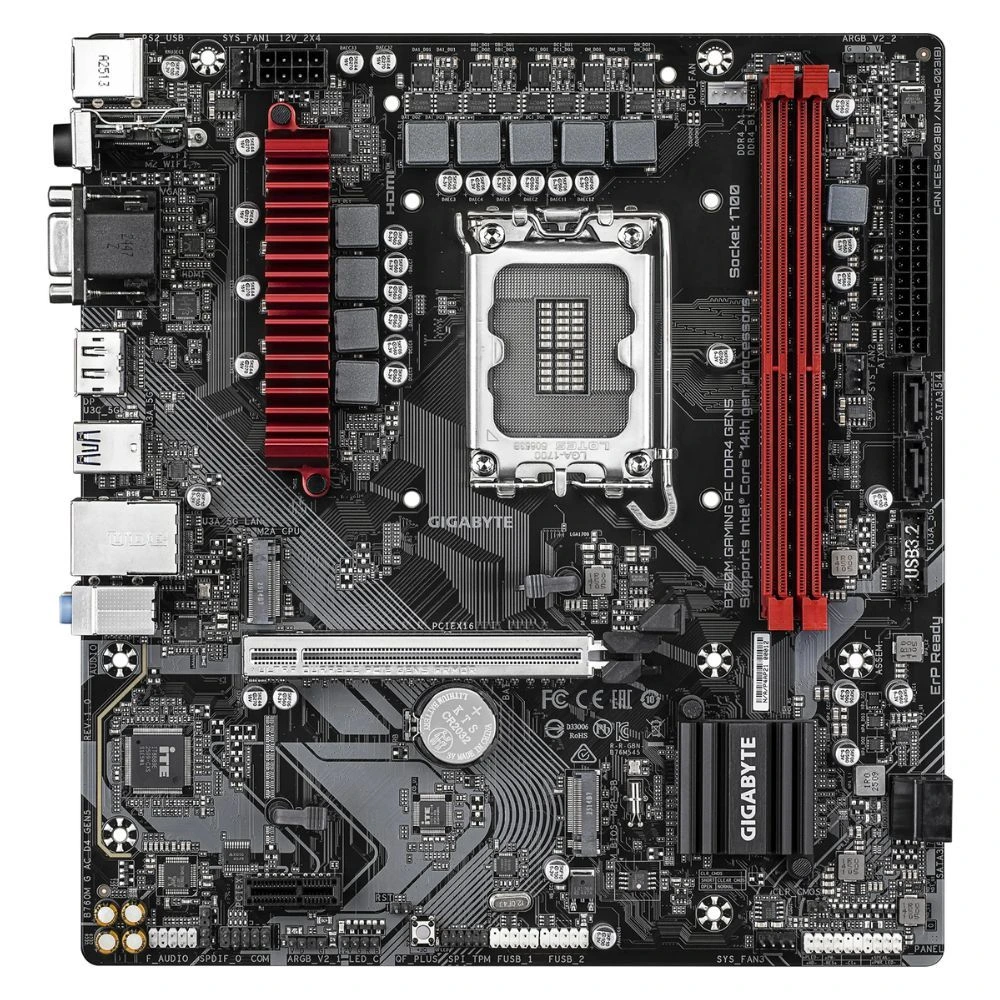

Key Features
CPU & Socket Support: LGA1700 socket compatible with 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors.
Memory Performance: Dual-channel DDR4 architecture across 2 DIMM sockets supporting up to 64 GB of system memory, with overclocking support reaching up to DDR4 5333(O.C.).
Graphics & Display: Integrated graphics processor support via 1 x D-Sub, 1 x HDMI (supporting 4096×2160@60Hz and HDMI 2.1), and 1 x DisplayPort (supporting 4096×2304@60Hz and DisplayPort 1.2), allowing for up to triple-display setups.
Networking: Realtek 2.5GbE LAN chip alongside a Realtek Wi-Fi RTL8821CE wireless module supporting Wi-Fi 802.11ac dual-band and Bluetooth 5.0.
Expansion & Storage: 1 x PCI Express x16 slot supporting PCIe 5.0 at x16, paired with dual M.2 connectors (supporting PCIe 4.0 x4/x2 SSDs) and 4 x SATA 6Gb/s connectors supporting RAID 0, 1, 5, and 10.
Unique Utilities: Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup.

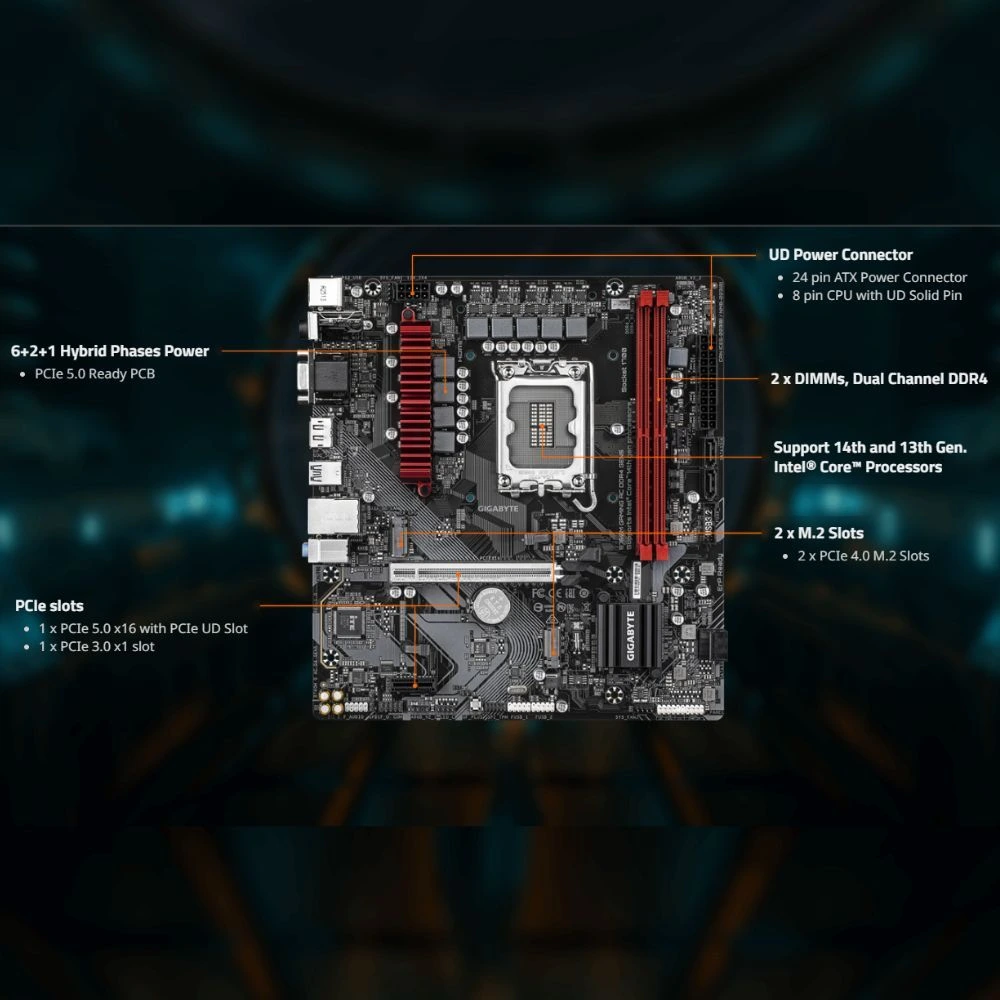

Specifications
CPU Support: LGA1700 socket: 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors
Chipset: Intel B760 Express Chipset
Memory: 2 x DDR4 DIMM sockets (up to 64 GB total, 32 GB single DIMM capacity); supports DDR4 up to 5333(O.C.) MT/s; Extreme Memory Profile (XMP) support
Audio: Realtek Audio CODEC High Definition Audio (2/4/5.1/7.1-channel), S/PDIF Out support
LAN & Wireless: Realtek 2.5GbE LAN chip; Realtek Wi-Fi RTL8821CE (802.11 a/b/g/n/ac, 2.4/5 GHz Dual-Band), Bluetooth 5.0
Expansion Slots: 1 x PCI Express x16 slot (PCIe 5.0 @ x16); 1 x PCI Express x1 slot (PCIe 3.0 @ x1)
Storage Interface: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors

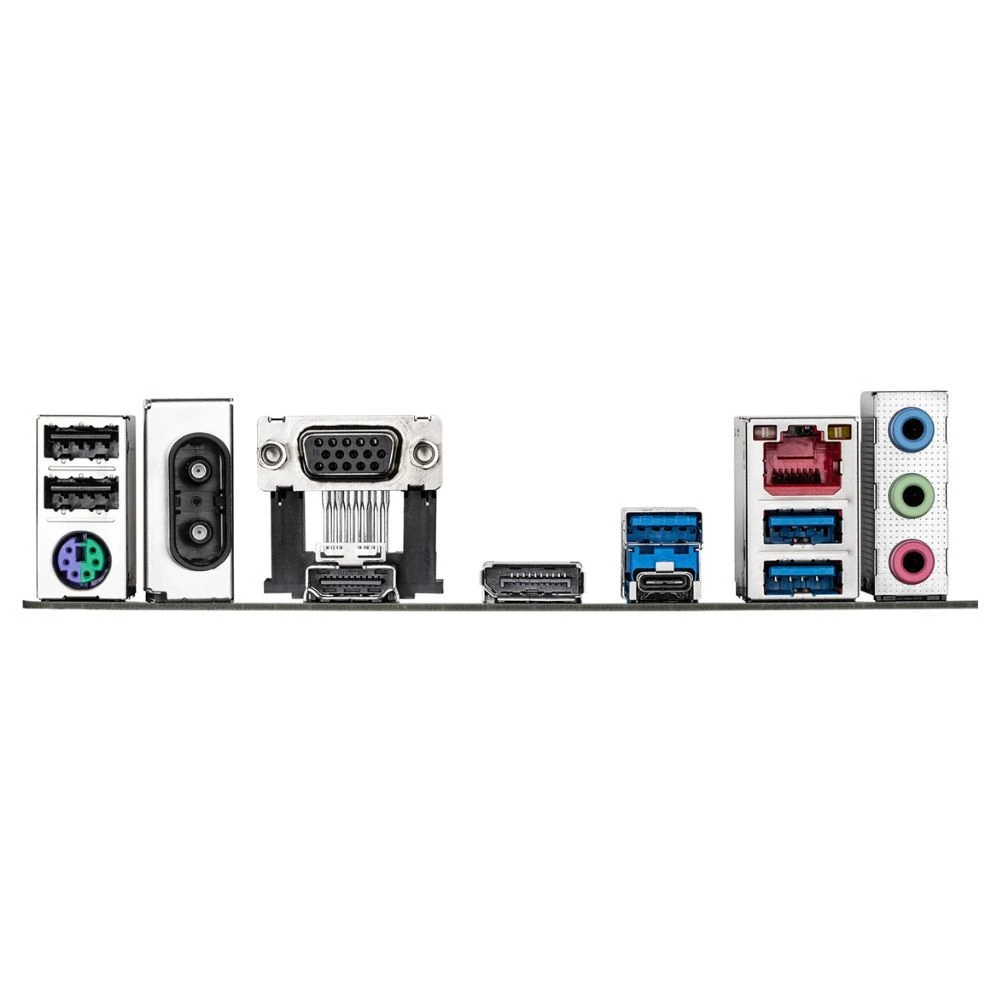

USB Ports: Back panel: 1 x USB Type-C (USB 3.2 Gen 1), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1; Internal headers: 2 x USB 3.2 Gen 1, 6 x USB 2.0/1.1
Internal Connectors: 24-pin ATX power, 8-pin ATX 12V power, CPU fan header, 3 x system fan headers, 2 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, Q-Flash Plus button
Operating System: Support for Windows 11 64-bit and Windows 10 64-bit
Form Factor: Micro ATX Form Factor (24.4cm x 22.5cm)
