Key Features
PCIe Gen5 Performance: Features a PCIe 5.0 x16 slot equipped with PCIe UD Slot armor for enhanced structural support for heavy graphics cards.
Processor Support: Fully compatible with Intel Core 14th, 13th, and 12th generation processors.
Unparalleled VRM Design: Built with a Hybrid 6+2+1 Phases VRM Solution backed by durable heatsinks.
Memory Support: 4 x DIMM slots supporting Dual-Channel DDR4 memory (with XMP profiles up to 5333MHz and beyond).
Next-Gen Storage: Equipped with 2 x PCIe 4.0 x4 M.2 connectors.
Fast Connectivity: Includes 802.11ax Wi-Fi 6E with a dedicated 6GHz band and a 2.5 GbE LAN port.
EZ-Friendly Design: Features PCIe EZ-Latch for effortless GPU removal, WIFI EZ-Plug for quick antenna installation, and Q-Flash Plus for BIOS updates without a CPU, RAM, or GPU installed.
Specification
CPU Support: LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors (L3 cache varies with CPU)
Chipset: Intel B760 Express Chipset
Memory
Support for DDR4 5333(O.C.) down to 2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor – Intel HD Graphics support:
1 x HDMI port (supporting max resolution 4096×2160@60 Hz, HDMI 2.1, HDCP 2.3)
2 x DisplayPorts (supporting max resolution 4096×2304@60 Hz, DisplayPort 1.2, HDCP 2.3)
Support for up to triple-display at the same time
Audio
– Realtek Audio CODEC (High Definition Audio, 2/4/5.1/7.1-channel)
– Support for S/PDIF Out
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication
Intel Wi-Fi 6E AX210 (Wi-Fi a, b, g, n, ac, ax supporting 2.4/5/6 GHz bands, Bluetooth 5.3, 11ax 160MHz wireless standard)
Expansion Slots
CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (supports a graphics card or NVMe SSD)
Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors (Support for RAID 0, RAID 1, RAID 5, and RAID 10)
USB
Chipset:
1 x USB Type-C port on the back panel with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 on back panel, 2 via internal header)
2 x USB 2.0/1.1 ports on the back panel
Chipset + USB 2.0 Hub:
4 x USB 2.0/1.1 ports via internal headers
Internal I/O Connectors
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
1 x CPU fan header, 3 x system fan headers
2 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header
2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors
1 x front panel header, 1 x front panel audio header
1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x S/PDIF Out header
1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper

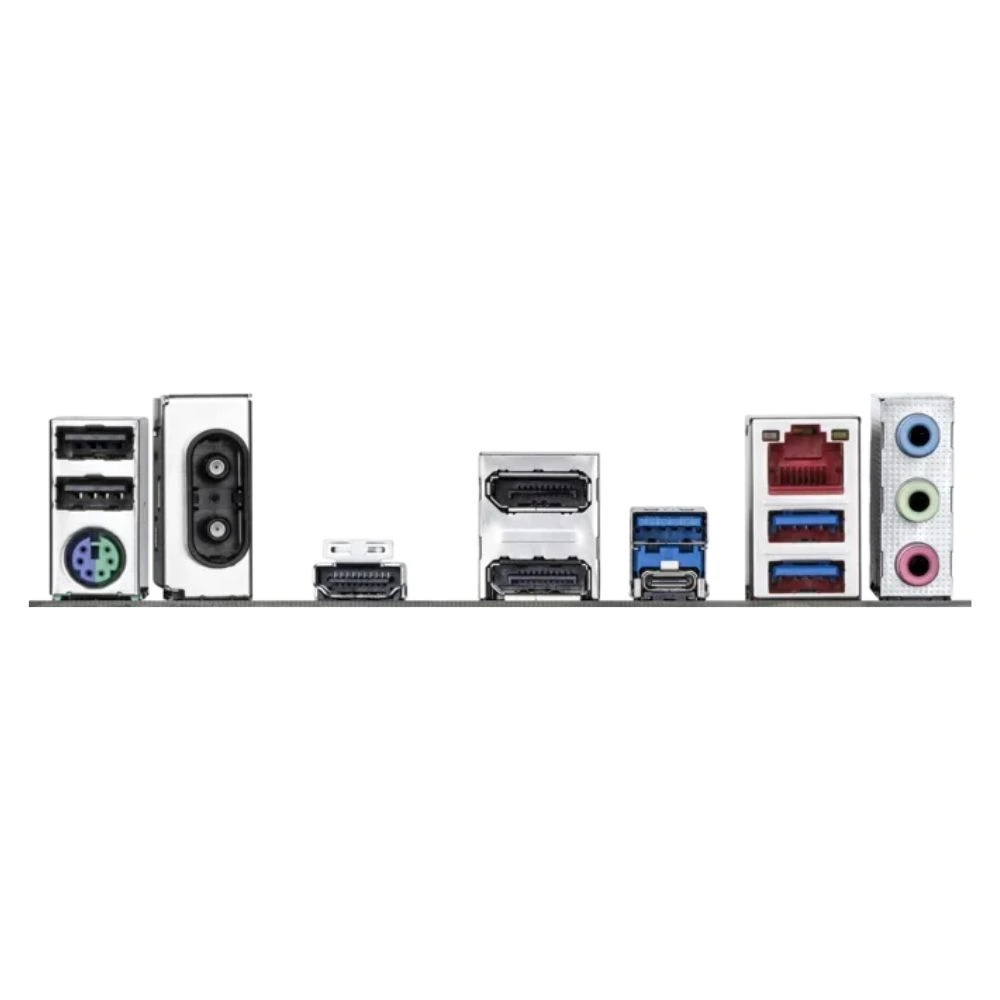

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x HDMI port, 2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port (USB 3.2 Gen 2 support)
1 x RJ-45 port
3 x audio jacks
H/W Monitoring
Voltage, Temperature, Fan speed, and Water cooling flow rate detection; Fan fail warning and Fan speed control
BIOS: 1 x 128 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0)
Unique Features
Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup
Operating System: Support for Windows 11 64-bit and Windows 10 64-bit
Form Factor: Micro ATX Form Factor (24.4cm x 24.4cm)
