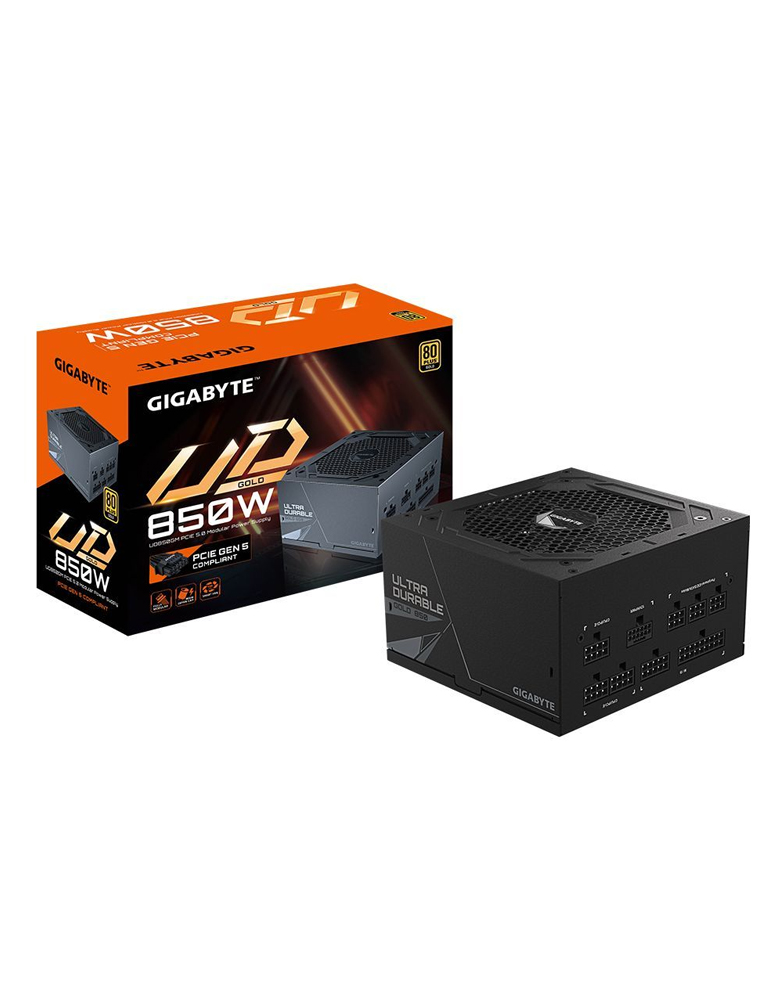

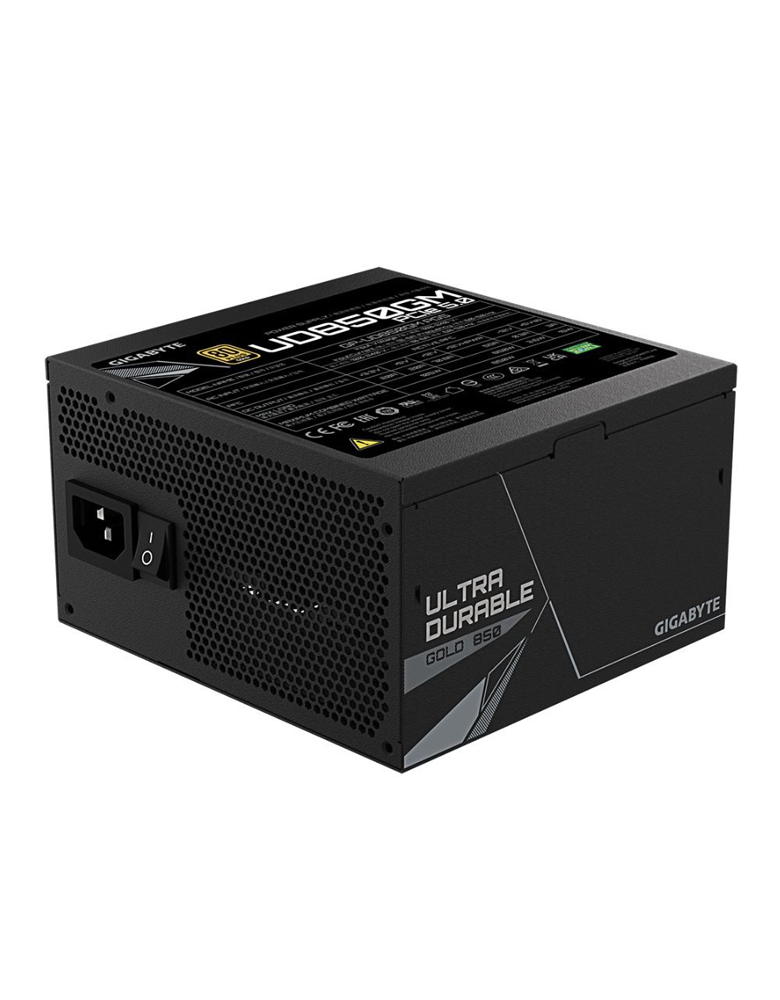

Gigabyte GP-UD850GM PG5 V2 850W Gold PCIE 5.0 Fully Modular Power Supply

KEY FEATURE

Ultra Durable Main Japanese capacitors
– Enhanced thermal solution
– 120mm smart hydraulic bearing (HYB) fan
– OVP/OPP/SCP/UVP/OCP/OTP protection

Support PCIe Gen 5.0 graphics card

High-quality native 16-pin cable supports 600W output

80 PLUS Gold certified

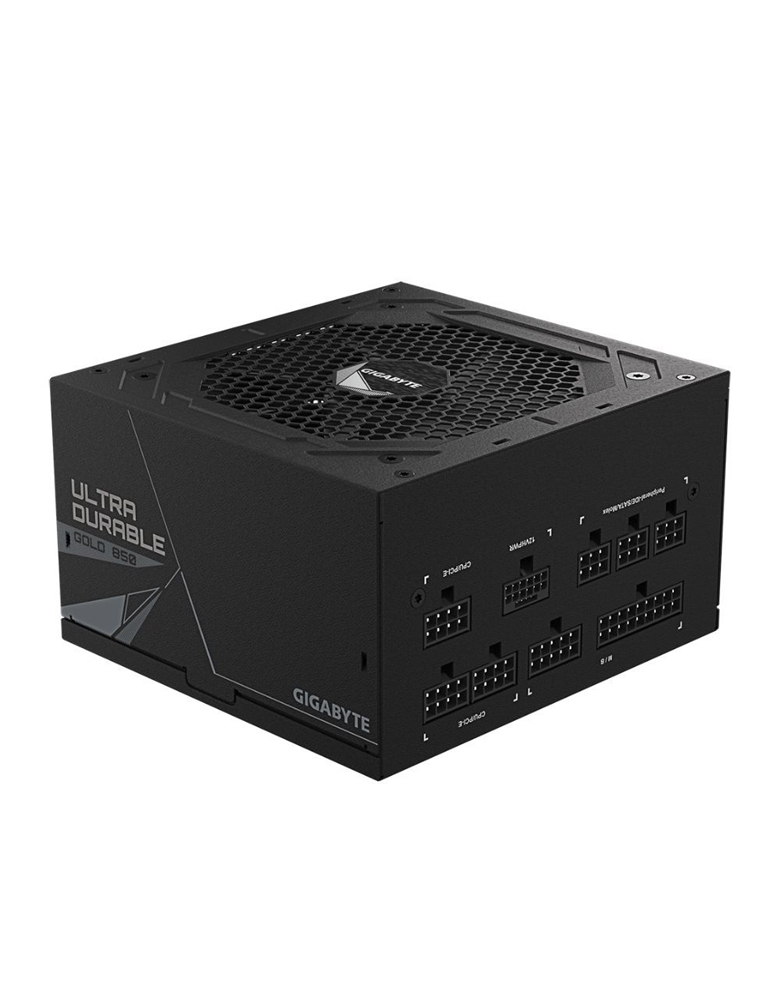

Fully modular design

Compact design

5 years warranty (Adjusted according to different regions)

SPECIFICATIONS

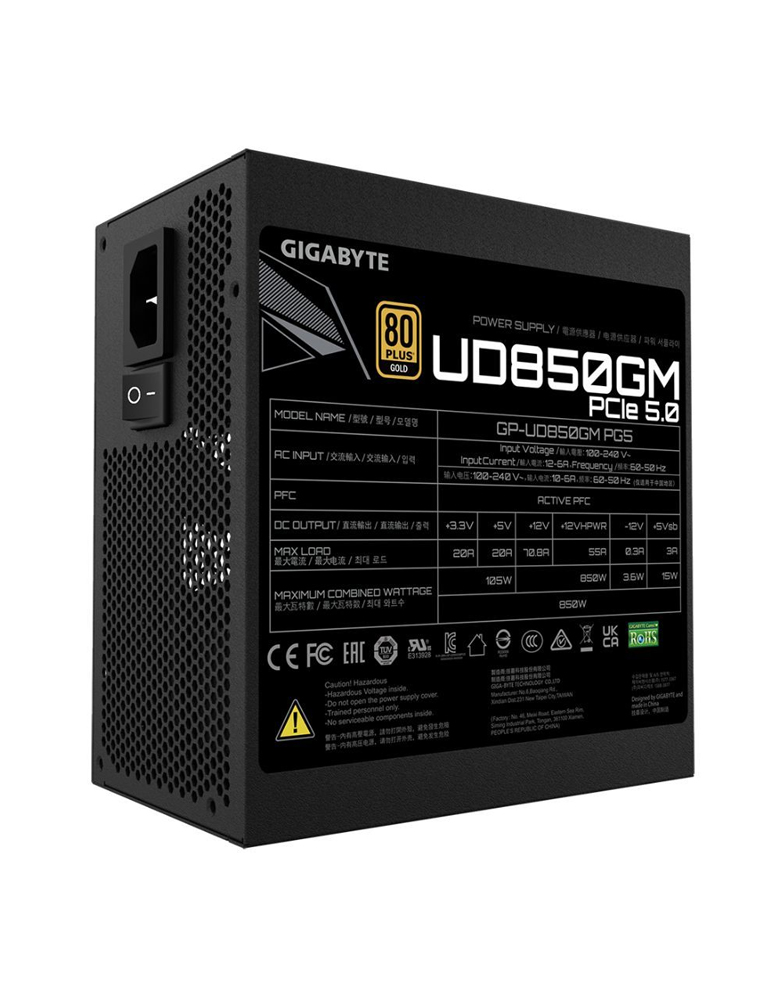

Model: GP-UD850GM PG5

Type: Intel Form Factor ATX 12V

PFC: Active PFC (>0.9 typical)

Input Voltage: 100-240 Vac (full range)

Input Current: 12-6A

Input Frequency: 60-50 Hz

Output Capacity: 850W

Dimension: 150 x 140 x 86 mm

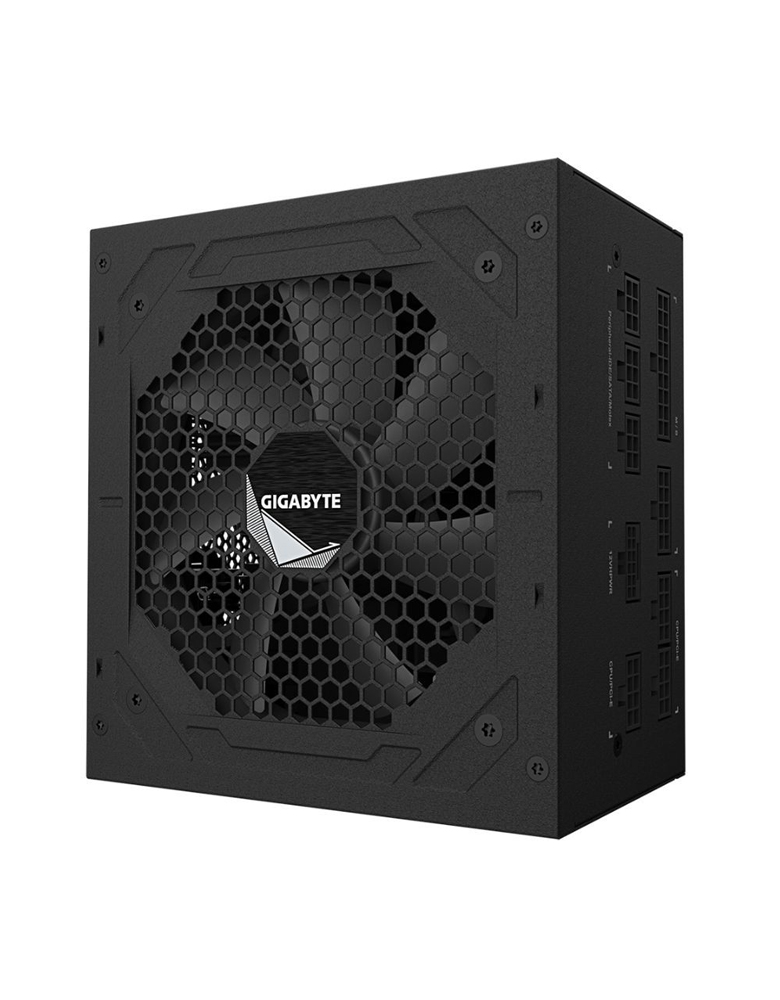

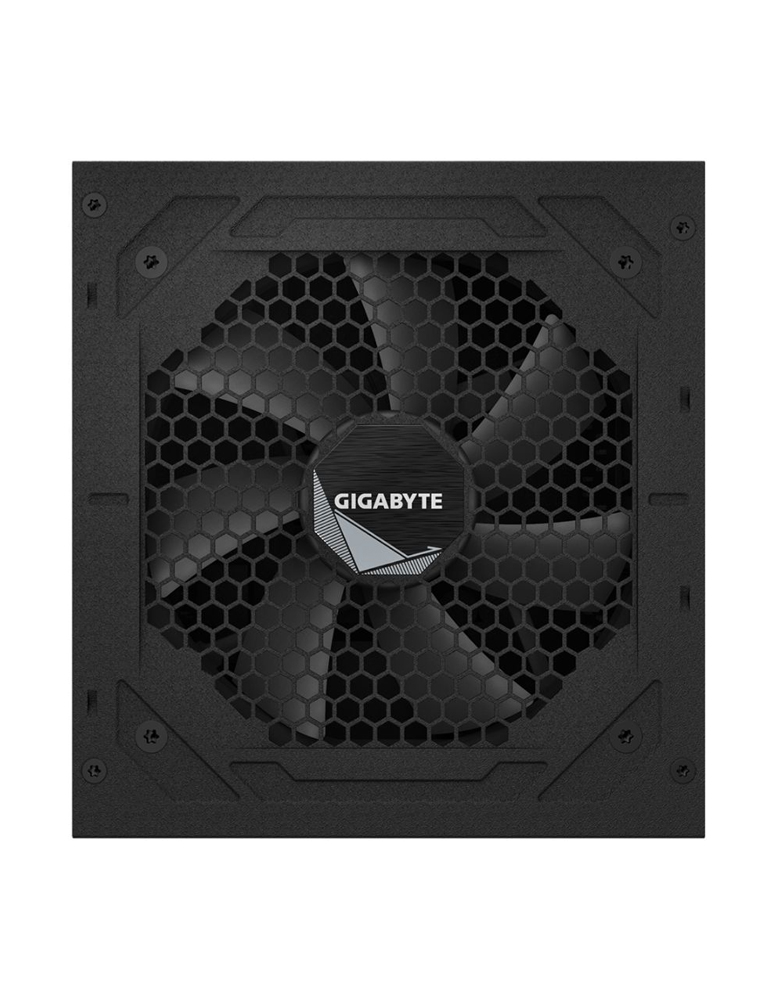

Fan Type: 120mm Hydraulic Bearing(HYB)fan

80 PLUS: Gold

Efficiency: 90% at typical load

MTBF: >100,000 hours

Protection: OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal: 100-150ms

Hold Up Time: >16ms

Cable Type: Flat, All black

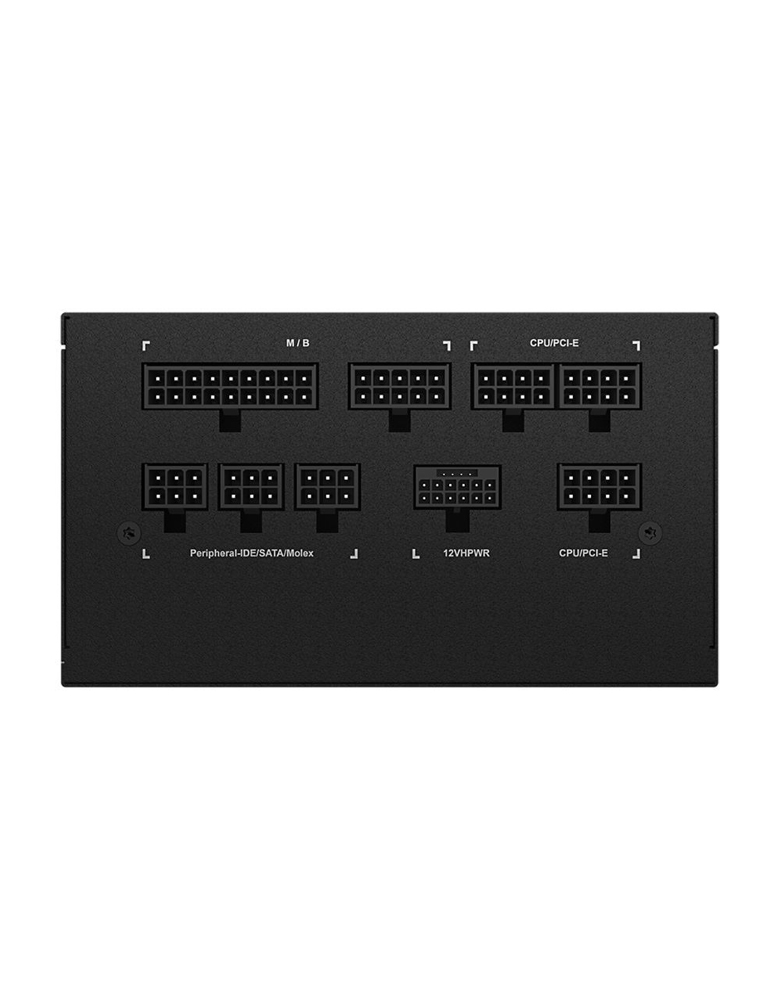

Connectors:
– ATX/MB 20+4 Pin x 1 : 610mm*1
– CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
– PCI-e 12+4 Pin x 1: 700mm*1
– PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
– 600mm+150mm+150mm+150mm*2
– 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
