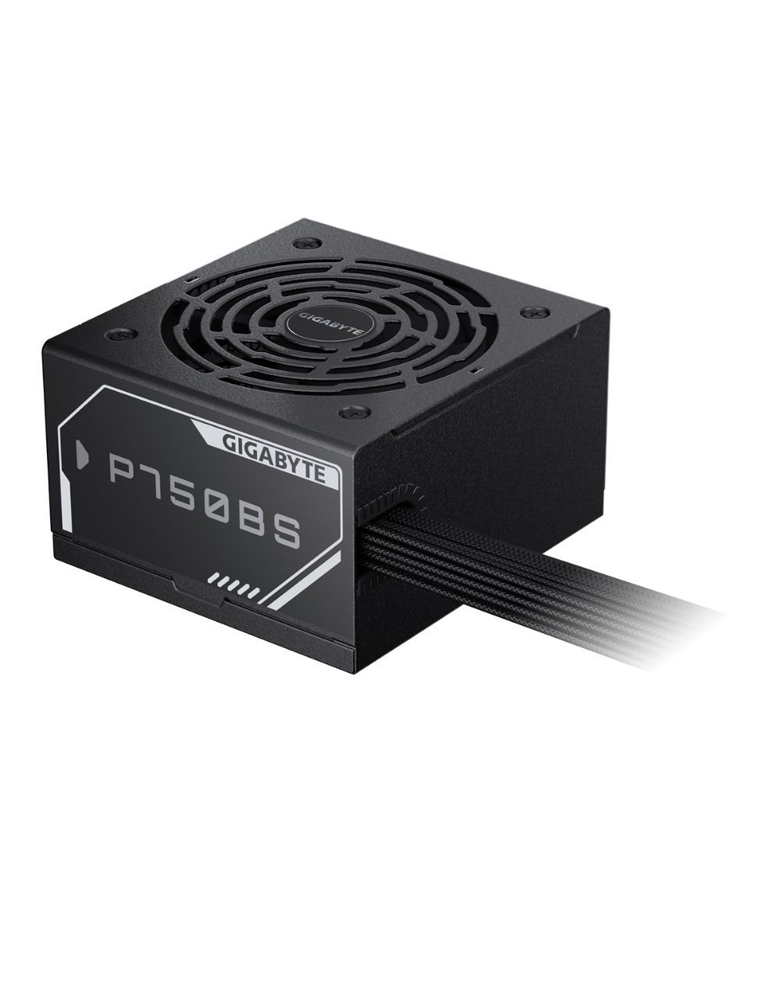

Gigabyte P750BS 750W 80 Plus Bronze Power Supply (GP-P750BS)

The 80 Plus Bronze certification (230V EU) guarantees a 88% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.

KEY FEATURE

80 PLUS Bronze certified (230V EU)

120mm Silent Fluid Dynamic Bearing (FDB) fan

Soft-textured embossed cables

Single +12V rail

OVP/OPP/SCP/UVP/OCP/OTP protection

SPECIFICATIONS

Model: GP-P750BS
Type: Intel Form Factor ATX 12V
PFC: Active PFC (>0.9 typical)
Input Voltage: 200-240 Vac
Input Current: 6 A
Input Frequency: 60-50 Hz
Output Capacity: 750W
Dimension: 150 x 140 x 86 mm
Fan Type: 120mm Fluid Dynamic Bearing (FDB) Fan
80 PLUS: Bronze (230V EU)
Efficiency: 88% at typical load
MTBF: >100,000 hours
Protection: OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal: 100-150ms
Hold Up Time: >16ms
Cable Type: Embossed, All black
Connectors:
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-E 6+2 Pin x 4 : 500mm+150mm*2
SATA x 4 : 500mm+150mm+150mm+150mm*1
SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
