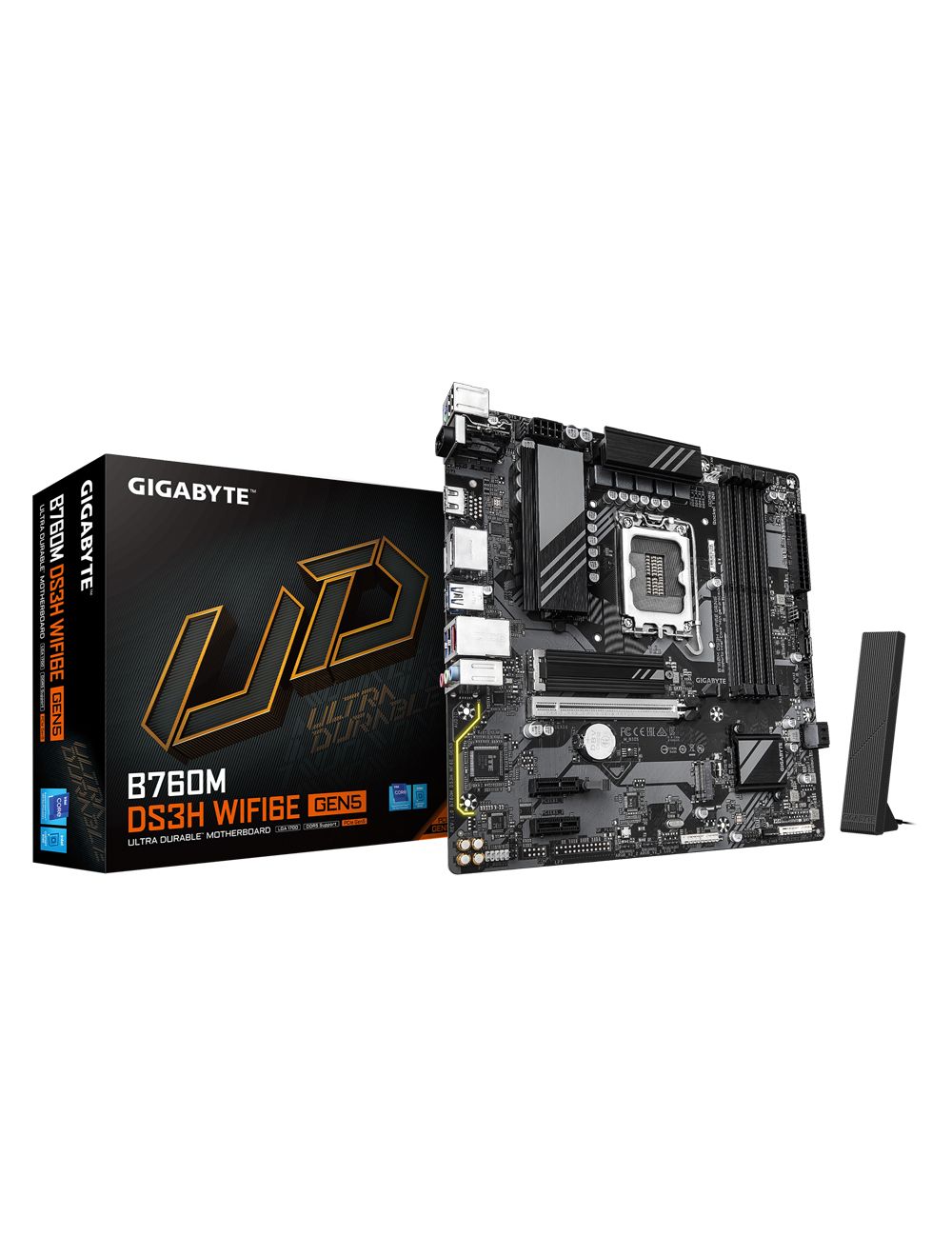

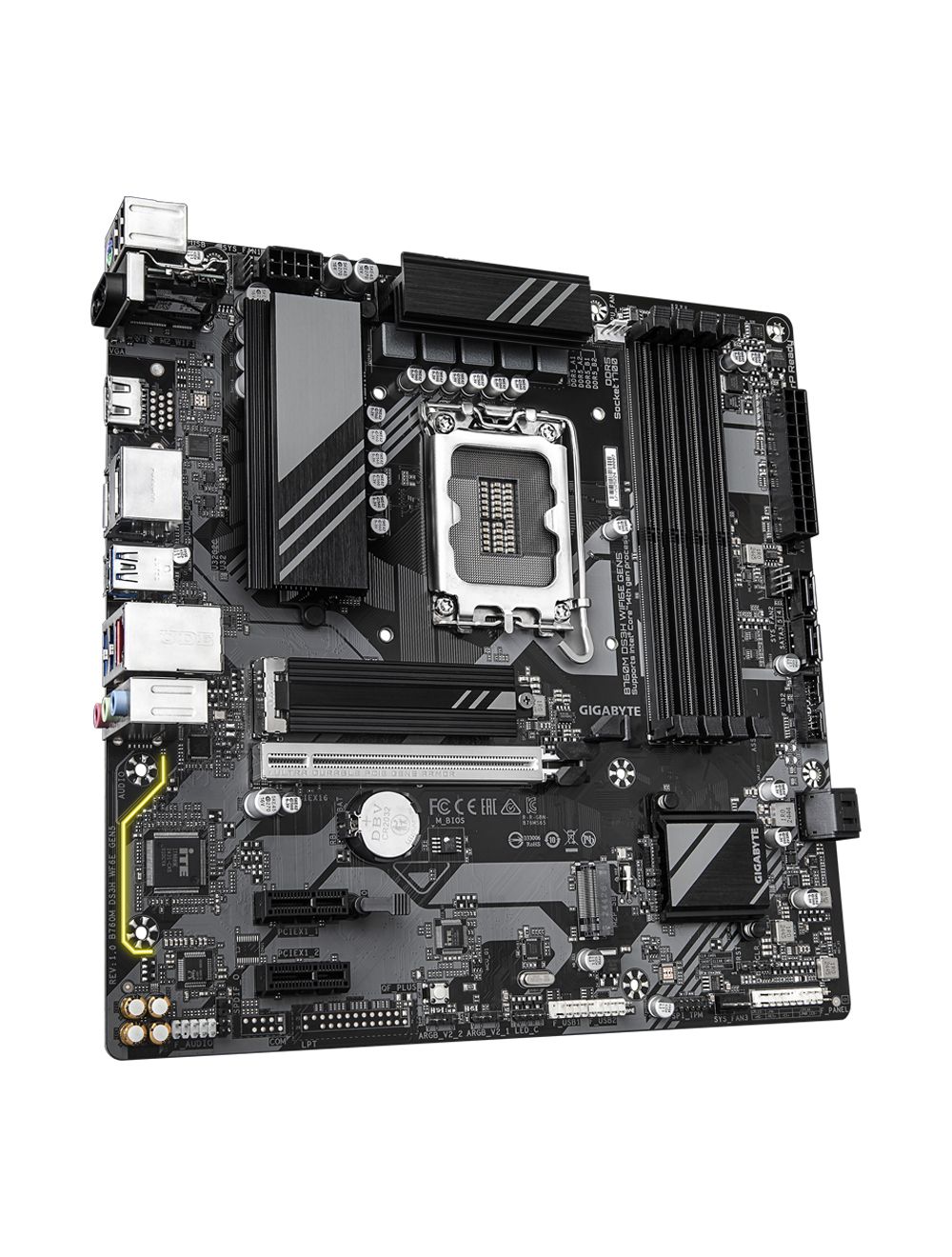

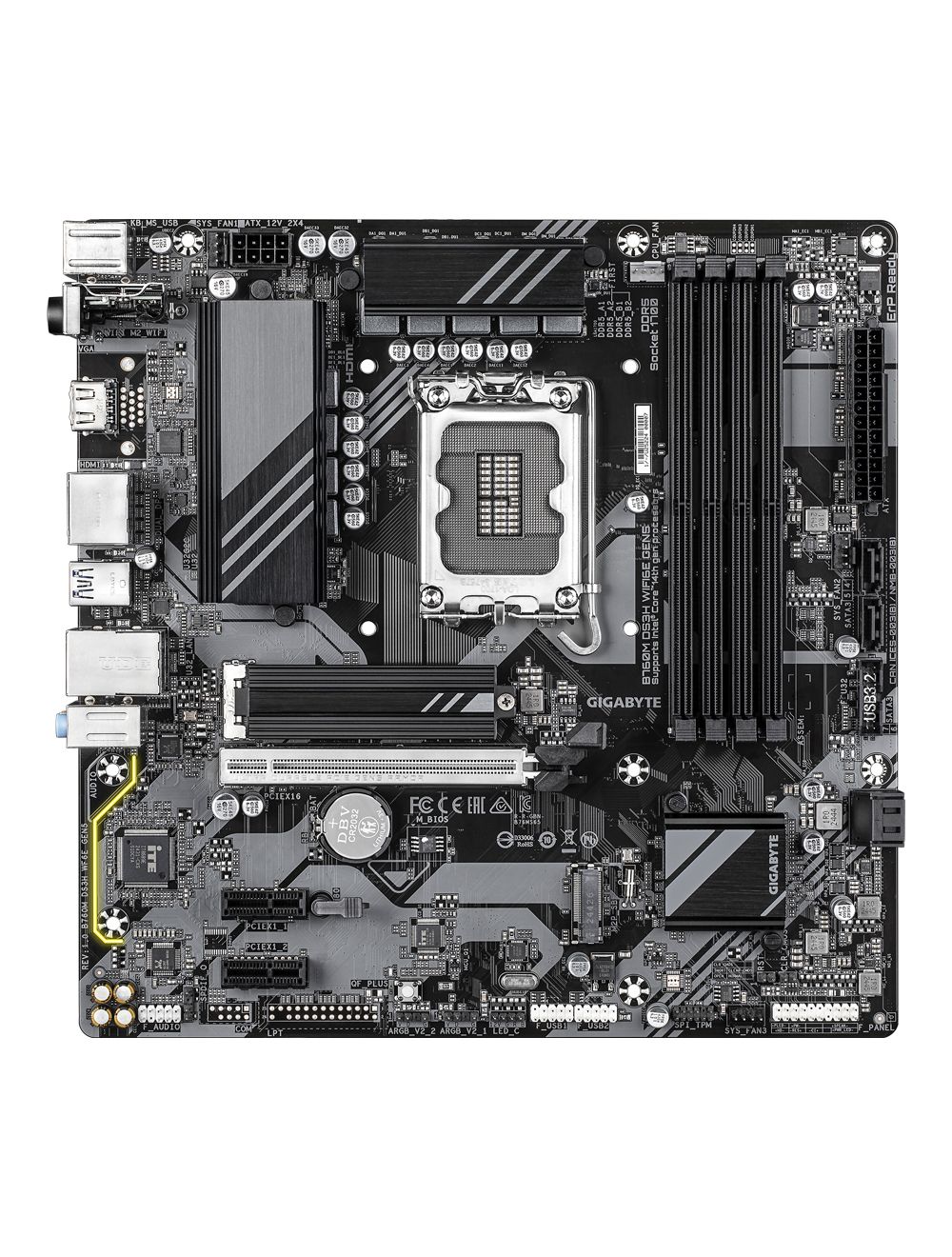

Gigabyte B760M DS3H WIFI 6E GEN5 Micro-ATX LGA1700 DDR5 Motherboard

Key Features

• PCIe Gen5 Performance : Perfect Sync to Win
• Supports Intel® Core™ 14th/ 13th /12th processors
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
• EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
• PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
• Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
• Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
• Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax
• Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
• Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI
• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Specification

Model:  GIGABYTE GA-B760M-DS3H-WF6E-GEN5
CPU:  LGA1700: Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® Processors
Chipset:  Intel® B760 Express Chipset
Memory:  4 x DDR5 DIMM, up to 256GB, 5600/5200/4800/4400 MT/s (i9/i7), 4800/4400 MT/s (i5/i3, others), ECC/Non-ECC Un-buffered, Dual Channel, XMP
Onboard Graphics:  1 x HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3), 2 x DisplayPort (4096×2304@60Hz, DP 1.2, HDCP 2.3), Triple-Display Support
Expansion Slots:  CPU: 1 x PCIe 5.0 x16; Chipset: 2 x PCIe 3.0 x1
Storage:  CPU: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2A_CPU); Chipset: 1 x M.2 (2280, PCIe 4.0 x4/x2, M2P_SB); 4 x SATA 6Gb/s; RAID 0/1/5/10 (SATA)
Audio:  Realtek Audio CODEC, 7.1-channel, S/PDIF Out
LAN:  Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps)
Wireless:  Intel Wi-Fi 6E AX210 (2.4/5/6GHz, 11ax 160MHz), Bluetooth 5.3
USB:  Rear: 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0; Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
Internal I/O Connectors
1 x 24-pin ATX, 1 x 8-pin 12V, 1 x CPU Fan, 3 x System Fan, 2 x ARGB Gen2, 1 x RGB, 2 x M.2, 4 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x TPM, 1 x S/PDIF Out, 1 x Q-Flash Plus Button, 1 x Reset Jumper, 1 x Clear CMOS Jumper

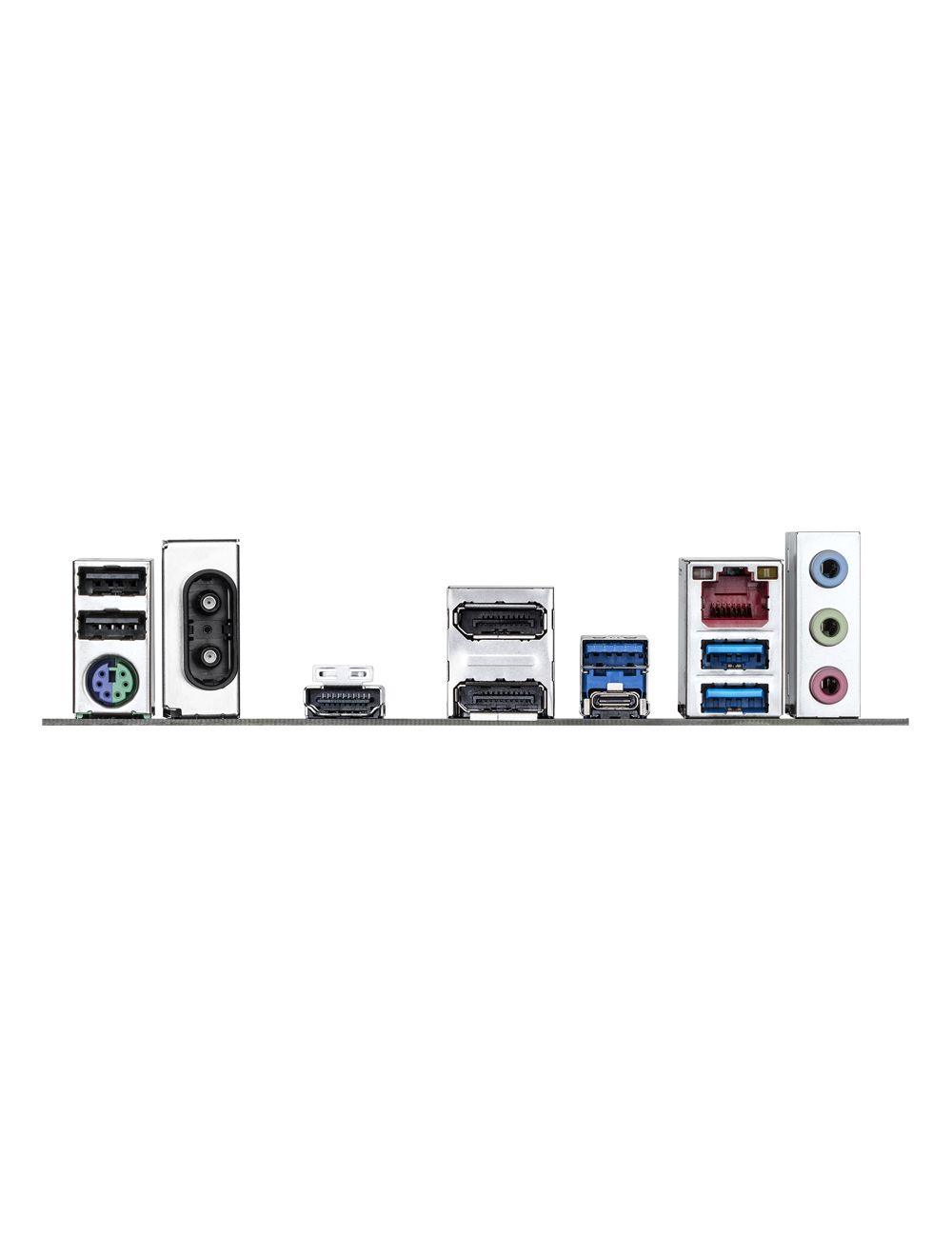

Back Panel Connectors
2 x USB 2.0, 1 x PS/2 Keyboard/Mouse, 2 x Antenna (2T2R), 1 x HDMI, 2 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 1 x RJ-45, 3 x Audio Jacks
I/O Controller: iTE I/O Controller Chip
H/W Monitoring:  Voltage, Temperature, Fan Speed, Water Cooling Flow Rate, Fan Fail Warning, Fan Speed Control
BIOS:  128 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software
Norton Internet Security (OEM)
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Micro-ATX, 24.4 x 24.4 cm
Notes
Wi-Fi 6E requires Windows 11 for 6GHz; Check CPU/Memory support at www.gigabyte.com
