Technical Specification
CPU:
AMD Socket AM5, support for:
– AMD Ryzen™ 9000 Series Processors
– AMD Ryzen™ 8000 Series Processors
– AMD Ryzen™ 7000 Series Processors
Chipset: AMD X870
Memory: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules
– 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
– Dual channel memory architecture|
– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
– Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller:
– 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz (Supports DisplayPort 1.4 version and HDR)
Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Supports HDMI 2.1 version, HDCP 2.3, HDR, and native HDMI 2.1 TMDS compatible ports)
– 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz (Supports HDMI 1.4 version)
Audio
– Realtek® ALC1220 CODEC (Back panel line out jack supports DSD audio)
– High Definition Audio 2/4/5.1/7.1-channel
– Support for S/PDIF Out
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
– Realtek® Wi-Fi 7 RTL8922AE (802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands)
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface:
1 x M.2 connector (M2A_CPU), integrated in CPU, Socket 3, M key, type 25110/22110/2580/2280 SSDs (Supports PCIe 5.0 x4/x2 or PCIe 4.0 x4/x2 depending on CPU)
1 x M.2 connector (M2C_SB), integrated in Chipset, Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5 (Ryzen™ 9000 series only), and RAID 10 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
USB
CPU + ASMedia USB4® controller: 2 x USB4® USB Type-C® ports on back panel
CPU: 1 x USB 3.2 Gen 2 Type-A port (red) on back panel
CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on back panel
Chipset + USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on back panel
Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support (internal header)
– 1 x USB 3.2 Gen 2 Type-A port (red) on back panel
– 2 x USB 3.2 Gen 1 ports (internal header)
– 4 x USB 2.0/1.1 ports (internal headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header (USB 3.2 Gen 2×2 support)
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

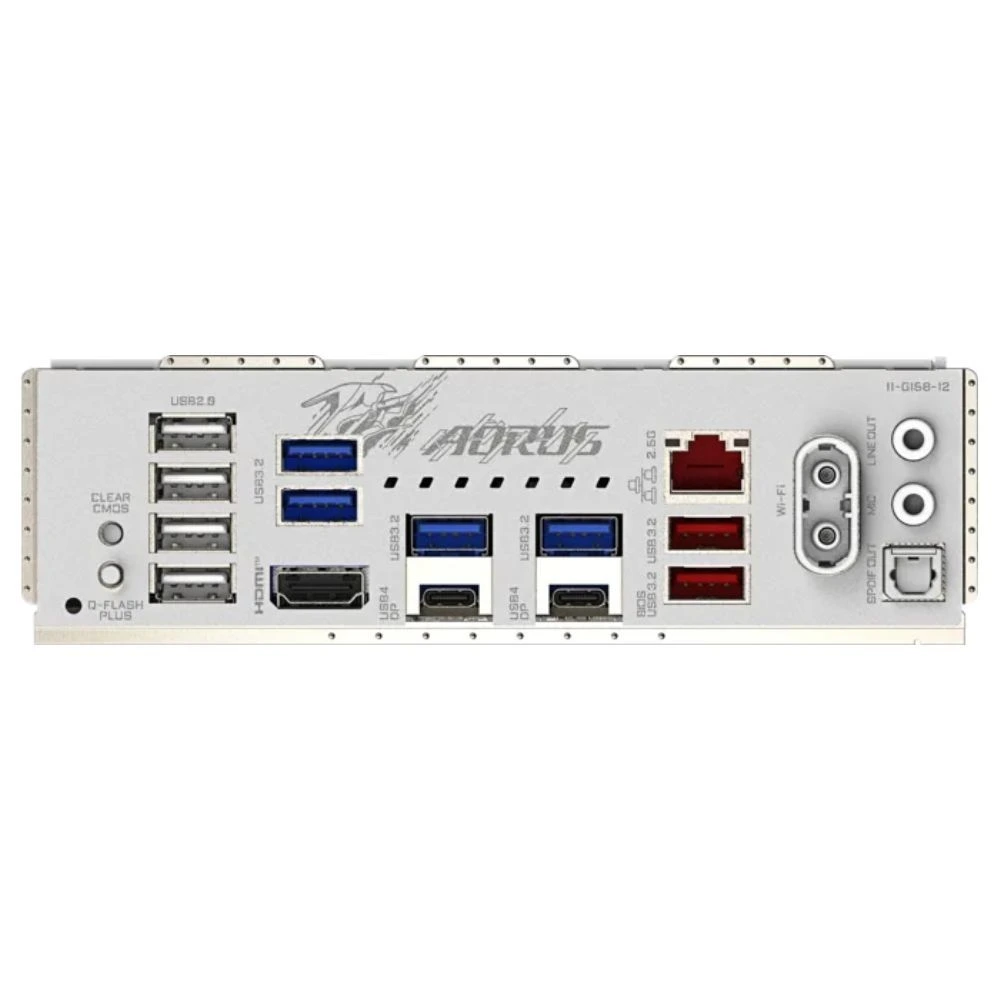

Back Panel Connectors
1 x Clear CMOS button
1 x Q-Flash Plus button
1 x HDMI port
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB4® USB Type-C® ports (DisplayPort)
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
I/O Controller: iTE® I/O Controller Chip
H/W Monitoring
– Voltage detection
– Temperature detection
– Fan speed detection
– Water cooling flow rate detection
– Fan fail warning
– Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
– Support for GIGABYTE Control Center (GCC)
– Support for Q-Flash
– Support for Q-Flash Plus
– Support for Smart Backup
Operating System: Support for Windows 11 64-bit
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
