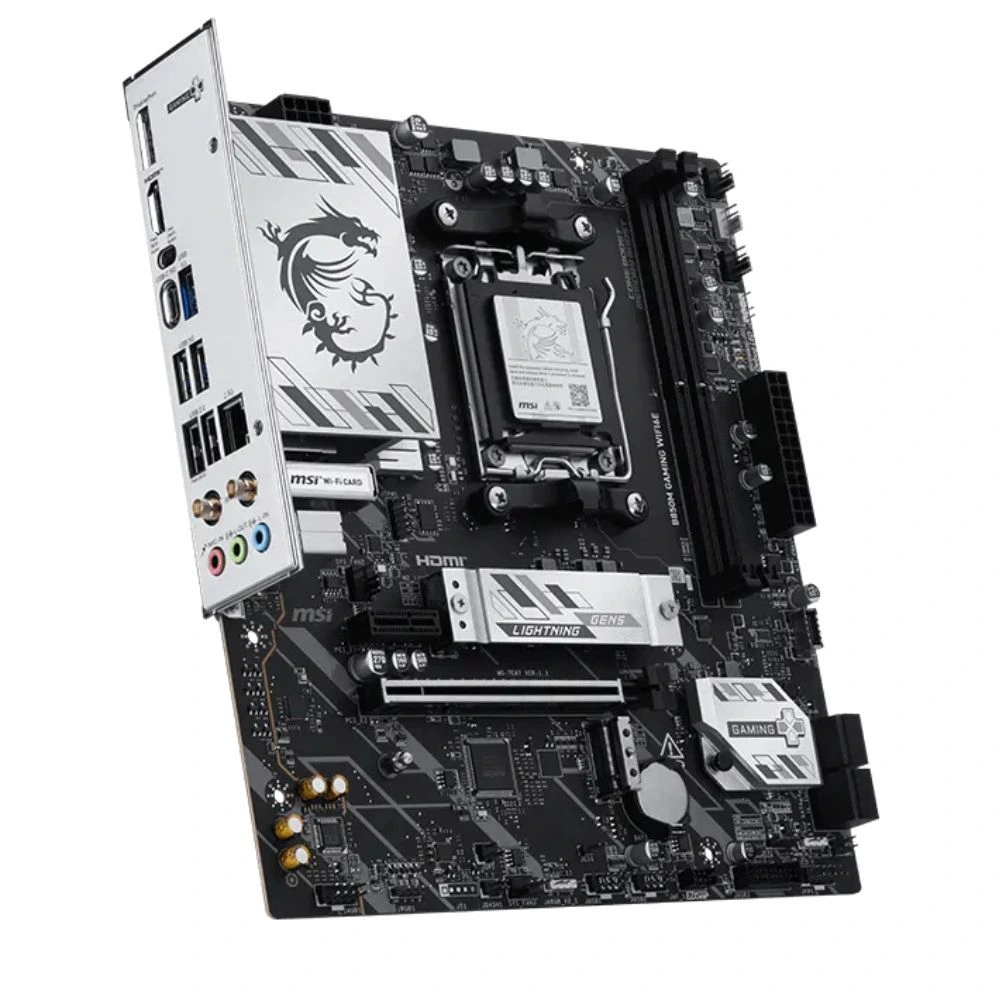

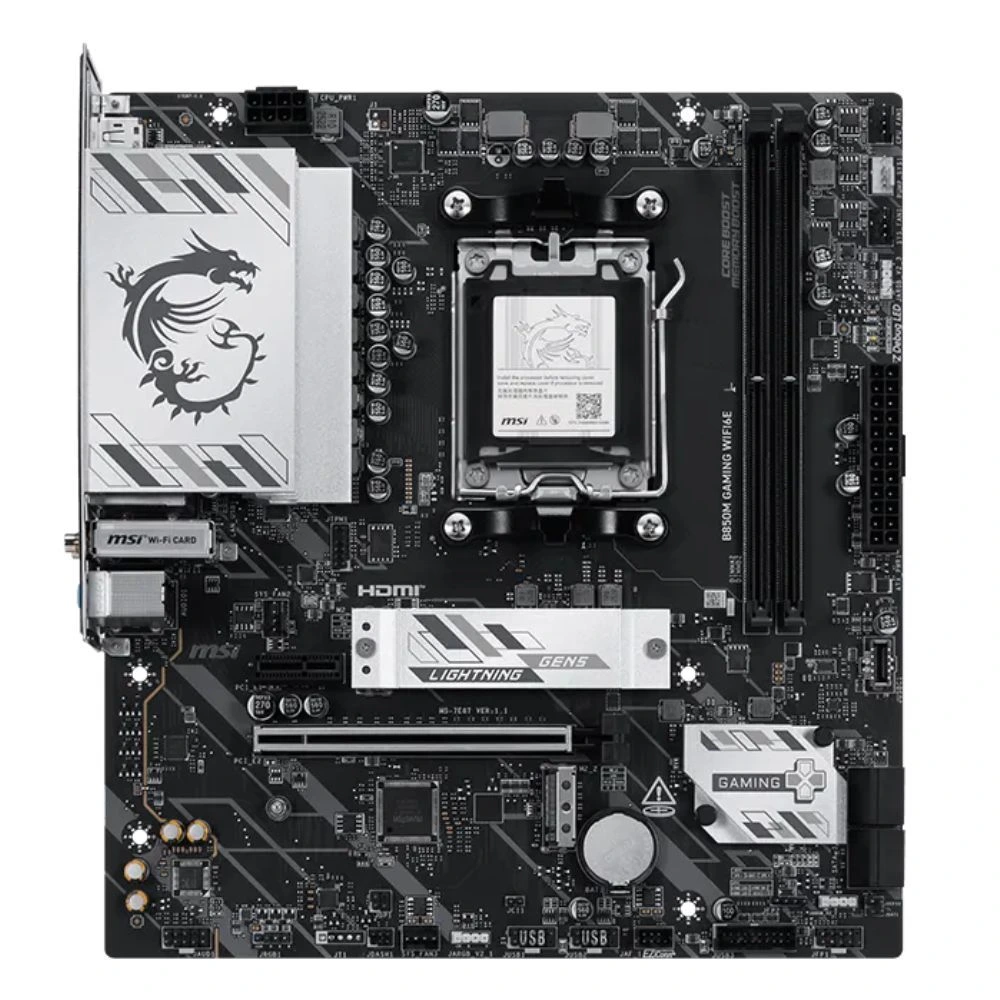

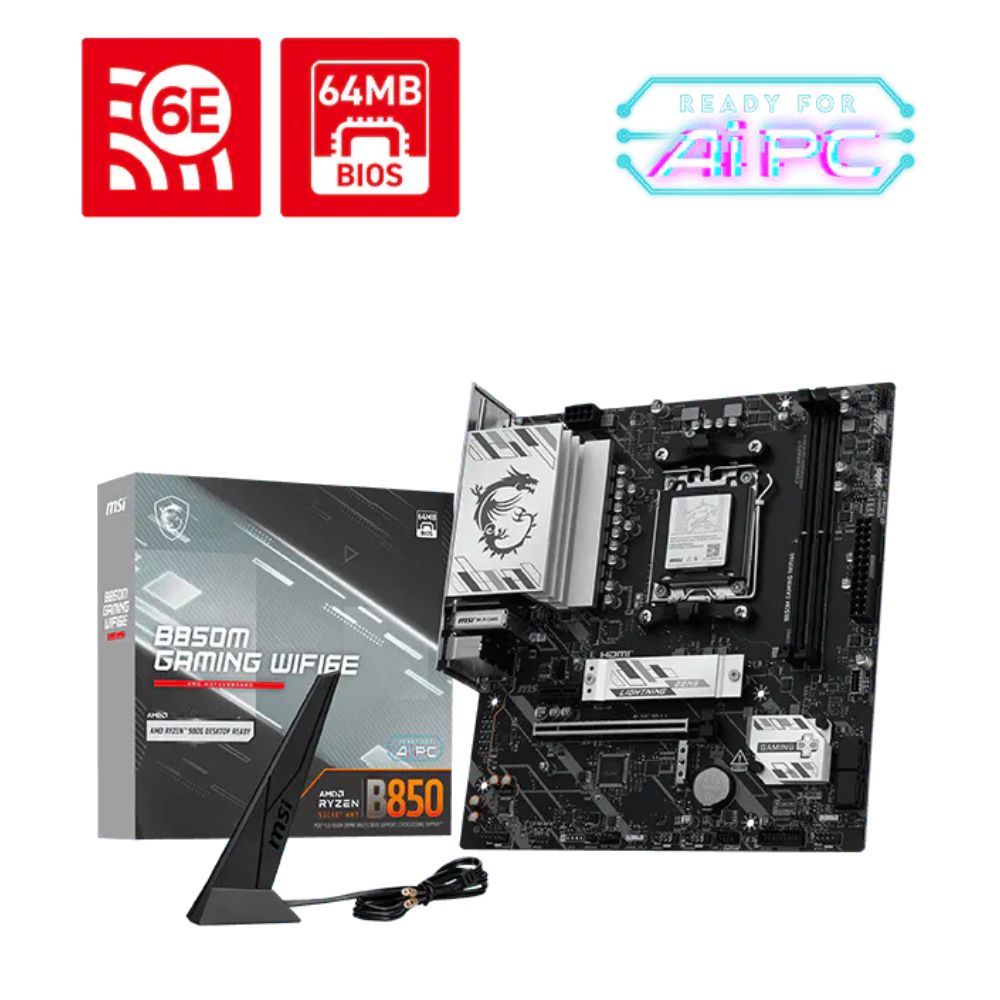

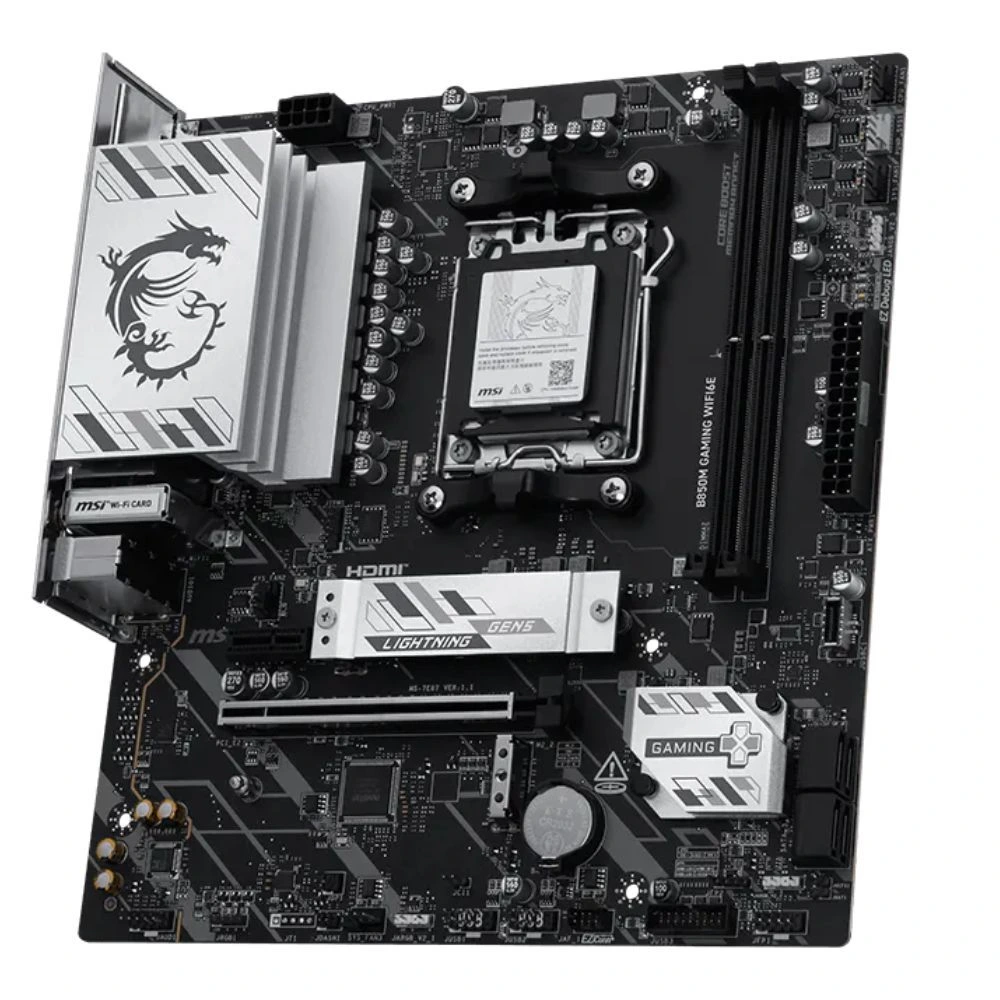

MSI B850M GAMING WIFI6E AM5 Micro-ATX DDR5 PCIe 5.0 2.5G LAN Gaming Motherboard

B850M GAMING WIFI6E
 – Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
– Ultra Performance: Direct 7+2+1 P-PAK Power System, 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
– Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
– High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
– Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
– EZ DIY: EZ Conn Design, EZ M.2 Clip II and EZ Antenna
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Key Features
Performance & Thermal
7+2+1 Duet Rail Power System: Built with an aggressive VRM design and digital CPU power system to unleash and sustain maximum performance.
Extended Heatsink Design: Enlarges the heat dissipation surface with 7W/mK thermal pads and additional choke pads to maintain performance under heavy loads.
M.2 Shield Frozr: Strengthened thermal solution protecting M.2 SSDs for incredible performance.
6-Layer PCB with 2oz Copper: Enhances signal performance, bandwidth, thermal stability, and faster data transfer.
Performance Profiles: Includes MSI Performance Preset, Performance Switch, PBO Thermal Profiles (85°C, 75°C, 65°C), and Config TDP.
Connectivity
2.5G LAN & Wi-Fi 6E Solution: Delivers high-bandwidth, low-latency networking for competitive gaming and data transfer.
Dual M.2 Connectors: Features lightning-fast storage support including 1x Gen 5 M.2 (128 Gbps) and 1x Gen 4 M.2 (64 Gbps).
Lightning PCIe Gen 4: Reinforced Steel Armor slots to support heavy graphics cards safely.
Latest DDR5 Memory: Supports high-performance DDR5 memory boosted by Memory Boost, SMT process, High-Efficiency Mode, and Latency Killer technology (up to 12% latency reduction).
Front USB Type-C: Convenient high-speed front-panel connectivity.
EZ DIY & Assembly Features
EZ M.2 Clip II & Clip II Remover: Toolless M.2 installation and removal with a simple flick, alongside a specialized remover tool.
EZ GPU Installation: Enlarged PCIe clip for easier swapping and removal of graphics cards.
Flash BIOS Button & Clear CMOS Button: Update BIOS or reset settings directly with a power supply connected—no CPU or memory required.

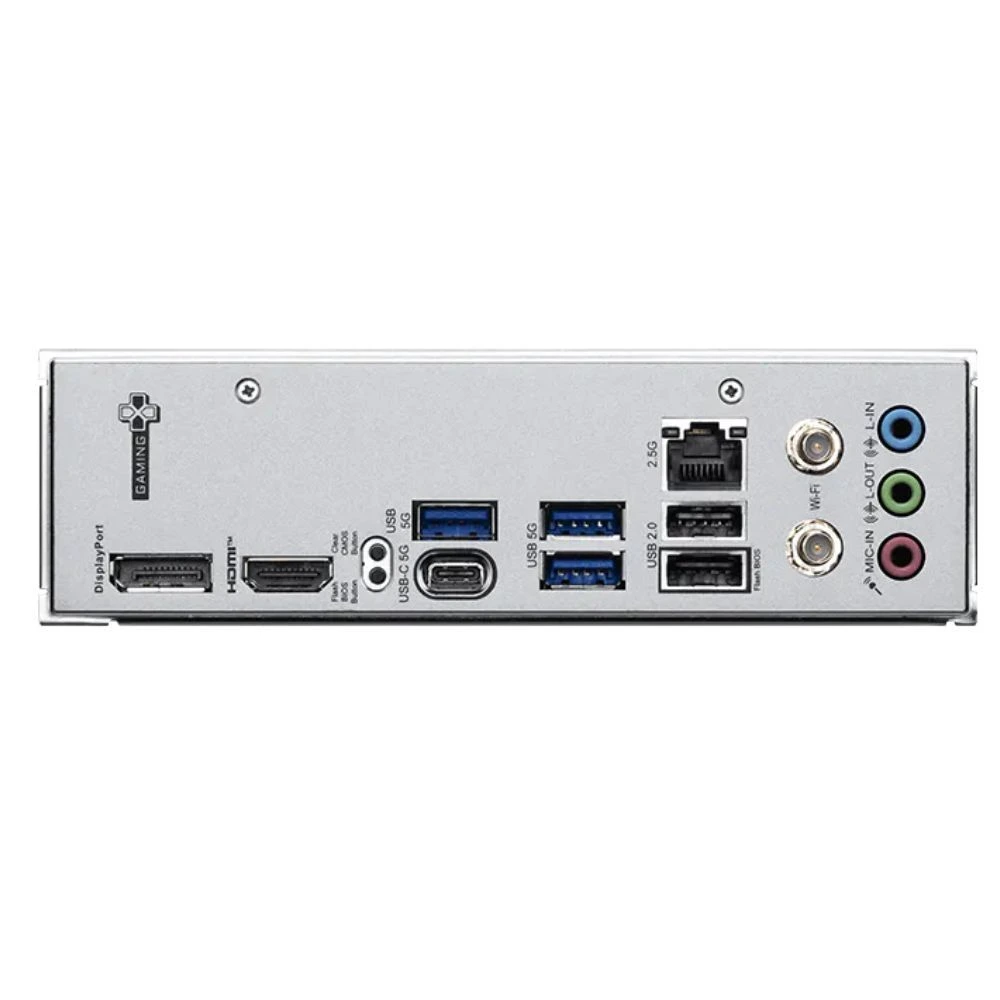

Pre-Installed I/O Shield: Ensures proper alignment, durability, and a hassle-free setup.
EZ Antenna: Quick-attach Wi-Fi antenna setup without traditional rotation.
EZ Conn-Design (JAF_1): Combines ARGB and fan connections for single-cable management with compatible components.
EZ Debug LED & EZ Memory Detection LED: Onboard diagnostic LEDs to instantly identify hardware issues or faulty memory slots.
Driver Utility Installer: Automatically detects and installs required drivers upon internet connection in Windows 11.
Intelligence & Software (AI Features)
AI Engine: Automatically categorizes and optimizes application usage in real-time.
AI LAN Manager: Prioritizes latency-sensitive traffic for online games.
Frozr AI Cooling: Automatically adjusts fan speeds based on CPU and GPU temperatures.
AI Boost: Overclocks the NPU to enhance AI processing workloads.
MSI Center & Click BIOS X: Centralized software management suite and updated UEFI BIOS featuring EZ and Advanced modes, Game Boost, EXPO/A-XMP profiles, Hardware Monitor, M-Flash, and Search functionality.

Specifications
CPU Support: Optimized for AMD Ryzen™ 9000 Series processors (Socket AM5).
Power Design: 7 (Vcore) + 2 (SOC) + 1 (MISC) Phase P-Pak Power System with Core Boost and Digital Power.
Memory Support: DDR5 Memory slots supporting EXPO and A-XMP profiles, Memory Boost, and High-Efficiency modes.
Expansion Slots: Lightning PCIe Gen 4 with Steel Armor.
Storage Slots:
– 1x Lightning Gen 5 M.2 slot (128 Gbps)
– 1x Lightning Gen 4 M.2 slot (64 Gbps)
Networking:
– 2.5G LAN Controller
– Wi-Fi 6E Solution with EZ Antenna
Audio: Audio Boost featuring High Definition Audio Processor, high-quality audio capacitors, de-pop protection, and an Isolated Analogy Structure.
Lighting & Customization: Mystic Light RGB support with A-RAINBOW V2 (ARGB Gen2/Gen1) header
