The MSI PRO B550M-B is primarily tailored for business, productivity, and professional multitasking, but yes, it can be used for budget or entry-level gaming. Because it utilizes the AMD B550 chipset and supports AM4 processors up to the Ryzen 5000 series, you can pair it with a dedicated graphics card to build a capable 1080p gaming PC. However, keep in mind that as a basic “PRO” series board, it lacks high-end gaming features like built-in RGB header shrouds, heavy-duty VRM heatsinks for extreme overclocking, integrated Wi-Fi, or multiple PCIe x16 slots.
Key Features
Processor Support: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series desktop processors (Socket AM4)
Memory Support: Supports DDR4 Memory, up to 4600+ MT/s (OC)
Lightning Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M.2 for faster game loading via NVMe SSDs
EZ DIY: EZ Debug LED, EZ Mounting for straightforward assembly
Audio Boost: Studio-grade sound quality for immersive gaming audio
Software Integration: MSI Center for system monitoring and management
Specifications
CPU Support: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series desktop processors (Socket AM4)
Chipset:AMD B550
Memory: 2x DDR4 memory slots, supporting up to 64GB (speeds up to 4600+ MHz via A-XMP OC Mode)
Expansion Slots: 1x PCI-E x16 slot (PCI_E1), supporting up to PCIe 4.0 x16 (from CPU) for a dedicated graphics card
Storage (M.2 / SATA)
– 2x M.2 slots (M.2_1 from CPU up to PCIe 4.0 x4/SATA mode; M.2_2 from Chipset up to PCIe 3.0 x4)
– 4x SATA 6Gb/s ports

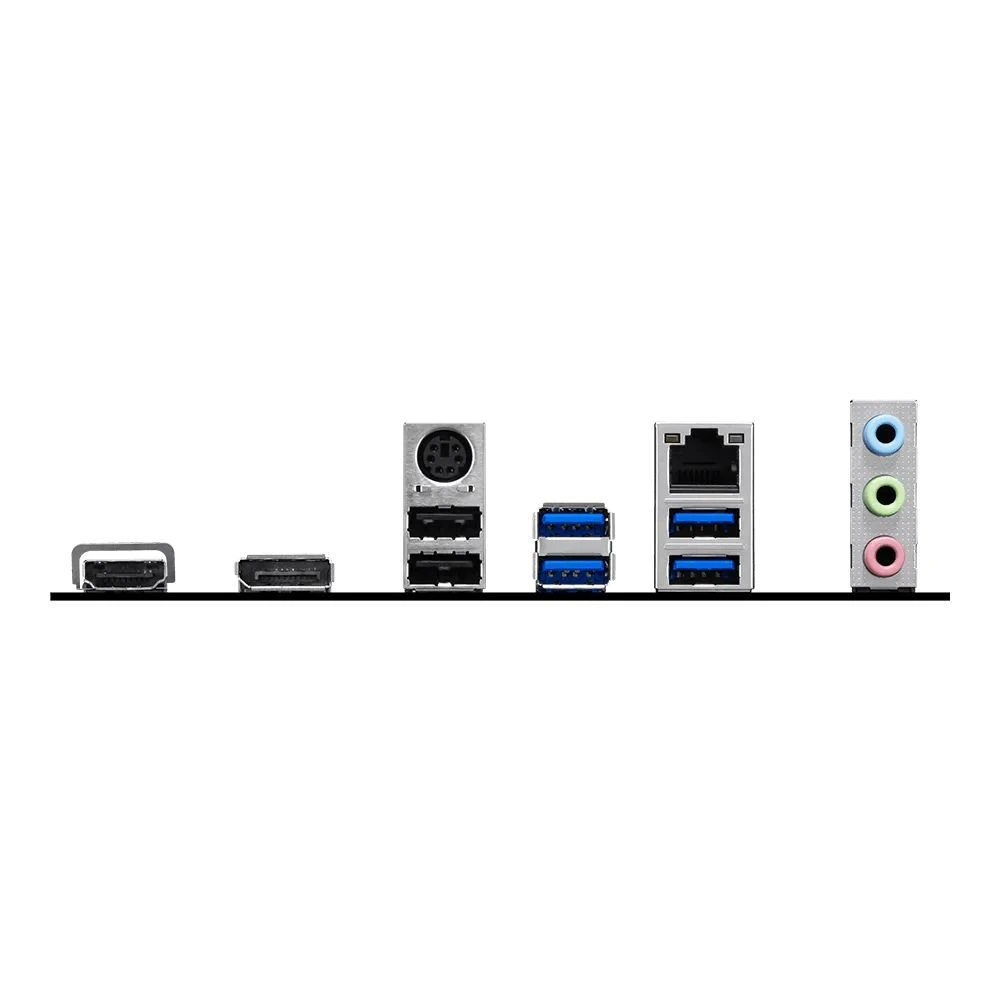

Graphics Outputs
– 1x HDMI 2.1 (supports 4K @ 60Hz)
– 1x DisplayPort 1.2 (supports 4K @ 60Hz)
(Available only on processors featuring integrated graphics)
LAN: 1x Realtek RTL8111H 1Gbps LAN
Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Form Factor: mATX (220mm x 243.84mm)
