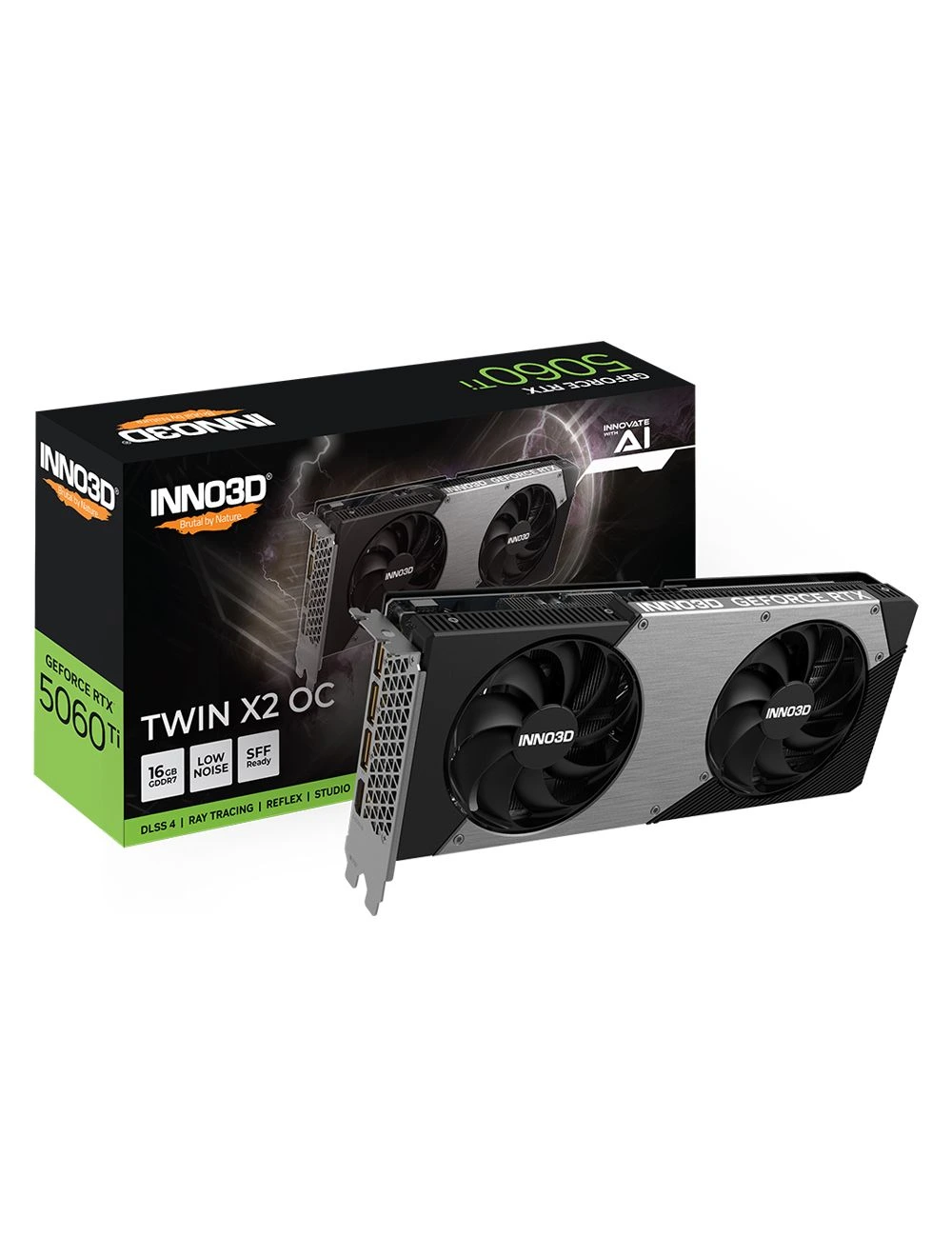

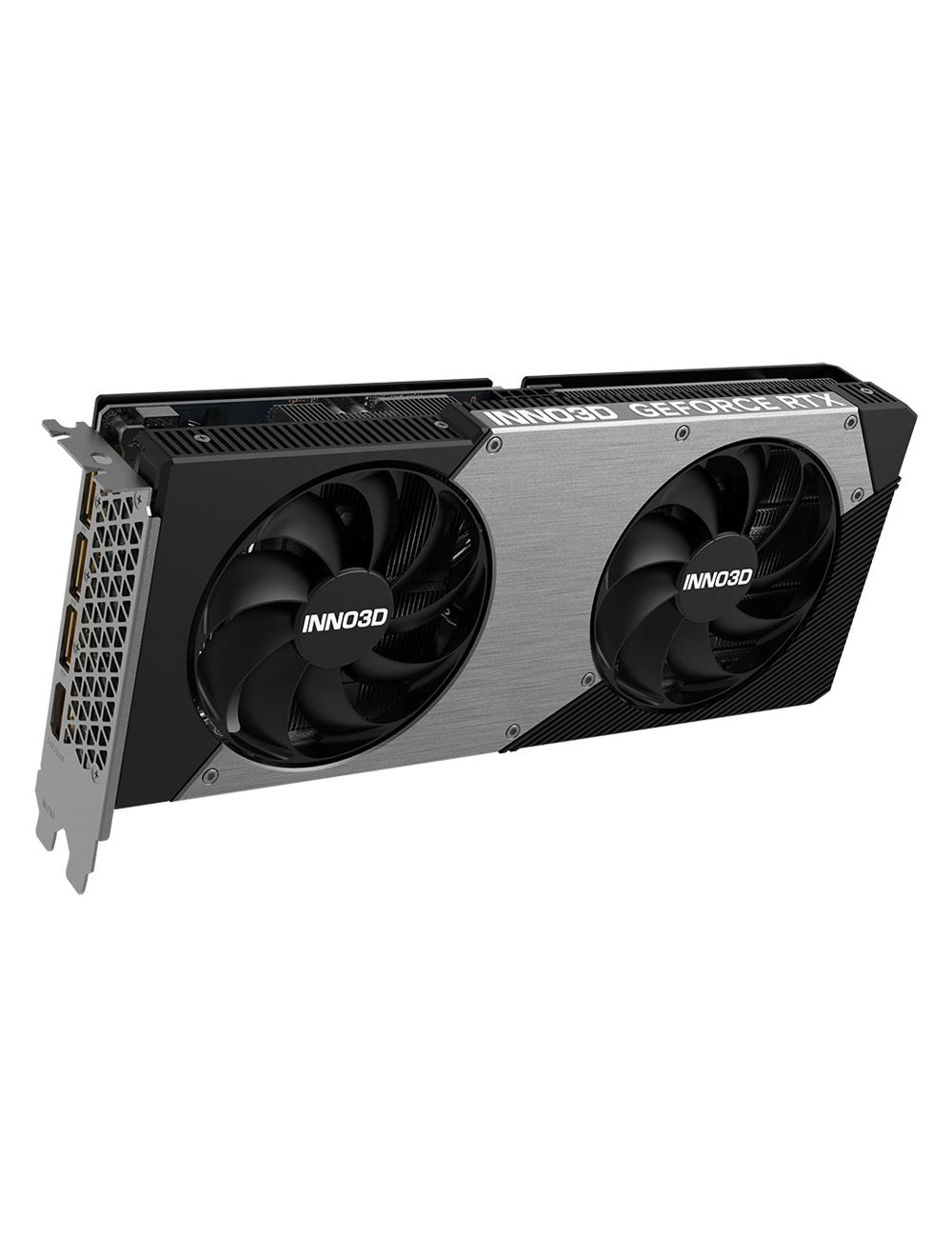

Inno3D RTX 5060 Ti Twin X2 OC 16GB GDDR7 Graphics Card

Specification

GPU Engine Specs
CUDA Cores:  4608
Boost Clock (MHz):  2602MHz
Base Clock (MHz):  2235MHz

Thermal and Power Spec
Minimum System Power Requirement (W):  650W
Supplementary Power Connectors:  1x PCIe 8-pin cables

Memory Specs
Memory Clock: 28Gbps
Standard Memory Config:  16GB
Memory Interface:  GDDR7
Memory Interface Width:  128-bit
Memory Bandwidth (GB/sec):  448 GB/sec

Feature Support
Real-Time Ray Tracing:  Yes
Ray Tracing Cores:  4th Generation, 72 TFLOPS
Tensor Cores:  5th Generation, 759 AI TOPS
NVIDIA Architecture:  Blackwell
Microsoft DirectX:  12 Ultimate
NVIDIA DLSS:  4
NVIDIA Ansel:  Yes
NVIDIA FreeStyle:  Yes
Bus Support:  PCI Express Gen 5
NVIDIA ShadowPlay:  Yes
OS Certification:  Windows 11, Linux, FreeBSDx86
NVIDIA Highlights:  Yes
NVIDIA G-SYNC™-Ready:  Yes
Game Ready Drivers:  Yes
NVIDIA Studio Drivers:  Yes
NVIDIA GPU Boost™:  Yes
Vulkan API:  1.4
OpenGL:  4.6
NVIDIA Encoder:  1x Ninth Generation
NVIDIA Decoder:  1x Sixth Generation

Accessories

Graphics Card Dimensions
Length:  250mm
Height:  116mm
Width:  41mm

Display Support
Multi Monitor:  up to 4
Maxmium Digital Resolution:  4K at 480Hz or 8K at 165Hz with DSC
HDCP:  2.3
Standard Display Connectors:  3x DisplayPort 2.1b, 1x HDMI 2.1b
