- 23.8″,1920×1080 IPS display, Anti-glare 16:9
- Up to 0.5 ms response time(MPRT)
- Up to 180Hz refresh rate
- 1000:1, 99% sRGB, 120% color area ratio, true 8-bit color depth
- -5° to +22° tilt, left & right 30 swivel, -90° to +90° pivot, up to 135mm lift stand
- EU Energy Level Certification Level-E, TÜV Rheinland® Eye Comfort 2.0
Specification:
Display
- Panel Type: 3-side NearEdgeless, In-Plane Switching (IPS)
- Backlight: WLED
- Display Size: 23.8 inches
- Max View Area (WxH): 527.0 x 296.5 mm
- Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Pixel Pitch: 0.2745 x 0.2745 mm
- Pixel Density (DPI): 93 dpi
- Brightness: 300 cd/m² (Typical)
- Contrast Ratio: 1000:1 (Typical)
- Dynamic Contrast Ratio: 3,000,000:1
- View Angle (H/V): 178°/178°
- Response Time:
- MPRT: 0.5 ms
- Level 1: 4 ms
- Level 2: 3 ms
- Level 3: 2 ms
- Level 4: 1 ms
- Refresh Rate: 48Hz – 180Hz
- Rear Ports:
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4 (HBR2)
1x audio-out (3.5mm) - Color Gamut:
- 120% sRGB (Area Ratio)
- 99% sRGB (Coverage)
- Color Support: 16.7 Million
- Color Depth: True 8-bit
- Screen Surface Treatment: Anti-glare
- Curvature: Flat Panel
Power
- Power Consumption:
- Typical: 16.6W
- Maximum: 24W
- Sleep/Off Mode: <0.5W
- Switch-off Mode: <0.3W
- Power Supply: Internal
- Voltage Required: AC 100 to 240 V (50-60Hz)
Special Features
- AMD FreeSync™ (Requires AMD Radeon™ series graphics card)
- Lenovo® Artery (Lenovo® Accessories and Display Manager) Support (Windows® 10 & 11, Mac OS, and Windows® On Arm; functions vary across systems. Formerly Lenovo® Display Control Center.)
- Gaming Console Support
Design
- Bezel Width:
- Thickness of Head: 15.1mm (Minimum)
- Side: 2.6 mm
- Top/Bottom: 2.6mm / 20.6mm
- Cable Management: Supported
- Case Color: Raven black
Mechanical
- ThinkCentre M Series Support: None
- Dimensions (WxDxH):
- Lowest Position: 540.4 x 258.6 x 388.0 mm (21.28 x 10.18 x 15.28 inches)
- Highest Position: 540.4 x 258.6 x 523.0 mm (21.28 x 10.18 x 20.59 inches)
- Head Only: 540.4 x 51.7 x 325.3 mm (21.28 x 2.04 x 12.81 inches)
- Packaging Dimensions (WxDxH): 642.0 x 187.0 x 462.0 mm (25.28 x 7.36 x 18.19 inches)
- Weight:
- Monitor with Stand: 4.8 kg (10.6 lbs)
- Monitor Head Only: 2.9 kg (6.4 lbs)
- Packaging Weight: 7.0 kg (15.4 lbs)

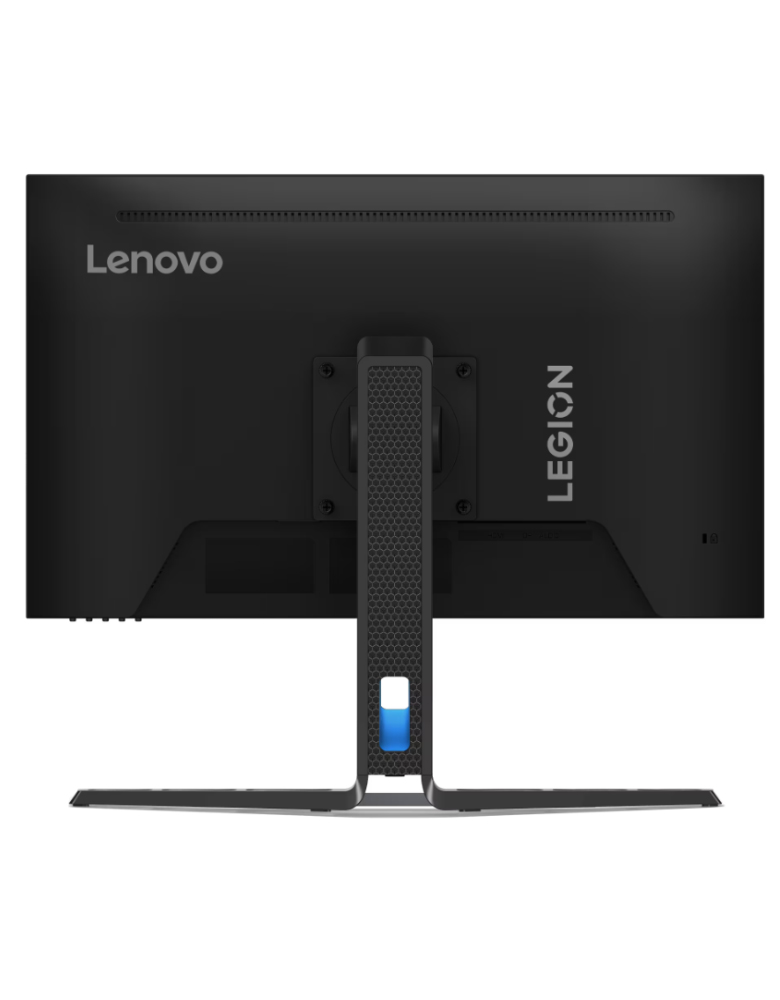

- Mounting: Supports VESA mount 100 x 100 mm

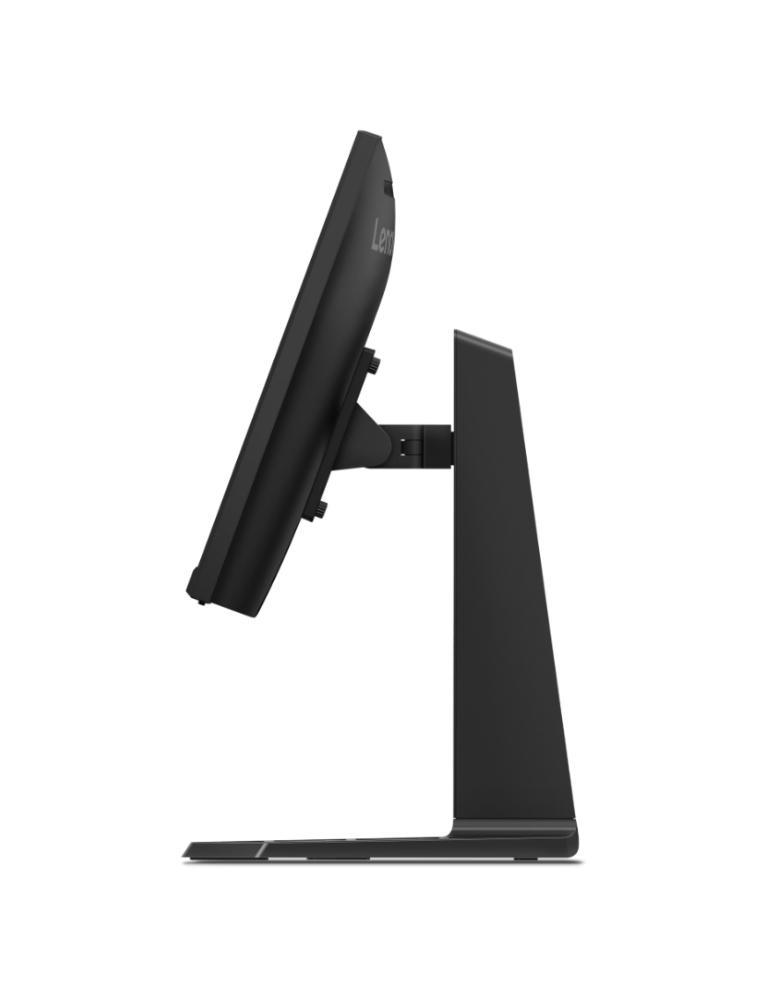

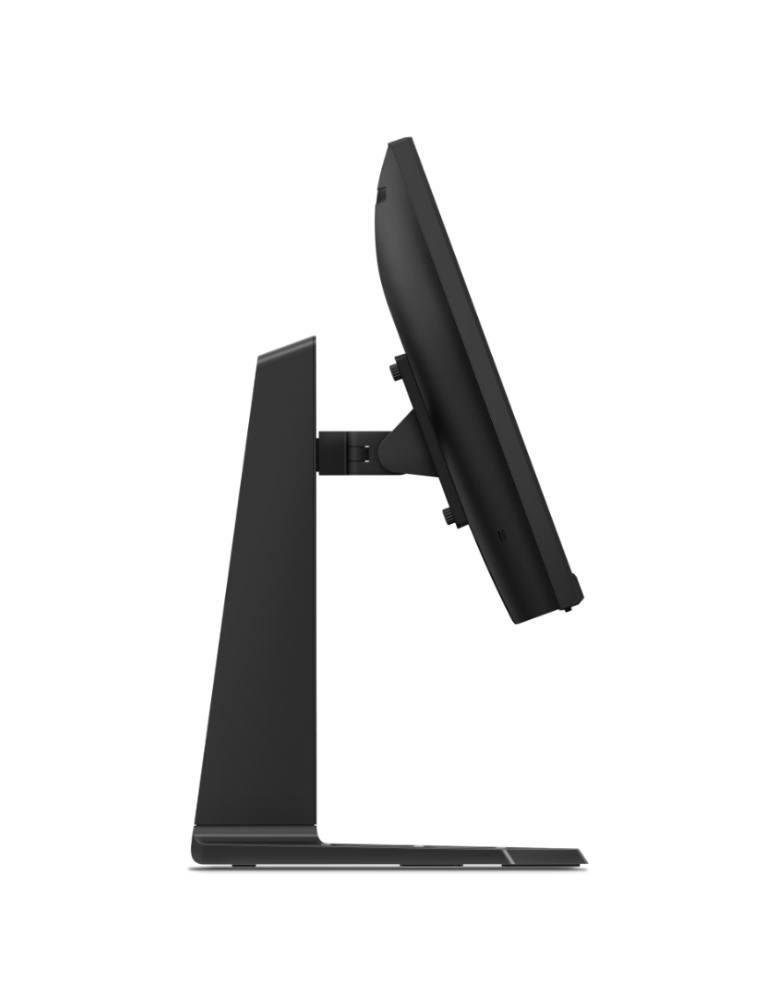

- Stand: Supports -5° to +22° tilt, ±30° swivel, -90° to +90° pivot, up to 135mm lift
- In the Box:
Monitor with Stand
1x HDMI® Cable (1.8m)
1x Power Cable (1.8m)
Quick Setup Guide
Warranty Booklet
