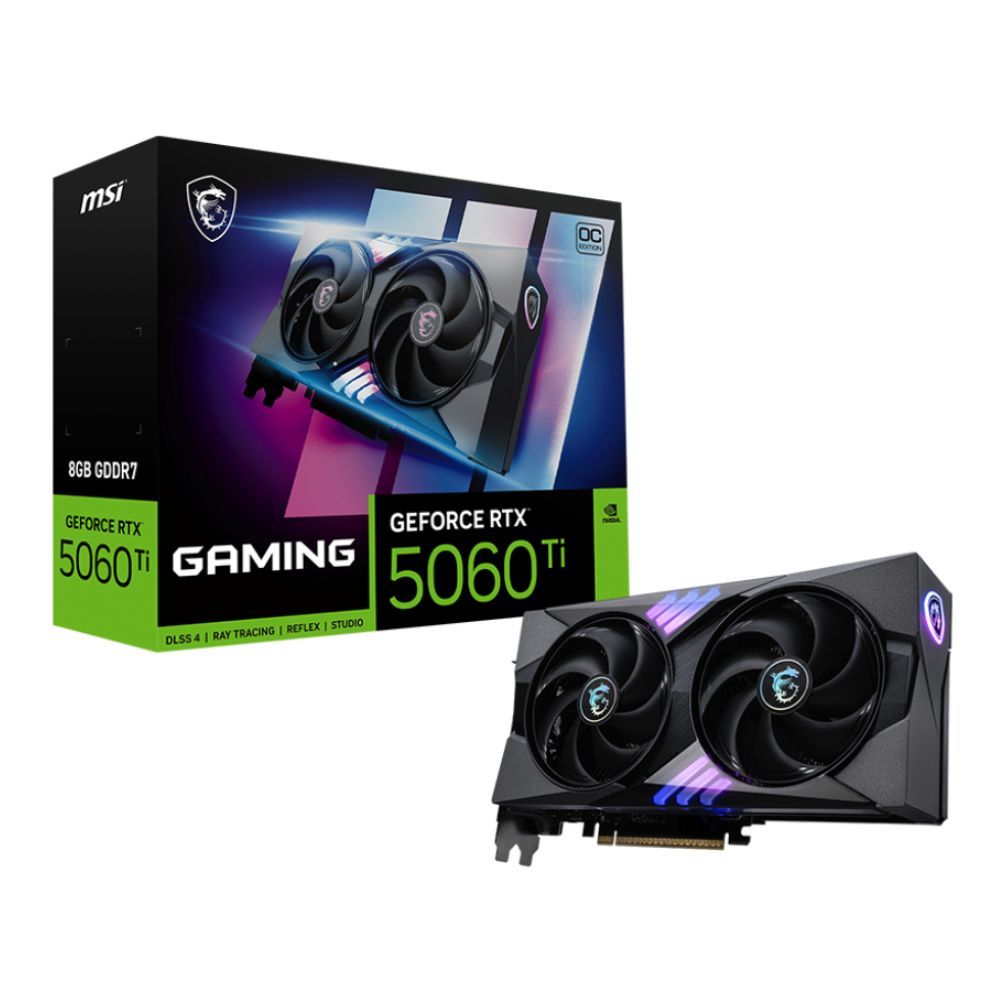

MSI Geforce RTX 5060 Ti 8GB Gaming OC GDDR7 Graphics Card

GeForce RTX™ 5060 Ti 8G GAMING OC

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clocks:
  Extreme Performance: 2662 MHz (MSI Center)
  Boost: 2647 MHz
• TWIN FROZR 10: Experience superior cooling and quieter performance with MSI’s enhanced fan blade design.
• STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
• Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
• Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
• Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specification

Marketing Name:  GeForce RTX™ 5060 Ti 8G GAMING OC

Model Name:  G506T-8GC

Graphics Processing Unit:  NVIDIA® GeForce RTX™ 5060 Ti

Interface:  PCI Express® Gen 5 x16 (uses x8)

Core Clocks:  Extreme Performance: 2662 MHz (MSI Center)
Boost: 2647 MHz

CUDA® CORES:  4608 Units

Memory Speed:  28 Gbps

Memory:  8GB GDDR7

Memory Bus:  128-bit

Output:  DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support: Y

Power consumption: 180W

Power connectors: 8-pin x1

Recommended PSU: 600W

Card Dimension (mm):  247 x 135 x 51 mm

Weight (Card / Package):  768 g / 1219 g

DirectX Version Support:  12 Ultimate

OpenGL Version Support:  4.6

Maximum Displays:  4

G-SYNC® technology:  Y

Digital Maximum Resolution:  7680 x 4320
