MSI Geforce RTX 5060 Ti 16GB Ventus 2x Plus OC GDDR7 Graphics Card

GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clock:
  Extreme Performance: 2617 MHz (MSI Center)
  Boost: 2602 MHz

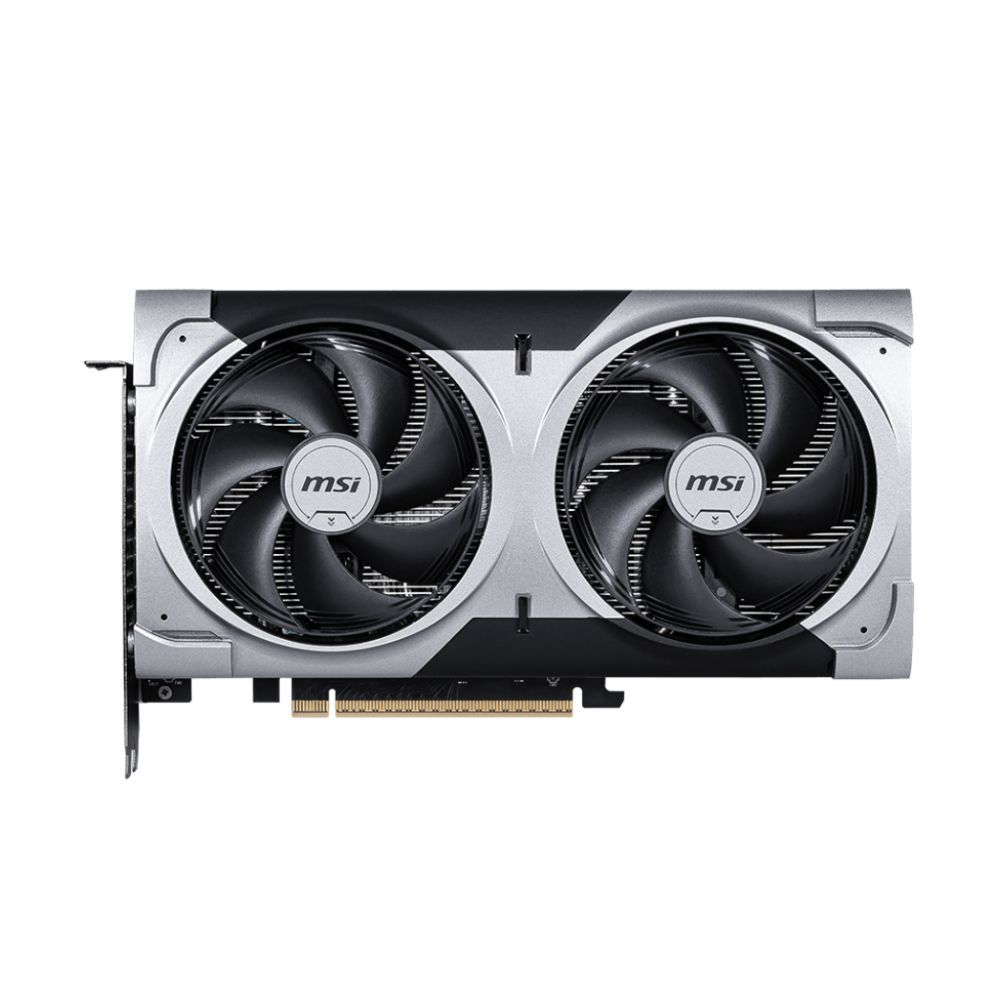

• STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
• Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

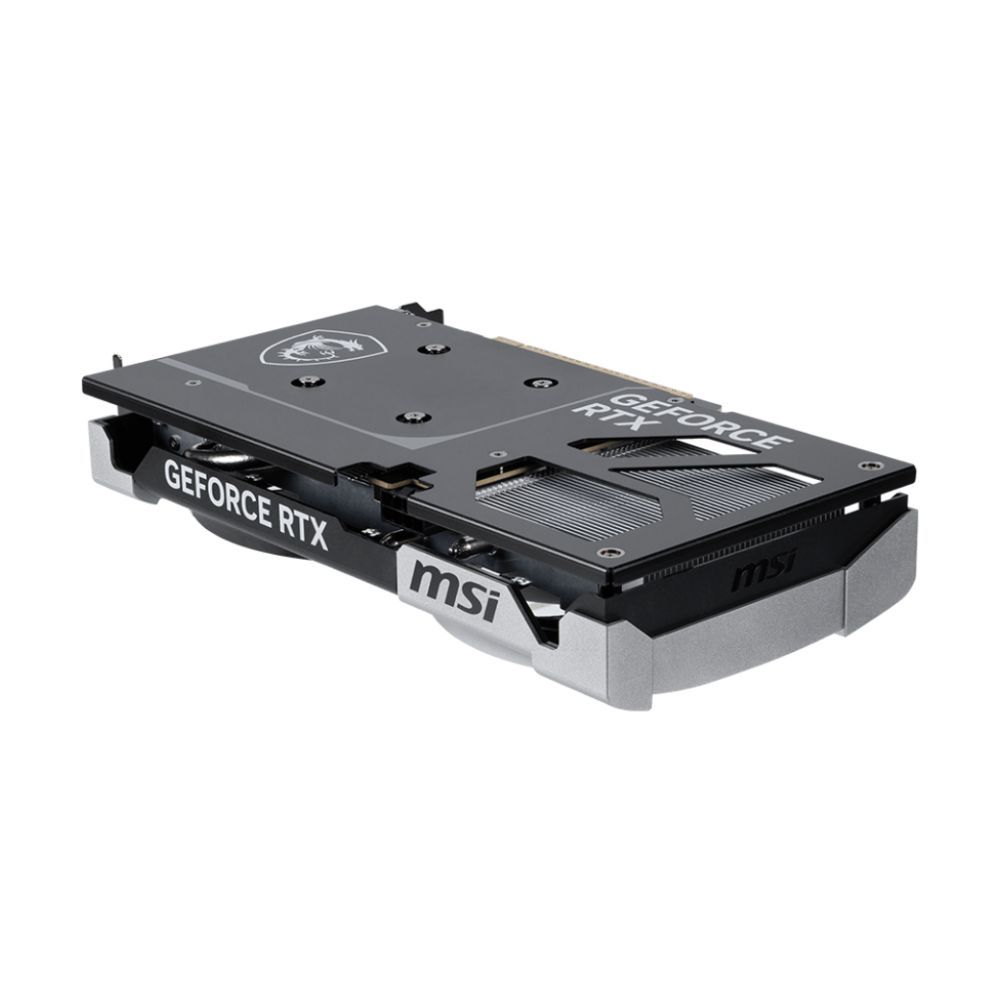

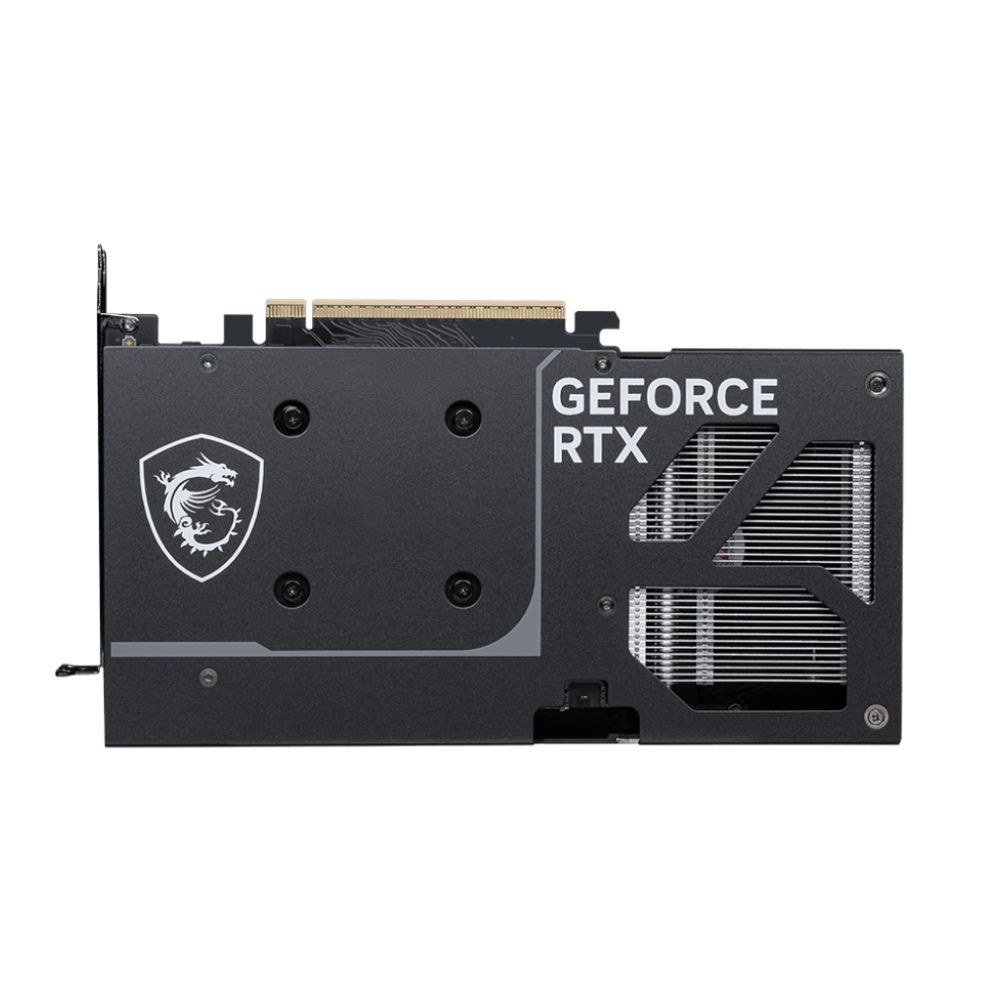

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specification

Marketing Name:  GeForce RTX™ 5060 Ti 16G VENTUS 2X PLUS

Model Name:  G506T-16V2CP

Graphics Processing Unit:  NVIDIA® GeForce RTX™ 5060 Ti

Interface:  PCI Express® Gen 5 x16 (uses x8)

Core Clocks:  Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz

CUDA® CORES:  4608 Units

Memory Speed:  28 Gbps

Memory:  16GB GDDR7

Memory Bus:  128-bit

Output:  DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support: Y

Power consumption: 180W

Power connectors: 8-pin x1

Recommended PSU: 600W

Card Dimension (mm):  227 x 126 x 41 mm

Weight (Card / Package):  600 g / 862 g

DirectX Version Support:  12 Ultimate

OpenGL Version Support:  4.6

Maximum Displays:  4

G-SYNC® technology:  Y

Digital Maximum Resolution:  7680 x 4320
